Backline Engineering Zentone 7 Review

Download Example 1
ZenTone 7 6V6, 1/4" direct out: Bass 5, Mid 5, Treb 7, bright switch on, Master 6, Gain 4 - single stage, then low-drive dual stage, then high-drive dual; Fender Contemporary Telecaster, bridge S/C;
Download Example 2
ZenTone 7 EL84 1/4" direct out: Bass 3, Mid 3, Treb 5, Bright switch, Gain 4 - first single stage, then low-drive dual; Duesenberg MC Signature, first bridge humbucker, then neck P-90.
Download Example 3
ZenTone7 EL34, 1/4" direct out: Bass, Mid, Treb 9/10; Master 8; Gain 10, high-drive dual stage gain; Gibson LP Studio, bridge pickup;
Recorded in Sound Studio on a MacBook Pro using Digidesign MBox.
Quite often, the phrase “feature rich” (especially when applied to amplifiers) is code for “complicated.” Happily, the ZenTone 7 from Backline Engineering, which sports an impressively long list of features for a small, 7-watt, single-ended Class A design, doesn’t fit in that category—at least not completely, anyway. I was able to get a number of useful tones from it right out of the box. All it took was inserting a supplied set of JJ tubes—two 12AX7s, an EL84 and a 6V6— and it was up and running.

Ideally suited as a studio tool that can also serve as a practice amp with a low-power mode (for tube tone and a nice overdrive at bedroom volumes), the amp is essentially a digitally-controlled device with an all-tube signal path, and offers a great deal of flexibility in terms of applications. Very clever. In addition to a 4- or 8-ohm speaker out, it offers both unbalanced 1/4” and balanced XLR direct outs with an internal speaker load and speaker emulation, so you if you don’t want to hook up a cab and mic it, you can run it right into your interface. If you want to use it on stage, you can send the XLR direct to the board and use the speaker out for an onstage monitor, or use the unbalanced direct out into a clean power amp for a high-volume rig. Talk about flexibility.

In addition to any of the several types of preamp tubes (12AX7, 12AT7, 12AU7, and so on), the octal tube socket also accepts 6V6, 6L6, EL34 and KT77 output tubes without the need for rebiasing. This makes tube substitution is as easy as it could be—a hefty bonus that makes it useful for yet another application, as a convenient tone-testing platform for various members of your tube collection.

Controls

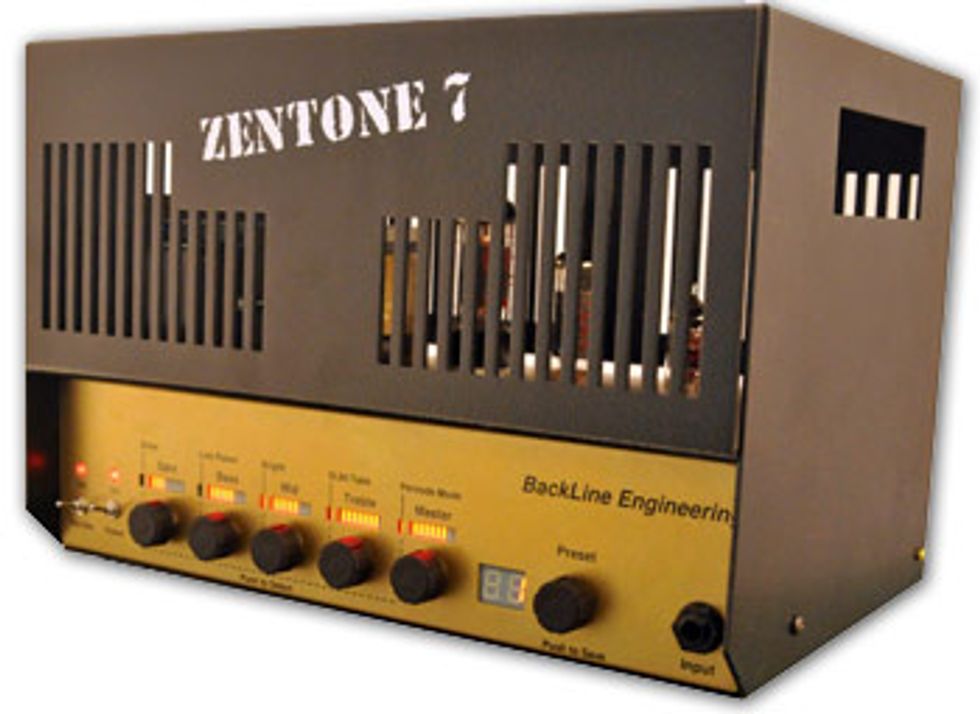

At first glance, the front control panel presents a traditional layout, with On/Off and Standby switches, Gain and Master volume controls, and 3-band tone stack of Bass, Mid, and Treble— the Preset control being the only unusual element. The controls are digital, supplying the first twist on traditional here: rather than rolling free through their ranges, each knob has discrete settings as you turn, and an LED readout to let you know where you are in the rotation. There are 16 possible settings for both gain and volume, and 8 each for the tone controls. This design choice offers very precise tone shaping potential, even if it is an unusual way to operate an amp of this type. The second twist on traditional control panels lies in the fact that each knob also functions as a push-button switch for an additional feature: the Master volume control knob doubles as a switch for triode/ pentode operation; pushing in the Treble control knob selects between EL84 or octal tube output; the Mid knob is also bright switch; the Bass, a low-power switch; and the Gain knob controls switching between a single stage preamp, and “low drive” or “high drive” dual-stage preamp.

This is where the clever design of the amp really shows itself. It keeps the visual presentation of options to a minimum, while laying out all the possibilities in one place, leaving the ears and fingers to wander easily through the tonal territory. While it isn’t perfectly intuitive, it is logical and well designed; you don’t have to memorize a manual, or negotiate a mess of switches and gizmos.
