Pickup Height and Mic Placement

A A
Pickup Height and Mic Placement
Last month, I presented a general overview of the pedalboard I use on tour and discussed how to reconcile varying volumes between guitars with different pickup outputs in a live setting. In this column, we’ll explore some important aspects of tone that are often overlooked and have nothing to do with effects at all.

Pickup Height

Pickup height makes a huge difference in both your guitar’s tone and overall volume. Every little change in pickup height will change your guitar’s volume dramatically. If you find yourself really liking the sound of a guitar’s bridge pickup, but you don’t really care for the neck pickup (or vice versa), try adjusting the height of the pickup you’re unhappy with. You’ll be surprised at how much you can change the personality of your instrument through pickup height adjustments.

In general, you will want to get the volumes of your pickups equal. Having your pickups set at the same height does not necessarily mean they will be the same volume, so you will need to experiment and listen closely. A few months ago, Paul Reed Smith and I were having a conversation about several different aspects of the technical side of guitar tone, and he made a really interesting analogy. He said, “The guitar is the singer and the pickups are the microphones.” Imagine how vocalists pull the microphone away from their mouth to create a drop in volume. You can apply the same concept to a guitar by moving the pickup further away from the strings.

Pickup height can also help cure a very common problem associated with single-coil pickups. Often times, if you play an E chord in the bridge position on a single-coil guitar with the volume cranked on your amp, the treble strings will produce an offensive, shrill sound that will make listeners wince. I’ve solved this problem on my single-coil bridge pickups by lowering the height on the treble side just a touch. The volume on the treble strings drops a little bit when I do this, and I also notice that a tiny amount of high end disappears on the attack of the notes, but the shrillness vanishes.

Why is this? If you look at a bridge pickup on a Stratocaster or Telecaster, you’ll see that it’s angled toward the bridge on the treble side. This means that the pickup senses the treble strings at a different point than on the bass strings. The closer the pickup is to the bridge, the twangier the strings will sound. In addition, more high end will be translated by the treble strings because the string is tauter close to the bridge and therefore moving less. So before you roll the tone knob back or dismiss your bridge pickup as “too bright,” try adjusting the pickup height and see if you can make its tone more attractive to your ears.

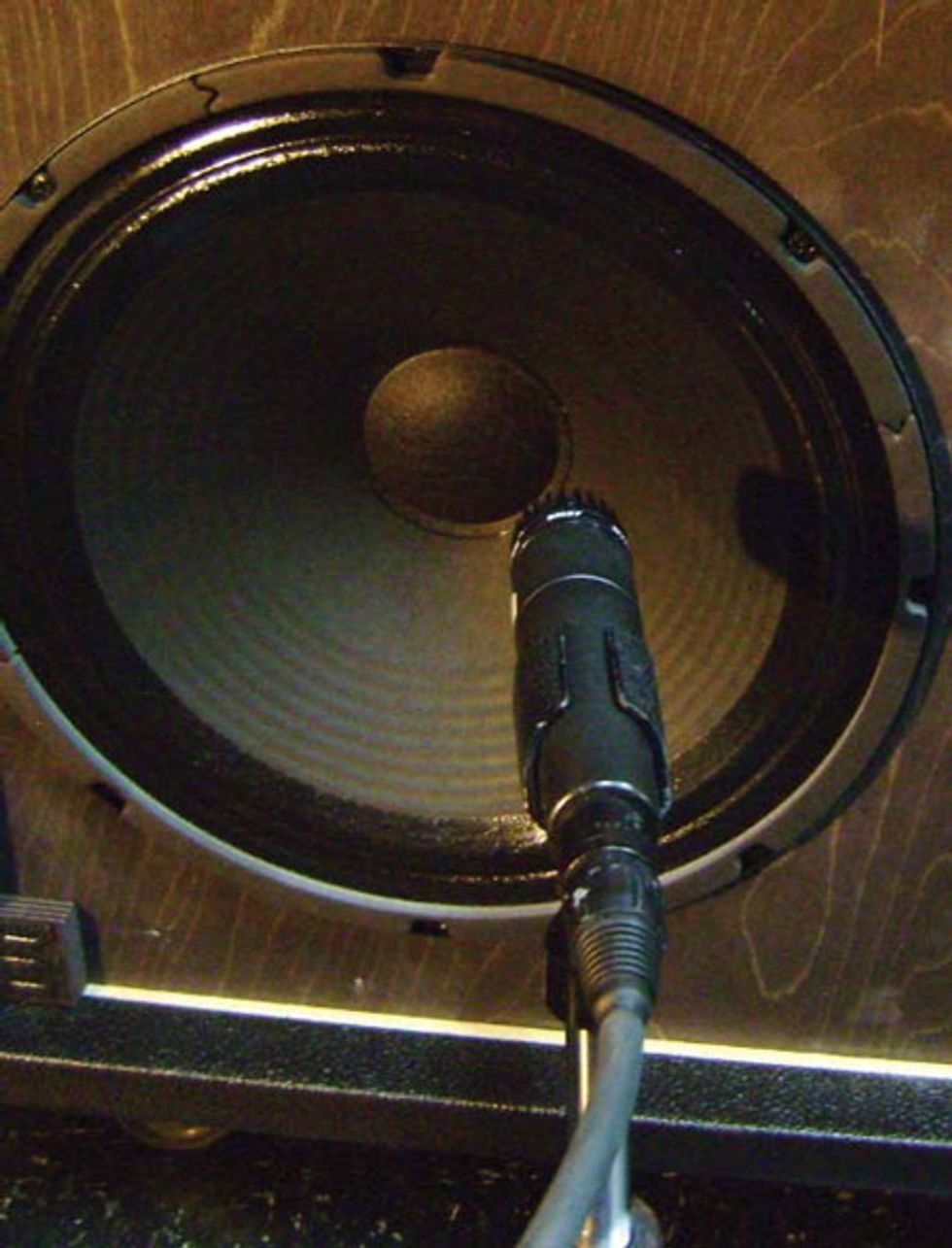

Position a Shure SM57 mic between the speaker’s dustcap and cone to capture the most energetic sound waves.

Speakers and Mic Placement
When it comes to speakers, I use Celestion Vintage 30s and Mesa/Boogie Black Shadows (the latter are 90-watt speakers). I like to place a Shure SM57 microphone between the speaker’s dustcap and the cone, as shown in the photo. This placement works well on both the 30s and Black Shadows. I asked Randall Smith, founder of Mesa/Boogie, why that particular location sounds so good. He explained that it was similar to creating a ripple in a pond. The most energy resides in the place of impact and the ripples get weaker the further they travel from that point. In the case of a speaker, the ripples are sound waves, which are created by the speaker’s coil. The coil is located behind the area where I place the mic, which produces the best tone, in my opinion.

Another tip you might find useful: The Shure SM57 is the industry standard for mic’ing a guitar amplifier, but we must remember that an SM57 was created as a vocal mic, so aspects of its design have a singer in mind. If you remove the cap on the capsule, you’ll discover a piece of foam between the windscreen and the diaphragm. This foam is installed because it prevents moisture from a singer’s mouth from getting into the mic diaphragm. If you’re using the SM57 strictly for mic’ing a speaker, you can pull the foam out. When you remove it, you’ll notice a little more clarity on the top end, as well as more definition in the notes’ attack.

As you experiment with mics and mic placement, remember that every player’s approach and playing style is different, so you will want to experiment with different techniques in different situations. If you have a wireless system or a long cable, go to the front of house during sound check and listen to how your guitar tone is translating. Then walk back onstage and move the mic an inch or two, or change the angle slightly, and go back out to the front of house and take note of the changes in your rig’s sonic character.

I hope you find some of these techniques useful. I’m constantly educating myself on how to control and improve my tone, and I encourage you to do the same. Please send me an email if there are any topics you would like to see covered in an upcoming Tone Tips column. See you next month!


Paul “TFO” Allen
Paul “TFO” Allen is a multi-instrumentalist who has worked with Big & Rich, Sebastian Bach, 112, Jake Owen, Montgomery Gentry, Larry the Cable Guy, and many others. He also has his own project called Ten Finger Orchestra, and can be reached at tenfingerorchestra@yahoo.com.
