In my previous column, we
began a two-part series on
Fender's Delta Tone system,
which includes “no-load" pots.
After introducing the Delta Tone
in 1997, Fender made it a feature
of the American Standard
Stratocaster, and the system
is still in use today. For a full
description of the Delta Tone
system, check out the January
2011 installment of Mod Garage
Now, let's take a closer look
at no-load pots. Visually, it's
easy to identify a no-load pot,
because of the detent dimple on
the back of its enclosure. This is
the mechanical spot where the
pot clicks and goes completely
open, removing itself from the
circuit. Other than having this
dimple, a no-load pot looks like
any other guitar potentiometer.
The CTS no-load pots that
are available from Fender aren't
very expensive, but if you like
the tone pot you already have
and don't want to replace it,
it's not difficult to mod it to
no-load specs—that's assuming
you can live without the detent
function.
Here's how to do it. First,
unsolder and remove the pot
you'd like to mod. The next step
is to disassemble the pot. Using
a pair of small needle-nose
pliers, start this operation by
bending the pot's case tabs open.
Next, remove the metal housing
and lift out the carbon wiper
tray with the soldering lugs.

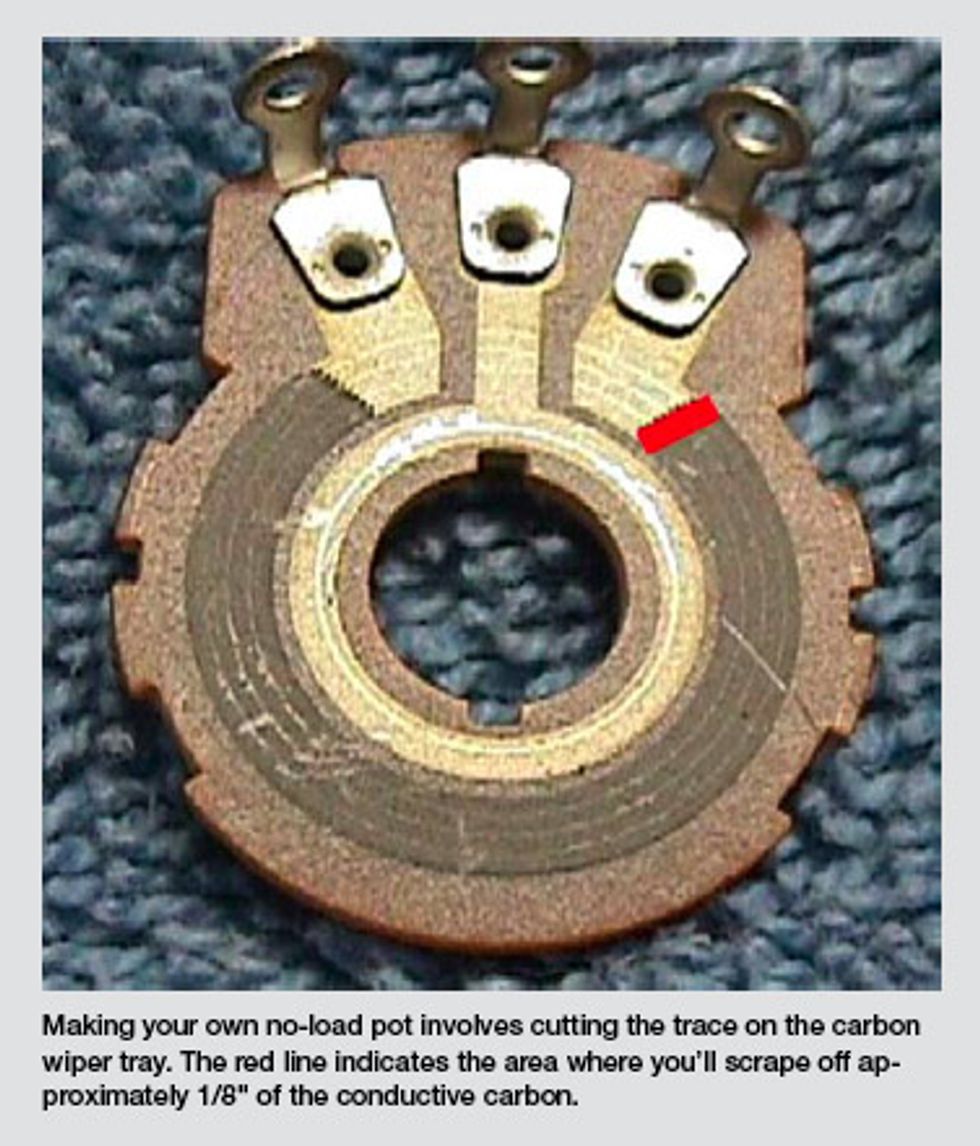

Place it in front of you exactly
as shown in the photo shown
here. Though your potentiometer
might be a little different, it
should look similar to this one.
Now take a sharp razor
blade, X-ACTO knife, drill bit,
Dremel tool, or a small needle
file and cut the trace, right at
the red line shown in the photo.
Personally, I like to use a special
file made for guitar nuts for this
work, but you can use whatever
you have at hand. Scrape
off approximately 1/8" of the
carbon and clean this area with
a dust brush or a similar tool.
That's it.
Next, reassemble the pot
and use the needle-nose pliers
to push back each of the four
case tabs. Reinstall the pot on
the pickguard and resolder the
wires. Voilà! With the pot fully
opened, it will remove itself
from the circuit. Now you have
a no-load pot without any additional
costs . . . but without the
detent feature.
A side note: You might read
that covering that area on the
carbon wiper tray with nail
polish will do the same trick as
scraping off 1/8" of carbon. I
don't recommend this, because
depending on the pot, the polish
may not stick to the carbon
taper. The “surgical method"
outlined here is better.
To test your no-load pot,
turn your pot so that the shaft
is facing down and the lugs
are facing up, and connect one
lead of your digital multimeter
(DMM) to the middle lug of the
pot, and the other lead to the
right lug. Next, set your DMM
to resistance. With the pot
turned all the way clockwise to
10, you should receive an open
or “no reading." If you turn
the pot counter-clockwise to 9
or lower, the pot will function
normally, and you should see
readings that are close to the pot
value and that decrease as you
roll back toward 0.
Stay tuned for more Strat
mods in the coming months.
Next time, we'll talk about the
Fender “Greasebucket" tone
control. Meanwhile, keep modding!
