Synergy Amps, in partnership with Marshall Amplification, announces the release of the Marshall JCM 800 Dual Channel Three-Tube Preamp Module, bringing one of the most iconic amplifier tones in rock history to the Synergy modular platform.
Originally introduced in the early 1980s, the JCM 800 set a new standard for high-gain amplification, delivering the aggressive punch, clarity, and unmistakable British voice that defined hard rock and heavy metal. Now, for the first time, that legendary tone is available in a dual-channel Synergy module based on the classic 2203 and 2204 circuits.

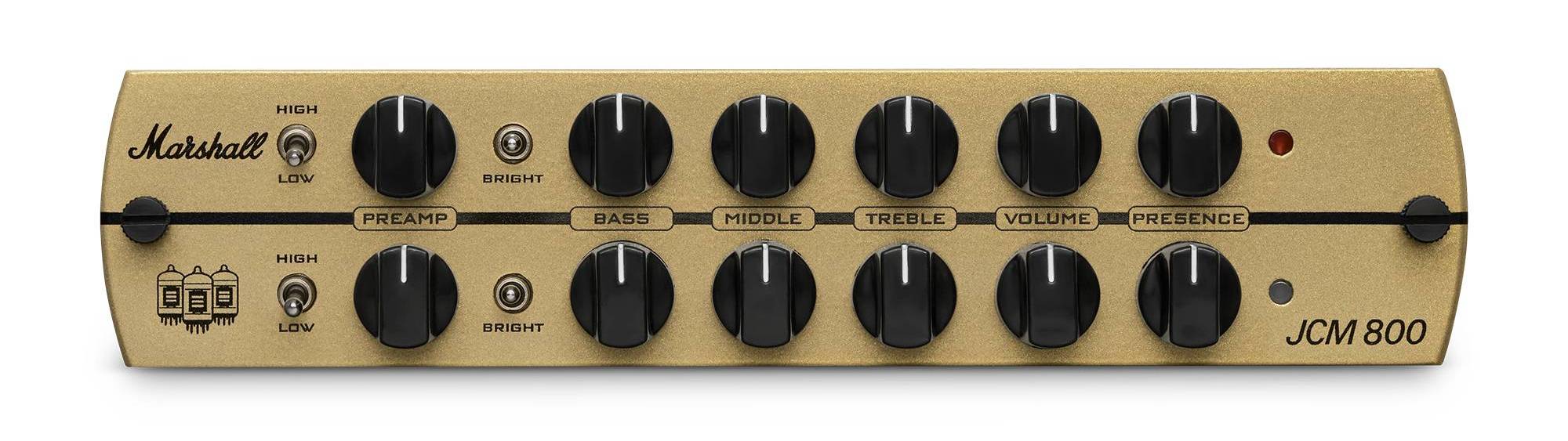

The JCM 800 module features two identical channels, each with independent Preamp, Bass, Middle, Treble, Presence, and Volume controls, along with separate Master Volumes for precise rhythm and lead balancing.
Debuting as a Synergy first, the module incorporates a three-tube design. Two 12AX7 tubes drive the preamp, while a third powers a built-in 0-watt power amp and phase inverter—delivering the feel, sag, and harmonic response of a cranked JCM 800 at any volume.
Additional features include a three-position Bright switch, High/Low input selection, and a Cathode Select switch for fine-tuning low-end response and feel.
The Marshall JCM 800 module is compatible with all Synergy host devices, including SYN-1, SYN-2, SYN-20IR, SYN-20IR COMBO, SYN-30, and SYN-50.
DUAL-CHANNEL, THREE-TUBE PREAMP
Each of the JCM 800’s two identical channels feature independent Preamp, Bass, Middle, Treble, Presence, and Volume controls, giving you complete command over your gain structure and tonal response. From dynamic low-gain crunch to saturated high-gain sustain, the JCM 800 module delivers every nuance of the original amp’s voice. Independent Master Volume controls for each channel allow you to precisely balance rhythm and lead levels with all of the amp’s dynamic character and harmonic complexity.
THREE-TUBE MODULE WITH BUILT-IN 0-WATT POWERAMP - A SYNERGY FIRST

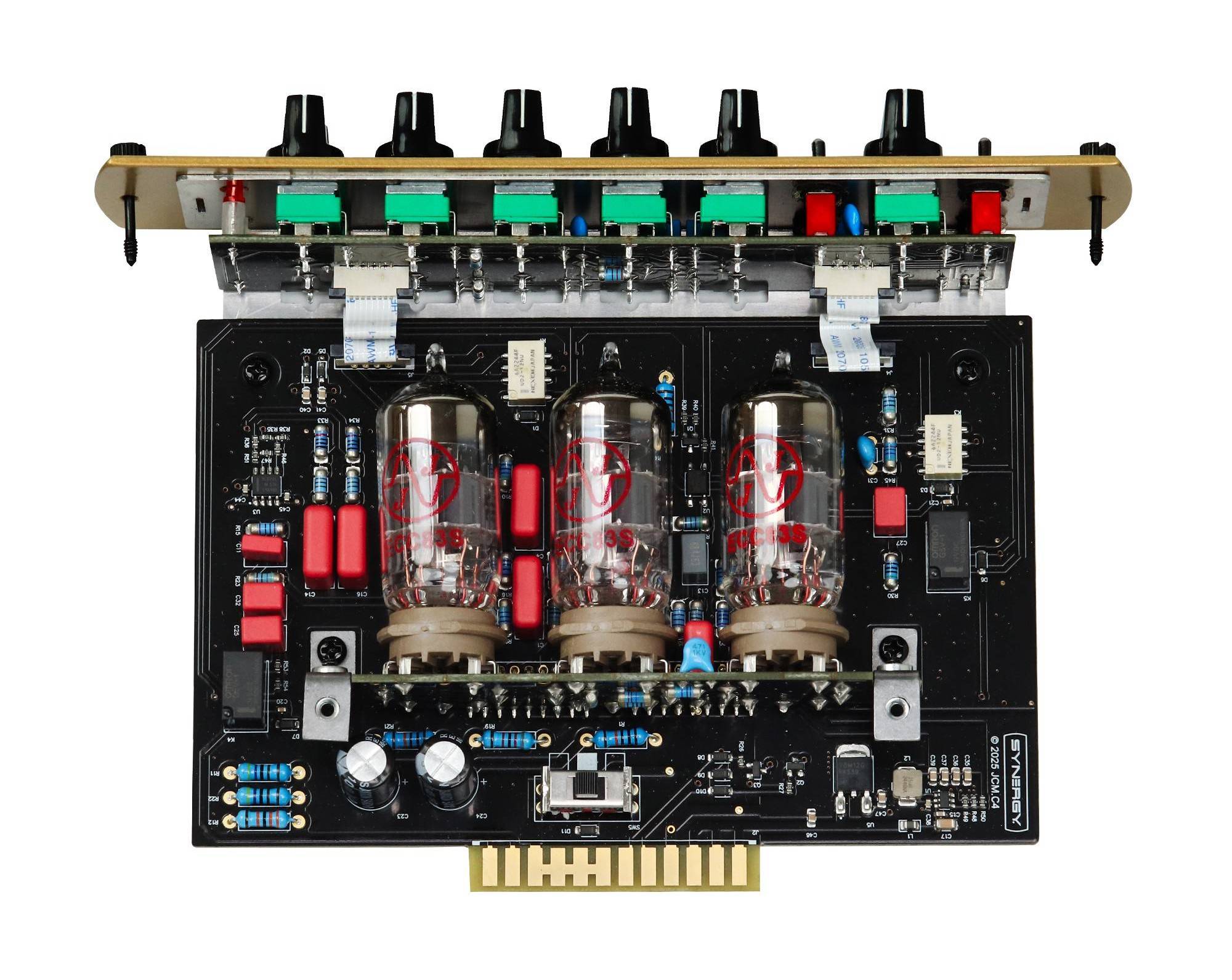

The JCM 800 module introduces Synergy’s revolutionary three-tube architecture - a first in modular preamp design.
Beloved by generations of players, the original JCM 800 truly came alive when cranked, thanks to the magical interplay between its preamp and power amp stages. Synergy has now captured that same raw energy and unmistakable feel in a compact, modular form. Two 12AX7s drive the preamp,
while a third 12AX7 powers the built-in 0-watt amplifier and phase inverter. With the JCM 800 module you get the sag, feel, and harmonic bloom of a fully cranked JCM 800 head - at any volume.
The JCM 800 module delivers the authority, grit, and edge that made this amp an icon in rock history, while propelling Synergy’s modular platform into bold new sonic territory.
BRIGHT & HIGH/LOW INPUT SWITCHES
Expanding on the original amp design, the JCM 800 module provides additional flexibility with two key features:
- Bright Switch: A three-position toggle switch selects between two bright cap values or removes it entirely. This lets you tailor the attack and clarity of the preamp stage - from tight and biting to warm and smooth. It’s just like modding the bright cap on a vintage 2203, without touching a soldering iron.
- High/Low Input Switch: Faithfully replicates the dual input jacks found on the original JCM 800, toggling between the high-gain “Lead” input and the lower-gain “Normal” input. This lets you instantly move from punchy, classic crunch to saturated modern drive.
CATHODE SELECT FUNCTION
The Marshall JCM 800 module features a three-position switch on the PCB, which allows you to configure the input tube bass response to match the original circuit of the selected module. These settings affect the feel and tightness. Each amp designer has a specific combination of components that make up their input tube circuit. We have selected the three most popular combinations which you can access with this switch: position 1 (1.5K resistor and 22uf capacitor), position 2 (2.7K resistor and .68uf capacitor) and position 3 (1.8K resistor and 1uf capacitor). Of course, you can experiment and try any position to see which you prefer. The JCM 800 module is preset to the center position (2.7K resistor and .68uf capacitor).
Synergy hardware and interchangeable preamps are protected under US patent.
The JCM800 module will only work in SYNERGY hosts (SYN-1, SYN-2, SYN-20IR, SYN-30, SYN-50).
IT WILL NOT WORK IN ANY OTHER HARDWARE FROM OTHER MANUFACTURERS.
MARSHALL THREE-TUBE MODULE FEATURES:
- Authentic three-tube preamp based on the legendary Marshall JCM 800 (2203 / 2204 Vertical Input)
- 3 x 12AX7 preamp tubes for full harmonic complexity and dynamic response
- Built-in 0-watt power amp and phase inverter for true amp-like feel
- Two identical channels, each with: Preamp, Bass, Middle, Treble, Presence
- Independent Master Volumes for rhythm/lead
- Bright switch (three-position) adjusts bright cap value for tone shaping
- High/Low Input switch replicates original JCM 800 input behavior
- Cathode Select switch on PCB for adjustable tube response
- Easy to install and remove from Synergy preamp docks
