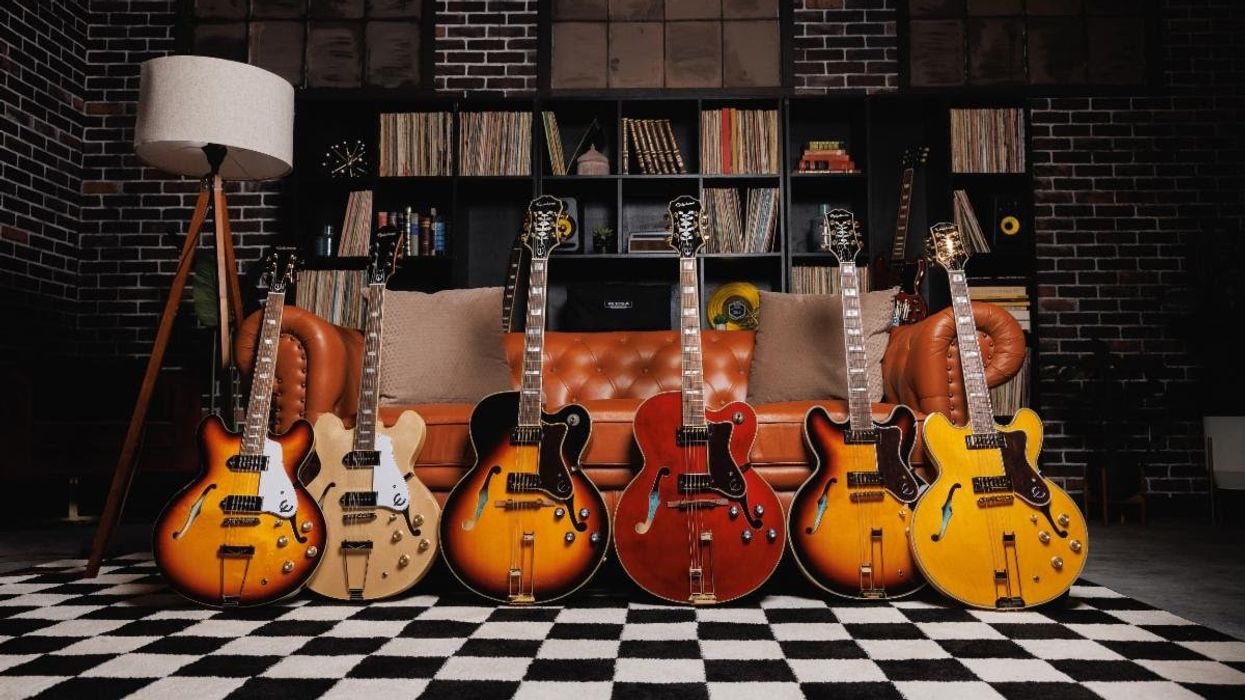

These Epiphone Original Collection models are intended to celebrate Epiphone’s legacy of innovation and quality.
Casino
Since 1961, the legendary Casino has been Epiphone’s best-selling archtop and a rock ‘n’ roll standard. First introduced in 1961, the Casino was just one of several new thinline archtops designed and produced at the company’s adopted new factory in Kalamazoo, Michigan that it shared with one-time competitor and new partner, Gibson. The Casino was adopted by Keith Richards of the Rolling Stones who used a Casino to record the demo for “Satisfaction” at Chess Records in Chicago. Howlin’ Wolf took a Casino on his first tour of the U.K., appearing on Thank Your Lucky Stars. Shortly afterward, John Lennon and George Harrison bought Casinos for the Beatles’ 1966 world tour. Featuring Dogear PRO P-90 pickups and a 5-ply maple body, the Casino is available in Natural and Vintage Sunburst finishes; an Epiphone premium gig bag is included.
Broadway
For over 70 years, the classic Epiphone Broadway has been considered the ultimate hollowbody jazz guitar, but it’s also excellent for roots rock and other genres. Now, this legacy-rich instrument has returned with beautiful new finishes and comes equipped with Alnico Classic PRO humbuckers, a vintage-style gold Frequensator Split Trapeze tailpiece, and premium tuners. Gold hardware and other fine appointments like mother-of-pearl and abalone fretboard and headstock inlays add to the subdued class of this versatile archtop. Available in Vintage Sunburst, and Wine Red finishes, an Epiphone premium gig bag is included.
Sheraton
One of Epiphone’s most storied guitars, the Sheraton returns in both Vintage Sunburst and Natural finishes. This elegant instrument features a semi-hollow body crafted from layered maple with a maple centerblock for feedback resistance. The 22-fret, mahogany neck has a bound Indian laurel fretboard with block mother of pearl with abalone triangle inlays. The bound headstock has a historic Epiphone logo and tree of life in mother of pearl. Epiphone ProBucker mini humbuckers deliver a wide dynamic tonal range that finds a voice in nearly any genre. Gold hardware, including a vintage styled Frequensator Split Trapezes tailpiece, adds to the simple timeless aesthetic of this Epiphone legend; an Epiphone premium gig bag is included.
For more information, please visit epiphone.com.
- Will Ray's Bottom Feeder: Epiphone Les Paul SL ›
- 1970s Epiphone EA255 ›
- Epiphone Embassy PRO Review ›
- Epiphone Unveils Dave Mustaine Flying V Custom & Prophecy - Premier Guitar ›
Maxon OD-9 Overdrive Pedal
The Maxon OD-9 Overdrive Effects Pedal may look like your old favorite but that's where the similarity ends. Improved circuitry with a new chip yields the ultra-smooth dynamic overdrive guitarists crave. Drive and Level controls tweak the intensity and volume while the Hi-Boost/Hi-Cut tone controls adjust brightness. Features true bypass switching, a die-cast zinc case, and 3-year warranty. From subtle cries to shattering screams, the Maxon OD-9 delivers a huge range of tones.
Features
Improved circuitry with a new chip yields ultra-smooth dynamic overdrive
Drive and Level controls tweak the intensity and volume
Hi Boost/Hi Cut tone controls adjust brightness
True bypass switching
Die-cast zinc case
AC/DC operation (order optional Maxon AC210N adapter)
Product Specs
Input: 1/4" mono jack
Output: 1/4" mono jack
Power: 9V DC, 6 mA, center pin minus (not included)
Dimensions: (WxDxH) 74 mm x 124 mm x 54 mm
Weight: 580g
Fender’s Greasebucket system is part of Cory Wong’s sonic strategy.
Tone pot with Fender Greasebucket tone system:
This 250k tone pot is a standard CTS pot with a 90/10 audio taper found in all U.S.-built Fender guitars. The Cory Wong guitar uses the Fender Greasebucket system, which is added to the pot as a ready-to-solder PCB. The Greasebucket PCB is also available individually from Fender (part #7713546000), though you can use conventional electronic parts for this.
Fender introduced this feature in 2005 on some of the Highway One models and some assorted Custom Shop Strats. The Greasebucket name (which is a registered Fender trademark, by the way) is my favorite of Fender’s marketing names, but don’t let it fool you: Your tone will get cleaner with this modification, not greasy and dirty.
According to Fender, the Greasebucket tone circuit reduces high frequencies without adding bass as the tone knob is turned down. Don’t let that description confuse you. A standard Strat tone control does not add any bass frequencies! As you already know, with a passive system you can’t add anything that isn’t already there. You can reshape the tone by deemphasizing certain frequencies and making others more prominent. Removing highs makes lows more apparent and vice versa. In addition, the use of inductors (which is how a passive pickup behaves in a guitar circuit) and capacitors can create resonant peaks and valleys (band-passes and notches), further coloring the overall tone.
Cory Wong bringing the funk onstage.
This type of band-pass filter only allows certain frequencies to pass through, while others are blocked. The standard tone circuit in a Strat is called a variable low-pass filter (or a treble-cut filter), which only allows the low frequencies to pass through while the high frequencies get sent to ground via the tone cap.
The Greasebucket’s band-pass filter is a combination of a high-pass and a low-pass filter. This is supposed to cut high frequencies without “adding” bass, which has mostly to do with the resistor in series with the pot. That resistor means the control will never get to zero. You can get a similar effect by simply not turning the Strat’s standard tone control all the way down. (The additional cap on the wiper of the Greasebucket circuit complicates things a bit, though; together with the pickups it forms an RLC circuit, but I really don’t want to get into that here.)
The standard Fender Greasebucket tone system is used in the Cory Wong Strat, which includes a 0.1 μF cap and a 0.022 uF cap, along with a 4.7k-ohm resistor in series. These are the values used on the PCB, and without the PCB it looks like the illustration at the top of this column.
Push-push tone pot with preset overwriting function:
The lower tone pot assigned to the bridge pickup is a 250k audio push-push pot with a DPDT switch. The switch is used to engage a preset sound by overwriting the 5-way pickup-selector switch, no matter what switching position it is in. The preset functionality has a very long tradition in the house of Fender, dating back to the early ’50s, when Leo Fender designed a preset bass sound on position 3 (where the typical neck position is on a modern guitar) of the Broadcaster (and later the Telecaster) circuit. Wong loves the middle-and-neck-in-parallel pickup combination, so that’s the preset sound his push-push tone pot is wired for.
The neck pickup has a dedicated tone control while the middle pickup doesn’t, which is also another interesting feature. This means that when you hit the push-push switch, you will engage the neck and middle pickup together in parallel, no matter what you have dialed in on the 5-way switch. Hit the push-push switch again, and the 5-way switch is back to its normal functionality. Instead of a push-push pot, you can naturally use a push-pull pot or a DPDT toggle switch in combination with a normal 250k audio pot.
Here we go for the wiring. For a much clearer visualization, I used the international symbol for ground wherever possible instead of drawing another black wire, because we already have a ton of crossing wires in this drawing. I also simplified the treble-bleed circuit to keep things clearer; you’ll find the architecture of it with the correct values in the previous column.
Cory Wong Strat wiring
Courtesy of singlecoil.com
Wow, this really is a personalized signature guitar down to the bone, and Wong used his opportunity to create a unique instrument. Often, signature instruments deliver custom colors or very small aesthetic or functional details, so the Cory Wong Stratocaster really stands out.
That’s it! In our next column, we will continue our Stratocaster journey in the 70th year of this guitar by having a look at the famous Rory Gallagher Stratocaster, so stay tuned!
Until then ... keep on modding!
Key Features of the ZOMA
● Intuitive Control Layout: Three large knobs give you full control over Reverb Level, Tremolo Rate,and Depth
● Easy Access to Alternate Controls: Adjust Reverb Decay, Reverb Tone, and Tremolo Volume withsimple alt-controls.
● Instant Effect Order Switching: Customize your signal path. Position tremolos after reverb for avintage, black-panel tone or place harmonic tremolo before reverb for a dirty, swampy sound.
● True Bypass or Buffered Trails: Choose the setting that best suits your rig.
Three Reverb and Tremolo Modes:
● SS – Spring Reverb & Sine Tremolo: Classic spring reverb paired with a sine wave tremolo for that timelessblack-panel amp tone.
● PH – Plate Reverb & Harmonic Tremolo: Smooth, bright plate reverb combined with swampy harmonictremolo.
● PV – Plate Reverb & Pitch Vibrato: Achieve a vocal-like vibrato with ethereal plate reverb.
Reverb: Sounds & Controls
● Spring Reverb: Authentic tube amp spring reverb that captures every detail of vintage sound.
● Plate Reverb: Bright and smooth, recreating the lush tones of vibrating metal plates.
● Reverb Decay: Adjust the decay time using the REVERB/ALT SWITCH while turning the Level knob.
● Reverb Tone: Modify the tone of your reverb using the REVERB/ALT SWITCH while turning the Rate knob.
Tremolo: Sounds & Controls
● Sine Wave/Volume Tremolo: Adjusts the volume of the signal up and down with smooth sine wavemodulation.
● Harmonic Tremolo: Replicates classic tube-amp harmonic tremolo, creating a phaser-like effect withphase-split filtering.
● Pitch Vibrato: Delivers pitch bending effects that let you control how far and how fast notes shift.
● Alt-Control Tremolo Boost Volume: Adjust the boost volume by holding the REVERB/ALT footswitch whileturning the Depth knob.
The ZOMA is built with artfully designed circuitry and housed in a proprietary angled aluminum enclosure, ensuring both simplicity and durability. Like all Keeley pedals, it’s proudly designed and manufactured in the USA.
ZOMA Stereo Reverb and Tremolo
The first sound effects built into amplifiers were tremolo and reverb. Keeley’s legendary reverbs are paired with their sultry, vocal-like tremolos to give you an unreal sonic experience.
