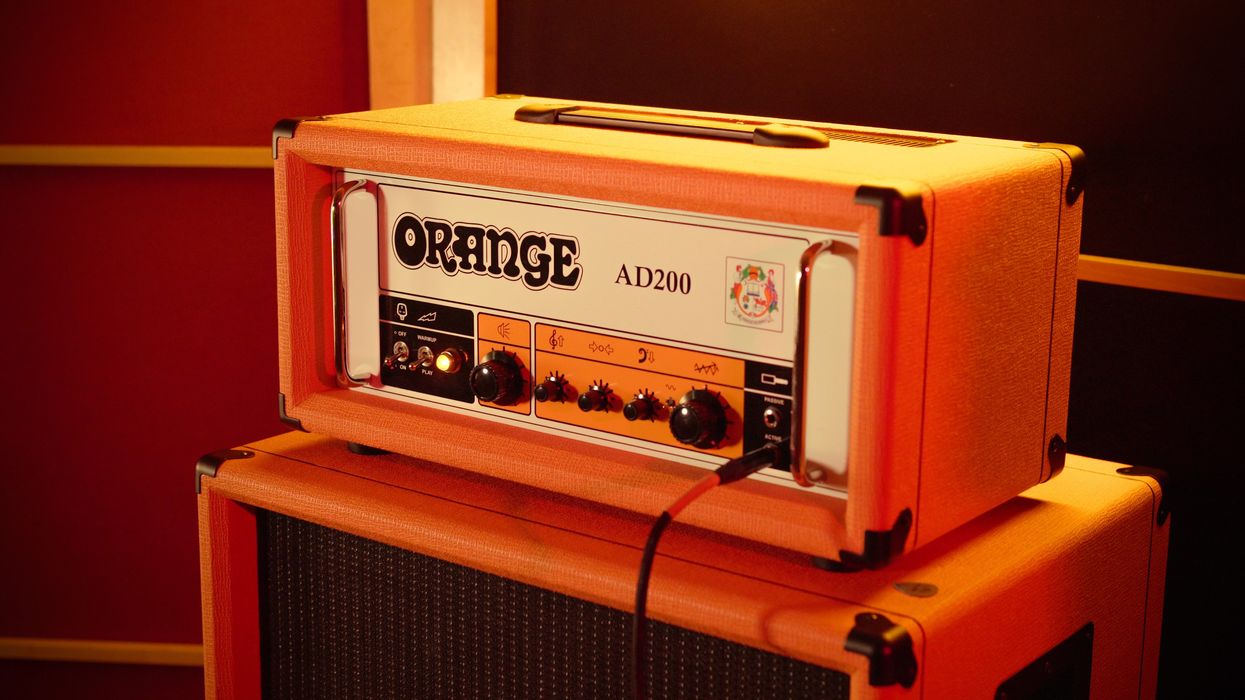

The legendary bass amp used by Geddy Lee and Glenn Hughes has been redesigned and revamped.
The new AD200 is still designed on the premise that the best tone comes from the shortest signal path from bass to speaker. Whatever type of bass, playing style, or genre of music, the AD200 faithfully retains the tone of that instrument.
The addition of a new clean switch, in combination with a powerful three-band EQ, gives AD200 players an even broader frequency spectrum to dial into their amp. In addition, a brand new output transformer, with 3 inches of laminations, harnesses double the power at 30Hz, offering better response at low frequencies. ‘It now pushes more air, flaps more trouser leg — simple as that,’ explains Orange Amps Technical Director Ade Emsley. From mellow hues to heavy, percussive growl and even slap bass, the ultimate incarnation of the AD200, has just become even more versatile.
Internal changes make the amp easier to service and maintain. Each output valve now has its own 12 turn bias pot, so unmatched valves can sit side by side. ‘Now, any tech with a multimeter can bias the amp and match the valves into the amp,’ explains Emsley. ‘So, if you’re on the road with a band, you can go swap a worn valve for a new one, dial it in and you’re good to go.’ Whilst the four KT88 output valves push 200 Watts of power, the amp will run equally as well on 6550s or a combination of the two.
‘It’s a big improvement on the previous version,’ says Ade Emsley, of his work on the updated AD200. ‘It still does everything the old one does, it’s still the industry standard, but it’s now simpler, easier to use, easier to service and futureproof.’
The new, decluttered front panel design is reminiscent of the company’s iconic 1970’s amps with its original ‘bubble-writing’ Orange logo and the ‘pics-only’ hieroglyphs, all wrapped in the company’s distinctive orange Tolex covering.
Over the last forty years, the Orange Bass Cabinets have become an undeniable industry standard. They have been remodelled to use Celestion Pulse XL bass speakers across the OBC810C, OBC410HC, and OBC115C cabs. The upgrade delivers a tight, punchy low-end with a warm mid-range that’s full of presence. The premium build of these cabinets remains, delivering players, bands and techs the road-worthy dependability they demand. In addition, the popular OBC410HC has been modified by removing one vertical partition and strengthening the horizontal one to be lighter and tighten up low-end response.
For more information, please visit orangeamps.com.
- Orange OR50H Reissue Amp Review ›
- Orange Amplification Announces OPC Series, OB1-K Bass Amp, and Dual Dark Series ›
- Orange Amplification Launches Complete Guitar Pack ›
Revv G3 Purple Channel Preamp/Overdrive/Distortion Pedal - Anniversary Edition
The Revv G3 revolutionized high gain pedals in 2018 with its tube-like response & tight, clear high gain tones. Suddenly the same boutique tones used by metal artists & producers worldwide were available to anyone in a compact pedal. Now the G3 returns with a new V2 circuit revision that raises the bar again.
If 3 Were 6
With six times the controls found on the 1 and 2 versions (if you discount the original’s on/off slider switch,) the LPB-3’s control complement offers pre-gain, boost, mid freq, bass, treble, and mid knobs, with a center detent on the latter three so you can find the midpoint easily. A mini-toggle labeled “max” selects between 20 dB and 33 dB of maximum gain, and another labeled “Q” flips the resonance of the mid EQ between high and low. Obviously, this represents a significant expansion of the LPB’s capabilities.
More than just a booster with a passive tone, the LPB-3 boasts a genuine active EQ stage plus parametric midrange section, comprising the two knobs with shaded legends, mid freq and mid level. The gain stages have also been reimagined to include a pre-gain stage before the EQ, which enables up to 20 dB of input gain. The boost stage that follows the EQ is essentially a level control with gain to allow for up to 33 dB of gain through the LPB-3 when the “max” mini toggle is set to 33dB
A slider switch accessible inside the pedal selects between buffered or true bypass for the hard-latch footswitch. An AC adapter is included, which supplies 200mA of DC at 9.6 volts to the center-negative power input, and EHX specifies that nothing supplying less than 120mA or more than 12 volts should be used. There’s no space for an internal battery.
Power-Boosted
The LPB-3 reveals boatloads of range that betters many linear boosts on the market. There’s lots of tone-shaping power here. Uncolored boost is available when you want it, and the preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.
“The preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.”
I found the two mid controls work best when used judiciously, and my guitars and amps preferred subtle changes pretty close to the midpoint on each. However, there are still tremendous variations in your mid boost (or scoop, for that matter) within just 15 or 20 percent range in either direction from the center detent. Pushing the boost and pre-gain too far, particularly with the 33 dB setting engaged, can lead to some harsh sounds, but they are easy to avoid and might even be desirable for some users that like to work at more creative extremes.
The Verdict
The new LPB-3 has much, much more range than its predecessors, providing flexible preamp, boost, and overdrive sounds that can be reshaped in significant ways via the powerful EQ. It gives precise tone-tuning flexibility to sticklers that like to match a guitar and amp to a song in a very precise way, but also opens up more radical paths for experimentalists. That it does all this at a $129 price is beyond reasonable.
