True bypass loop pedals can keep your effects from harming your tone. You’re getting concerned about your tonal health. When you visit your local health professional you find out
|
So what is true bypass? In simple terms, it is connecting your instrument directly to your amp so the original tone of your instrument is preserved. Most pedals are not true bypass and they noticeably affect the sound of your guitar. Though you may only be using any given effect a short time during a performance, the signal is passing through the pedal the entire time, so the issue of bypass is important.
Pedals that aren’t true bypass have input buffers. The input buffer is the circuitry that drives the signal into the effect and makes it work. A buffer is a preamplifier. The battery-powered built-in preamp in an acoustic guitar is a buffer; active basses are driven with a buffer; the input to any mixer or tape recorder is buffered; and all effects pedals from wahs to fuzzes employ buffers to make them work. Turning these pedals on or off usually introduces a popping sound when the circuit is charged that can be very loud. The way around this problem is to never turn the buffer off; the pedals are buffered and therefore not true bypass. Buffers let you drive longer cables with less noise, allow you to have a tuner connected with less interaction, and generally eliminate any loading problem you have when you connect several pedals together. But, of course, the big problem is that you are no longer directly connected to your amp. Your signal is now active or buffered and invariably the buffer alters the tone of your guitar.
Try to stay calm – no need to throw away the Bufferin in your medicine cabinet. In order to decide if your pedalboard needs bypass surgery, you will need to listen to your pedals one at a time. Test each pedal individually, using the same exact setup each time – the same guitar and amp with the knobs set at the same levels. More than one effect in the chain could give you false results. Disconnect the power for each pedal and see if the guitar signal passes through the pedal when the effect is off. Make sure you toggle the on/off footswitch so that it is set to off or bypass. What you’ll inevitably find out is devices like tuners will immediately load down your signal and thin out the tone. When you get to your chorus, delay, or reverb, you will discover these are most likely buffered and not true bypass.

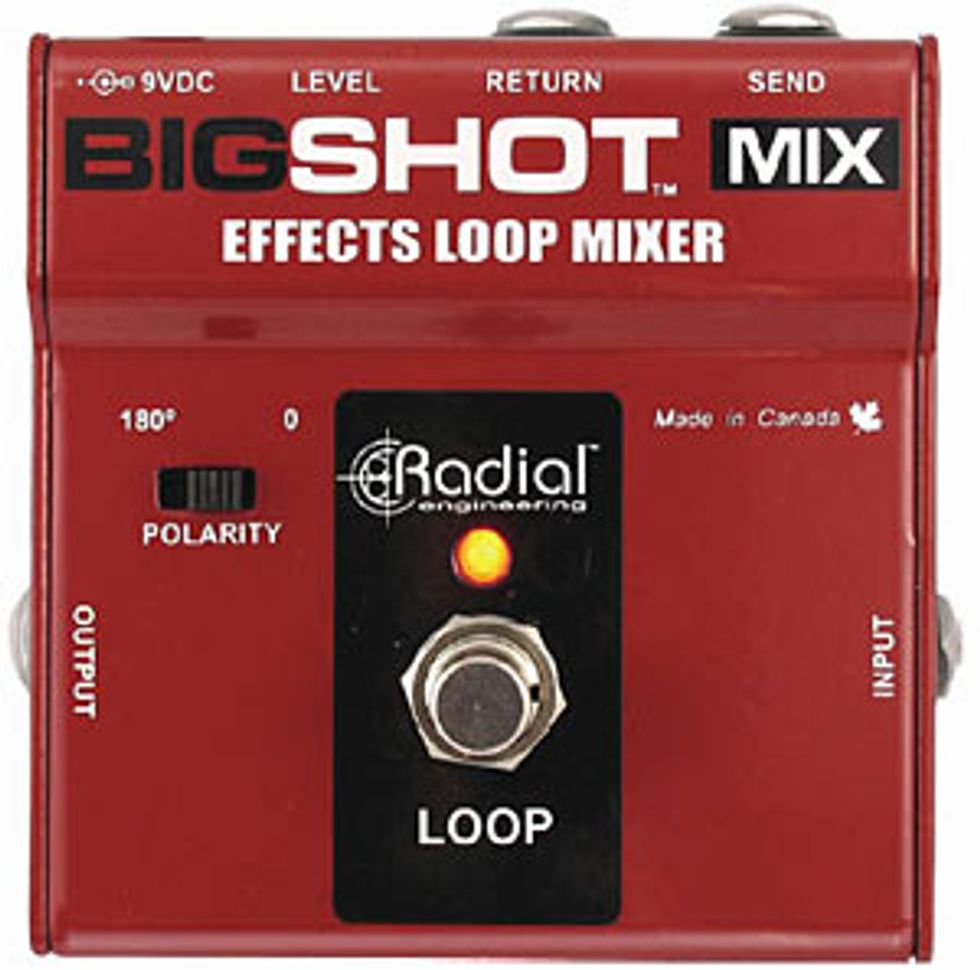

So now that you want to get your tone healthy again and have decided to go ahead with the surgery, what’s next? Start by adding one or two high-quality (but not expensive) true bypass loop pedals to your rig. Most guitar stores will have a few choices and they are easy to find online, as well. These small true bypass loopers fit in the tightest of pedalboards and will give you a dramatic improvement in tone. Kick it in when you aren’t using your effects and lo and behold – no drain, just gain! Your tone health is restored, and without a strict exercise regimen.
There is a caveat for players who use long cables and lots of pedals; there can be problems using true bypass loopers in these circumstances. If a 20’ guitar cable is plugged into ten pedals, each linked by a 2’ cable, and then run into an amp by a 30’ cable, the total length of guitar output would be upwards of 50-70 feet with true bypass. This could cause a significant loss of tone and signal level, particularly if the guitar is a vintage type with low output and high impedance pickups. Keep this in mind when weighing what works best for your particular tone.
We all love our guitars and want them to keep breathing, crying, barking and spitting. The way our guitars react to the circuits we put them through is what completes our sound. So of course, in the end, what really matters is that you are happy with the sound. Use your ears, make your own decisions based on the sound and don’t get caught up in any hype. After all, Jimi Hendrix did very nicely without true bypass.
Rick Wheeler
Rick Wheeler currently works as Larry Carlton’s guitar tech and front of house engineer. He is also an accomplished jazz guitarist, vocalist, and educator. You can contact Rick at rickwheeler@hughes.net
Nineties-style high-gain heaviness that can be surgically tailored with a powerful EQ.
Excellent variations on high-gain modern distortion tones. Powerful EQ.
Not many low- or mid-gain sounds here.
$199
JHS Hard Drive
jhspedals.com
JHS makes many great and varied overdrive stomps. Their Pack Rat is a staple on one of my boards, and I can personally attest to the quality of their builds. The new Hard Drive has been in the works since as far back as 2016, when Josh Scott and his staff were finishing off workdays by jamming on ’90s hard rock riffs.
During these sessions, Scott’s go-to pedal was the Ibanez SM7 Smash Box. He realized that JHS had never offered anything along those lines, conferred with his then lead engineer, Cliff Smith, and the wheels were set in motion. Over several years of design, the Hard Drive evolved from an SM7 homage to a unique, original circuit.
JHS’ Hardest to Date
The Hard Drive’s control panel is streamlined, consisting of knobs for volume, mid frequency, drive, bass, middle, and treble. Driven by cascading gain stages, the Hard Drive can cop a wide range of modern distorted tones. Even at the lowest drive settings, the Hard Drive simmers, delivering massive bottom end on muted power chords. Nudging the drive up very slightly transforms the Hard Drive into a roaring Marshall JCM 900. And if you bring the drive all the way up, you’re in for all out chaos. Even with an amp set just louder than bedroom levels, the Hard Drive, with its volume at just 11 o’clock, is very loud and in-your-face. You don’t have to work hard to imagine how this could sound and feel like multiple stacks raging at Madison Square Garden in the context of a recorded track.
Even at the lowest drive settings, the Hard Drive simmers, delivering massive bottom end.
Zoning the Frequencies
Unlike some heavy pedals that concern themselves with mega-gain and little else, the Hard Drive’s EQ controls are very effective and powerful. Moving the treble knob from 11 o’clock to 1 o’clock changes the pedal’s tone and response characteristics completely, opening up and transforming the naturally relatively dark sound of my Fender Super Sonic amp. Turning the treble knob all the way off with the bass and mid knobs at noon gives me a vocal lead tone that’s creamy, warm, and still immediate and responsive.
The middle and mid frequency controls work in tandem. The mid control itself works as a cut or boost. The mid frequency control, however, lets you choose the specific frequency you cut or boost. I found these controls invaluable for sculpting tones that could leverage the copious gain without being abrasive. Meanwhile, adding more high midrange lends clarity to complex chords.
The Verdict
The Hard Drive is an unapologetically heavy pedal—if you’re looking for a dirt box that can double as a clean boost, well, the Hard Drive is not that. It’s meant to slay with gain, and it performs this task well and with a vengeance. There are countless dirt boxes on the market that deliver hot rodded, ’80s-style brown sound. Fewer cater to the subsequent generations of high-gain players that used the ’80s as a mere jumping-off point. The Hard Drive is very much voiced for this strain of heavy music. If that’s your jam, the Hard Drive is hard to beat.
Tailored for Yngwie Malmsteen's signature sound, the MXR Yngwie Malmsteen Overdrive is designd to offer simple controls for maximum impact.
Working closely alongside Yngwie, the MXR design team created a circuit that delivers clarity, expressive dynamics, and rich harmonics—all perfectly tailored for his light-speed arpeggios, expressive vibrato, and big, bold riffs. The control setup is simple, with just Level and Gain knobs.
"Want to sound like Yngwie? Crank both knobs to the max."
“This pedal is the culmination of 45+ years developing a sound that’s perfect in every possible way,” Yngwie says. “I present to you: the MXR Yngwie Malmsteen Overdrive. Prepare to be amazed.”
MXR Yngwie Malmsteen Overdrive highlights:
- Perfectly tailored for Yngwie Malmsteen's signature sound and style
- Simple control setup tuned for maximum impact
- Boost every nuance with superior clarity, expressive dynamics, and rich harmonics
- Dig into light-speed arpeggios, expressive vibrato, and big, bold riffs
The MXR Yngwie Malmsteen Overdrive is available now at $129.99 street/$185.70 MSRP from your favorite retailer.
For more information, please visit jimdunlop.com.
Voltage Cable Company's new Voltage Vintage Coil 30-foot guitar cable is now protected with ISO-COAT technology to provide unsurpassed reliability.
The new coiled cables are available in four eye-grabbing retro colors – Surf Green, Electric Blue, Orange and Caramel – as well as three standard colors: Black, White and Red. There is also a CME exclusive “Chicago Cream” color on the way.
Guitarists can choose between three different connector configurations: straight/straight plugs, right angle/straight and right angle/right angle options.
The Voltage Vintage Coil offers superior sound quality and durability thanks to ISO-COAT treatment, a patent-pending hermetic seal applied to solder terminations. This first-of-its-kind airtight seal prevents corrosion and oxidization, a known factor in cable failure and degradation. ISO-COAT protected cables are for guitarists who value genuine lifetime durability and consistent tone throughout their career on stage and in the studio.
Voltage cables are hand made by qualified technical engineers using the finest components available and come with a lifetime warranty.
Voltage Vintage Coil features include:
- Lifetime guarantee, 1000+ gig durability
- ISO-COAT treatment - corrosion & oxidization resistant cable internals
- Strengthened structural integrity of solder terminations
Voltage Vintage Coils carry $89.00 USD pricing each and are available online at voltagecableco.com, as well as in select guitar stores in North America, Australia, Thailand, UK, Belgium and China.
About Voltage Cable: Established in 2021, Voltage Cable Co. is a family owned and operated guitar cable company based in Sydney, Australia. All their cables are designed to be played, and built for a lifetime. The company’s ISO-COAT is a patent pending hermetic seal applied to solder terminations.
Featuring dual-engine processing, dynamic room modeling, and classic mic/speaker pairings, this pedal delivers complete album-ready tones for rock and metal players.
Built on powerful dual‑engine processing and world‑class UAD modeling, ANTI 1992 High Gain Amp gives guitarists the unmistakable sound of an original "block letter" Peavey 5150 amplifier* – the notorious 120‑watt tube amp monster that fueled more than three decades of modern metal music, from Thrash and Death Metal, to Grunge, Black Metal, and more.
"With UAFX Dream, Ruby, Woodrow, and Lion amp emulators, we recreated four of the most famous guitar amps ever made," says UA Sr. Product Manager Tore Mogensen. "Now with ANTI, we're giving rock and metal players an authentic emulation of this punishing high gain amp – with the exact mic/speaker pairings and boost/noise gate effects that were responsible for some of the most groundbreaking modern metal tones ever captured."
Key Features:
- A complete emulation of the early '90s 120‑watt tone monster that defined new genres of modern metal
- Powerful UAFX dual-engine delivers the most authentic emulation of the amp ever placed in a stompbox
- Complete album‑ready sounds with built‑in noise gate, TS‑style overdrive, and TC‑style preamp boost
- Groundbreaking Dynamic Room Modeling derived from UA's award-winning OX Amp Top Box
- Six classic mic/speaker pairings used on decades of iconic metal and hard rock records
- Professional presets designed by the guitarists of Tetrarch, Jeff Loomis, and The Black Dahlia Murder
- UAFX mobile app lets you access hidden amp tweaks and mods, choose overdrive/boost, tweak noise gate, recall and archive your presets, download artist presets, and more
- Timeless UA design and craftsmanship, built to last decades
For more information, please visit uaudio.com.
