Fuchs Audio introduces the ODH Hybrid amp, featuring a True High Voltage all-tube preamp and Ice Power module for high-powered tones in a compact size. With D-Style overdrive, Spin reverb, and versatile controls, the ODH offers exceptional tone shaping and flexibility at an affordable price point.

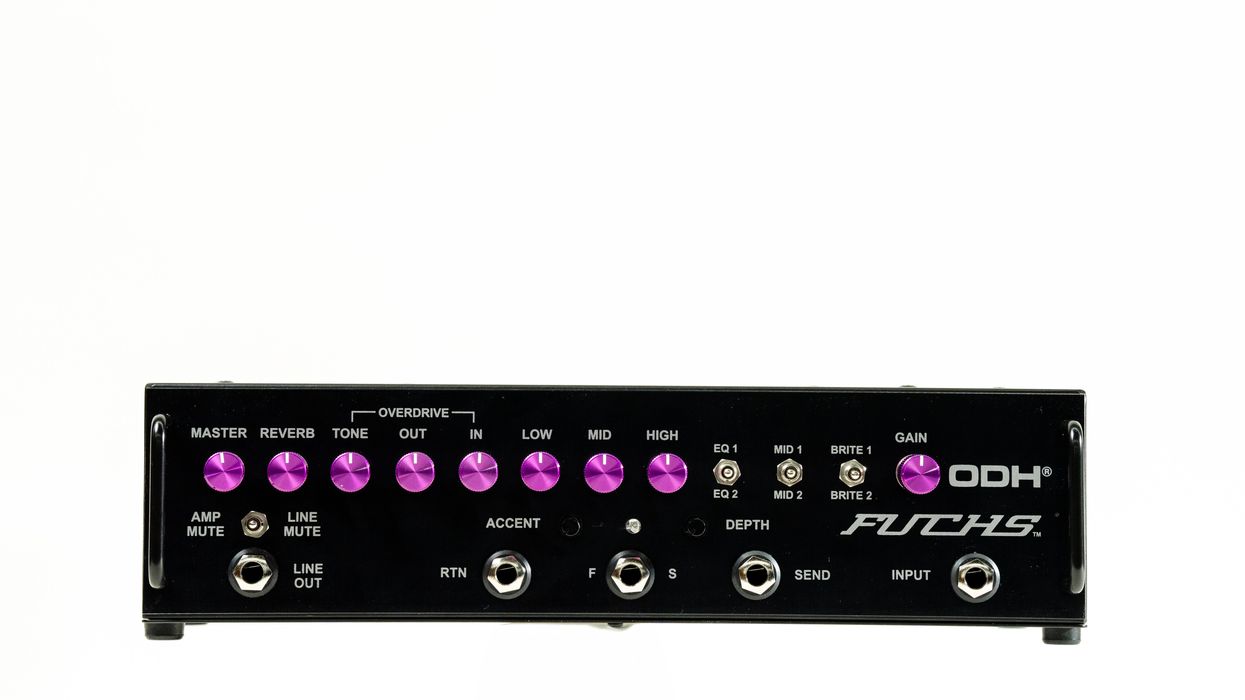

Fuchs Audio has introduced their latest amp the ODH © Hybrid. Assembled in USA.
Featuring an ODS-style all-tube preamp, operating at True High Voltage into a fan-cooled Ice power module, the ODH brings high-powered clean and overdrive tones to an extremely compact size and a truly affordable price point.
Like the Fuchs ODS amps, the ODH clean preamp features 3-position brite switch, amid-boost switch, an EQ switch, high, mid and low controls. The clean preamp drives theoverdrive section in D-Style fashion. The OD channel has an input gain and outputmaster with an overdrive tone control. This ensures perfect tuning of both the clean andoverdrive channels. A unique tube limiter circuit controls the Ice Power module input.Any signal clipping is (intentionally) non-linear so it responds just like a real tube amp.
The ODH includes a two-way footswitch for channels and gain boost. A 30-second mute timer ensures the tubes are warmed up before the power amp goes live. The ODH features our lush and warm Spin reverb. A subsonic filter eliminates out-of-band low frequencies which would normally waste amplifier power, which assures tons of clean headroom. The amp also features Accent and Depth controls, allowing contouring of the high and low response of the power amp section, to match speakers, cabinets andenvironments. The ODH features a front panel fully buffered series effects loop and aline out jack, allowing for home recording or feeding a slave amp. A three-position muteswitch mutes the amp, the line out or mute neither.
Built on the same solid steel chassis platform as the Fuchs FB series bass amps, the amps feature a steel chassis and aluminum front and rear panels, Alpha potentiometers, ceramic tube sockets, high-grade circuit boards and Neutrik jacks. The ICE power amp is 150 watts into 8 ohms and 300 watts into 4 ohms, and nearly 500 watts into 2.65 ohms (4 and8 ohms in parallel) and operates on universal AC voltage, so it’s fully globallycompatible. The chassis is fan-cooled to ensure hours of cool operation under any circumstances. The all-tube preamp uses dual-selected 12AX7 tubes and a 6AL5 limiter tube.
MAP: $ 1,299
For more information, please visit fuchsaudiotechnology.com.
- Fuchs Audio Technology Introduces the Jazz Classic II ›
- Fuchs Audio Technology Unveils the ODS Classic Series ›
- Fuchs Audio Introduces the Bruiser Jr. Bass Amp ›
The two-in-one “sonic refractor” takes tremolo and wavefolding to radical new depths.
Pros: Huge range of usable sounds. Delicious distortion tones. Broadens your conception of what guitar can be.
Build quirks will turn some users off.
$279
Cosmodio Gravity Well
cosmod.io
Know what a wavefolder does to your guitar signal? If you don’t, that’s okay. I didn’t either until I started messing around with the all-analog Cosmodio Instruments Gravity Well. It’s a dual-effect pedal with a tremolo and wavefolder, the latter more widely used in synthesis that , at a certain threshold, shifts or inverts the direction the wave is traveling—in essence, folding it upon itself. Used together here, they make up what Cosmodio calls a sonic refractor.
Two Plus One
Gravity Well’s design and control set make it a charm to use. Two footswitches engage tremolo and wavefolder independently, and one of three toggle switches swaps the order of the effects. The two 3-way switches toggle different tone and voice options, from darker and thicker to brighter and more aggressive. (Mixing and matching with these two toggles yields great results).
The wavefolder, which has an all-analog signal path bit a digitally controlled LFO, is controlled by knobs for both gain and volume, which provide enormous dynamic range. The LFO tremolo gets three knobs: speed, depth, and waveform. The first two are self-explanatory, but the latter offers switching between eight different tremolo waveforms. You’ll find standard sawtooth, triangle, square, and sine waves, but Cosmodio also included some wacko shapes: asymmetric swoop, ramp, sample and hold, and random. These weirder forms force truly weird relationships with the pedal, forcing your playing into increasingly unpredictable and bizarre territories.
This is all housed in a trippy, beautifully decorated Hammond 1590BB-sized enclosure, with in/out, expression pedal, and power jacks. I had concerns about the durability of the expression jack because it’s not sealed to its opening with an outer nut and washer, making it feel more susceptible to damage if a cable gets stepped on or jostled near the connection, as well as from moisture. After a look at the interior, though, the build seems sturdy as any I’ve seen.
Splatterhouse Audio
Cosmodio’s claim that the refractor is a “first-of-its-kind” modulation effect is pretty grand, but they have a point in that the wavefolder is rare-ish in the guitar domain and pairing it with tremolo creates some pretty foreign sounds. Barton McGuire, the Massachusetts-based builder behind Cosmodio, released a few videos that demonstrate, visually, how a wavefolder impacts your guitar’s signal—I highly suggest checking them out to understand some of the principles behind the effect (and to see an ’80s Muppet Babies-branded keyboard in action.)
By folding a waveform back on itself, rather than clipping it as a conventional distortion would, the wavefolder section produces colliding, reflecting overtones and harmonics. The resulting distortion is unique: It can sound lo-fi and broken in the low- to mid-gain range, or synthy and extraterrestrial when the gain is dimed. Add in the tremolo, and you’ve got a lot of sonic variables to play with.
Used independently, the tremolo effect is great, but the wavefolder is where the real fun is. With the gain at 12 o’clock, it mimics a vintage 1x10 tube amp cranked to the breaking point by a splatty germanium OD. A soft touch cleans up the signal really nicely, while maintaining the weirdness the wavefolder imparts to its signal. With forceful pick strokes at high gain, it functions like a unique fuzz-distortion hybrid with bizarre alien artifacts punching through the synthy goop.
One forum commenter suggested that the Gravity Well effect is often in charge as much the guitar itself, and that’s spot on at the peda’t extremes. Whatever you expect from your usual playing techniques tends to go out the window —generating instead crumbling, sputtering bursts of blubbering sound. Learning to respond to the pedal in these environments can redefine the guitar as an instrument, and that’s a big part of Gravity Well’s magic.
The Verdict
Gravity Well is the most fun I’ve had with a modulation pedal in a while. It strikes a brilliant balance between adventurous and useful, with a broad range of LFO modulations and a totally excellent oddball distortion. The combination of the two effects yields some of the coolest sounds I’ve heard from an electric guitar, and at $279, it’s a very reasonably priced journey to deeply inspiring corners you probably never expected your 6-string (or bass, or drums, or Muppet Babies Casio EP-10) to lead you to.
The ’60s Were Weird and So Were the ’90s—Thanks, Santana
Was Supernatural his ultimate gift to the world?
Carlos Santana’s career arc has been a journey. From blowing minds at the far edges of psychedelia at Woodstock to incendiary jazz experimentalism with the likes of John McLaughlin and Alice Coltrane to later becoming a chart-topping star with some of the biggest collaborators in pop and rock, his guitar playing has covered a lot of ground.
On this episode of 100 Guitarists, we’re covering everything about Santana’s playing we can fit in one neat package: How did Santana’s sound evolve? Has any other rock star mentioned John Coltrane’s A Love Supreme on morning network television? Was Supernatural his ultimate gift to the world?
In our new current listening segment, we’re talking about a Bruce Hornsby live record and a recent release from guitarist Stash Wyslouch.
This episode is sponsored by PRS Guitars.
Learn more: https://prsguitars.com.
Lollar Pickups introduces the Deluxe Foil humbucker, a medium-output pickup with a bright, punchy tone and wide frequency range. Featuring a unique retro design and 4-conductor lead wires for versatile wiring options, the Deluxe Foil is a drop-in replacement for Wide Range Humbuckers.
Based on Lollar’s popular single-coil Gold Foil design, the new Deluxe Foil has the same footprint as Lollar’s Regal humbucker - as well as the Fender Wide Range Humbucker – and it’s a drop-in replacement for any guitar routed for Wide Range Humbuckers such as the Telecaster Deluxe/Custom, ’72-style Tele Thinline and Starcaster.
Lollar’s Deluxe Foil is a medium-output humbucker that delivers a bright and punchy tone, with a glassy top end, plenty of shimmer, rich harmonic content, and expressive dynamic touch-sensitivity. Its larger dual-coil design allows the Deluxe Foil to capture a wider frequency range than many other pickup types, giving the pickup a full yet well-balanced voice with plenty of clarity and articulation.
The pickup comes with 4-conductor lead wires, so you can utilize split-coil wiring in addition to humbucker configuration. Its split-coil sound is a true representation of Lollar’s single-coil Gold Foil, giving players a huge variety of inspiring and musical sounds.
The Deluxe Foil’s great tone is mirrored by its evocative retro look: the cover design is based around mirror images of the “L” in the Lollar logo. Since the gold foil pickup design doesn’t require visible polepieces, Lollartook advantage of the opportunity to create a humbucker that looks as memorable as it sounds.
Deluxe Foil humbucker features include:
- 4-conductor lead wire for maximum flexibility in wiring/switching
- Medium output suited to a vast range of music styles
- Average DC resistance: Bridge 11.9k, Neck 10.5k
- Recommended Potentiometers: 500k
- Recommended Capacitor: 0.022μF
The Lollar Deluxe Foil is available for bridge and neck positions, in nickel, chrome, or gold cover finishes. Pricing is $225 per pickup ($235 for gold cover option).
For more information visit lollarguitars.com.
