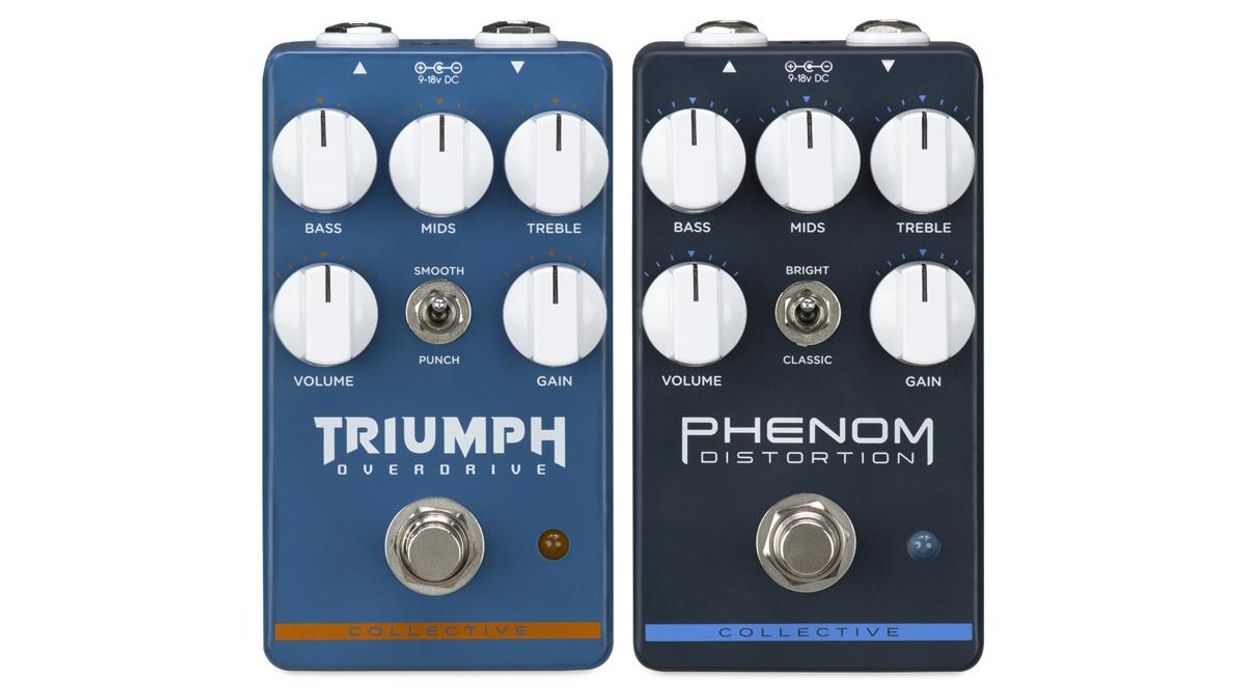

Designed for affordability without compromising quality, every Collective Series pedals were designed to easily dial in rich tones.
Wampler’s Collective Series pedals are packed with features for players of all levels. The Triumph is a versatile overdrive based around two of Brian’s all-time favorite overdrives, the Digitech Bad Monkey* and the Boss SD-1*. In typical Wampler fashion, additional EQ stages have been added that allow a variety of different tones as well as internal circuit changes that add polished glassy overtones.
In Classic mode, the Phenom Distortion delivers smooth, tight low-end punch and soaring lead tones. Through a clean amp and single coils this is the most dynamic of distortions, with an open organic presence. Play Phenom through humbuckers and a dirty amp and unleash a fire breathing monster. The Bright mode adds a glassy harmonic overtone which can accentuate different playing techniques and cuts through any live mix. Phenom is a flexible and organic distortion pedal with an original Brian Wampler circuit.
Wampler Triumph Overdrive Pedal
The Triumph offers a two-position voicing switch that selects Smooth or Punch modes, giving you two uniquely distinct flavors of overdrive. Gain, volume, and a three-band active EQ round out the controls allowing perfect tone shaping no matter the application. Triumph will sit beautifully in the mix with assured clarity and a driving, rich tone.
In Smooth mode, the Triumph delivers a progressive gain structure with an unmistakable gritty presence and classic mid-hump profile. Dial in some soulful blues through a clean amp or experience growling bite when you push it through an already crunchy amplifier. In Punch mode, Triumph adds more open tonality, less compression and is more touch sensitive, providing detailed note articulation.
- Collective Series pedal designed by Brian Wampler
- Dual voice overdrive pedal with switchable voicing modes
- Smooth mode for classic liquid gain
- Punch mode for added bite and tight low end
- High-grade components selected for superior sound and response
- Volume, gain and 3-band EQ
- Top mounted input and output jacks and power connector
- Dimensions: 2.5” x 4.4” x 1.4″ (63.5 mm x 112mm x 35.5mm) – height excludes knobs and switches
- Power draw: 21mA, 9-18V DC
- Includes limited 5-year warranty
For more information, please visit wamplerpedals.com
Wampler Phenom Distortion Pedal
The Phenom Distortion is a dynamic distortion pedal which uses JFET based clipping instead of Op-amp and Diode based clipping and is loosely based on the legendary “5150” style tones. The fets are driven much in the same way that tubes can be cranked to overdrive an Amplifier into a distorted sound courtesy of a unique Brian Wampler circuit design. The Phenom offers a range of tones from a deep, punchy rhythm sound to an ultra-responsive lead tone perfect for soaring solos and crisp harmonics. It has a flexible voicing switch that selects either bright or classic modes, independent gain and volume controls, and a powerful 3-band EQ.
- Collective Series pedal designed by Brian Wampler
- Dual voiced distortion pedal with switchable voicing modes
- Bright mode for added cut and aggression
- Classic mode for a smooth, robust distortion
- High-grade components selected for superior sound and response
- Volume, Gain and 3-band EQ controls
- Top mounted input and output jacks and power connector
- Dimensions: 2.5” x 4.4” x 1.4″ (63.5 mm x 112mm x 35.5mm) – height excludes knobs and switches
- Power draw: 5mA, 9-18V DC
- Includes limited 5-year warranty
For more information, please visit wamplerpedals.com
Revv G3 Purple Channel Preamp/Overdrive/Distortion Pedal - Anniversary Edition
The Revv G3 revolutionized high gain pedals in 2018 with its tube-like response & tight, clear high gain tones. Suddenly the same boutique tones used by metal artists & producers worldwide were available to anyone in a compact pedal. Now the G3 returns with a new V2 circuit revision that raises the bar again.
If 3 Were 6
With six times the controls found on the 1 and 2 versions (if you discount the original’s on/off slider switch,) the LPB-3’s control complement offers pre-gain, boost, mid freq, bass, treble, and mid knobs, with a center detent on the latter three so you can find the midpoint easily. A mini-toggle labeled “max” selects between 20 dB and 33 dB of maximum gain, and another labeled “Q” flips the resonance of the mid EQ between high and low. Obviously, this represents a significant expansion of the LPB’s capabilities.
More than just a booster with a passive tone, the LPB-3 boasts a genuine active EQ stage plus parametric midrange section, comprising the two knobs with shaded legends, mid freq and mid level. The gain stages have also been reimagined to include a pre-gain stage before the EQ, which enables up to 20 dB of input gain. The boost stage that follows the EQ is essentially a level control with gain to allow for up to 33 dB of gain through the LPB-3 when the “max” mini toggle is set to 33dB
A slider switch accessible inside the pedal selects between buffered or true bypass for the hard-latch footswitch. An AC adapter is included, which supplies 200mA of DC at 9.6 volts to the center-negative power input, and EHX specifies that nothing supplying less than 120mA or more than 12 volts should be used. There’s no space for an internal battery.
Power-Boosted
The LPB-3 reveals boatloads of range that betters many linear boosts on the market. There’s lots of tone-shaping power here. Uncolored boost is available when you want it, and the preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.
“The preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.”
I found the two mid controls work best when used judiciously, and my guitars and amps preferred subtle changes pretty close to the midpoint on each. However, there are still tremendous variations in your mid boost (or scoop, for that matter) within just 15 or 20 percent range in either direction from the center detent. Pushing the boost and pre-gain too far, particularly with the 33 dB setting engaged, can lead to some harsh sounds, but they are easy to avoid and might even be desirable for some users that like to work at more creative extremes.
The Verdict
The new LPB-3 has much, much more range than its predecessors, providing flexible preamp, boost, and overdrive sounds that can be reshaped in significant ways via the powerful EQ. It gives precise tone-tuning flexibility to sticklers that like to match a guitar and amp to a song in a very precise way, but also opens up more radical paths for experimentalists. That it does all this at a $129 price is beyond reasonable.
Electro-Harmonix Lpb-3 Linear Power Booster & Eq Effect Pedal Silver And Blue
