Phat Machine
The two pedals mark the debut of the company’s new Street Series, aimed at bringing boutique tone to the gigging musician at affordable prices.

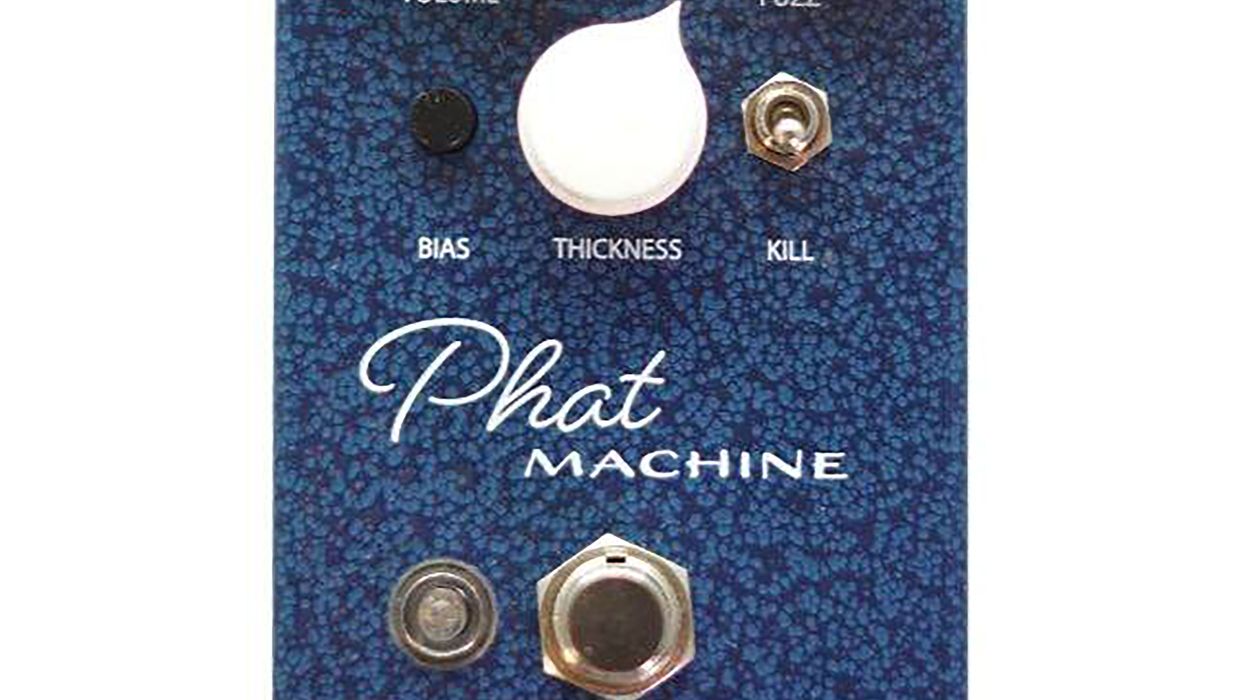

The Phat Machine
The Phat Machine is designed to deliver the tone and responsiveness of a vintage germanium fuzz with improved temperature stability with no weird powering issues. Loaded with both a germanium and a silicon transistor, the Phat Machine offers the warmth and cleanup of a germanium fuzz but with the bite of a silicon pedal. It utilizes classic Volume and Fuzz control knobs, as well as a four-position Thickness control to dial-in any guitar and amp combo. Also included is a Bias trim pot and a Kill switch that allows battery lovers to shut off the battery without pulling the input cord.
Silk Worm Deluxe Overdrive
The Silk Worm Deluxe -- along with its standard Volume/Gain/Tone controls -- has a Bottom trim pot to dial in "just the right amount of thud with no mud at all: it’s felt more than heard." It also offers a Studio/Stage diode switch that allows you to select three levels of compression.
Both pedals offer the following features:
- 9-volt operation via standard DC external supply or internal battery compartment
- True bypass switching with LED indicator
- Pedalboard-friendly top mount jacks
- Rugged, tour-ready construction and super durable powder coated finish
- Made in the USA
Static Effectors’ Street Series pedals carry a street price of $149 each. They are available at select retailers and can also be purchased directly from the Static Effectors online store at www.staticeffectors.com.
- Rig Rundown - Queens of the Stone Age's Troy Van Leeuwen ›
- DIY: How to Make a 9V Power Supply Out of a Drill Battery ›
- Line 6 Helix Review ›
Revv G3 Purple Channel Preamp/Overdrive/Distortion Pedal - Anniversary Edition
The Revv G3 revolutionized high gain pedals in 2018 with its tube-like response & tight, clear high gain tones. Suddenly the same boutique tones used by metal artists & producers worldwide were available to anyone in a compact pedal. Now the G3 returns with a new V2 circuit revision that raises the bar again.
If 3 Were 6
With six times the controls found on the 1 and 2 versions (if you discount the original’s on/off slider switch,) the LPB-3’s control complement offers pre-gain, boost, mid freq, bass, treble, and mid knobs, with a center detent on the latter three so you can find the midpoint easily. A mini-toggle labeled “max” selects between 20 dB and 33 dB of maximum gain, and another labeled “Q” flips the resonance of the mid EQ between high and low. Obviously, this represents a significant expansion of the LPB’s capabilities.
More than just a booster with a passive tone, the LPB-3 boasts a genuine active EQ stage plus parametric midrange section, comprising the two knobs with shaded legends, mid freq and mid level. The gain stages have also been reimagined to include a pre-gain stage before the EQ, which enables up to 20 dB of input gain. The boost stage that follows the EQ is essentially a level control with gain to allow for up to 33 dB of gain through the LPB-3 when the “max” mini toggle is set to 33dB
A slider switch accessible inside the pedal selects between buffered or true bypass for the hard-latch footswitch. An AC adapter is included, which supplies 200mA of DC at 9.6 volts to the center-negative power input, and EHX specifies that nothing supplying less than 120mA or more than 12 volts should be used. There’s no space for an internal battery.
Power-Boosted
The LPB-3 reveals boatloads of range that betters many linear boosts on the market. There’s lots of tone-shaping power here. Uncolored boost is available when you want it, and the preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.
“The preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.”
I found the two mid controls work best when used judiciously, and my guitars and amps preferred subtle changes pretty close to the midpoint on each. However, there are still tremendous variations in your mid boost (or scoop, for that matter) within just 15 or 20 percent range in either direction from the center detent. Pushing the boost and pre-gain too far, particularly with the 33 dB setting engaged, can lead to some harsh sounds, but they are easy to avoid and might even be desirable for some users that like to work at more creative extremes.
The Verdict
The new LPB-3 has much, much more range than its predecessors, providing flexible preamp, boost, and overdrive sounds that can be reshaped in significant ways via the powerful EQ. It gives precise tone-tuning flexibility to sticklers that like to match a guitar and amp to a song in a very precise way, but also opens up more radical paths for experimentalists. That it does all this at a $129 price is beyond reasonable.
