Stunningly realistic emulations of tape-based effects.
Minds were blown when the first digital delays appeared in the late 1970s. Unlike earlier delays that relied on magnetic tape, electrostatic fluid, or bucket-brigade chips, these newfangled devices exhibited no distortion, frequency loss, or wobbly inconsistency. Listeners had never heard such crisp and accurate delays.
But ironically, by the time digital delay migrated from expensive rackmount devices to stompboxes any schmo could afford, musicians began to miss the very qualities that digital had triumphantly eradicated. It wasn’t just nostalgia—the treble loss characteristic of analog delay created a warm wash of sound that sat tidily behind the dry guitar signal. The random pitch variations of mechanical tape transports added subtle but engaging animation. Soon sound designers were mimicking these qualities in digital effects via filters and LFOs. In recent years, many guitarists have fixated not only on the quality of the delay sound, but also the ways analog devices alter the dry signal—witness the popularity of such pedals as the Xotic EP Booster and the Dunlop EP101, which replicate the preamp coloration of an Echoplex tape delay, minus any actual delay.
Strymon’s new Deco Tape Saturation & Doubletracker covers both sides of the equation, providing epic faux-tape echoes and convincing tape-style distortion in a single stompbox.
The Tape, the Whole Tape, and Nothing But the Tape
Some delay/modulation modelers aim to cover the gamut of analog effects, but Deco focuses solely the earliest of echo effects: the slaps, flanging, and chorusing of vintage studio tape decks. (Hence the Deco name). It does so with stunning realism—Deco provides the most convincing tape sounds I’ve encountered in a stompbox. The only sonic rivals I know are pricy plug-ins requiring the horsepower of a computer-based DAW, such as Universal Audio’s Ampex and Studer emulations and Slate Digital’s Virtual Tape Machine.
But note that Deco’s true-to-tape concept means the pedal doesn’t offer all the parameters users have come to expect from delay and modulation effects. For example, there are no feedback controls. You’re limited to a single echo, or two echoes, left and right, in stereo ping-pong mode. (This, presumably, is why Strymon calls Deco a “doubletracker” rather than a delay.) You can’t adjust the flanging and chorus regeneration levels. The available modulation rates are also limited, and the maximum delay time is a modest 500 ms.
In other words, Deco does only a few things. But damn, it does them well.
Smart Deco

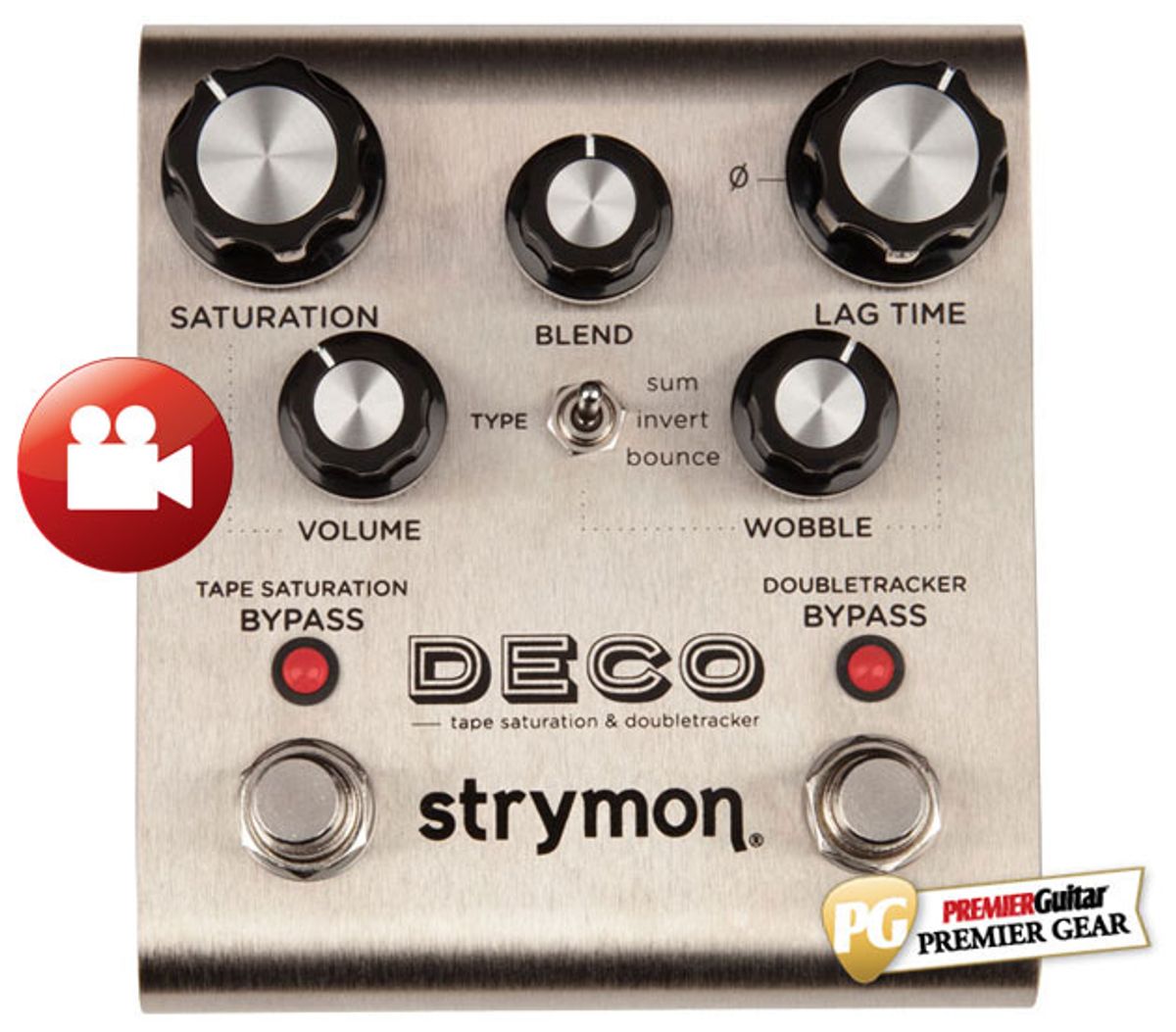

Deco comes in a lightweight nickel-coated aluminum enclosure. Inside, jacks and pots are mounted on the PCB along with small surface-mount components and the big-ass SHARC DSP chip where the magic happens. There’s no battery compartment—like all processor-intensive digital stompboxes, Deco requires an AC adapter (included).
Two click-less relay footswitches let you use tape simulation and echo/modulation effects independently. In addition to their primary jobs, the five knobs have secondary functions when you hold the footswitches, and tertiary ones when pressing footswitches while powering up. That sounds more daunting than it is—even though the extra functions aren’t indicated on the enclosure, Strymon did a fine job putting the likeliest-to-use parameters front and center. Clearly, much thought went into the layout.
Capstan Crunch
Deco’s pseudo-tape saturation is remarkable. It doesn’t sound precisely like the aforementioned Echoplex-inspired preamps, but it hails from the same quadrant of the tone galaxy. At modest settings, you get a touch a fattening compression and a slight low-end bump. Maximum-drive settings yield crunchier tones with a bit of high-end fizz—in other words, an excellent replica of a vintage preamp.
Like all Deco’s controls, the saturation knob is perfectly voiced, with usable sounds throughout its compass. Someone at Strymon clearly spent many painstaking hours fine-tuning the range and taper of every control. That attention to detail matters—it’s nearly impossible to dial in bad tones here, and the sounds you’re seeking always seem to fall right under your fingers.
I suspect many players will dial in a subtle saturation setting and leave it on all night. Others may opt a more extreme effect and toggle it on to thicken solos and single-note lines. And since most players are likely to place Deco at or near the end of their effect chains, this gain stage is perfectly situated to goose your signal right before it hits your amp.
Ratings
Pros:
Ultra-realistic tape-style effects. Masterful design and programming.
Cons:
Limited effect range.
Tones:
Ease of Use:
Build/Design:
Value:
Street:
$299
Strymon Deco Tape Saturation & Double Tracker
strymon.net
Deck and Deck
Clicking the Doubletracker footswitch activates a second virtual deck, one whose delay you set via the large lag time knob. Low settings generate a delay of several milliseconds for organic-sounding flange effects. As you advance the knob, the delay lengthens to several dozen milliseconds for thickly chorused sounds, and finally blossoms into audible echoes in the final third of its range.
Meanwhile, the wobble knob modulates the second deck’s pitch. It’s not one of those metronomic LFOs that produce monotonous seasick swaying, but a nuanced and convincingly random-sounding modulator that feels musical even at extreme settings.
A 3-position toggle lets you phase-invert the second deck—a subtle variation that may affect your low-end response, depending on the material. It also lets you route separate echoes to the left and right outputs for a ping pong effect, with your dry signal in the center and a single slap left and right. (Used in mono, this mode generates two echo repeats rather than the usual one.) There’s another cool option for players using stereo rigs: a “wide stereo” mode that sends the dry sound to one side and the wet to another for dramatic hard panning in the manner of early Zep and other classic rock tracks.
Whether flanging, phasing, or echoing, Deco’s tones are detailed and gooey-thick. There’s more low-end impact and mass than you may be accustomed to hearing from faux-analog effects, which is generally a good thing. (And if it’s not, you can always trim some lows.) Digital modulation effects seldom sound quite so high-cholesterol.
Reel Clever
Deco has a single expression input jack that you can deploy in multiple ways. You can assign a controller pedal to operate any single knob function, such as setting the lag time, saturation level, balance, or output level. Alternately, you can connect a footswitch to either tap in tempos or leap to one favorite stored sound.
Another bitchin’ feature: When you press/hold the Doubletracker footswitch, Deco leaps to its tape flange sound for as long as you hold the switch. It’s a great way to add random sonic variation, or drop in a surprise flanged break à la ELO’s “Evil Woman.”
Since Deco accepts input levels as high as +8 dB, you can also use it as a line-level studio effect. There’s a “studio mode” optimized for these hotter signals, or when feeding the pedal from an amp’s effect loop.
The Verdict
Looking for a do-it-all faux-analog delay/modulation device? This ain’t it—Deco’s repertoire is limited to the tape-based effects you might have obtained in a late-1950s recording studio: simple flanging and chorusing and short, non-regenerating echoes. But after hearing so many modern digital effects that sound almost as good as the analog gear they mimic, it’s refreshing to encounter a pedal that does only a few things, but does them superbly. Deco isn’t just a nice emulation—it sounds like a frickin’ tape machine!
Watch the Review Demo:
Stompboxtober is finally here! Enter below for your chance to WIN today's featured pedal from Diamond Pedals! Come back each day during the month of October for more chances to win!
Diamond Pedals Dark Cloud
True to the Diamond design ethos of our dBBD’s hybrid analog architecture, Dark Cloud unlocks a new frontier in delay technology which was once deemed unobtainable by standard BBD circuit.
Powered by an embedded system, the Dark Cloud seamlessly blends input and output signals, crafting Tape, Harmonic, and Reverse delays with the organic warmth of analog companding and the meticulous precision of digital control.
Where analog warmth meets digital precision, the Dark Cloud redefines delay effects to create a pedal like no other
Wonderful array of weird and thrilling sounds can be instantly conjured. All three core settings are colorful, and simply twisting the time, span, and filter dials yields pleasing, controllable chaos. Low learning curve.
Not for the faint-hearted or unimaginative. Mode II is not as characterful as DBA and EQD settings.
$199
EarthQuaker Devices/Death By Audio Time Shadows
earthquakerdevices.com
This joyful noisemaker can quickly make you the ringmaster of your own psychedelic circus, via creative delays, raucous filtering, and easy-to-use, highly responsive controls.
I love guitar chaos, from the expressionist sound-painting of Jimi Hendrix’s “Machine Gun” to the clean, clever skronk ’n’ melody of Derek Bailey to the slide guitar fantasias of Sonny Sharrock to the dark, molten eruptions of Sunn O))). When I was just getting a grip on guitar, my friends and I would spend eight-hour days exploring feedback and twisted riffage, to see what we might learn about pushing guitar tones past the conventional.
So, pedals that are Pandora’s boxes of weirdness appeal to me. My two current favorites are my Mantic Flex Pro, a series of filter controls linked to a low-frequency oscillator, and my Pigtronix Mothership 2, a stompbox analog synth. But the Time Shadows II Subharmonic Multi-Delay Resonator is threatening their favored status—or at least demanding a third chair. This collaboration between Death By Audio and EarthQuaker Devices is a wonderful, gnarly little box of noise and fun that—unlike the two pedals I just mentioned—is easy to dial in and adjust on the fly, creating appealing and odd sounds at every turn.
Behind the Wall of Sound
Unlike the Mantic Flex Pro, the Time Shadows is consistent. You can plug the Mantic into the same rig, and that rig into the same outlet, every day, and there are going to be slight—or big—differences in the sound. Those differences are even less predictable on different stages and in different rooms. The Time Shadows, besides its operating consistency, has six user-programmable presets. They write with a single touch of the button in the center of the device’s tough, aluminum 4 3/4" x 2 1/2" x 2 1/4" shell. Inside that shell live ghosts, wind, and unicorns that blow raspberries on cue and more or less on key. EQD and DBA explain these “presences” differently, relating that the Time Shadow’s circuitry combines three delay voices (EQD, II, and DBA) with filters, fuzz, phasing, shimmer, swell, and subharmonics. There’s also an input for an expression pedal, which is great for making the Time Shadows’ more radical sounds voice-like and lending dynamic control. But sustaining a tone sweeping the time, span, and filter dials manually is rewarding on its own, producing a Strickfaden lab’s worth of swirling, sweeping, and dipping sounds.
Guitar Tone from Roswell
Because of the wide variety of sounds, swirls, and shimmers the Time Shadows produces, I found it best to play through a pair of combos in stereo, so the full range of, say, high notes cascading downwards and dropping pitch as they repeat, could be appreciated in their full dimensionality. (That happens in DBA mode, with the time and span at 10 and 4 o’clock respectively, with the filter also at 4, and it’s magical.) The pedal also stands up well to fuzz and overdrives whether paired with humbucker, P-90, or single-coil guitars.
I loved all three modes, but the more radical EQD and DBA positions are especially excellent. The EQD side piles dirt on the incoming signal, adds sub-octave shimmer, and is delayed just before hitting the filters. Keeping the filter function low lends alligator growls to sustained barre chords, and single notes transform into orchestral strings or brass turf, with a soft attack. Pushing the span dial high creates kaleidoscopes of sound. The Death By Audio mode really hones in on the pedal’s delay characteristics, creating crisp repeats and clean sounds with a little less midrange in the filtering, but lending the ability to cut through a mix at volume. The II mode is comparatively clean, and the filter control becomes a mix dial for the delayed signal.
The Verdict
The closest delay I’ve found comparable to the Time Shadows is Red Panda’s function-rich Particle 2 granular delay and pitch-shifter, which also uses filtering, among other tricks. But that pedal has a very deep menu of functions, with a larger learning curve. If you like to expect the unexpected, and you want it now, the Time Shadows supports crafting a wide variety of cool, surprising sounds fast. And that’s fun. The challenge will be working the Time Shadows’ cascading aural whirlpools and dinosaur choirs into song arrangements, but I heard how the pedal could be used to create unique, wonderful pads or bellicose solos after just a few minutes of playing. If you’d like to easily sidestep the ordinary, you might find spelunking the Time Shadows’ cavernous possibilities worthwhile.
This little pedal offers three voices—analog, tape, and digital—and faithfully replicates the highlights of all three, with minimal drawbacks.
Faithful replications of analog and tape delays. Straightforward design.
Digital voice can feel sterile.
$119
Fishman EchoBack Mini Delay
fishman.com
As someone who was primarily an acoustic guitarist for the first 16 out of 17 years that I’ve been playing, I’m relatively new to the pedal game. That’s not saying I’m new to effects—I’ve employed a squadron of them generously on acoustic tracks in post-production, but rarely in performance. But I’m discovering that a pedalboard, particularly for my acoustic, offers the amenities and comforts of the hobbit hole I dream of architecting for myself one day in the distant future.
But by gosh, if delay—and its sister effect, reverb—haven’t always been perfect for the music I like to write and play. Which brings us to the Fishman EchoBack Mini Delay. The EchoBack, along with the standard delay controls of level, time, and repeats—as well as a tap tempo—has a toggle to alternate between analog, tape, and digital-delay voices.
I hooked up my Washburn Bella Tono Elegante to my Blues Junior to give the EchoBack a test run. We love a medium delay—my usual preference for delay settings is to have both level and repeats at 1 o’clock, and time at 11 o’clock. With the analog voice switched on, I heard some pillowy warmth in the processed signal, as well as a familiar degradation with each repeat—until their wake gave way to a gentle, distant, crinkly ticking. Staying on analog and adjusting delay time down to 8 o’clock and repeats to about 11:30, some cozy slapback enveloped my rendition of Johnny Marr’s part to “Back to the Old House,” conjuring up thoughts of Elvis trapped in a small chamber, but in a good way. It sounded indubitably authentic. The one drawback of analog delay for me, generally, is that its roundness can feel a bit under water at times.
Switching over to tape, that pillowy warmth evaporated, and in its place came a very clear replication of my tone—but with just a bit of the highs shaved off the top. With the settings at the medium-length mode listed above, I could see the empty, glass hall the pedal sent my sound bouncing down. I heard several pronounced pings of repeats before the signal fully faded out. On slapback settings (time at 8 o’clock, repeats at 11:30), rather than Elvis, I heard something more along the lines of a honky-tonk mic in a glass bottle. Still relatively crystalline, which actually was not my favorite. I like a bit more crinkle—so maybe analog is my bag....“That pillowy warmth evaporated, and in its place came a very clear, pristine replication of my tone—but with just a bit of the highs shaved off the top.”
Next up, digital. Here we have the brightest voice, and as expected, the most faithful repeats. They ping just a few times before shifting to a smooth, single undulating wave. When putting its slapback hat on, I found that the effect was a bit less alluring than I’d observed for the analog and tape voices. This is where the digital delay felt a little too sterile, with the cleanly preserved signal feeling a bit unnatural.
All in all, I dig the EchoBack for its replications of analog and tape voices, and ultimately, lean towards tape. While it’s nice having the digital delay there as an option, it feels a bit too clean when meddling with time of any given length. Nonetheless, this is surely a handy stomp for any acoustic player looking to venture into the land of live effects, or for those who are already there.
A silicon Fuzz Face-inspired scorcher.
Hot silicon Fuzz Face tones with dimension and character. Sturdy build. Better clean tones than many silicon Fuzz Face clones.
Like all silicon Fuzz Faces, lacks dynamic potential relative to germanium versions.
$229
JAM Fuzz Phrase Si
jampedals.com
Everyone has records and artists they indelibly associate with a specific stompbox. But if the subject is the silicon Fuzz Face, my first thought is always of David Gilmour and the Pink Floyd: Live at Pompeii film. What you hear in Live at Pompeii is probably shaped by a little studio sweetening. Even still, the fuzz you hear in “Echoes” and “Careful With That Axe, Eugene”—well, that is how a fuzz blaring through a wall of WEM cabinets in an ancient amphitheater should sound, like the sky shredded by the wail of banshees. I don’t go for sounds of such epic scale much lately, but the sound of Gilmour shaking those Roman columns remains my gold standard for hugeness.
JAM’s Fuzz Phrase Fuzz Face homage is well-known to collectors in its now very expensive and discontinued germanium version, but this silicon variation is a ripper. If you love Gilmour’s sustaining, wailing buzzsaw tone in Pompeii, you’ll dig this big time. But its ’66 acid-punk tones are killer, too, especially if you get resourceful with guitar volume and tone. And while it can’t match its germanium-transistor-equipped equivalent for dynamic response to guitar volume and tone settings or picking intensity, it does not have to operate full-tilt to sound cool. There are plenty of overdriven and near-clean tones you can get without ever touching the pedal itself.
Great Grape! It’s Purple JAM, Man!
Like any Fuzz Face-style stomp worth its fizz, the Fuzz Phrase Si is silly simple. The gain knob generally sounds best at maximum, though mellower settings make clean sounds easier to source. The output volume control ranges to speaker-busting zones. But there’s also a cool internal bias trimmer that can summon thicker or thin and raspy variations on the basic voice, which opens up the possibility of exploring more perverse fuzz textures. The Fuzz Phrase Si’s pedal-to-the-metal tones—with guitar volume and pedal gain wide open—bridge the gap between mid-’60s buzz and more contemporary-sounding silicon fuzzes like the Big Muff. And guitar volume attenuation summons many different personalities from the Fuzz Phrase Si—from vintage garage-psych tones with more note articulation and less sustain (great for sharp, punctuated riffs) as well as thick overdrive sounds.
If you’re curious about Fuzz Face-style circuits because of the dynamic response in germanium versions, the Fuzz Phrase Si performs better in this respect than many other silicon variations, though it won’t match the responsiveness of a good germanium incarnation. For starters, the travel you have to cover with a guitar volume knob to get tones approaching “clean” (a very relative term here) is significantly greater than that required by a good germanium Fuzz Face clone, which will clean up with very slight guitar volume adjustments. This makes precise gain management with guitar controls harder. And in situations where you have to move fast, you may be inclined to just switch the pedal off rather than attempt a dirty-to-clean shift with the guitar volume.
“The best clean-ish tones come via humbuckers and a high-headroom amp with not too much midrange, which makes a PAF-and-black-panel-Fender combination a great fit.”
The best clean-ish tones come via humbuckers and a high-headroom amp with not too much midrange, which makes a PAF-and-black-panel-Fender combination a great fit if you’re out to extract maximum dirty-to-clean range. You don’t need to attenuate your guitar volume as much with the PAF/black-panel tandem, and you can get pretty close to bypassed tone if you reduce picking intensity and/or switch from flatpick to fingers and nails. Single-coil pickups make such maneuvers more difficult. They tend to get thin in a less-than-ideal way before they shake the dirt, and they’re less responsive to the touch dynamics that yield so much range with PAFs. If you’re less interested in thick, clean tones, though, single-coils are a killer match for the Fuzz Phrase Si, yielding Yardbirds-y rasp, quirky lo-fi fuzz, and dirty overdrive that illuminates chord detail without sacrificing attitude. Pompeii tones are readily attainable via a Stratocaster and a high-headroom Fender amp, too, when you maximize guitar volume and pedal gain. And with British-style amps those same sounds turn feral and screaming, evoking Jimi’s nastiest.
The Verdict
Like every JAM pedal I’ve ever touched, the JAM Fuzz Phrase Si is built with care that makes the $229 price palatable. Cheaper silicon Fuzz Face clones may be easy to come by, but I’m hard-pressed to think they’ll last as long or as well as the Greece-made Fuzz Phrase Si. Like any silicon Fuzz Face-inspired design, what you gain in heat, you trade in dynamics. But the Si makes the best of this trade, opening a path to near-clean tones and many in-between gain textures, particularly if you put PAFs and a scooped black-panel Fender amp in the mix. And if streamlining is on your agenda, this fuzz’s combination of simplicity, swagger, and style means paring down pedals and controls doesn’t mean less fun.
