The Edge series features Neutrik connectors and Oxygen-Free Copper (OFC) conductors.
Anaheim, CA (January 21, 2014) -- Hosa Technology, the leading innovator of analog and digital connectivity solutions for the modern musician, is pleased to introduce the Edge Series cable products. Featuring genuine Neutrik connectors, Oxygen-Free Copper (OFC) conductors, and world-class workmanship, Hosa Edge cables—the company’s flagship cable line—provide musicians and audio professionals with the finest signal transport means available. And because Hosa Edge consists of microphone, guitar, and speaker cables, it can be used along the entire signal chain, ensuring one’s music will retain all the clarity and punch of the original sound.

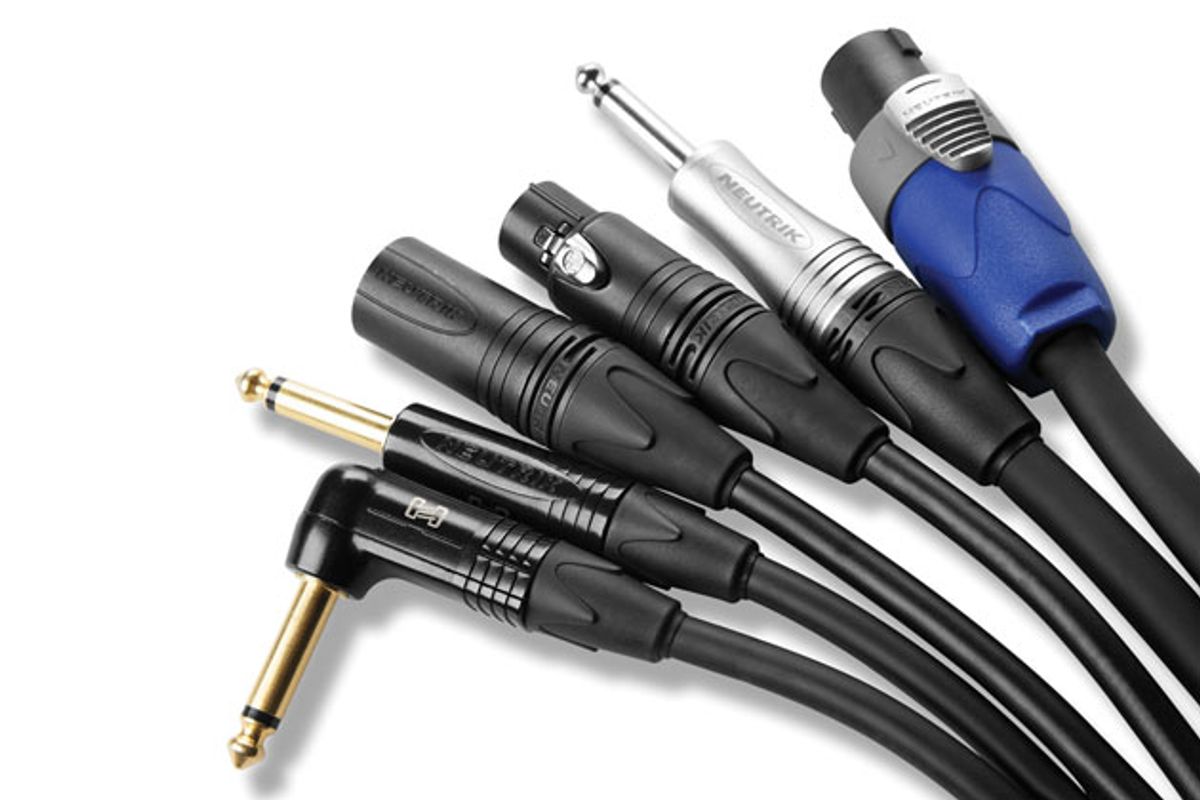

Hosa Edge Microphone Cables proudly utilize Neutrik XX-series connectors. Manufactured with gold-plated contacts for corrosion resistance, a Zinc die-cast housing for rock-solid reliability, chuck-type strain relief for maximum cable retention, a boot with a polyurethane gland to prevent cable kinking, and an ergonomic design that ensures easy handling, Neutrik connectors are the ideal terminations for a cable designed to provide stellar performance and durability. Hosa Edge Microphone Cables employ 20 AWG Oxygen-Free Copper (OFC) conductors along with polyethylene dielectrics and a 95% OFC braided shield. This reduces resistance and capacitance for maximum signal transfer and crystal-clear high frequency transmission while providing maximum noise rejection.
Many of the performance attributes of the Hosa Edge Microphone Cables can be found on the line’s guitar cables as well. Hosa Edge Guitar Cables utilize genuine Neutrik X-series plugs, which employ precision machined, one-piece contacts for signal integrity and structural rigidity. Like the Edge Microphone Cables, these guitar cables feature gold-plated contacts, a Zinc die-cast housing, chuck-type strain relief, a boot with a polyurethane gland, and an ergonomic design that ensures easy handling. Further, the Edge Guitar Cables incorporate 20 AWG Oxygen-Free Copper (OFC) conductors, a 95% OFC braided shield, and conductive PVC.
Like the Hosa Edge Microphone and Guitar Cables, the new Edge Speaker Cables employ Neutrik connectors that offer precision machined, one-piece contacts for signal integrity and structural rigidity, chuck-type strain relief, and a sleek, ergonomic design. These speaker cables utilize 12 AWG Oxygen-Free Copper (OFC) conductors that reduce resistance and provide maximum signal transfer. Further, they are manufactured with a PVC jacket that adds durability, remains flexible, and reduces the visibility of the cable.
Jose Gonzalez, Hosa Technology’s Product Manager, commented on the company’s new Edge Series cables. “Transmitting sound from its source to the audience with minimal signal loss is absolutely crucial,” says Gonzalez, “and this mandate is precisely what the new Hosa Edge Series is all about. Someone at the beginning of the signal chain poured their heart and soul into their music, and the music must reach the crowd with the same quality and impact as originally created. Unfortunately, the quality of the cable that transports one’s signal is often overlooked. With the new Edge Series, all of us at Hosa are confident the music will be delivered exactly as it’s supposed to be.”
Hosa Technology’s new Edge Series cables will all be available in a variety of cable lengths. MSRP of the Edge Series Microphone Cables will range from $45.45 - $145.80 while the Edge Guitar Cables are priced from $46.50 - $81. The Hosa Edge Speaker Cables will carry pricing from $37.65 - $232.50. Hosa’s Edge Series microphone, guitar, and speaker cable products are expected to become available by March 2014.
For more information:
Hosa Tech
Stompboxtober is finally here! Enter below for your chance to WIN today's featured pedal from Diamond Pedals! Come back each day during the month of October for more chances to win!
Diamond Pedals Dark Cloud
True to the Diamond design ethos of our dBBD’s hybrid analog architecture, Dark Cloud unlocks a new frontier in delay technology which was once deemed unobtainable by standard BBD circuit.
Powered by an embedded system, the Dark Cloud seamlessly blends input and output signals, crafting Tape, Harmonic, and Reverse delays with the organic warmth of analog companding and the meticulous precision of digital control.
Where analog warmth meets digital precision, the Dark Cloud redefines delay effects to create a pedal like no other
Fuchs Audio introduces the ODH Hybrid amp, featuring a True High Voltage all-tube preamp and Ice Power module for high-powered tones in a compact size. With D-Style overdrive, Spin reverb, and versatile controls, the ODH offers exceptional tone shaping and flexibility at an affordable price point.
Fuchs Audio has introduced their latest amp the ODH © Hybrid. Assembled in USA.
Featuring an ODS-style all-tube preamp, operating at True High Voltage into a fan-cooled Ice power module, the ODH brings high-powered clean and overdrive tones to an extremely compact size and a truly affordable price point.
Like the Fuchs ODS amps, the ODH clean preamp features 3-position brite switch, amid-boost switch, an EQ switch, high, mid and low controls. The clean preamp drives theoverdrive section in D-Style fashion. The OD channel has an input gain and outputmaster with an overdrive tone control. This ensures perfect tuning of both the clean andoverdrive channels. A unique tube limiter circuit controls the Ice Power module input.Any signal clipping is (intentionally) non-linear so it responds just like a real tube amp.
The ODH includes a two-way footswitch for channels and gain boost. A 30-second mute timer ensures the tubes are warmed up before the power amp goes live. The ODH features our lush and warm Spin reverb. A subsonic filter eliminates out-of-band low frequencies which would normally waste amplifier power, which assures tons of clean headroom. The amp also features Accent and Depth controls, allowing contouring of the high and low response of the power amp section, to match speakers, cabinets andenvironments. The ODH features a front panel fully buffered series effects loop and aline out jack, allowing for home recording or feeding a slave amp. A three-position muteswitch mutes the amp, the line out or mute neither.
Built on the same solid steel chassis platform as the Fuchs FB series bass amps, the amps feature a steel chassis and aluminum front and rear panels, Alpha potentiometers, ceramic tube sockets, high-grade circuit boards and Neutrik jacks. The ICE power amp is 150 watts into 8 ohms and 300 watts into 4 ohms, and nearly 500 watts into 2.65 ohms (4 and8 ohms in parallel) and operates on universal AC voltage, so it’s fully globallycompatible. The chassis is fan-cooled to ensure hours of cool operation under any circumstances. The all-tube preamp uses dual-selected 12AX7 tubes and a 6AL5 limiter tube.
MAP: $ 1,299
For more information, please visit fuchsaudiotechnology.com.
Cort Guitars introduces the GB-Fusion Bass Series, featuring innovative design and affordable pricing.
Cort Guitars have long been synonymous with creating instruments that are innovative yet affordably priced. Cort has done it again with the GB-Fusion Bass series. The GB-Fusion builds upon Cort’s illustrious GB-Modern series and infuses it with its own distinctive style and sound.
It starts with the J-style bass design. The GB-Fusion features a solid alder body – the most balanced of all the tonewoods – providing a fantastic balance of low, mid, and high frequencies. The visually stunning Spalted maple top extends the dynamic range of the bass. A see-through pickguard allows for its spalted beauty to show through. The four-string version of the GB-Fusion is lacquered in a supreme Blue Burst stained finish to show off its natural wood grain. The five-string version features a classic Antique Brown Burst stained finish. A bolt-on Hard maple neck allows for a punchier mid-range. An Indian rosewood fretboard with white dot inlays adorns the 4-string Blue Burst version of the GB-Fusion with an overall width of 1 ½” (38mm) at the nut, while the GB-Fusion 5 Antique Brown Burst features a Birdseye Maple fretboard with black dot inlays and an overall width of 1 7/8” (47.6mm) at the nut. Both come with glow in the dark side dot position markers to help musicians see their fretboard in the dark. The headstock features Hipshot® Ultralite Tuners in classic 20:1 ratio. They are cast of zinc with aluminum string posts making them 30% lighter than regular tuners providing better balance and tuning accuracy.
Cort’s brand-new Voiced Tone VTB-ST pickups are the perfect J-style single coil with clear and robust bass sounds and classic warmth. The GB-Fusion comes with a 9-volt battery-powered active preamp to dial in the sound. With push/pull volume, blend knob, and 3-band active electronics, players can access a wide array of tones. The MetalCraft M Bridge is a solid, high-mass bridge. It provides better tone transfer and makes string changes easy. Strings can be loaded through the body or from the top giving players their choice of best string tension. The MetalCraft M4 for 4-string has a string spacing of 19mm (0.748”) while the MetalCraft M5 is 18mm (0.708”). Speaking of strings, D’Addario® EXL 165 strings complete the GB-Fusion 4. D’Addario EXL 170-5SL strings complete the GB-Fusion 5.
Cort Guitars prides itself on creating inventive instruments musicians love to play. The GB-Fusion Bass Series is the latest and greatest for musicians looking for a stellar bass guitar that is not only economical, but has the reliable robust sound needed to hold up the back end in any playing situation.
GB-Fusion 4 Street Price: $699.99
GB-Fusion 5 Street Price: $849.99
For more information, please visit cortguitars.com.
Here’s a look under the hood of the funky rhythm-guitar master’s signature 6-string.
Hello and welcome back to Mod Garage. Since we’re still celebrating the 70th birthday of the Stratocaster, this month we will have a look under the hood of the Fender Cory Wong model to see just what’s so special about it. (I can tell you—it’s special!)
Guitarist, songwriter, and producer Cory Wong is renowned for his solo work, his band Fearless Flyers (with Mark Lettieri, Joe Dart, and Nate Smith), and collaborations with artists such as Vulfpeck, Jon Batiste, and Dave Koz. His playing style is deeply rooted in funk rhythm guitar, with a heavy dose of rock and jazz. Well-known for playing a Stratocaster, his signature model was released in 2021, and it’s a unique offering. If you want to build your personal Cory Wong Strat, here is your shopping list, starting with the primary structure:
• Alder body, scaled down to slightly smaller than a regular Stratocaster, with Fender American Ultra body contours
• Maple neck with a rosewood fretboard with rolled edges, modern Fender American Ultra D neck profile, slightly larger headstock, 25.5" scale, 10" to 14" compound radius, 22 medium jumbo frets
• Locking tuners with all short posts, a bone nut, and two roller string trees
• Vintage-style 6-screw synchronized tremolo
• Hair tie around the tremolo springs (which mutes them to enhance the rhythm tone)
• .010–.046 strings (nickel-plated steel)
“While these are all interesting features, resulting in a very comfortable guitar, you don’t need to copy every detail to transform one of your Stratocasters into a Cory Wong-style Strat.”
For the physical build, as you can see, Wong and Fender created a real signature instrument to his specs and wishes. While these are all interesting features, resulting in a very comfortable guitar, you don’t need to copy every detail to transform one of your Stratocasters into a Cory Wong-style Strat. My personal favorite of these is the hair tie for muting the tremolo springs. A lot of my funk-playing customers are doing similar things on their Strats to get a dry sound, and they’re using all kinds of funny things in there, like foam, rubber bands, and pieces of cotton, as well as hair ties.
Now, let’s have a look at the electronics:
• Seymour Duncan Cory Wong Clean Machine SSS pickup set
• Standard 5-way pickup-selector switch with classic Strat switching matrix
• 250k master volume pot with a 90/10 audio taper and Fender treble-bleed circuit PCB
• 250k tone pot with a 90/10 audio taper and Fender Greasebucket tone control PCB for only the neck pickup
• 250k audio push-push tone pot with Fender Greasebucket tone control PCB for only the bridge pickup; the push-push switch overrides the 5-way switch and defaults to middle + neck pickup (in parallel) as a preset
• Middle pickup is without tone control
Let’s break this down piece-by-piece to decode it:
Pickups
The pickup set is a custom SSS set from the Seymour Duncan company with the following specs:
• Overwound hum-canceling stacked bridge pickup with a 3-conductor wire and shield in permanent hum-canceling mode (red wire taped off), bevelled alnico 5 magnets, approximately 14.5k-ohm DCR
• Overwound middle single-coil, RWRP, beveled alnico 4 magnets, approximately 7.1k-ohm DCR
• Overwound neck single-coil, bevelled alnico 4 magnets, approx. 7.0k-ohm DCR
The pickups are voiced for clear highs, which perfectly suits Wong’s funky playing style and tone. While a lot of pickup companies will have pickups in that ballpark, it will be difficult to put together a full set that really works as intended. The Duncans in the Cory Wong Strat are available as a balanced set, so if you want to get as close as possible, I think this is your best bet.
5-Way Pickup Selector Switch
Nothing special here, just the standard 5-way switch with two switching stages that is wired like a classic Stratocaster:
bridge
bridge + middle in parallel
middle
middle + neck in parallel
neck
The upper tone pot is assigned to the neck pickup, while the lower tone pot is connected to the bridge pickup, leaving the middle pickup without tone control.
Master volume pot and treble-bleed circuit.
The 250k master volume pot is a standard CTS pot with a 90/10 audio taper found in all U.S.-made Fender guitars. The volume pot has the treble-bleed circuit from the Fender American Pro series, but uses a ready-to-solder PCB from Fender instead of individual electronic parts. The PCB is available from Fender individually (part #7711092000), but I have some thoughts about it. While using a PCB makes a lot of sense for mass production, it has some downsides for us mortal human beings:
• Soldering on PCBs requires some training and also special soldering tools.
• The PCB is quite expensive, while the individual electronic parts are only a few cents.
• The PCB uses ultra-tiny surface-mount parts, so it’s very difficult to repair or mod it to your personal taste.
I don’t think we need a PCB for adding a treble-bleed circuit, so let’s do this project using conventional electronic parts. The treble-bleed PCB contains a 1200 pF capacitor with a 150k-ohm resistor in parallel, plus another 20k-ohm resistor in series. Using individual parts, it looks like this:
Courtesy of single-coil.com
In general, a treble-bleed circuit will help you to combat the “volume vs. tone problem” when using passive single-coil pickups. When you turn down the volume (even just a bit), the high end or treble loss is not proportionate. In other words, a small cut in volume creates a far greater loss in your guitar’s treble response. Using a treble-bleed circuit is an easy way to get rid of this problem, as long as it is calculated carefully.
ONLINE ONLY: If you want to find out more about treble bleed circuits please have a look here: https://www.premierguitar.com/diy/mod-garage/treble-bleed-mod
Next month, we will continue with part two of the Cory Wong Stratocaster wiring, bringing it all together, so stay tuned!
Until then ... keep on modding!
