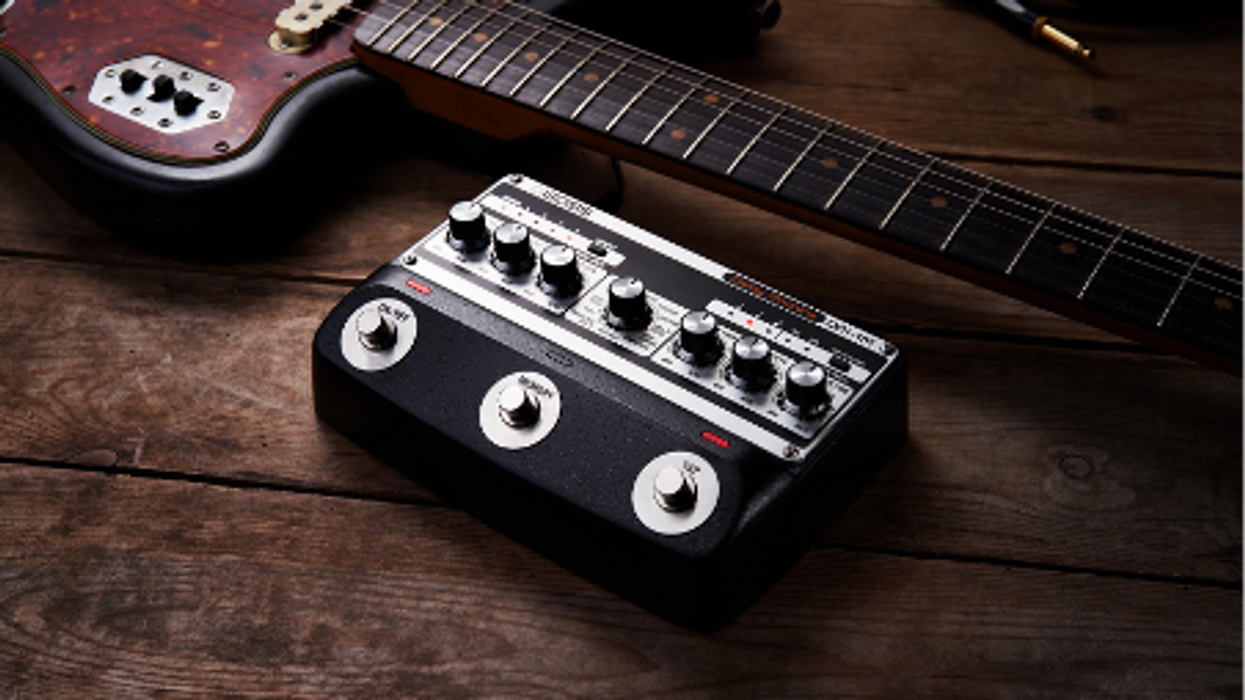

Boss' DM-101 is designed to deliver 12 unique modes, stereo operation, and a wide array of tonal colors, all while maintaining 100 percent analog signal processing throughout.
And with 127 user memories, tap tempo, carryover, MIDI, and more, the DM-101 offers the features and versatility of an advanced digital pedal—but with the vibrant, characterful sound that’s only possible with authentic analog BBD circuitry.
Analog delays based around BBD (bucket-brigade device) microchips emerged in the 1970s as a compact and cost-effective alternative to the standard tape delays of the era. Their warm, saturated, and highly musical sound established a distinctive style of delay that remains favored by many musicians and audio engineers. With its modern CPU control approach, the DM-101 supercharges this classic effect with enhanced capabilities for today’s music makers.
The DM-101 flows effortlessly between gritty vintage echoes and modern analog delay tones with extended high-frequency clarity. Multiple internal circuit elements are switched to define each of the 12 modes, including the number of active BBDs and their connection order, low-pass filter settings, and clocking rates. Twisting the Variation knob cycles through parameters unique to the different modes. And like a traditional analog delay, users can drive the effect into saturated self-oscillation by cranking the Intensity knob.
A major benefit of the DM-101’s CPU control is the ability to realize sophisticated stereo sounds not available with other BBD analog delays. For example, Pan mode routes each BBD and its feedback loop to alternate points in the stereo field, while Dual Mod shifts the modulation phase for each output to generate a wide, spacious delay effect. Six of the 12 modes support stereo operation, providing everything from short reverb-like sounds and expansive modulated delays to pattern delays for intense rhythmic effects.
The DM-101 offers all the creative benefits of an advanced modern delay pedal. Tap tempo and note subdivisions are available with most modes, and there’s carryover for maintaining repeats when the effect is bypassed. Users can store and recall favorite setups with four onboard memories and connect up to two footswitches or an expression pedal for extended real-time control. MIDI I/O takes things further, providing remote access to 127 user memories, MIDI sync, and more. The stereo audio outputs are set for blended operation by default, but they can be easily reconfigured for wet/dry rigs and wet-only parallel setups.
The Boss DM-101 will be available in the US in July for $499.99.
For more information, please visit boss.info.
Revv G3 Purple Channel Preamp/Overdrive/Distortion Pedal - Anniversary Edition
The Revv G3 revolutionized high gain pedals in 2018 with its tube-like response & tight, clear high gain tones. Suddenly the same boutique tones used by metal artists & producers worldwide were available to anyone in a compact pedal. Now the G3 returns with a new V2 circuit revision that raises the bar again.
If 3 Were 6
With six times the controls found on the 1 and 2 versions (if you discount the original’s on/off slider switch,) the LPB-3’s control complement offers pre-gain, boost, mid freq, bass, treble, and mid knobs, with a center detent on the latter three so you can find the midpoint easily. A mini-toggle labeled “max” selects between 20 dB and 33 dB of maximum gain, and another labeled “Q” flips the resonance of the mid EQ between high and low. Obviously, this represents a significant expansion of the LPB’s capabilities.
More than just a booster with a passive tone, the LPB-3 boasts a genuine active EQ stage plus parametric midrange section, comprising the two knobs with shaded legends, mid freq and mid level. The gain stages have also been reimagined to include a pre-gain stage before the EQ, which enables up to 20 dB of input gain. The boost stage that follows the EQ is essentially a level control with gain to allow for up to 33 dB of gain through the LPB-3 when the “max” mini toggle is set to 33dB
A slider switch accessible inside the pedal selects between buffered or true bypass for the hard-latch footswitch. An AC adapter is included, which supplies 200mA of DC at 9.6 volts to the center-negative power input, and EHX specifies that nothing supplying less than 120mA or more than 12 volts should be used. There’s no space for an internal battery.
Power-Boosted
The LPB-3 reveals boatloads of range that betters many linear boosts on the market. There’s lots of tone-shaping power here. Uncolored boost is available when you want it, and the preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.
“The preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.”
I found the two mid controls work best when used judiciously, and my guitars and amps preferred subtle changes pretty close to the midpoint on each. However, there are still tremendous variations in your mid boost (or scoop, for that matter) within just 15 or 20 percent range in either direction from the center detent. Pushing the boost and pre-gain too far, particularly with the 33 dB setting engaged, can lead to some harsh sounds, but they are easy to avoid and might even be desirable for some users that like to work at more creative extremes.
The Verdict
The new LPB-3 has much, much more range than its predecessors, providing flexible preamp, boost, and overdrive sounds that can be reshaped in significant ways via the powerful EQ. It gives precise tone-tuning flexibility to sticklers that like to match a guitar and amp to a song in a very precise way, but also opens up more radical paths for experimentalists. That it does all this at a $129 price is beyond reasonable.
