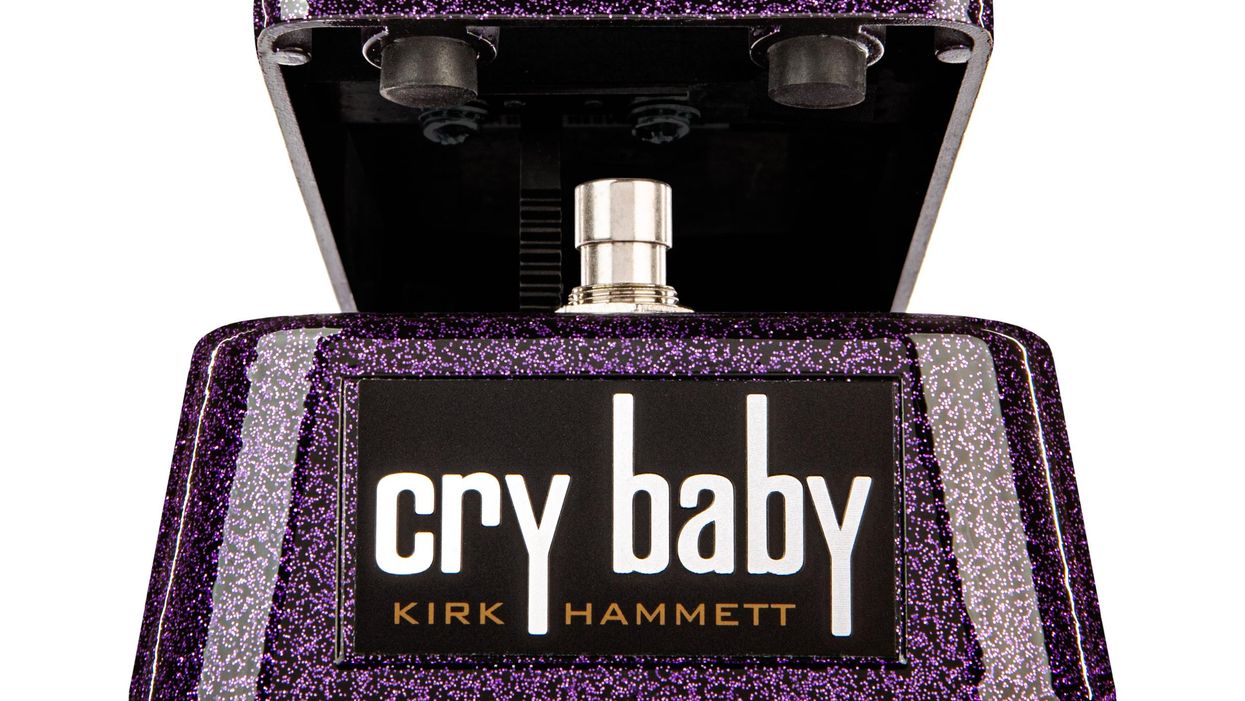

A signature wah pedal based on Metallica lead guitarist Kirk Hammett's own Cry Baby Rack Wah settings.
The Kirk Hammett Collection Cry Baby Wah delivers the heavy metal legend’s signature wah tones in a special edition purple sparkle finish. The response is even from heel to toe with an arresting midrange wail and a thick top end—designed for fast, melodic runs over hard-charging riffs.
“I always feel a great energy when I play my purple sparkle Ouija guitar,” Kirk says. “I thought it would make a killer, sonically spiritual connection to have a pedal with that same outwards vibe.”
Features
- Based on Kirk's own Cry Baby Rack Wah settings
- Capture the same sound he used to revolutionize metal solos
- Thick top end with a full dynamic range
- Special edition purple sparkle finish and custom tread
$199.99 USD. More info: https://www.jimdunlop.com/kh95x-kirk-hammett-collection-cry-baby-wah/. The Kirk Hammett Collection Cry Baby Wah is available now from your favorite retailers.
- Gibson Announces Partnership With Kirk Hammett - Premier Guitar ›
- Dunlop Kirk Hammett Wah & MXR Fullbore Metal Demos - Premier ... ›
- Kirk Hammett Limited Edition Half Stack - Premier Guitar ›
- Metallica Announce New Album and Tour - Premier Guitar ›
- Metallica Announce New Album and Tour - Premier Guitar ›
- Metallica Announce New Album and Tour - Premier Guitar ›
After eight years, New Orleans artist Benjamin Booker returns with a new album and a redefined relationship to the guitar.
That evening, Booker played a release celebration show at Euclid Records in New Orleans, which has become the musician’s adopted hometown. He spent a few years in Los Angeles, and then in Australia, where his partner gave birth to their child, but when he moved back to the U.S. in December 2023, it was the only place he could imagine coming back to. “I just like that the city has kind of a magic quality to it,” he says. “It just feels kind of like you’re walking around a movie set all the time.”
Witness was a ruminative, lonesome record, an interpretation of the writer James Baldwin’s concept of bearing witness to atrocity and injustice in the United States. Mavis Staples sang on the title track, which addressed the centuries-old crisis of police killings and brutality carried out against black Americans. It was a significant change from the twitchy, bluesy garage-rock of Booker’s self-titled 2014 debut, the sort of tunes that put him on the map as a scrappy guitar-slinging hero. But Booker never planned on heroism; he had no interest in becoming some neatly packaged industry archetype. After Witness, and years of touring, including supporting the likes of Jack White and Neil Young, Booker withdrew.
He was searching for a sound. “I was just trying to find the things that I liked,” he explains. L.A. was a good place for his hunt. He went cratedigging at Stellaremnant for electronic records, and at Artform Studio in Highland Park for obscure jazz releases. It took a long time to put together the music he was chasing. “For a while, I left guitar, and was just trying to figure out what I was going to do,” says Booker. “I just wasn’t interested in it anymore. I hadn’t heard really that much guitar stuff that had really spoke to me.”
“For a while, I left guitar, and was just trying to figure out what I was going to do. I just wasn’t interested in it anymore.”
LOWER is Booker’s most sensitive and challenging record yet.
Among the few exceptions were Tortoise’s Jeff Parker and Dave Harrington from Darkside, players who moved Booker to focus more on creating ambient and abstract textures instead of riffs. Other sources of inspiration came from Nicolas Jaar, Loveliescrushing, Kevin Shields, Sophie, and JPEGMAFIA. When it came to make LOWER (which released on Booker’s own Fire Next Time Records, another nod to Baldwin), he took the influences that he picked up and put them onto guitar—more atmosphere, less “noodly stuff”: “This album, I was working a lot more with images, trying to get images that could get to the emotion that I was trying to get to.”
The result is a scraping, aching, exploratory album that demonstrates that Booker’s creative analysis of the world is sharper and more potent than ever. Opener “Black Opps” is a throbbing, metallic, garage-electronic thrill, running back decades of state surveillance, murder, and sabotage against Black community organizing. “LWA in the Trailer Park” is brighter by a slim margin, but just as simultaneously discordant and groovy. The looped fingerpicking of “Pompeii Statues” sets a grounding for Booker to narrate scenes of the homelessness crisis in Los Angeles. Even the acoustic strums of “Heavy on the Mind” are warped and stretched into something deeply affecting; ditto the sunny, garbage-smeared ’60s pop of “Show and Tell.” But LOWER is also breathtakingly beautiful and moving. “Slow Dance in a Gay Bar” and “Hope for the Night Time” intermingle moments of joy and lightness amid desperation and loneliness.
Booker worked with L.A.-based hip-hop and electronic producer Kenny Segal, trading stems endlessly over email to build the record. While he was surrounded by vintage guitars and amps to create Witness, Booker didn’t use a single amplifier in the process of making LOWER: He recorded all his guitars direct through an interface to his DAW. “It’s just me plugging my old Epiphone Olympic into the computer and then using software plugins to manipulate the sounds,” says Booker. For him, working digitally and “in the box” is the new frontier of guitar music, no different than how Hendrix and Clapton used never-heard-before fuzz pedals to blow people’s minds. “When I look at guitar players who are my favorites, a lot of [their playing] is related to the technology at the time,” he adds.
“When I look at guitar players who are my favorites, a lot of [their playing] is related to the technology at the time.”
Benjamin Booker's Gear
Booker didn’t use any amps on LOWER. He recorded his old Epiphone Olympic direct into his DAW.
Photo by Trenity Thomas
Guitars
- 1960s Epiphone Olympic
Effects
- Soundtoys Little AlterBoy
- Soundtoys Decapitator
- Soundtoys Devil-Loc Deluxe
- Soundtoys Little Plate
“I guess I have a problem with anything being too sugary. I wanted a little bit of ugliness.”
Inspired by a black metal documentary in which an artist asks for the cheapest mic possible, Booker used only basic plugins by Soundtoys, like the Decapitator, Little AlterBoy, and Little Plate, but the Devil-Loc Deluxe was the key for he and Segal to unlock the distorted, “three-dimensional world” they were seeking. “Because I was listening to more electronic music where there’s more of a focus on mixing than I would say in rock music, I think that I felt more inspired to go in and be surgical about it,” says Booker.
Part of that precision meant capturing the chaos of our world in all its terror and splendor. When he was younger, Booker spent a lot of time going to the Library of Congress and listening to archival interviews. On LOWER, he carries out his own archival sound research. “I like the idea of being able to put things like that in the music, for people to just hear it,” says Booker. “Even if they don’t know what it is, they’re catching a glimpse of life that happened at that time.”
On “Slow Dance in a Gay Bar,” there are birds chirping that he captured while living in Australia. Closer “Hope for the Night Time” features sounds from Los Angeles’ Grand Central Market. “Same Kind of Lonely” features audio of Booker’s baby laughing just after a clip from a school shooting. “I guess I have a problem with anything being too sugary,” says Booker. “I wanted a little bit of ugliness. We all have our regular lives that are just kind of interrupted constantly by insane acts of violence.”
That dichotomy is often difficult to compute, but Booker has made peace with it. “You hear people talking about, ‘I don’t want to have kids because the world is falling apart,’” he says. “But I mean, I feel like it’s always falling apart and building itself back up. Nothing lasts forever, even bad times.”
YouTube It
To go along with the record, Booker produced a string of music videos influenced by the work of director Paul Schrader and his fascination with “a troubled character on the edge, reaching for transcendence.” That vision is present in the video for lead single “LWA in the Trailer Park.”
Note the cavity cover on the back, which houses the components of Andy Summers’ mid-boost system.
In general, you can use any Telecaster and convert it to Andy Summers’ specs. If you want to stay as close as possible to the original guitar, the way to go is an alder body—just like Andy’s, which is 2-piece—with a 3-tone sunburst finish and white double binding.
The neck should be quarter-sawn, 1-piece maple with a C profile, 21 vintage-style frets, and a 7.25" fretboard radius. Of course, you can choose your own specs here, too. The original guitar has a brass nut rather than bone or plastic, and it should be no problem to find a brass nut blank for a Telecaster. You will need different tools to work on it compared to bone, plastic, or graphite, so keep this in mind. If you do not have the right tools or don’t feel comfortable making nuts, you should leave this task to your local guitar tech. Summers’ guitar has Schaller M6 tuning machines, which are still available from the German Schaller company, and two chrome butterfly string trees. You may not really need two of them—usually one for the B and the high E string will do the trick, especially with a well-made nut.
The original has a heavy brass bridge plate with six individual brass saddles, which will increase overall weight significantly. You can still buy this type of brass bridge from several companies, but there are much lighter bridges on the market.
The stereo output jack is installed in a rectangular chrome plate, like on a Les Paul, which I think is superior to the typical Telecaster jack cup. Interestingly, the plate on Summers’ guitar is only held by two of four screws, but do yourself a favor and use all four to make this spot as strong as possible. You should attach the plate really tight, especially when you use an output jack with a tight grip for the plug.
“Electronically, there is nothing too specialized that you will need for the controls.”
The rest of the hardware is chrome and standard: two regular strap buttons, a standard Telecaster control plate, ’60s Telecaster flat-top knobs, a black ’60s-style top-hat switch knob on the 3-way pickup selector switch, and two flat-lever mini-toggle switches. You should have no problem getting all of these parts from any guitar shop. The pickguard is a 3-ply mint green pickguard with a standard humbucker routing for the neck pickup.
Electronically, there is nothing too specialized that you will need for the controls: a standard 3-way pickup selector switch, two 250k audio pots for master volume and master tone, a gain control pot for the booster, and two additional mini DPDT on-on toggle switches for switching the booster on and off and for the phase control of the bridge pickup. The resistance of the gain control pot depends on the booster you want to use: e.g. for the Fender Clapton mid-boost kit, a 500k type will work great.
For the bridge pickup, there is a standard early-’60s-style Telecaster single-coil pickup, and every pickup company will have something like this in their catalog. Because the bridge pickup is installed to an out-of-phase mini-toggle switch, your pickup will need three conductors, with the metal base plate separated from the pickup’s common ground, and a third wire that connects the bridge plate individually to ground. If you have a regular two-conductor model, you need to break this connection, soldering a third wire directly to the base plate.
Interestingly, the bridge pickup on Summers’ Tele is installed directly into the wood of the pickup’s cavity. I see no reason why you shouldn’t install it the regular way on your guitar.
Here’s a close-up of the bridge on Summers’ historic Tele.
Photo courtesy of Ten-Guitars (https://ten-guitars.de)
In the neck position, there is a ’59 PAF humbucker with a conventional two-conductor wiring installed directly into the pickguard in the standard way, with the open pole pieces facing towards the neck. The choice of late-’50s PAF copies has never been better than it is today. You can buy excellent versions from a lot of companies, just make sure to choose the correct string spacing, which is usually called “F-spacing” or something similar, and is usually 2.070" (52.6 mm). (Gibson spacing, or G-spacing, is 1.930" or 49 mm.)
You’ll need humbucker routing on your body to make it fit. If you don’t have a body with humbucker routing and don’t want to get your Tele body re-routed, you can consider one of the numerous stacked humbuckers that will fit into a standard Telecaster neck pickup cavity. My experience is that there is a noticeable difference in tone compared to a full-sized humbucker, and it will be a compromise.
Next is the active booster. Finding a good booster module and wiring it up is much easier than fitting it into the tight space of a Telecaster body. There are a wide range of available booster options. There are complete DIY sets available that include the PCB and all of the necessary parts to build your own, and there are also drop-in PCBs that are already populated, like the well-known Fender mid-boost circuit kit. You can also find mini-sized booster modules using high-quality SMD parts, which only require a fraction of space compared to the regular PCBs.
“Finding a good booster module and wiring it up is much easier than fitting it into the tight space of a Telecaster body.”
The available options include treble boosters, mid-boost circuits, full-range boosters, etc. Choose what you like best. The problem will be that you need to stuff it into a Telecaster body. As you know, there is not much space inside a Telecaster, and you need to add the booster itself, the 9V battery, an additional pot for controlling the booster, and two additional mini-toggle switches—one for turning the booster on and off, and the other to get the bridge pickup out of phase. This is a lot of stuff! On Summers’ guitar, this problem was solved by adding a large cavity on the back and closing it with a plastic back plate, as on a Gibson Les Paul.
A look inside the cavity for the mid-boost unit.
Photo courtesy of TeleManDon from Vancouver Island, BC (https://tdpri.com)
You can clearly see the two big routings for the booster’s PCB and the 9V battery, plus the additional pot to control the amount of boost as well as the mini-toggle switch to turn the booster on and off. If you are not afraid of routing two big chambers into your Telecaster’s body, this is a suitable way to go.
On a Telecaster, there are not many alternatives I can think of to fit all these parts. One possible way of saving space would be to use a stacked pot with two 250k pots for volume and tone, so you have the second hole in the control plate available for the gain control pot of the booster. Between the two pots, it should be no problem to place the two mini-toggle switches. Or you use a push-pull pot for the gain control to save one of the mini-toggle switches. The guitar will look much cleaner, at least from the front side. But you still have to put the booster PCB and the battery somewhere. A customer of mine did this by completely routing the area under the pickguard. But even with only a regular single-coil neck pickup, it was a really tight fit, so with a regular-sized humbucker, it will be close to impossible. So, you or your luthier will have to be creative, and I wouldn’t be surprised if a company offers Andy Summers Telecaster bodies with all chambers already routed.
Here we go for the wiring. Wherever possible, I tried to keep the diagram as clean as possible. The wiring of the booster is only an example and depends on the booster you want to use, but the basic wiring is always the same.
Here’s a helpful schmatic of the Andy Summers‘ Telecaster wiring.
Illustration courtesy of SINGLECOIL (www.singlecoil.com)
That’s it. Next month, we will take a deep look into guitar cables and wires, what really makes a difference, and how you can use this to reshape your guitar tone. So stay tuned!
Until then ... keep on modding!
