Animate your recording with high-tuned instruments.
Is there anyone out there who doesn’t know the Troggs Tape? The one where the ’60s British band has an epic studio meltdown arguing idiotically about how to record a new song? If not, YouTube it this instant, assuming you can handle rude language. I’d embed the clip here, but it doesn’t seem wise to populate a PG page with 500 or so f-bombs.
But just a few can’t hurt! Take this memorable exchange:
“I agree—it is a good song.”
“But it f**king won’t be unless we spend a little bit of f**king thought and imagination to f**king make it a f**king number one! We’ve got to put a little bit of f**king fairy dust over the bastard, you know?”
Dude’s got a point. While there’s no universally accepted definition of f***king fairy dust, most probably interpret it as a splash of high-pitched color or animation that seduces the listener into a recording. And one of the best ways to add f-dust is to double acoustic guitar parts in higher registers. Sometimes it’s simply a matter of slapping on a capo and transposing a part, a topic we’ll tackle soon. But first, let’s evaluate some alternate f-dust instruments.
Double Trouble?
Sometimes acoustic tracks are doubled as literally as possible, as in Ex. 1. Here a guitar enters on the left channel, and then gets doubled as precisely a possible on the right using the same instrument. Even this simple technique generates high-end energy as the guitars’ upper harmonics phase against each other. (I added drums and bass midway through to illustrate how you can still perceive the animation in a full-band arrangement.)
But sometimes when you add a higher-pitched part—especially one that requires different fingering—it’s not always possible, or even desirable, to clone the previous part. It’s often good to simplify, as in Ex. 2. Here the second guitar is a 12-string. It’s tuned a whole-step below standard, so while the original part is in C major, I finger the overdub in D. I omit most of the low notes, which are likelier to add muck than animation, and focus on the soprano melody. Even so, the lower-octave notes bulk up the part while adding the desired dust.
With 12-string, it can be a crapshoot whether a particular note gets doubled in unison or at the octave, since the lower four string pairs are tuned in octaves while the top two are in unison. Sometimes that randomness works, but you may prefer a consistent sound as you shift between strings, like you get with the mandolin in Ex. 3. (All mandolin string pairs are unisons.) Also, it adds less mass than the 12-string with its low strings—these fairies are smaller. The mandolin is tuned to its standard G–D–A–E (low to high), which requires non-guitar fingering.
Gryphons Are Real

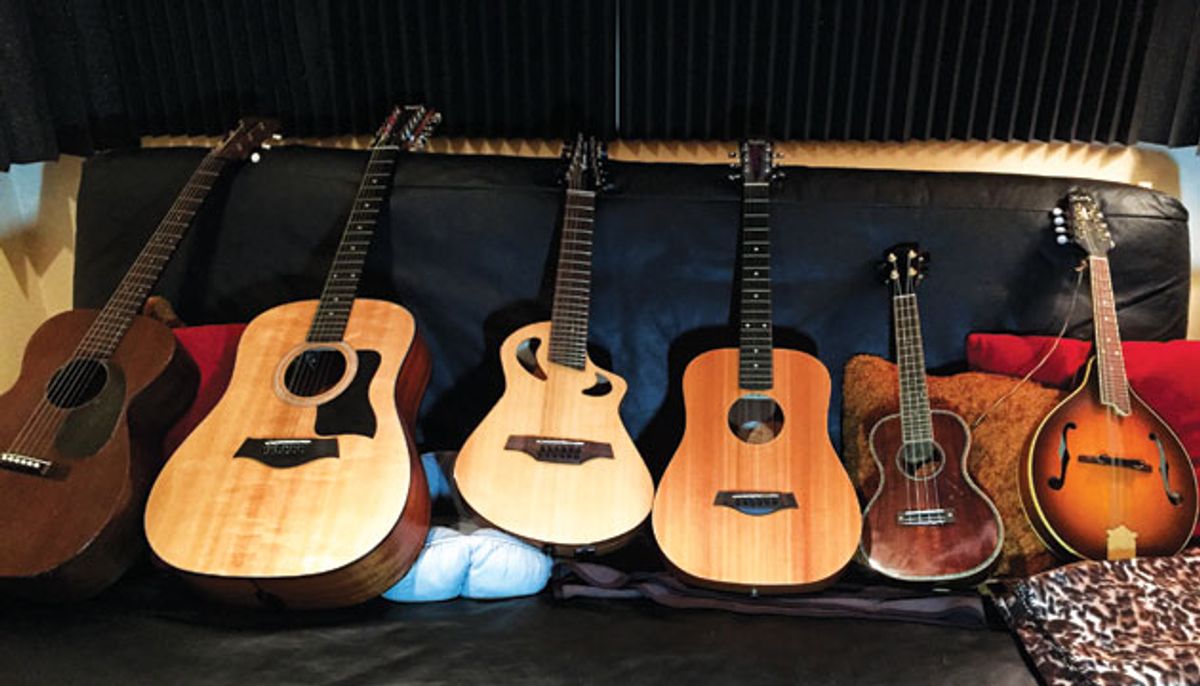

If you prefer a mandolin-like effect on a more guitar-like instrument, you can’t beat the Veillette Avant-Gryphon. It’s an octave-up 12-string, but with all string pairs in unison as on a mandolin. It’s tuned a minor-seventh above standard—that is, like the 12-string in Ex. 2, but up an octave. That means Ex. 4 is also fingered in D.
Gryphons are beautiful instruments, but not everyone can afford a fairy duster that costs over a grand. Fortunately, you don’t need a fine instrument to get a fine effect. For example, the mandolin in Ex. 3 is a cheap but nice-sounding Kentucky model from Saga. Ex. 5 also makes a dramatic effect with a low-cost axe: a tiny Baby Taylor travel guitar in “Nashville high-strung” tuning. Here, the top two strings are tuned standard, while the lower four are an octave up from normal. (Obviously, you need to restring for this effect. Some players simply swipe the high strings from a standard 12-string set.) The result is a lighter, leaner version of Ex. 4, with no low notes and less mass overall.
The downside to inexpensive instruments like these is that they can be a bitch to intonate. It took me a few tries to lay down the Ex. 5 overdub more or less in tune.
Ukulele can be another low-cost fairy duster. Ex. 6 employs a baritone uke tuned C–F–A–D, which is like the top four guitar strings when you capo at the 10th fret, but with the lowest string an octave higher.
While the previous examples use bright-toned high strings to contrast the soft warmth of my small-bodied mahogany Martin acoustic, the nylon-stringed uke is even softer and warmer than the Martin, and the parts mesh in a very different way. Ex. 7 works in a similar fashion. Can you identify the instrument?
Yup, we’re back where we started—it’s the same guitar as on the initial part, but capoed at the 10th fret for a tuning close to the ukulele’s. Sometimes the best approach is to just use the instrument you started with, but with the part voiced elsewhere on the neck. We’ll dive deeper into that technique next time.
One More F**king Thing
Just for fun, I pulled up all seven parts at once, and to my amazement, they actually sound kind of cool together. I listened only to the original guitar as I tracked each overdub, so Ex. 8 is a bit of a rhythmic mess, though it could be assembled more precisely. Might you ever use this harpsichord-from-hell sound? It depends on the context!
But at this point, we’re not really sprinkling fairy dust on the bastard—more like burying the bastard under a mountain of fairy droppings. Bon appétit.
Nineties-style high-gain heaviness that can be surgically tailored with a powerful EQ.
Excellent variations on high-gain modern distortion tones. Powerful EQ.
Not many low- or mid-gain sounds here.
$199
JHS Hard Drive
jhspedals.com
JHS makes many great and varied overdrive stomps. Their Pack Rat is a staple on one of my boards, and I can personally attest to the quality of their builds. The new Hard Drive has been in the works since as far back as 2016, when Josh Scott and his staff were finishing off workdays by jamming on ’90s hard rock riffs.
During these sessions, Scott’s go-to pedal was the Ibanez SM7 Smash Box. He realized that JHS had never offered anything along those lines, conferred with his then lead engineer, Cliff Smith, and the wheels were set in motion. Over several years of design, the Hard Drive evolved from an SM7 homage to a unique, original circuit.
JHS’ Hardest to Date
The Hard Drive’s control panel is streamlined, consisting of knobs for volume, mid frequency, drive, bass, middle, and treble. Driven by cascading gain stages, the Hard Drive can cop a wide range of modern distorted tones. Even at the lowest drive settings, the Hard Drive simmers, delivering massive bottom end on muted power chords. Nudging the drive up very slightly transforms the Hard Drive into a roaring Marshall JCM 900. And if you bring the drive all the way up, you’re in for all out chaos. Even with an amp set just louder than bedroom levels, the Hard Drive, with its volume at just 11 o’clock, is very loud and in-your-face. You don’t have to work hard to imagine how this could sound and feel like multiple stacks raging at Madison Square Garden in the context of a recorded track.
Even at the lowest drive settings, the Hard Drive simmers, delivering massive bottom end.
Zoning the Frequencies
Unlike some heavy pedals that concern themselves with mega-gain and little else, the Hard Drive’s EQ controls are very effective and powerful. Moving the treble knob from 11 o’clock to 1 o’clock changes the pedal’s tone and response characteristics completely, opening up and transforming the naturally relatively dark sound of my Fender Super Sonic amp. Turning the treble knob all the way off with the bass and mid knobs at noon gives me a vocal lead tone that’s creamy, warm, and still immediate and responsive.
The middle and mid frequency controls work in tandem. The mid control itself works as a cut or boost. The mid frequency control, however, lets you choose the specific frequency you cut or boost. I found these controls invaluable for sculpting tones that could leverage the copious gain without being abrasive. Meanwhile, adding more high midrange lends clarity to complex chords.
The Verdict
The Hard Drive is an unapologetically heavy pedal—if you’re looking for a dirt box that can double as a clean boost, well, the Hard Drive is not that. It’s meant to slay with gain, and it performs this task well and with a vengeance. There are countless dirt boxes on the market that deliver hot rodded, ’80s-style brown sound. Fewer cater to the subsequent generations of high-gain players that used the ’80s as a mere jumping-off point. The Hard Drive is very much voiced for this strain of heavy music. If that’s your jam, the Hard Drive is hard to beat.
Tailored for Yngwie Malmsteen's signature sound, the MXR Yngwie Malmsteen Overdrive is designd to offer simple controls for maximum impact.
Working closely alongside Yngwie, the MXR design team created a circuit that delivers clarity, expressive dynamics, and rich harmonics—all perfectly tailored for his light-speed arpeggios, expressive vibrato, and big, bold riffs. The control setup is simple, with just Level and Gain knobs.
"Want to sound like Yngwie? Crank both knobs to the max."
“This pedal is the culmination of 45+ years developing a sound that’s perfect in every possible way,” Yngwie says. “I present to you: the MXR Yngwie Malmsteen Overdrive. Prepare to be amazed.”
​MXR Yngwie Malmsteen Overdrive highlights:
- Perfectly tailored for Yngwie Malmsteen's signature sound and style
- Simple control setup tuned for maximum impact
- Boost every nuance with superior clarity, expressive dynamics, and rich harmonics
- Dig into light-speed arpeggios, expressive vibrato, and big, bold riffs
The MXR Yngwie Malmsteen Overdrive is available now at $129.99 street/$185.70 MSRP from your favorite retailer.
For more information, please visit jimdunlop.com.
Voltage Cable Company's new Voltage Vintage Coil 30-foot guitar cable is now protected with ISO-COAT technology to provide unsurpassed reliability.
The new coiled cables are available in four eye-grabbing retro colors – Surf Green, Electric Blue, Orange and Caramel – as well as three standard colors: Black, White and Red. There is also a CME exclusive “Chicago Cream” color on the way.
Guitarists can choose between three different connector configurations: straight/straight plugs, right angle/straight and right angle/right angle options.
The Voltage Vintage Coil offers superior sound quality and durability thanks to ISO-COAT treatment, a patent-pending hermetic seal applied to solder terminations. This first-of-its-kind airtight seal prevents corrosion and oxidization, a known factor in cable failure and degradation. ISO-COAT protected cables are for guitarists who value genuine lifetime durability and consistent tone throughout their career on stage and in the studio.
Voltage cables are hand made by qualified technical engineers using the finest components available and come with a lifetime warranty.
Voltage Vintage Coil features include:
- Lifetime guarantee, 1000+ gig durability
- ISO-COAT treatment - corrosion & oxidization resistant cable internals
- Strengthened structural integrity of solder terminations
Voltage Vintage Coils carry $89.00 USD pricing each and are available online at voltagecableco.com, as well as in select guitar stores in North America, Australia, Thailand, UK, Belgium and China.
About Voltage Cable: Established in 2021, Voltage Cable Co. is a family owned and operated guitar cable company based in Sydney, Australia. All their cables are designed to be played, and built for a lifetime. The company’s ISO-COAT is a patent pending hermetic seal applied to solder terminations.
Featuring dual-engine processing, dynamic room modeling, and classic mic/speaker pairings, this pedal delivers complete album-ready tones for rock and metal players.
Built on powerful dual‑engine processing and world‑class UAD modeling, ANTI 1992 High Gain Amp gives guitarists the unmistakable sound of an original "block letter" Peavey 5150 amplifier* – the notorious 120‑watt tube amp monster that fueled more than three decades of modern metal music, from Thrash and Death Metal, to Grunge, Black Metal, and more.
"With UAFX Dream, Ruby, Woodrow, and Lion amp emulators, we recreated four of the most famous guitar amps ever made," says UA Sr. Product Manager Tore Mogensen. "Now with ANTI, we're giving rock and metal players an authentic emulation of this punishing high gain amp – with the exact mic/speaker pairings and boost/noise gate effects that were responsible for some of the most groundbreaking modern metal tones ever captured."
Key Features:
- A complete emulation of the early '90s 120‑watt tone monster that defined new genres of modern metal
- Powerful UAFX dual-engine delivers the most authentic emulation of the amp ever placed in a stompbox
- Complete album‑ready sounds with built‑in noise gate, TS‑style overdrive, and TC‑style preamp boost
- Groundbreaking Dynamic Room Modeling derived from UA's award-winning OX Amp Top Box
- Six classic mic/speaker pairings used on decades of iconic metal and hard rock records
- Professional presets designed by the guitarists of Tetrarch, Jeff Loomis, and The Black Dahlia Murder
- UAFX mobile app lets you access hidden amp tweaks and mods, choose overdrive/boost, tweak noise gate, recall and archive your presets, download artist presets, and more
- Timeless UA design and craftsmanship, built to last decades
For more information, please visit uaudio.com.
