Order and chaos live side by side in a wildly expressive digital delay.
Death By Audio doesn’t really care what people think. Commonplace notions of what fuzz, overdrive, delay, and reverb are supposed to sound like mean little to them, and many musicians that treasure their effects couldn’t be happier with that stance. Because where a lot of pedal builders build variations on established templates, Death By Audio builds for iconoclasts. It’s always fascinating to see what these mad scientists have conjured in their lab.
One of the latest offerings is called Ghost Delay. It’s an appropriate moniker because it doesn’t take many knob turns to extract a wealth of supernatural sounds. The idea is simple enough: cascade three delay circuits into each other, and let chance do some of the work. And unlike other multi-taps, there’s no emphasis on synching, or subdividing.
Three-Headed Monster

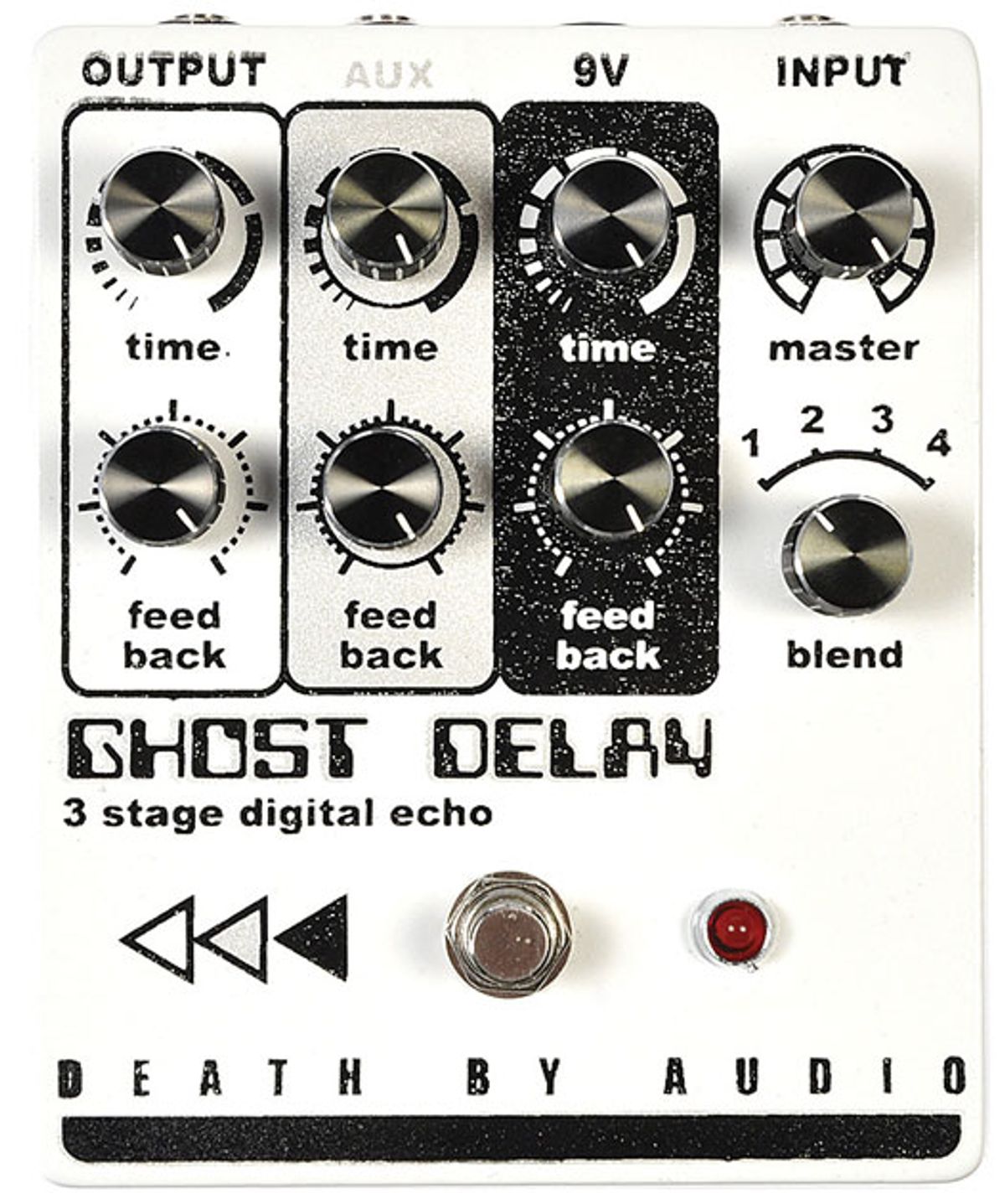

Death By Audio may savor unexpected sonic results, but they know how to design effects that makes sense. On the Ghost Delay, there are three shaded strips—each one home to a time and feedback control for a single delay. A color-coded, three-triangle graphic reminds you (rather subtly) that signal flow is right to left. Each of the three echoes has a range from 30 ms to 700 ms.
with digital echoes.
A 4-position blend control allows you to choose between four proportions of dry and wet signal. This might sound limiting at first, but given the copious possible delay permutations available here, it actually enables you to more easily get back to where you started. There’s also an input master volume—not unlike what you’d see on an Echoplex. The back panel is home to an input, output, aux out (more on that later), and a connection for a 9V jack (though there is a battery option too).
Playing Poltergeist
Exploring the milder side of the Ghost Delay first, I played a Telecaster through a Matchless HC-30, setting the Ghost for a sort of slapback effect—which, in reality, is to the traditional Sun Studio slapback delay what The Jesus and Mary Chain are to Motown. At this setting individual notes take on the percussive characteristics of heels clacking down a hospital corridor, only a bit darker. One of the strongest impressions I got at this setting is that the Ghost Delay has little of the harsh brightness we associate with digital echoes. In fact, it reminded me a lot of the old, analog, Boss DM series ... or rather, three of them.
Ratings
Pros:
Three delays for the price of one. Great build quality. Delivers the unexpected.
Cons:
Can be hard to control at self-oscillating levels.
Tones:
Ease of Use:
Build/Design:
Value:
Street:
$250
Death By Audio Ghost Delay
deathbyaudio.net
I toyed with putting short, medium, and long delays in various orders, and I’d often get patterns that almost mimicked the output from a sequencer. You could build entire songs around these patterns, and the only limitation of using this as a composition method is that there are no presets for recalling the settings later. What’s more, the controls are sensitive, so returning the knobs to previous positions might not get you exactly what you had before.
Every delay reacts differently at maximum feedback. As you might expect from a Death By Audio product, this one screams and distorts when it’s infinitely cycling. I’m a fan of more controllable, throbbing foldback, and at times I found the Ghost’s self-oscillating settings a bit challenging to manipulate. The upside of the Ghost Delay’s sensitivity is that when the feedback control is on the brink of cycling infinitely, you get a very touch-responsive and musical screech that you can manipulate with downstream delays. The more notes you play, the more they pile up exponentially and the volume increases. Add space between the notes, and the mayhem subsides.
Aux out sends the echo trails of the first two delays in the series (the black and silver strips) to a different amp. The dry signal and the delayed signal from the last delay in the chain are routed through the output. In a two-amp rig, the split and disparate delay rates can create a fantastically disorienting effect.
The VerdictDeath By Audio are a ferociously creative collective that encourage players to embrace happy accidents and chaos. Founder Oliver Ackermann’s band, A Place to Bury Strangers, has made a niche career out of embracing chaos, and his effects seem like an extension of the band. The Ghost Delay fits squarely within the “to thine ownself be true” ethos. It’s not built to be predictable or easy to control (and let’s face it, there’s plenty of that out there). Instead, the Ghost Delay is designed to keep your playing life a little wild, and the potential results are nearly infinite—and infinitely rewarding.
Stompboxtober is rolling on! Enter below for your chance to WIN today's featured pedal from Peterson Tuners! Come back each day during the month of October for more chances to win!
Peterson StroboStomp Mini Pedal Tuner
The StroboStomp Mini delivers the unmatched 0.1 cent tuning accuracy of all authentic Peterson Strobe Tuners in a mini pedal tuner format. We designed StroboStomp Mini around the most requested features from our customers: a mini form factor, and top mounted jacks. |
Intermediate
Intermediate
• Learn classic turnarounds.
• Add depth and interest to common progressions.
• Stretch out harmonically with hip substitutions.
Get back to center in musical and ear-catching ways.
A turnaround chord progression has one mission: It allows the music to continue seamlessly back to the beginning of the form while reinforcing the key center in a musically interesting way. Consider the last four measures of a 12-bar blues in F, where the bare-bones harmony would be C7-Bb7-F7-F7 (one chord per measure). With no turn around in the last two measures, you would go back to the top of the form, landing on another F7. That’s a lot of F7, both at the end of the form, and then again in the first four bars of the blues. Without a turnaround, you run the risk of obscuring the form of the song. It would be like writing a novel without using paragraphs or punctuation.
The most common turnaround is the I-VI-ii-V chord progression, which can be applied to the end of the blues and is frequently used when playing jazz standards. Our first four turnarounds are based on this chord progression. Furthermore, by using substitutions and chord quality changes, you get more mileage out of the I-VI-ii-V without changing the basic functionality of the turnaround itself. The second group of four turnarounds features unique progressions that have been borrowed from songs or were created from a theoretical idea.
In each example, I added extensions and alterations to each chord and stayed away from the pure R-3-5-7 voicings. This will give each chord sequence more color and interesting voice leading. Each turnaround has a companion solo line that reflects the sound of the changes. Shell voicings (root, 3rd, 7th) are played underneath so that the line carries the sound of the written chord changes, making it easier to hear the sound of the extensions and alterations. All examples are in the key of C. Let’s hit it.
The first turnaround is the tried and true I-VI-ii-V progression, played as Cmaj7-A7-Dm7-G7. Ex. 1 begins with C6/9, to A7(#5), to Dm9, to G7(#5), and resolves to Cmaj7(#11). By using these extensions and alterations, I get a smoother, mostly chromatic melodic line at the top of the chord progression.
Ex. 2 shows one possible line that you can create. As for scale choices, I used C major pentatonic over C6/9, A whole tone for A7(#5), D Dorian for Dm9, G whole tone for G7(#5), and C Lydian for Cmaj7(#11) to get a more modern sound.
The next turnaround is the iii-VI-ii-V progression, played as Em7-A7-Dm7-G7 where the Em7 is substituted for Cmaj7. The more elaborate version in Ex. 3 shows Em9 to A7(#9)/C#, to Dm6/9, to G9/B, resolving to Cmaj7(add6). A common way to substitute chords is to use the diatonic chord that is a 3rd above the written chord. So, to sub out the I chord (Cmaj7) you would use the iii chord (Em7). By spelling Cmaj7 = C-E-G-B and Em7 = E-G-B-D, you can see that these two chords have three notes in common, and will sound similar over the fundamental bass note, C. The dominant 7ths are in first inversion, but serve the same function while having a more interesting bass line.
The line in Ex. 4 uses E Dorian over Em9, A half-whole diminished over A7(#9)/C#, D Dorian over Dm6/9, G Mixolydian over G9/B, and C major pentatonic over Cmaj7(add6). The chord qualities we deal with most are major 7, dominant 7, and minor 7. A quality change is just that… changing the quality of the written chord to another one. You could take a major 7 and change it to a dominant 7, or even a minor 7. Hence the III-VI-II-V turnaround, where the III and the VI have both been changed to a dominant 7, and the basic changes would be E7-A7-D7-G7.
See Ex. 5, where E7(b9) moves to A7(#11), to D7(#9) to G7(#5) to Cmaj9. My scale choices for the line in Ex. 6 are E half-whole diminished over E7(#9), A Lydian Dominant for A7(#11), D half-whole diminished for D7(#9), G whole tone for G7(#5), and C Ionian for Cmaj9.
Ex. 7 is last example in the I-VI-ii-V category. Here, the VI and V are replaced with their tritone substitutes. Specifically, A7 is replaced with Eb7, and G7 is replaced with Db7, and the basic progression becomes Cmaj7-Eb7-Dm7-Db7. Instead of altering the tritone subs, I used a suspended 4th sound that helped to achieve a diatonic, step-wise melody in the top voice of the chord progression.
The usual scales can be found an Ex. 8, where are use a C major pentatonic over C6/9, Eb Mixolydian over Eb7sus4, D Dorian over Dm11, Db Mixolydian over Db7sus4, and once again, C Lydian over Cmaj7(#11). You might notice that the shapes created by the two Mixolydian modes look eerily similar to minor pentatonic shapes. That is by design, since a Bb minor pentatonic contains the notes of an Eb7sus4 chord. Similarly, you would use an Ab minor pentatonic for Db7sus4.
The next four turnarounds are not based on the I-VI-ii-V chord progression, but have been adapted from other songs or theoretical ideas. Ex. 9 is called the “Backdoor” turnaround, and uses a iv-bVII-I chord progression, played as Fm7-Bb7-Cmaj7. In order to keep the two-bar phrase intact, a full measure of C precedes the actual turnaround. I was able to compose a descending whole-step melodic line in the top voice by using Cmaj13 and Cadd9/E in the first bar, Fm6 and Ab/Bb in the second bar, and then resolving to G/C. The slash chords have a more open sound, and are being used as substitutes for the original changes. They have the same function, and they share notes with their full 7th chord counterparts.
Creating the line in Ex. 10 is no more complicated than the other examples since the function of the chords determines which mode or scale to use. The first measure employs the C Ionian mode over the two Cmaj chord sounds. F Dorian is used over Fm6 in bar two. Since Ab/Bb is a substitute for Bb7, I used Bb Mixolydian. In the last measure, C Ionian is used over the top of G/C.
The progression in Ex. 11 is the called the “Lady Bird” turnaround because it is lifted verbatim from the Tadd Dameron song of the same name. It is a I-bIII-bVI-bII chord progression usually played as Cmaj7-Eb7-Abmaj7-Db7. Depending on the recording or the book that you check out, there are slight variations in the last chord but Db7 seems to be the most used. Dressing up this progression, I started with a different G/C voicing, to Eb9(#11), to Eb/Ab (subbing for Abmaj7), to Db9(#11), resolving to C(add#11). In this example, the slash chords are functioning as major seventh chords.
As a result, my scale choices for the line in Ex. 12 are C Ionian over G/C, Eb Lydian Dominant over Eb9(#11), Ab Ionian over Eb/Ab, Db Lydian Dominant over Db9(#11), and C Lydian over C(add#11).
The progression in Ex. 13 is called an “equal interval” turnaround, where the interval between the chords is the same in each measure. Here, the interval is a descending major 3rd that creates a I-bVI-IV-bII sequence, played as Cmaj7-Abmaj7-Fmaj7-Dbmaj7, and will resolve a half-step down to Cmaj7 at the top of the form. Since the interval structure and chord type is the same in both measures, it’s easy to plane sets of voicings up or down the neck. I chose to plane up the neck by using G/C to Abmaj13, then C/F to Dbmaj13, resolving on Cmaj7/E.
The line in Ex. 14 was composed by using the notes of the triad for the slash chord and the Lydian mode for the maj13 chords. For G/C, the notes of the G triad (G-B-D) were used to get an angular line that moves to Ab Lydian over Abmaj13. In the next measure, C/F is represented by the notes of the C triad (C-E-G) along with the root note, F. Db Lydian was used over Dbmaj13, finally resolving to C Ionian over Cmaj7/E. Since this chord progression is not considered “functional” and all the chord sounds are essentially the same, you could use Lydian over each chord as a way to tie the sound of the line together. So, use C Lydian, Ab Lydian, F Lydian, Db Lydian, resolving back to C Lydian.
The last example is the “Radiohead” turnaround since it is based off the chord progression from their song “Creep.” This would be a I-III-IV-iv progression, and played Cmaj7-E7-Fmaj7-Fm7. Dressing this one up, I use a couple of voicings that had an hourglass shape, where close intervals were in the middle of the stack.
In Ex. 15 C6/9 moves to E7(#5), then to Fmaj13, to Fm6 and resolving to G/C. Another potential name for the Fmaj13 would be Fmaj7(add6) since the note D is within the first octave. This chord would function the same way, regardless of which name you used.
Soloing over this progression in Ex. 16, I used the C major pentatonic over C6/9, E whole tone over E7(#5), F Lydian over Fmaj13, and F Dorian over Fm6. Again, for G/C, the notes of the G triad were used with the note E, the 3rd of a Cmaj7 chord.
The main thing to remember about the I-VI-ii-V turnaround is that it is very adaptable. If you learn how to use extensions and alterations, chord substitutions, and quality changes, you can create some fairly unique chord progressions. It may seem like there are many different turnarounds, but they’re really just an adaptation of the basic I-VI-ii-V progression.
Regarding other types of turnarounds, see if you can steal a short chord progression from a pop tune and make it work. Or, experiment with other types of intervals that would move the chord changes further apart, or even closer together. Could you create a turnaround that uses all minor seventh chords? There are plenty of crazy ideas out there to work with, and if it sounds good to you, use it!
