Pigtronix Releases the Bob Weir Real Deal Acoustic Preamp

The pedal uses a pair of complimentary filters to split the acoustic guitar signal into low and high frequency bands, with independent preamp gain applied to each signal path.

Pigtronix

San Rafael, CA (July 5, 2018) -- Bob Weir’s Real Deal Acoustic Preamp by Pigtronix provides crystal- clear, super-loud acoustic guitar tone while faithfully maintaining the organic wooden sound of the instrument like no other pedal has ever done. “A real acoustic guitar has three-dimensional depth. The only way to capture that is with a microphone,” says Weir. “We’ve figured out how to cut out 90% of the feedback that comes with the microphone—while keeping the depth and dimensionality at appreciably high volume levels. We think you’re gonna like this.”

Bob Weir and long-time Grateful Dead tech guru and Weir’s personal front-of-house engineer, Mike McGinn, developed the principle behind the Real Deal in an effort to crank Bob’s acoustic guitar loud enough in the live mix while retaining the natural, unplugged sound of the instrument. The technology they developed to achieve this goal involves using a pair of complimentary filters to split the acoustic guitar signal into low and high frequency bands, with independent preamp gain applied to each signal path. A mastering stage then combines the various inputs into a single mono output, resulting in a powerful world-class acoustic guitar tone.

Bob Weir challenged Pigtronix to design a pedal to perform this unique type of processing using a low- noise, all-analog circuit, to deliver the ultimate live acoustic guitar sound. The engineering challenge involved with developing this pedal to create a realistic and amplified acoustic guitar sound in this way is no joke! First, the cutoff points of the two filters would need to be precisely matched and calibrated to avoid undesirable dips or bumps in the frequency response at the pedal’s output. Second, in order to optimize the acoustic sound from venue to venue and for each different guitar, the cutoff point where the two filters overlap also would need to be variable across a huge frequency range.

As a solution, Pigtronix created a totally unique tracking filter. It allows the musician to adjust the cutoff point of both filters with a single knob, sweeping over a full decade of frequency range from 300 Hz to 3 kHz. This analog filter array—at the heart of the Bob Weir’s Real Deal acoustic preamp—uses Pigtronix custom-made optical components and 18VDC power to achieve the ultra-low noise and high headroom required when processing acoustic guitar.

Bob Weir’s Real Deal acoustic preamp is universally compatible with any type of acoustic guitar pickup—from a simple, passive piezo element to complex active systems that use internal microphones, contact elements and/or magnetic pickups. A source switch determines whether the high and low bands are fed by independent sound elements (such as a mic and piezo installed in one guitar) or a single pickup that is then split and sent through both filters. Single-source mode has the additional benefit of allowing the Real Deal to be used to process the sound of an electric guitar or any other instrument. An additional TRS balanced input, equipped with switchable 48V phantom power, allows external microphones of all types to be incorporated as well.

"Bob Weir's one-of-a-kind sonic ambition has challenged the Pigtronix sound design team to reach beyond the realm of conventional guitar effects,” says Pigtronix president David Koltai. “As an artist and a mentor, Bob has inspired our most cutting-edge work for over a decade. Pigtronix is honored to have been selected to develop Bob Weir's Real Deal Acoustic Preamp, fulfilling the promise of an analog future where acoustic guitar can be made to sound intimate and wooden even while cranked up to rock concert volume levels."

In presenting Bob Weir’s Real Deal acoustic preamp, Pigtronix is honored to make a contribution to Bob’s continuing legacy of sonic innovation. This legacy dates back to the late 1960s, when the Grateful Dead and their associates revolutionized the technology of live sound—re-defining the rock & roll concert experience. Over 50 years later, and in partnership with Pigtronix, Bob Weir is still innovating.

Features:

  • Single (TS) or dual-source (TRS) input
  • Balanced (TRS) input for external mic
  • Low-noise 24db / octave optical filters
  • Crossover sweeps from 300Hz to 3kHz
  • 60db gain on microphone channel
  • Phantom power & phase inversion
  • 18VDC power supply included

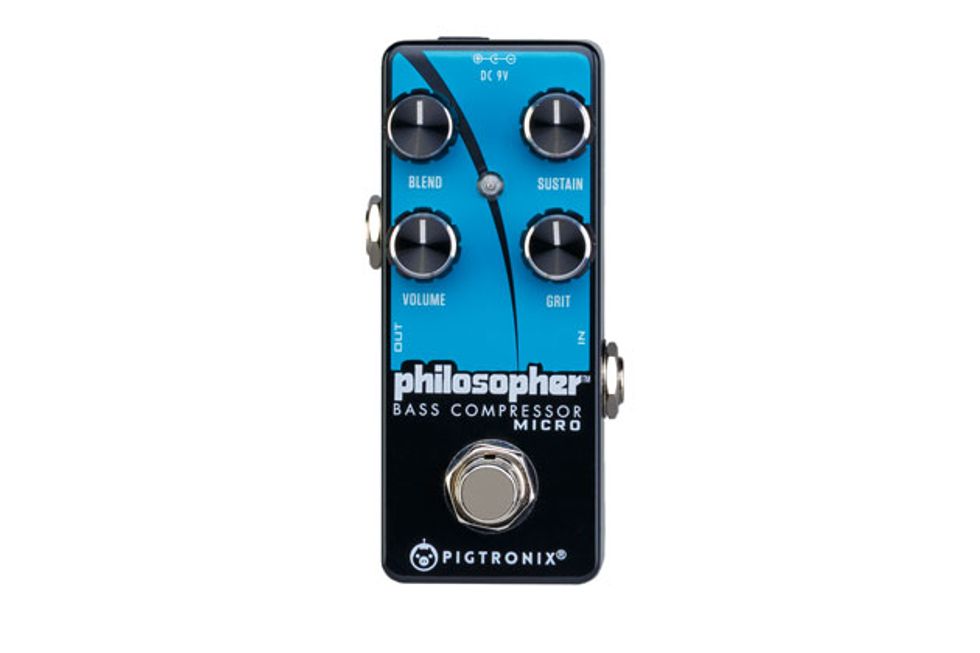

The brand-new Pigtronix Philosopher Bass Compressor Micro brings the heralded Philosopher's Tone compressor circuit to bassists in a micro-sized stompbox format. The SUSTAIN control on this pedal varies the compression threshold to provide everything from subtle peak limiting to infinite clean sustain, all with incredible low-end response. The Philosopher Bass Compressor also sports a BLEND knob, allowing the clean sound of your instrument to be heard in parallel with the optical compression. Blending some clean signal into the mix restores the instrument’s natural string attack, while simultaneously providing the musical benefits of additional punch and sustain.

In addition to the wide-range analog compression circuit with unrivaled sustain and parallel blend, the Philosopher Bass Compressor’s GRIT knob blends in a harmonic distortion tuned especially for low-frequency domination. Used with a tube or solid state amp—or even straight into a mixing board, DI or DAW—the Philosopher Bass Compressor Micro delivers a new level of control and power to bass players at an affordable price. The Philosopher Bass Compressor features true-bypass switching and runs on standard 9VDC power with an internal, voltage- doubling circuit providing 18VDC power rails for superior performance with active basses. Never before has so much bass-friendly compression been squeezed into such a small package.

Features:

  • Noiseless clean sustain
  • Blend control for parallel compression
  • Grit control mixes in bass distortion
  • Runs on standard 9V external power
  • Internal 18V power for max headroom
  • True bypass switching
  • Size = 3.75” x 1.5” x 1.75”

The Philosopher Bass Compressor Micro retails for $119 USD.

For more information:
Pigtronix
