1968 Martin D-28 Pickguard Curling and Shrinkage
A small crack and pickguard replacement on a vintage Martin
We have a beautiful-looking and sounding
1968 Martin D-28 on the workbench this
month. When you consider that for the last
42 years this flattop has been out on the
playing field and not sitting in a museum,
it has aged very gracefully. It came to us in
need of a common neck reset and pickguard
replacement. Other than a three-inch crack
alongside the pickguard that needed repair,
this rare gem was structurally sound.
Over time, this D-28’s original black celluloid pickguard had shrunk and curled up on the edges. Sometimes a guard will let loose as it shrinks with age, but typically it will stay bonded to the spruce top. As the guard curls up and pulls, it causes stress to the top. The spruce top usually cracks along the grain line to relieve the stress, and that’s what happened here. The underside of this particular pickguard was glued directly to the raw, unfinished spruce top, and that concerned me. (A Martin rep told me the company began attaching self-adhesive pickguards to pre-finished tops in 1984.)
Warranty Versus Non-Warranty
When it comes to repairs like these, if you’re the original owner of your Martin guitar and have registered the instrument with the company or still have your original purchase receipt, you’re in luck. Martin offers one of the best warranty programs in our business. Martin, in general, will cover the cost of any repairs as long as the instrument shows no sign of abuse or negligence on the owner’s part. For these repairs to be covered under Martin’s warranty, they must be done by an Authorized Martin Service Center.
If you are not the original owner, then this becomes a non-warranty repair, which means you’re responsible for the cost. Of course, you don’t have to use an authorized facility for Martin repairs. As long as you’re comfortable with the shop and the repairperson is experienced with this type of restoration, you should be in good hands.
A hair dryer and spatula work very well for removing most guards. We were able to get clean results by applying a mild dose of heat and gently separating the guard from the top with a knife spatula.
Next, we needed to level and glue up the three-inch top crack before applying the nitrocellulose seal and multiple top coats. The crack ran parallel with the grain lines, and fortunately the wood sat fairly level on both sides of the crack. (Sometimes cracked wood needs to be moistened and manipulated with clamps to flatten it out.)
We used 1/8" Scotch plastic tape to seal around the crack before applying thin Super Glue with a drop-fill toothpick. For this procedure, I also like using the Whip Tip, a 1 3/4" precision gluebottle nozzle extension. I used wax paper to protect the top from any glue splatter.

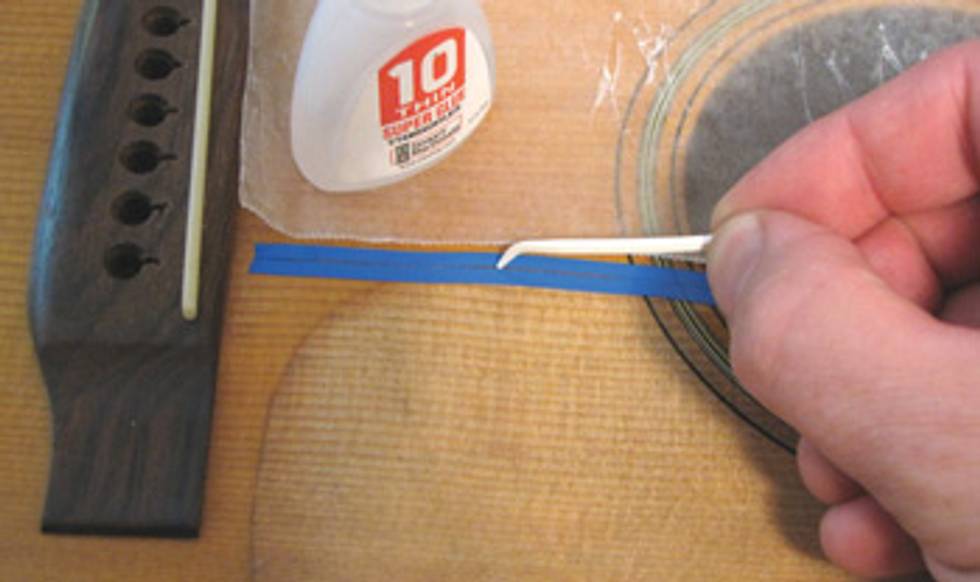

Drop-filling the crack with thin Super Glue.
After the glue was dry and I had leveled it
with a razor blade and 600 wet/dry sandpaper,
I was ready to apply nitrocellulose
finish to the raw spruce surface where the
original pickguard had previously been glued.
Nitrocellulose works as a protective sealer and
surface leveler, and provides a prime surface
for attaching the replacement guard. We wet-sanded
the fresh finish up to 1000 grit and
leveled it to the original surrounding finish.
Martin offers two sizes of pickguards—standard
and oversized. The standard pickguard worked
perfectly after I trimmed and duplicated the
cutout around the rosette. For referencing, I
used 1/8" Scotch plastic tape, as it is very flexible
for shaping a radius. I did the initial shaping
with my belt sander, going back and forth and
checking the guard to the guitar top until I got
a perfect fit. Then I rounded the edges with an
X-Acto knife to match the look of the original.
Using masking tape to reference the final fit, I
applied the pickguard to the guitar.
Shaping the Martin replacement pickguard on a belt sander.
The finished replacement pickguard and filled crack.
You can buff the finish before or after you
apply the self-adhering pickguard. But if you
choose the latter, you need to be extremely
careful. I personally like doing it this way, but
if you’re not thinking or watching the direction
of the buffing wheel for one quick moment,
you can melt and rip the guard right off.
The following supplies I used for this restoration
are available at stew-mac.com (item
number in parentheses):
- Bridge/fingerboard removal knife spatula (4464)
- Thin Super Glue (0010)
- Accelerator (5984)
- Drop-fill toothpicks (3110)
- Whip Tip (1161)
- Lawrence-McFadden nitrocellulose lacquer (2200)
- Lawrence-McFadden lacquer thinner (2202)
- Guitar buffing arbor (2080)
You can buy these other items at your local
hardware and paint supply store:
- 1/8" Scotch plastic tape (3M)
- 600 and 1000 grit wet/dry sandpaper
- X-Acto knife
- Wax paper
- Hair dryer
Keep those chisels sharp and thanks for your
kind emails and feedback!
