Apogee''s GiO is a guitar interface and controller for GarageBand, Logic, and MainStage.
You’ve got a Mac loaded with GarageBand and Logic Studio, and you’ve got your guitar, but how do you get them to talk to each other? That’s the question that Apogee’s new GiO Guitar Interface Controller aims to solve. Targeted as the Guitar Interface for the Mac, it combines a high-quality Apogee ¼” input/converter with a simple stomp-style layout to control effects and recording functions from Logic Pro 9, MainStage 2 (part of Logic Studio) and Garage Band (part of iLife) software. GiO is intended to free up your hands from the mouse and keyboard to let you focus on playing your instrument.
First Impressions

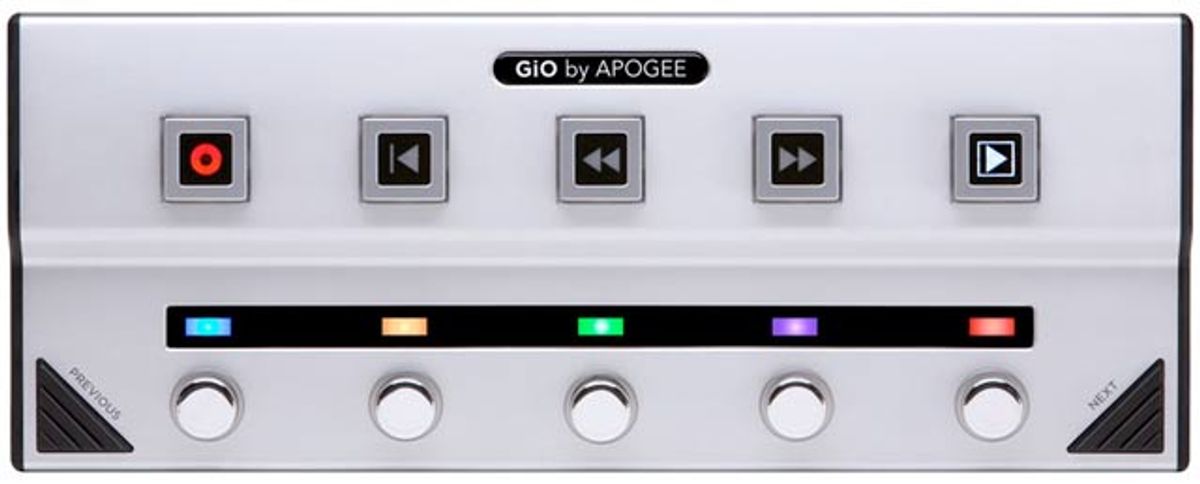

GiO is a solidly built, attractive piece of hardware. Weighing in at around 10 lbs, it measures approximately 7 x 18 x 2.5”. The front of the unit features 12 stomp buttons: on the slightly raised top are five square ones that light up when depressed: (l to r) Record, Return to Start, Rewind, Fast Forward and Play/Stop. Below that are five round stomp buttons for turning effects and features on and off. The LEDs above them light when stepped on as well, but we’ll talk more about that later. Then in each lower corner are triangular, rubber-coated buttons for Previous/Next selection of effects and amps.
On the rear panel is a 1/4” instrument input and a 1/4” MIDI Expression pedal input to control effects such as volume, delay/tremolo speeds, and wahs. The USB port is what powers the GiO and how you hook up your Mac. There’s also a 1/4” instrument output where you can connect headphones or run the included ¼” to stereo RCA cable out to an amp or monitor rig. That’s all there is folks—a clean, simple design.
How it Works
To use GiO, you simply install the included software and your Apple music programs instantly recognize it. Note that you’ll need to be running OS X 10.5.7 or greater with an Intel or PPC G5 processor, with 1GB minimum of RAM (Apple strongly suggests a minimum of 2GB).
To fire up GiO, all you do is plug it in to a USB port on your Mac and watch it run through its light-up sequence. Then you launch the selected program, such as GarageBand, which actually has a handful of new guitar amps and stomp effects. In the Audio/Midi Preferences panel, GiO will now appear and you select it as the Audio I/O.
Next, you select an amp, choose either Line or Instrument Amplifier on the featured Apogee GiO control panel output, and turn the Mute off.
GiO’s LEDs will light up with the same color as the corresponding stomp effect on the virtual floor. You can then turn them on and off by stepping on the buttons, or hit Next or Previous on GiO to cycle through more amp presets. If you want to record, hit Return to Start, then hit the Record button, which lights up red. You’re now tracking.
It’s especially effective with Logic Pro 9 and MainStage 2, both of which also have an extensive amount of new guitar amps and effects to choose from. In Logic, you select GiO in the Preferences>Audio>Devices>Core Audio. With either the Amp Designer or Pedalboard windows open, you can then use GiO to scroll through the choices on each. If neither is open, GiO will move through Logic’s channel strip guitar settings.
In Action
Within a few minutes of setup, I was importing loops and synths, and then recording multiple hands-free guitar tracks. There’s no doubt that not having to reach over every few seconds to operate the mouse increases your guitar creativity. I really appreciated the ability to quickly step through different amps to find the right sound.
With Logic, you can also use GiO to assign custom recording functions. For example, you can actually use it to create and arm a new track, and then scroll through your tracks. You can, of course, select other options to control, but these do work great for guitar recording.
When using MainStage, GiO will control different functions depending on which window is selected. For example, with the Performance window, I could move through the Patch List settings with the Next and Previous buttons. With the Playback plugin open, I could control Play/Stop, Cycle and Muting of the channel strip, and so on. You could program the buttons do different things on a per patch basis. For example, the transport controls might control Playback in a patch where one exists, but be utilized to enable or disable effects parameters in a path where Playback is not even utilized.
Going Beyond the Screen
Aside from using GiO directly with your music software, you can hook it up to an amp or a set of speakers. Taking it a step further, you can run it through the effects loop of your amp and just use the stompboxes from your software, switching them in and out as needed. It's also possible to customize it so that the stompboxes take you directly to a specific channel’s strip settings.
The Final Mojo
Apogee’s GiO is a cool piece of gear for Apple Mac users who are using either GarageBand (which comes on all Macs) or Logic Studio and who want to keep their hands free while recording and playing. With a $395 price point, you have to decide for yourself if it’s worth the investment to keep those hands on the guitar where they belong. I do wish it had a wider reach and could control other programs, as the design, implementation and overall ease of use is excellent. However, from the studio to the stage it delivers as advertised, and it certainly does so with style and grace.
Buy if...
you want sturdy, Apogee-quality, hands-free guitar recording and preset changing for Apples Logic 9, GarageBand ’09 and Mainstage 2 programs.
Skip if...
you don’t run those programs, feel it’s too expensive or don’t mind manually operating your software.
Rating...
Street $395 - Apogee Electronics - apogeedigital.com |
A new version of the popular, extremely well-built boutique pedal that yields more organic sounds, via increased headroom. Ten-LED reduction meter is an easy-to-read improvement.
At $369 street, it ain’t cheap. Relatively steep learning curve.
$369
Origin Effects Cali76 FET
origineffects.com
The latest version of this popular boutique pedal adds improved metering and increased headroom for a more organic sound.
I used to not care about using a compressor—unless I was in the studio and wanted to add a little zazz to a solo. The additional sustain and tightly focused mids that a compressor helped me achieve were inspiring. Eventually, I began to wonder if a compressor would help give my guitar the tone and response I typically enjoyed at louder stage volumes in smaller, quieter rooms. As I began hunting for a compressor for those gigs, I ran across the original, now discontinued, Origin Effects Cali76 Compact Deluxe. I was intrigued by its, um, origin.
The Cali76’s circuitry was inspired by the famed Urei 1176 outboard compressor, which has lived in the racks of some of the world’s finest studios and appeared on recordings by well, just about everyone. Although I was skeptical that so much squeeze-ability could fit in a 5 1/2" x 3" x 2" enclosure, the FET-based device proved to be a star—not only on my low-volume-gig board, but among many players in the world at large. Today, the Cali76 is recognized for getting about as close to a vintage rackmount 1176 as a stompbox gets.
Reduxed and Revamped
Over the years, the U.K.-made Cali76 has seen other iterations, but this new version is notably smaller—not nano- or mini-sized, but roughly the same size as a Boss pedal. The enclosure’s bedrock quality is the same as earlier Cali76s—a gleaming brick of brushed steel with six sturdy control dials that feels like it could be dropped from space and survive the impact. The controls remain dry, out, in, ratio, attack, and release. The dry function is crucial for tone hunters. It allows you to blend your guitar’s compressed and unprocessed signal—a technique often called parallel compression started at Motown for recording vocals that had a renaissance in New York City mix studios in the ’90s. There’s also a 9V DC input (sorry batteries, but you haven’t got the muscle or the room), a 200 mA draw, a solid and smooth on/off switch, and the usual mono in and out.
But the new, all-analog Cali76 FET Compressor also features a few important upgrades. The single flashing jewel light of previous models has been replaced with a 10-LED gain reduction meter, arranged in linear fashion, to present a more precise illustration of compression level as well as the duration and intensity of the gain reduction. There’s also a lot more headroom: The 9 volts flowing into the new pedal are increased internally to 24 volts, so you can let it rip while keeping your tone natural, responsive, and focused.
Side by Side
I thought it would be fun to place the Cali76 FET Compressor and its older sibling together in my pedal chain, after some overdrives and fuzzes, and before some delays and a trail-heavy reverb. Although both pedals functioned essentially the same, the more precise 10-LED meter was an immediate improvement over the flashing red (no compression), orange (activated compression), and yellow (heading toward maximum compression) colors of the single jewel light on my old Cali76 Compact Deluxe, which I’ve found confusing for its rapid changes of hue, as well as less-effective performance on colorfully lighted stages.
With its ability to internally step 9 volts up to 24, the extra headroom makes the new Cali76 FET sound much more organic and more like my guitar’s pure tone, and I even hear and feelimproved response to picking dynamics at low volume, which you don't always expect from a compressor. Tone is enhanced across the EQ spectrum. I heard richer mids and trebles and more sparkling presence than in my Compact Deluxe. I also heard more-singing sustain than with my older compressor engaged. It’s quite nice, but whether you prefer the potentially darker tone of the elder unit to the transparency of the new one is a matter of taste.
The rest of the control set still does exactly what you’d expect, and very well at that. The “in” dial increases the incoming signal and amount of compression, while the attack dial changes the setting from slow to fast by moving clockwise. Slow equals percussive and bright, while a fast attack time setting lets the compressor grab transients early on, making for a smooth, less percussive, and aurally soothing attack, which I prefer. Likewise, slower settings on the release dial provide more sustain. And the ratio control adjusts the amount of gain reduction on the compressed signal, ranging from a minimum ratio of 4:1 and a maximum of 20:1.
The Verdict
If you’ve never played with a studio compressor, you might experience a sharper learning curve with the Cali76 FET than with, say, a more affordable MXR Dyna Comp or Keeley 2-knob device. But if it fits your budget, it’s worth exploring the rich, complex, and essentially organic sounds that the new Cali76 FET Compressor can achieve.
Featuring P-90 PRO pickups, CTS potentiometers, and a Custom ’59 Rounded C neck profile.
Epiphone’s Joe Bonamassa 1955 Les Paul Standard features the same Copper Iridescent color, a pair of Epiphone P-90 PRO pickups wired to CTS potentiometers and Mallory capacitors, a Custom ’59 Rounded C neck profile, a long neck tenon, and a “Nerdville” graphic hardshell case. This Epiphone 1955 Les Paul Standard is a passionate testament to Bonamassa’s unwavering commitment to the blues and its profound influence on his music.
The Epiphone Joe Bonamassa 1955 Les Paul Standard release is a nod to a pivotal period in the evolution of the Gibson Les Paul, in a finish guaranteed to turn heads. Whether you’re a Joe Bonamassa fan, a Les Paul enthusiast, or a musician seeking an instrument that stands out in both tone and appearance, the Joe Bonamassa 1955 Les Paul Standard is the perfect addition to your collection.
This partnership with Epiphone celebrates the timeless synergy between the brand and Joe’s musical trajectory. Joe’s latest release Live At The Hollywood Bowl immortalizes Joe's first-ever performance at the iconic Hollywood Bowl in August 2023. Accompanied by an impressive ensemble of 40 orchestra members, Bonamassa delivered an unforgettable performance. Live At The Hollywood Bowl With Orchestra showcases Bonamassa’s virtuosic blend of blues and rock, but also elevates fan-favorite tracks with grandiose orchestral arrangements by some of Hollywood's finest – David Campbell, Trevor Rabin, and Jeff Bova. “Very few gigs represent my journey in music more than the Hollywood Bowl. I moved to Los Angeles in 2003 in search of opportunity and cheaper rent than New York City. My first gig at The Mint was attended by 5 of my friends. We have played The Greek Theatre many times since, but the Bowl has always been a dream. The orchestra and the sheer scale of the event and venue are something I will never forget. I am so grateful that we filmed this special event in my life,” reminisces Bonamassa.
For more information, please visit epiphone.com.
Joe Bonamassa Introduces the Epiphone 1955 Les Paul Standard - YouTube
Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.Epiphone Joe Bonamassa 1955 Les Paul Standard Electric Guitar - Copper Iridescent
JB 1955 LP Std, Cop IridWonderful array of weird and thrilling sounds can be instantly conjured. All three core settings are colorful, and simply twisting the time, span, and filter dials yields pleasing, controllable chaos. Low learning curve.
Not for the faint-hearted or unimaginative. Mode II is not as characterful as DBA and EQD settings.
$199
EarthQuaker Devices/Death By Audio Time Shadows
earthquakerdevices.com
This joyful noisemaker can quickly make you the ringmaster of your own psychedelic circus, via creative delays, raucous filtering, and easy-to-use, highly responsive controls.
I love guitar chaos, from the expressionist sound-painting of Jimi Hendrix’s “Machine Gun” to the clean, clever skronk ’n’ melody of Derek Bailey to the slide guitar fantasias of Sonny Sharrock to the dark, molten eruptions of Sunn O))). When I was just getting a grip on guitar, my friends and I would spend eight-hour days exploring feedback and twisted riffage, to see what we might learn about pushing guitar tones past the conventional.
So, pedals that are Pandora’s boxes of weirdness appeal to me. My two current favorites are my Mantic Flex Pro, a series of filter controls linked to a low-frequency oscillator, and my Pigtronix Mothership 2, a stompbox analog synth. But the Time Shadows II Subharmonic Multi-Delay Resonator is threatening their favored status—or at least demanding a third chair. This collaboration between Death By Audio and EarthQuaker Devices is a wonderful, gnarly little box of noise and fun that—unlike the two pedals I just mentioned—is easy to dial in and adjust on the fly, creating appealing and odd sounds at every turn.
Behind the Wall of Sound
Unlike the Mantic Flex Pro, the Time Shadows is consistent. You can plug the Mantic into the same rig, and that rig into the same outlet, every day, and there are going to be slight—or big—differences in the sound. Those differences are even less predictable on different stages and in different rooms. The Time Shadows, besides its operating consistency, has six user-programmable presets. They write with a single touch of the button in the center of the device’s tough, aluminum 4 3/4" x 2 1/2" x 2 1/4" shell. Inside that shell live ghosts, wind, and unicorns that blow raspberries on cue and more or less on key. EQD and DBA explain these “presences” differently, relating that the Time Shadow’s circuitry combines three delay voices (EQD, II, and DBA) with filters, fuzz, phasing, shimmer, swell, and subharmonics. There’s also an input for an expression pedal, which is great for making the Time Shadows’ more radical sounds voice-like and lending dynamic control. But sustaining a tone sweeping the time, span, and filter dials manually is rewarding on its own, producing a Strickfaden lab’s worth of swirling, sweeping, and dipping sounds.
Guitar Tone from Roswell
Because of the wide variety of sounds, swirls, and shimmers the Time Shadows produces, I found it best to play through a pair of combos in stereo, so the full range of, say, high notes cascading downwards and dropping pitch as they repeat, could be appreciated in their full dimensionality. (That happens in DBA mode, with the time and span at 10 and 4 o’clock respectively, with the filter also at 4, and it’s magical.) The pedal also stands up well to fuzz and overdrives whether paired with humbucker, P-90, or single-coil guitars.
I loved all three modes, but the more radical EQD and DBA positions are especially excellent. The EQD side piles dirt on the incoming signal, adds sub-octave shimmer, and is delayed just before hitting the filters. Keeping the filter function low lends alligator growls to sustained barre chords, and single notes transform into orchestral strings or brass turf, with a soft attack. Pushing the span dial high creates kaleidoscopes of sound. The Death By Audio mode really hones in on the pedal’s delay characteristics, creating crisp repeats and clean sounds with a little less midrange in the filtering, but lending the ability to cut through a mix at volume. The II mode is comparatively clean, and the filter control becomes a mix dial for the delayed signal.
The Verdict
The closest delay I’ve found comparable to the Time Shadows is Red Panda’s function-rich Particle 2 granular delay and pitch-shifter, which also uses filtering, among other tricks. But that pedal has a very deep menu of functions, with a larger learning curve. If you like to expect the unexpected, and you want it now, the Time Shadows supports crafting a wide variety of cool, surprising sounds fast. And that’s fun. The challenge will be working the Time Shadows’ cascading aural whirlpools and dinosaur choirs into song arrangements, but I heard how the pedal could be used to create unique, wonderful pads or bellicose solos after just a few minutes of playing. If you’d like to easily sidestep the ordinary, you might find spelunking the Time Shadows’ cavernous possibilities worthwhile.
This little pedal offers three voices—analog, tape, and digital—and faithfully replicates the highlights of all three, with minimal drawbacks.
Faithful replications of analog and tape delays. Straightforward design.
Digital voice can feel sterile.
$119
Fishman EchoBack Mini Delay
fishman.com
As someone who was primarily an acoustic guitarist for the first 16 out of 17 years that I’ve been playing, I’m relatively new to the pedal game. That’s not saying I’m new to effects—I’ve employed a squadron of them generously on acoustic tracks in post-production, but rarely in performance. But I’m discovering that a pedalboard, particularly for my acoustic, offers the amenities and comforts of the hobbit hole I dream of architecting for myself one day in the distant future.
But by gosh, if delay—and its sister effect, reverb—haven’t always been perfect for the music I like to write and play. Which brings us to the Fishman EchoBack Mini Delay. The EchoBack, along with the standard delay controls of level, time, and repeats—as well as a tap tempo—has a toggle to alternate between analog, tape, and digital-delay voices.
I hooked up my Washburn Bella Tono Elegante to my Blues Junior to give the EchoBack a test run. We love a medium delay—my usual preference for delay settings is to have both level and repeats at 1 o’clock, and time at 11 o’clock. With the analog voice switched on, I heard some pillowy warmth in the processed signal, as well as a familiar degradation with each repeat—until their wake gave way to a gentle, distant, crinkly ticking. Staying on analog and adjusting delay time down to 8 o’clock and repeats to about 11:30, some cozy slapback enveloped my rendition of Johnny Marr’s part to “Back to the Old House,” conjuring up thoughts of Elvis trapped in a small chamber, but in a good way. It sounded indubitably authentic. The one drawback of analog delay for me, generally, is that its roundness can feel a bit under water at times.
Switching over to tape, that pillowy warmth evaporated, and in its place came a very clear replication of my tone—but with just a bit of the highs shaved off the top. With the settings at the medium-length mode listed above, I could see the empty, glass hall the pedal sent my sound bouncing down. I heard several pronounced pings of repeats before the signal fully faded out. On slapback settings (time at 8 o’clock, repeats at 11:30), rather than Elvis, I heard something more along the lines of a honky-tonk mic in a glass bottle. Still relatively crystalline, which actually was not my favorite. I like a bit more crinkle—so maybe analog is my bag....“That pillowy warmth evaporated, and in its place came a very clear, pristine replication of my tone—but with just a bit of the highs shaved off the top.”
Next up, digital. Here we have the brightest voice, and as expected, the most faithful repeats. They ping just a few times before shifting to a smooth, single undulating wave. When putting its slapback hat on, I found that the effect was a bit less alluring than I’d observed for the analog and tape voices. This is where the digital delay felt a little too sterile, with the cleanly preserved signal feeling a bit unnatural.
All in all, I dig the EchoBack for its replications of analog and tape voices, and ultimately, lean towards tape. While it’s nice having the digital delay there as an option, it feels a bit too clean when meddling with time of any given length. Nonetheless, this is surely a handy stomp for any acoustic player looking to venture into the land of live effects, or for those who are already there.
