Robert Keeley’s adventure as a boutique-pedal-world fixture began by modding overdrives and compressors. Since then he has also dabbled in fuzz and just about every other effect type. But the new Filaments pedal marks Keeley’s first concerted venture into pedal-driven, high-gain realms that make metal players drool and snarl.
If you’re the kind of heavy player that savors fine-tuning and microscopic tone tweaking, Filaments will make you feel like a kid in a candy store. Tone options are abundant thanks to six knobs (level, presence, gain, bass, body, and treble) and three mini-toggle switches (boost, bright, and crunch). And it only takes a quick tour and twist of the knobs to hear that the Keeley can summon the essence of just about every metal style from djent to classic—and more than a few non-metal styles, too. Even better news: If you’re a plug-and-play guitarist and the presence of so many controls gives you option anxiety, you can skip the Xanax. It’s nearly impossible to make Filaments sound bad.
Ratings
Pros:
Extremely powerful pedal. Very wide range of sounds.
Cons:
Metal-oriented package means other musicians might overlook this fantastic pedal.
Tones:
Playability/Ease of Use:
Build/Design:
Value:
Street:
$189

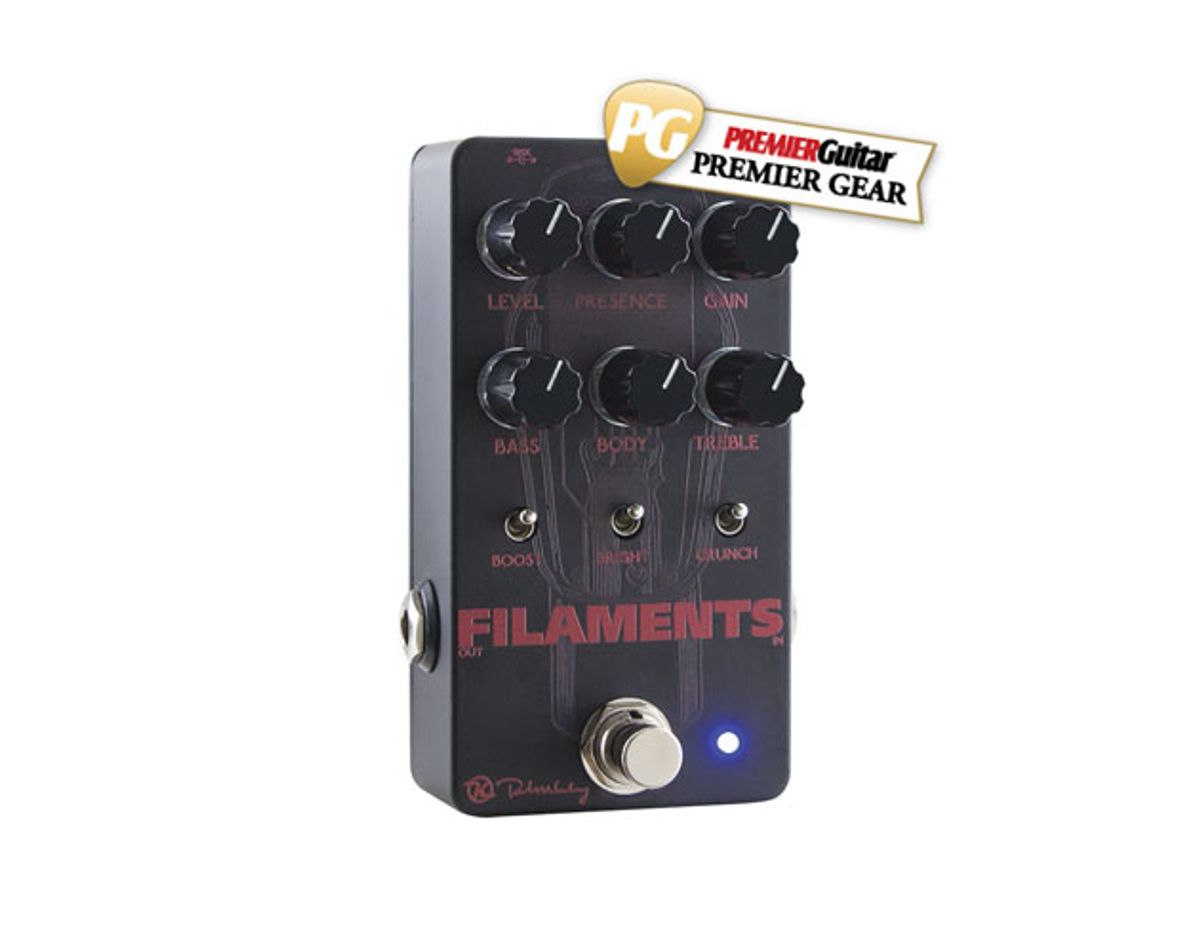

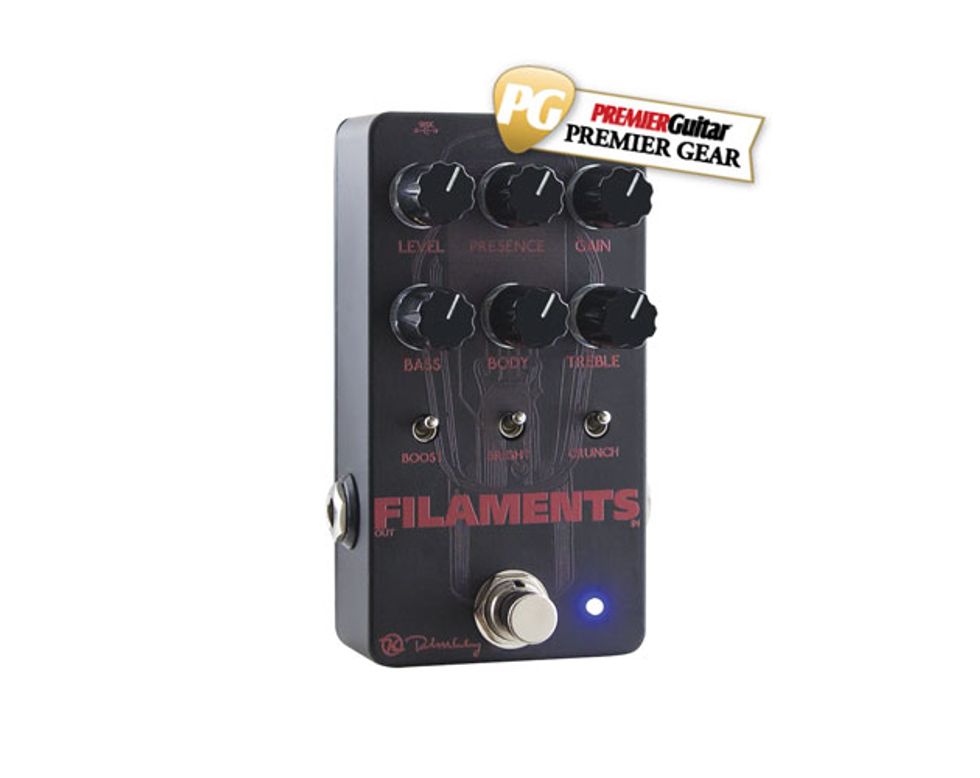

Keeley Filaments
robertkeeley.com
Lighting Up
I tested Filaments using an Ernie Ball Music Man Axis Sport through the clean channel of a Mesa/Boogie Lonestar Special and got going on my evaluation with all knobs on the Filaments at noon, save for the level. Here, at what you’d assume were middle-of-the road settings, the tones were aggressive and modern with excellent sustain. At first I had all three mini-toggles in the off position and brought them up one-by-one, to gauge their impact. The boost mini-toggle added a subtle but noticeable bump in volume. The bright mini-toggle dramatically changed the pedal’s character from a dark and creamy sound that was killer for liquid solos to a head-slicing tone that was perfect for articulate leads, pinch harmonics, and low “Master of Puppets”-type riffs, where clarity is mandatory. Engaging the crunch mini-toggle was the most ear blasting move you can make with the three mini-toggles, and resulted in a ton more volume and presence.
Maxing the gain, I was first impressed not by the crunch, but by the quietness of the Filaments. I was also blown away by just how much power it puts at your fingertips. It turned my Lonestar into a monster that remained amazingly articulate. (It’s worth noting that Filaments runs at 9V DC, but you can use 18V DC for more power and volume if you need it—an impressive notion.) Even with the gain cranked, the pedal cleaned up reasonably well when I moved my guitar’s volume knob down to about 4. The output was still plenty loud and had a lot of sustain, but it was clean enough for non-metal applications.
Slayed by Subtlety
If you need evidence that the Filaments can be more than a one-trick metal pony, try this maneuver: turn the gain all the way off, disengage the bright mini-toggle switch (keeping the boost and crunch mini-toggles active), and set all the other controls (other than level) at noon. At this setting, I got an incredibly sweet and singing overdrive sound—again with crazy-long sustain that would be perfect for modern blues or fusion. Notes were smooth sounding and chords sounded clean with a slight edge if I rolled the guitar’s volume knob back to about 7 or 8, softened up my attack, or used my fingers to pluck the strings.
The Verdict
With three gain stages, Filaments has the capacity to be a fire-breathing dragon. But even if you’re not a metalhead and just want a powerful compliment to a mid- or low-gain pedal in your setup, Filaments should be at the top of your short list.
A mix of futuristic concepts and DeArmond single-coil pickups, the Musicraft Messenger’s neck was tuned to resonate at 440 Hz.
Until its untimely end, Musicraft made roughly 250 Messengers in various configurations: the mono-output Messenger and the flagship Messenger Stereophonic, both of which could come with the “Tone Messer” upgrade, a built-in distortion/fuzz circuit. The company’s first catalog also featured a Messenger Bass, a wireless transmitter/receiver, and various models of its Messenger Envoy amplifier, very few of which have survived, if many were ever made at all.
“To this day, even fans will sometimes call the decision to use DeArmonds the Messenger’s ‘Achilles’ heel.’”
Upon its release, the Messenger was a mix of futuristic concepts and DeArmond single-coil pickups that were more likely to be found on budget instruments than pricier guitars such as these. The Messengers often featured soapbar-style DeArmonds, though some sported a diamond grille. (To this day, even fans will sometimes call the decision to use DeArmonds the Messenger’s “Achilles’ heel.”) The Stereophonic model, like the one featured in this edition of Vintage Vault, could be plugged into a single amplifier as normal, or you could split the bridge and neck pickup outputs to two separate amps.
One of the beloved hallmarks of the guitars are their magnesium-aluminum alloy necks, which continue as a center block straight through the tailpiece, making the guitars relatively lightweight and virtually immune to neck warping, while enhancing their playability. Thanks to the strength of that metal-neck design, there’s no need for a thick heel where it meets the body, granting unprecedented access to the higher end of the fretboard.
This Stereophonic model could be plugged into a single amplifier as normal, or you could split the bridge and neck pickup outputs to two separate amps.
The neck was apparently also tuned to have a resonant frequency of 440 Hz, which, in all honesty, may be some of that 1967 “whoa, man” marketing continuing on through our modern-day guitar discourse, where this fact is still widely repeated on forums and in YouTube videos. (As one guitar aficionado to the next, what does this even mean in practice? Would an inaudible vibration at that frequency have any effect at all on the tone of the guitar?)
In any event, the combination of that metal center block—resonant frequency or not—the apple-shaped hollow wooden body of the guitar, and the cat’s-eye-style “f-holes” did make it prone to gnarly fits of feedback, especially if you engaged the Tone Messer fuzz and blasted it all through the high-gain amp stacks favored by the era’s hard rockers.
The most famous devotee of the Messenger was Grand Funk Railroad’s Mark Farner, who used the guitar—and its Tone Messer circuitry—extensively on the group’s string of best-selling records and in their defining live shows, like the Atlanta Pop Festival 1970 and their sold-out run at New York’s Shea Stadium in 1971. But even Farner had some misgivings.
The Messengers often featured soapbar-style DeArmonds, though some sported a diamond grille.
In a 2009 interview, he talked about his first test-run of the guitar: “After I stuffed it full of foam and put masking tape over the f-holes to stop that squeal, I said, ‘I like it.’” He bought it for $200, on a $25-per-pop installment plan, a steal even at the time. (He also made it over with a psychedelic paint job, befitting the era, and experimented with different pickups over the years.)
When these guitars were new in 1967, the Messenger Stereophonic in morning sunburst, midnight sunburst, or mojo red would have run you $340. By 1968, new stereo models started at $469.50. Recent years have seen prices for vintage models steadily increase, as the joy of this rarity continues to thrill players and collectors. Ten years ago, you could still get them for about $1,500, but now prices range from $3,000 to $6,000, depending on condition.
Our Vintage Vault pick today is listed on Reverb by Chicago’s own SS Vintage. Given that it’s the stereo model, in very good condition, and includes the Tone Messer upgrade, its asking price of $5,495 is near the top-end for these guitars today, but within the usual range. To those readers who appreciate the vintage vibe but don’t want the vintage price tag, Eastwood Guitars offers modern reissues, and eagle-eyed buyers can also find some very rare but less expensive vintage MIJ clones made in the late ’60s and early ’70s.
Sources: Reverb listing from SS Vintage, Reverb Price Guide sales data, Musicraft July 1, 1967 Price Schedule, 1968 Musicraft Catalog, Chicago Music Exchange’s “Uncovering The Secret Sounds of the 1967 Musicraft Messenger Guitar,” MusicPickups.com article on the Messenger.Submarine Pickups boss Pete Roe at his workstation.
Still, we think we know what pickups should sound and look like. Lucky for us, there have always been plenty of pickup builders who aren’t so convinced. These are the makers who devised the ceramic-magnet pickup, gold-foils, and active, high-gain pickups. In 2025, nearly 100 years after the first pickup bestowed upon a humble lap-steel guitar the power to blast our ears with soundwaves, there’s no shortage of free-thinking, independent wire-winders coming up with new ways to translate vibrating steel strings into thrilling music.
Joe Naylor, Chris Mills, and Pete Roe are three of them. As the creative mind behind Reverend Guitars, Naylor developed the Railhammer pickup, which combines both rail and pole-piece design. Mills, in Pennsylvania, builds his own ZUZU guitars with wildly shaped, custom-designed pickups. And in the U.K., Roe developed his own line of hexaphonic pickups to achieve the ultimate in string separation and note definition. All three of them told us how they created their novel noisemakers.
Joe Naylor - Railhammer Pickups
Joe Naylor, pictured here, started designing Railhammers out of personal necessity: He needed a pickup that could handle both pristine cleans and crushing distortion back to back.
Like virtually all guitar players, Joe Naylor was on a personal tone quest. Based in Troy, Michigan, Naylor helped launch Reverend Guitars in 1996, and in the late ’90s, he was writing and playing music that involved both clean and distorted movements in one song. He liked his neck pickup for the clean parts, but it was too muddy for high-gain playing. He didn’t want to switch pickups, which would change the sound altogether.
He set out to design a neck pickup that could represent both ends of the spectrum with even fidelity. That led him to a unique design concept: a thin, steel rail under the three thicker, low-end strings, and three traditional pole pieces for the higher strings, both working with a bar magnet underneath. At just about a millimeter thick, rails, Naylor explains, only interact with a narrow section of the thicker strings, eliminating excess low-end information. Pole pieces, at about six millimeters in diameter, pick up a much wider and less focused window of the higher strings, which works to keep them fat and full. “If you go back and look at some of the early rail pickups—Bill Lawrence’s and things like that—the low end is very tight,” says Naylor. “It’s almost like your tone is being EQ’d perfectly, but it’s being done by the pickup itself.”
That idea formed the basis for Railhammer Pickups, which began official operations in 2012. Naylor built the first prototype in his basement, and it sounded great from the start, so he expanded the format to a bridge pickup. That worked out, too. “I decided, ‘Maybe I’m onto something here,’” says Naylor. Despite the additional engineering, Railhammers have remained passive pickups, with fairly conventional magnets—including alnico 5s and ceramics—wires, and structures. Naylor says this combines the clarity of active pickups with the “thick, organic tone” of passive pickups.
“It’s almost like your tone is being EQ’d perfectly, but it’s being done by the pickup itself.” —Joe Naylor
The biggest difficulty Naylor faced was in the physical construction of the pickups. He designed and ordered custom molds for the pickup’s bobbins, which cost a good chunk of money. But once those were in hand, the Railhammers didn’t need much fiddling. Despite their size differences, the rail and pole pieces produce level volume outputs for balanced response across all six strings.
Naylor’s formula has built a significant following among heavy-music players. Smashing Pumpkins’ Billy Corgan is a Railhammer player with several signature models; ditto Reeves Gabrels, the Cure guitarist and David Bowie collaborator. Bob Balch from Fu Manchu and Kyle Shutt from the Sword have signatures, too, and other players include Code Orange’s Reba Meyers, Gogol Bordello’s Boris Pelekh, and Voivod’s Dan “Chewy” Mongrain.
Chris Mills - ZUZU Pickups
When Chris Mills started building his own electric guitars, he decided to build his own components for them, too. He suspected that in the course of the market’s natural thinning of the product herd, plenty of exciting options had been left unrealized. He started working with non-traditional components and winding in non-traditional ways, which turned him on to the idea that things could be done differently. “I learned early on that there are all kinds of sonic worlds out there to be discovered,” says Mills.
Eventually, he zeroed in on the particular sound of a 5-way-switch Stratocaster in positions two and four: Something glassy and clear, but fatter and more dimensional. In Mills’ practice, “dimensional” refers to the varying and sometimes simultaneous sound qualities attained from, say, a finger pad versus a fingernail. “I didn’t want just one thing,” says Mills. “I wanted multiple things happening at once.”
Mills wanted something that split the difference between a humbucker’s fullness and the Strat’s plucky verve, all in clean contexts. But he didn’t want an active pickup; he wanted a passive, drop-in solution to maximize appeal. To achieve the end tone, Mills wired his bobbins in parallel to create “interposed signal processing,” a key piece of his patented design. “I found that when I [signal processed] both of them, I got too much of one particular quality, and I wanted that dimensionality that comes with two qualities simultaneously, so that was essential,” explains Mills.
Mills loved the sound of alnico 5 blade magnets, so he worked with a 3D modeling engineer to design plastic bobbins that could accommodate both the blades and the number of turns of wire he desired. This got granular—a millimeter taller, a millimeter wider—until they came out exactly right. Then came the struggle of fitting them into a humbucker cover. Some key advice from experts helped Mills save on space to make the squeeze happen.
Mills’ ZUZUbuckers don’t have the traditional pole pieces and screws of most humbuckers, so he uses the screw holes on the cover as “portholes” looking in on a luxe abalone design. And his patented “curved-coil” pickups feature a unique winding method to mix up the tonal profile while maintaining presence across all frequencies.
“I learned early on that there are all kinds of sonic worlds out there to be discovered.” —Chris Mills
Mills has also patented a single-coil pickup with a curved coil, which he developed to get a different tonal quality by changing the relative location of the poles to one another and to the bridge. Within that design is another patented design feature: reducing the number of turns at the bass end of the coil. “Pretty much every pickup maker suggests that you lower the bass end [of the pickup] to compensate for the fact that it's louder than the treble end,” says Mills. “That'll work, but doing so alters the quality and clarity of the bass end. My innovation enables you to keep the bass end up high toward the strings.”
Even Mills’ drop-in pickups tend to look fairly distinct, but his more custom designs, like his curved-coil pickup, are downright baroque. Because his designs don’t rely on typical pickup construction, there aren’t the usual visual cues, like screws popping out of a humbucker cover, or pole pieces on a single-coil pickup. (Mills does preserve a whiff of these ideals with “portholes” on his pickup covers that reveal that pickup below.) Currently, he’s excited by the abalone-shell finish inserts he’s loading on top of his ZUZUbuckers, which peek through the aforementioned portholes.
“It all comes down to the challenge that we face in this industry of having something that’s original and distinctive, and also knowing that with every choice you make, you risk alienating those who prefer a more traditional and familiar look,” says Mills.
Pete Roe - Submarine Pickups
Roe’s stick-on Submarine pickups give individual strings their own miniature pickup, each with discrete, siloed signals that can be manipulated on their own. Ever wanted to have a fuzz only on the treble strings, or an echo applied just to the low-register strings? Submarine can achieve that.
Pete Roe says that at the start, his limited amount of knowledge about guitar pickups was a kind of superpower. If he had known how hard it would be to get to where he is now, he likely wouldn’t have started. He also would’ve worked in a totally different way. But hindsight is 20/20.
Roe was working in singer-songwriter territory and looking to add some bass to his sound. He didn’t want to go down the looping path, so he stuck with octave pedals, but even these weren’t satisfactory for him. He started winding his own basic pickups, using drills, spools of wire, and magnets he’d bought off the internet. Like most other builders, he wanted to make passive pickups—he played lots of acoustic guitar, and his experiences trying to find last-minute replacement batteries for most acoustic pickups left him scarred.
Roe started building a multiphonic pickup: a unit with multiple discrete “pickups” within one housing. In traditional pickups, the vibration from the strings is converted into a voltage in the 6-string-wide coils of wire within the pickup. In multiphonic pickups, there are individual coils beneath each string. That means they’re quite tiny—Roe likens each coil to the size of a Tylenol pill. “Because you’re making stuff small, it actually works better because it’s not picking up signals from adjacent strings,” says Roe. “If you’ve got it set up correctly, there’s very, very little crosstalk.”
With his Submarine Pickups, Roe began by creating the flagship Submarine: a quick-stick pickup designed to isolate and enhance the signals of two strings. The SubPro and SubSix expanded the concept to true hexaphonic capability. Each string has a designated coil, which on the SubPro combine into four separate switchable outputs; the SubSix counts six outputs. The pickups use two mini output jacks, with triple-band male connectors to carry three signals each. Explains Roe: “If you had a two-channel output setup, you could have E, A, and D strings going to one side, and G, B, and E to the other. Or you could have E and A going to one, the middle two strings muted, and the B and E going to a different channel.” Each output has a 3-position switch, which toggles between one of two channels, or mute.
“I’m just saying there’s some unexplored territory at the beginning of the signal chain. If you start looking inside your guitar, then it opens up a world of opportunities.” —Pete Roe
This all might seem a little overly complicated, but Roe sees it as a simplification. He says when most people think about their sound, they see its origin in the guitar as fixed, only manipulatable later in the chain via pedals, amp settings, or speaker decisions. “I’m not saying that’s wrong,” says Roe. “I’m just saying there’s some unexplored territory at the beginning of the signal chain. If you start looking inside your guitar, then it opens up a world of opportunities which may or may not be useful to you. Our customers tend to be the ones who are curious and looking for something new that they can’t achieve in a different way.
“If each string has its own channel, you can start to get some really surprising effects by using those six channels as a group,” continues Roe. “You could pan the strings across the stereo field, which as an effect is really powerful. You suddenly have this really wide, panoramic guitar sound. But then when you start applying familiar effects to the strings in isolation, you can end up with some really surprising textural sounds that you just can’t achieve in any other way. You can get some very different sounds if you’re applying these distortions to strings in isolation. You can get that kind of lead guitar sound that sort of cuts through everything, this really pure, monophonic sound. That sounds very different because what you don’t get is this thing called intermodulation distortion, which is the muddiness, essentially, that you get from playing chords that are more complex than roots and fifths with a load of distortion.” And despite the powerful hardware, the pickups don’t require any soldering or labor. Using a “nanosuction” technology similar to what geckos possess, the pickups simply adhere to the guitar’s body. Submarine’s manuals provide clear instruction on how to rig up the pickups.
“An analogy I like to use is: Say you’re remixing a track,” explains Roe. “If you get the stems, you can actually do a much better job, because you can dig inside and see how the thing is put together. Essentially, Submarine is doing that to guitars. It’s allowing guitarists and producers to look inside the instrument and rebuild it from its constituent parts in new and exciting ways.”
