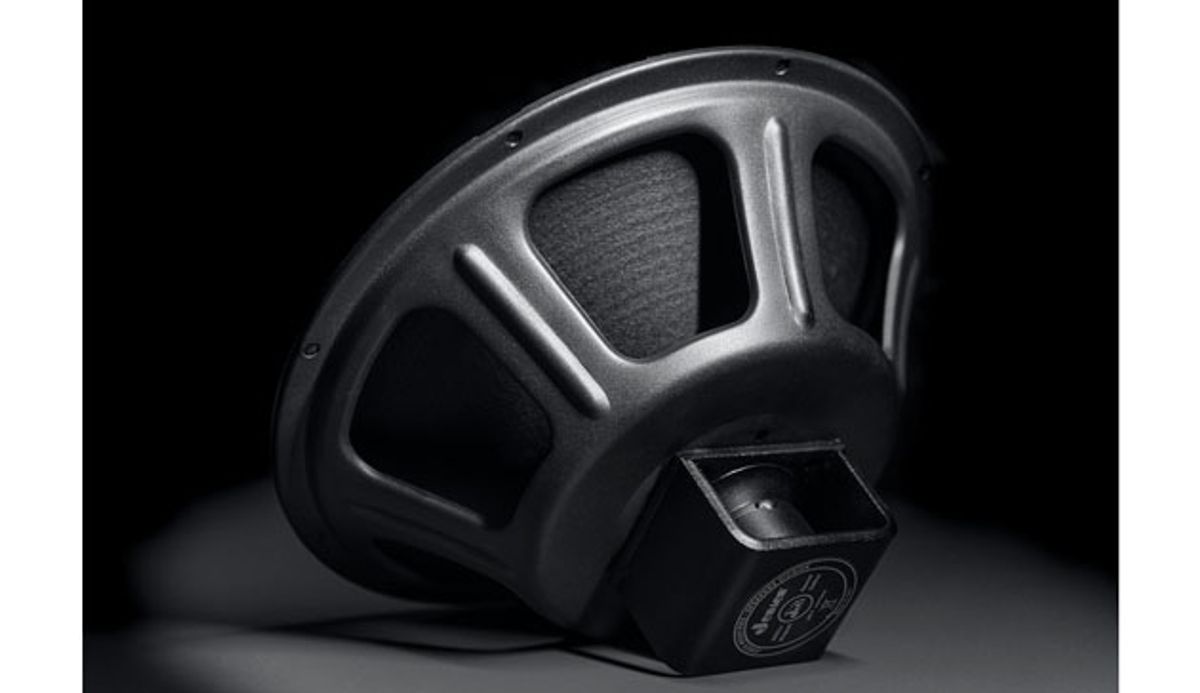

Jensen Loudspeakers Presents the 12” Blackbird 40

A 40-watt speaker with a 1.26 inch copper-wound voice coil and a reinforced AlNiCo magnet in the classic “horseshoe” format.

Tempe, AZ (December 2, 2020) -- A new take on the classic AlNiCo tone, with a bolder voice for vintage and modern players Jensen Loudspeakers is pleased to announce the release of the Jensen Blackbird 40, a new 12” guitar speaker in the Jet Series. The Blackbird 40 is a 40-watt speaker with a 1.26 inch copper-wound voice coil and a reinforced AlNiCo magnet in the classic “horseshoe” format.

Development of the Blackbird 40 focused on achieving two different goals. The first was to capture the classic vintage character and chime, in order to resemble the tone of one of the most popular Jensen Speakers ever, the P12Q. Second was to offer a significantly increased sensitivity and a stronger magnet to achieve a firmer and more powerful bass response. These characteristics make the Blackbird 40 perfectly suited for more modern applications, including those requiring higher gain and overdriven tones.

The Blackbird 40 is the first speaker in the Jet Series featuring Jensen’s exclusive Reinforced AlNico magnet technology. This new technology results in a magnet which has been reinforced and made more efficient, raising the overall Flux Density (the “strength” of the magnet) by over 30%. This results in the behavior of a much bigger and more expensive magnet without the added cost.

The outcome is that the Blackbird 40 delivers the classic, unmistakable voice of a Jensen AlNiCo speaker, supported by a stronger, firmer foundation that reinforces the bass range. The Blackbird 40 is great for an upgrade to a classic vintage amplifier, yet is equally suited to modern, more versatile amplifiers.

The Blackbird 40 will be available in early 2021 with a retail price of $195.00.

Characteristics:

The Blackbird 40 speaker features a 300g/11 oz “Horseshoe” AlNiCo magnet, specially reinforced to deliver a Flux Density of 1.28T. The 32mm/1.26” voice coil is wound with copper wire on a Kapton former. The cone membrane has a specially-designed corrugation pattern, treated surrounds, and an acoustically-transparent cloth dust cap. The increased flux of the magnet contributes to a remarkable sensitivity of 96dB @1W/1m.

Guitarist Description:

Warm and natural sounding with a remarkably deep and controlled low end, a firm midrange, topped by a transparent, chime-filled treble range. Capable of crunchy, overdriven tones, with a brilliant, detailed response.

Specifications:

  • Nominal Impedance: 8/16 Ohm
  • Rated Power (AES): 40 W
  • Continuous Program Power: 80 W
  • Sensitivity @ 1W/1m: 96 dB
  • Resonance Frequency (Fs): 93.2 Hz @ 8 ohm, 90.1 Hz @ 16 ohm
  • Voice Coil Diameter: 32 mm / 1.26”
  • Voice Coil Winding Material: Copper
  • Voice Coil Former Material: Kapton
  • Cone Material: Paper
  • Cone Surround: Paper, integrated, treated
  • Magnet Weight: 300 gr / 11 oz
  • Magnet Material: AlNiCo
  • Basket Material: Pressed steel
  • Weight: 2.0 Kg / 4.4 lbs.
