Acoustic Image Introduces Clarus SL and SL-R Models

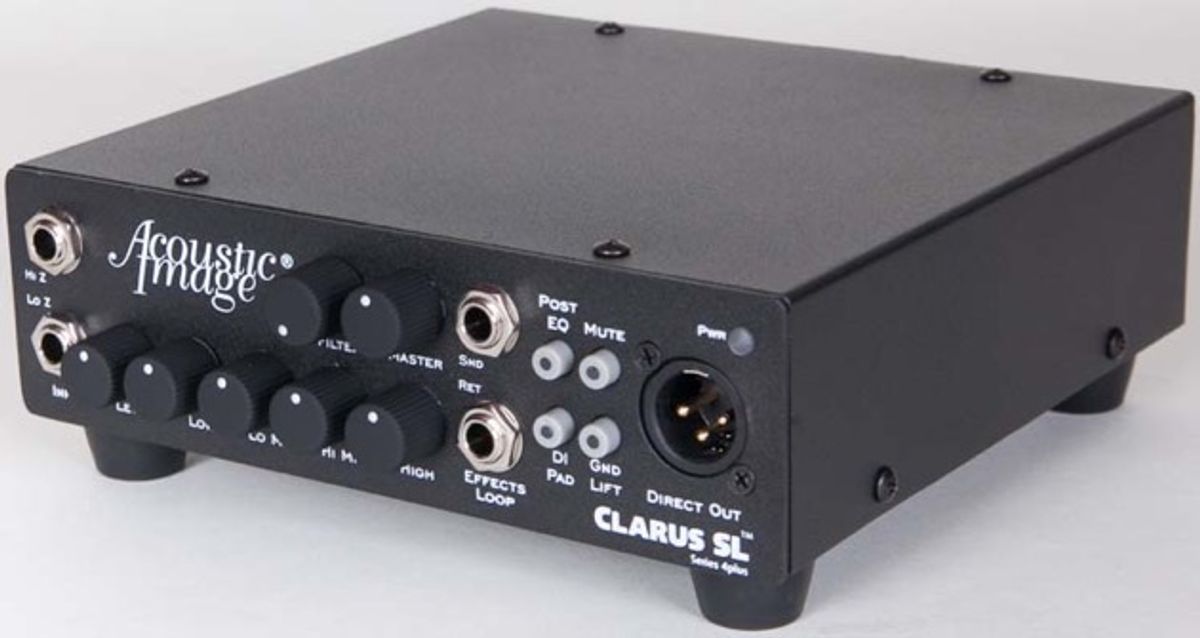

Clarus SL

These single-channel amp heads feature 600 watts of power into just 4 ohms.

Research Triangle Park, NC (July 13, 2015) -- Acoustic Image today announced that, in response to customer demand, it is reintroducing new and improved Series 4plus versions of its ultra-portable Clarus SL and Clarus SL-R model single-channel amp heads incorporating AI’s industry-leading Flex pre-amp technology as well as more features and a full 600 watts of power into 4 ohms.

Designed, like all Acoustic Image products, to amplify any instrument, the full-range Clarus SL-R (with high quality reverb) and Clarus SL (no reverb) share the same tiny format as their predecessors (approximately 2X7X7 inches). At just over 2 1/2 lbs., each sets a new standard for portability, power and transparency.

“Players have been telling us for years that there is a need for a small, powerful, one-channel, high fidelity head for gigging anywhere, but particularly on the road,” said Dr. Rick Jones, Acoustic Image Founder and Chief Designer. “The Clarus SL-R and Clarus SL—incorporating our widely-praised, proprietary Flex preamp technology—are a direct response to that need.”

Street prices are $549 for the Clarus SL and $649 for the Clarus SL-R.


Clarus SL-R

Features and specifications for the two models:


System
Frequency Response 30 Hz - 20 kHz, ±3 dB
Signal to Noise Ratio >110 dB at direct out
AC Power 100V to 240V, 50/60 Hz, automatically switched
Size 2.1” H x 7.2” W x 7.4” D
Weight 2 lbs, 10 oz
Preamp
Instrument Input 1 Mohm or 10 Mohm, 1/4 inch jack
Direct Out +4 dB, balanced, XLR connector, ground lift,
pre/post EQ selector, 10 dB pad
Effects Loop Parallel type
Low Control Shelving type, ±12 dB at 30 Hz
Low Mid Control ±12 dB at 250 Hz
High Mid Control ±12 dB at 1200 Hz
High Control Shelving type, ±15 dB at 10 kHz
Low Cut Filter -12 dB/oct sweepable from 30 to 180 Hz
Effects (SL-R only)
Type 24 bit digital with 3 programs
Programs Reverb with variable decay time,
Delay/Reverb with variable delay time
Delay with variable delay time
All have variable wet/dry mix
Power Amp
Topology Class D (PWM)
Switching Frequency 500 kHz
Output Power 8ohm 300W rms continuous
350W rms music (40% duty cycle)
500W peak transient
Output Power 4ohm 500W rms continuous
650W rms music (40% duty cycle)
1000W peak transient
External Speaker Out Speakon type (pole 1), 2ohm min load

Supplied Accessories: Gig bag, Speakon to 1/4 inch adapter

For more information:
Acoustic Image
