Craig Parlee: My Homemade Pedalboard
“I made this by myself,” says reader Craig Parlee. “I added LEDs and AC power adapters to the pedals that didn’t have them.” On the top row [L–R]: Electro-Harmonix Big Muff Pi, another Big Muff, MXR Envelope Filter, DOD power supply. Lower row: Electro-Harmonix Deluxe Electric Mistress, DOD Stereo Chorus, Electro-Harmonix Small Stone, and a Dunlop Cry Baby Wah. “The open space next to the wah is where my Electro-Harmonix Guitar Synth box goes,” adds Craig.

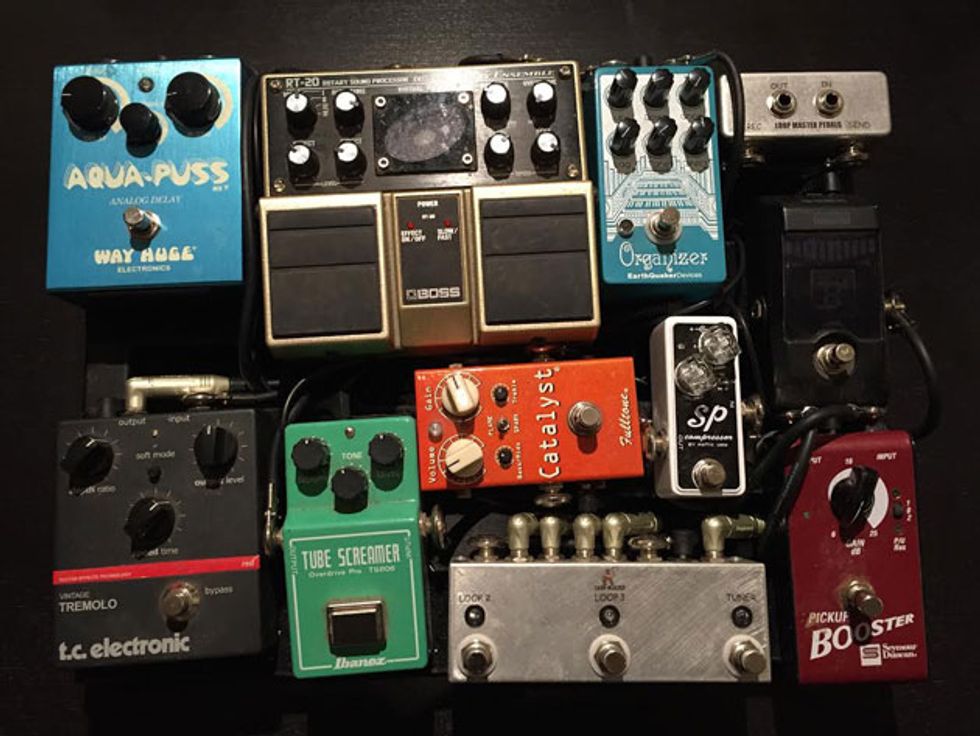

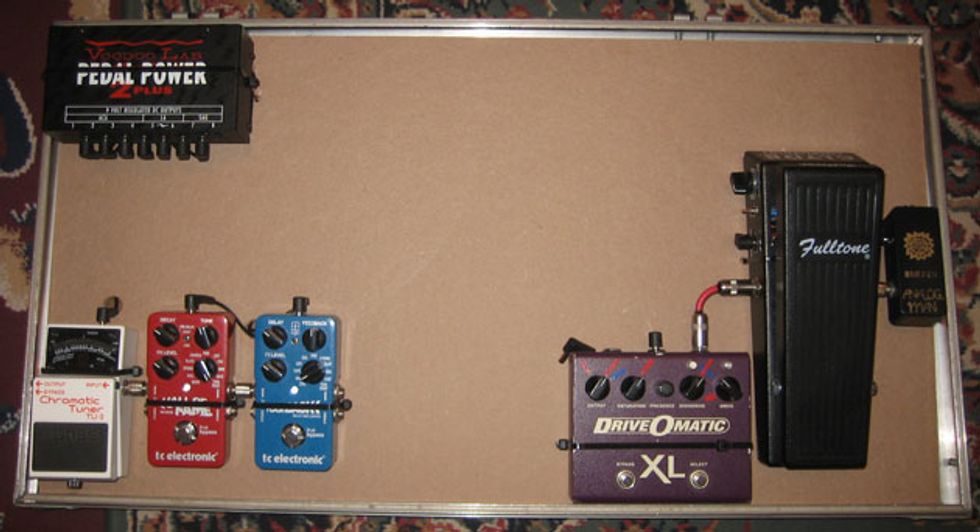

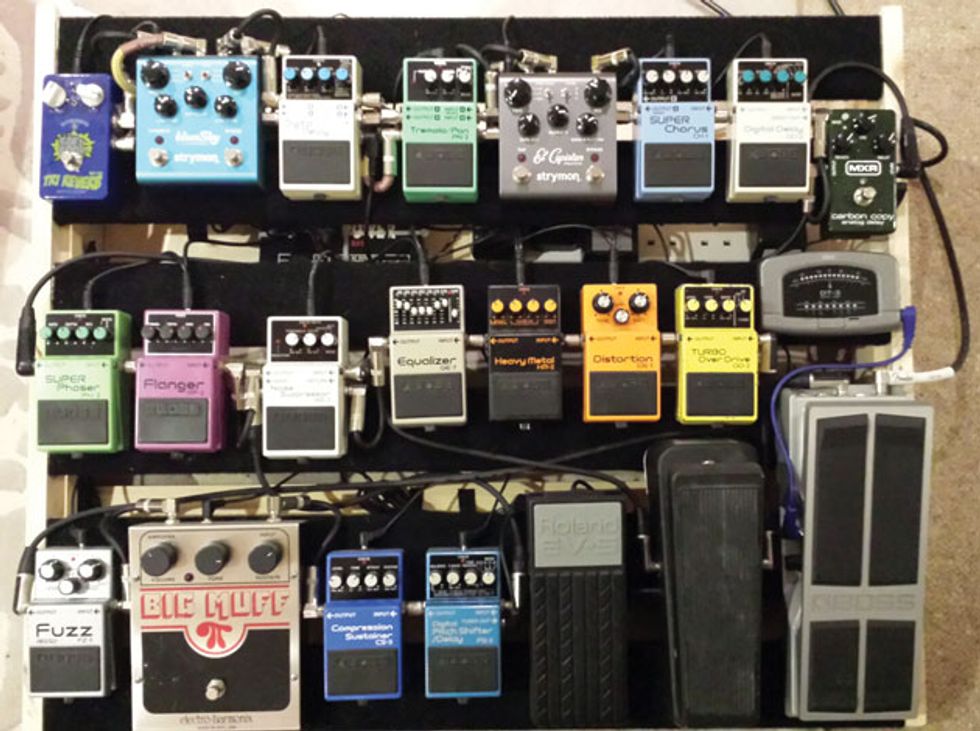

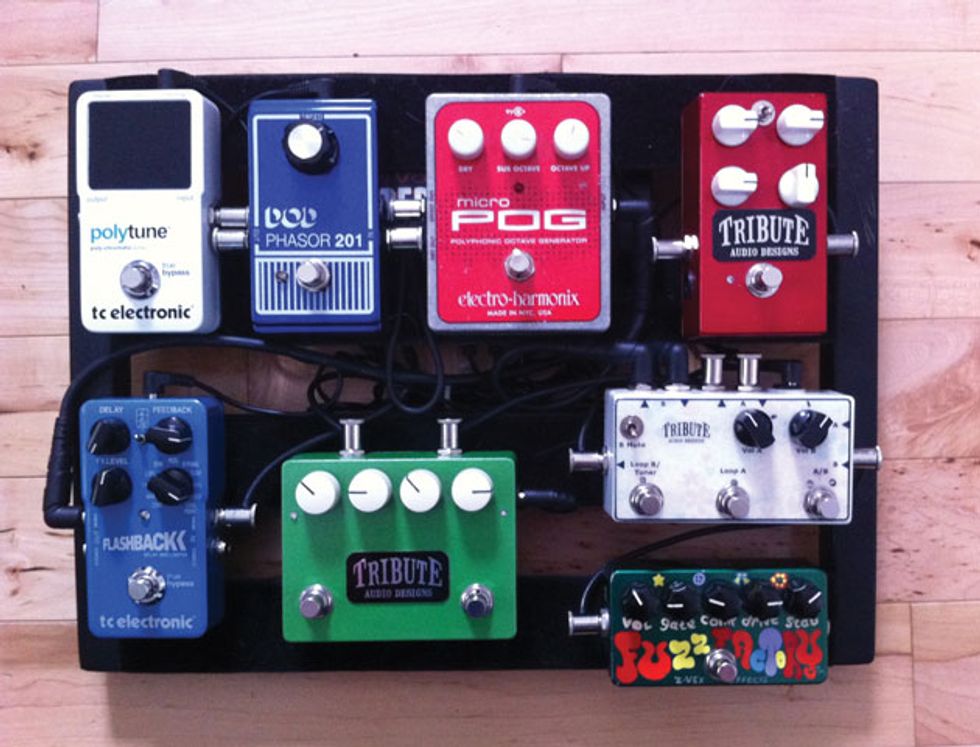

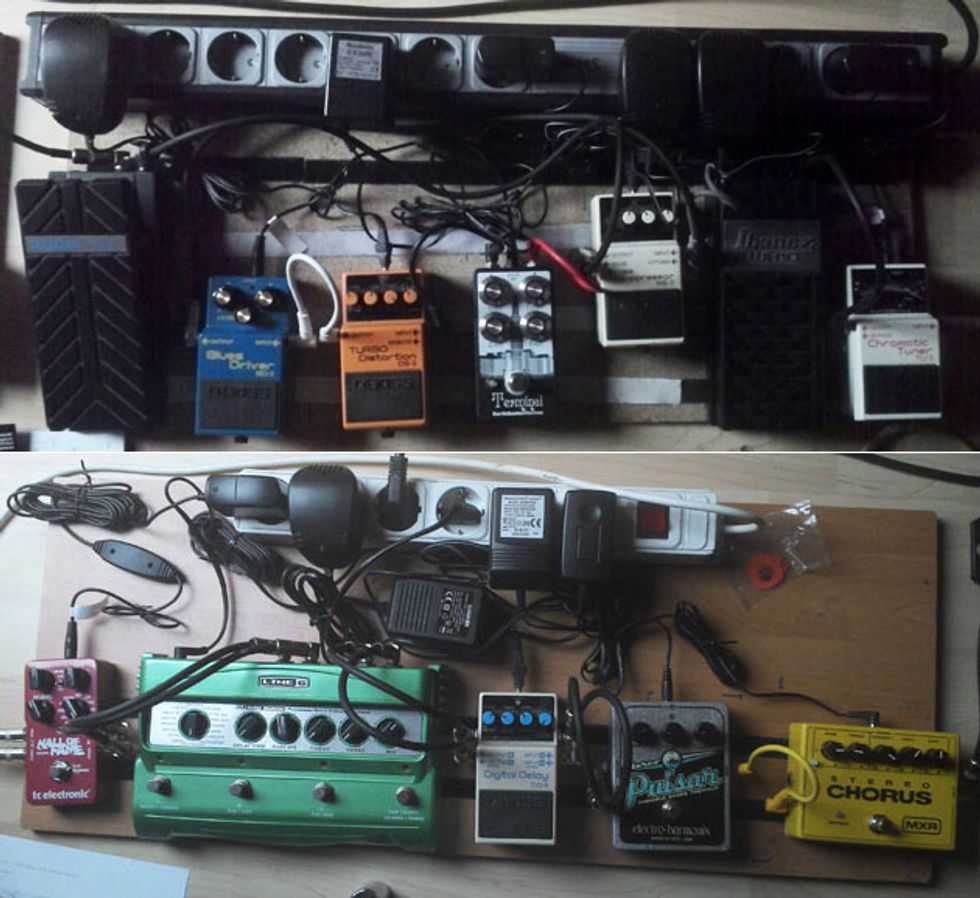

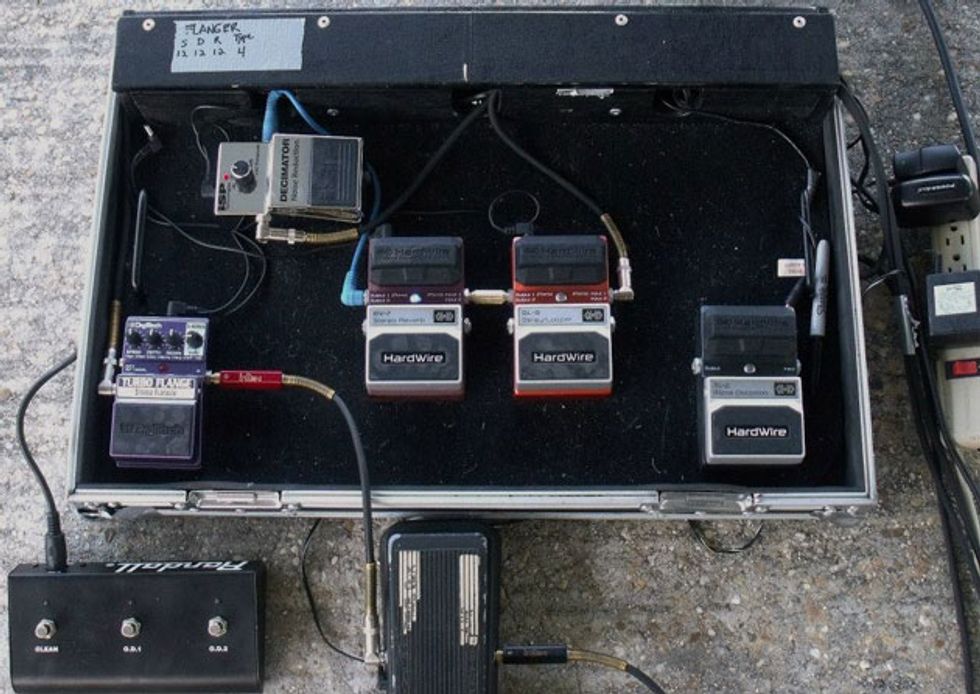

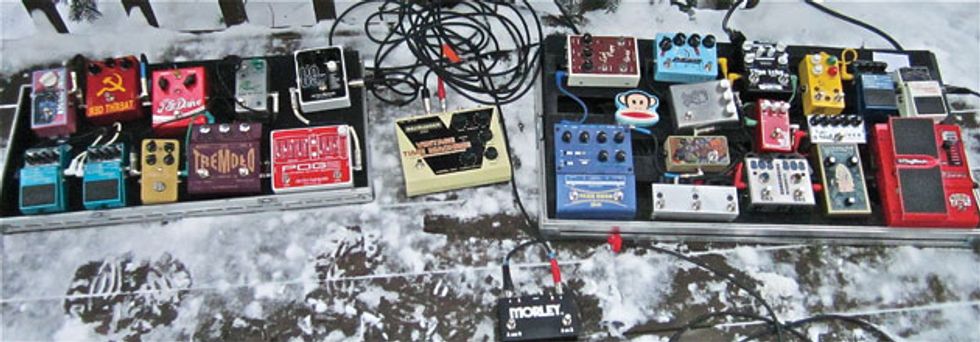

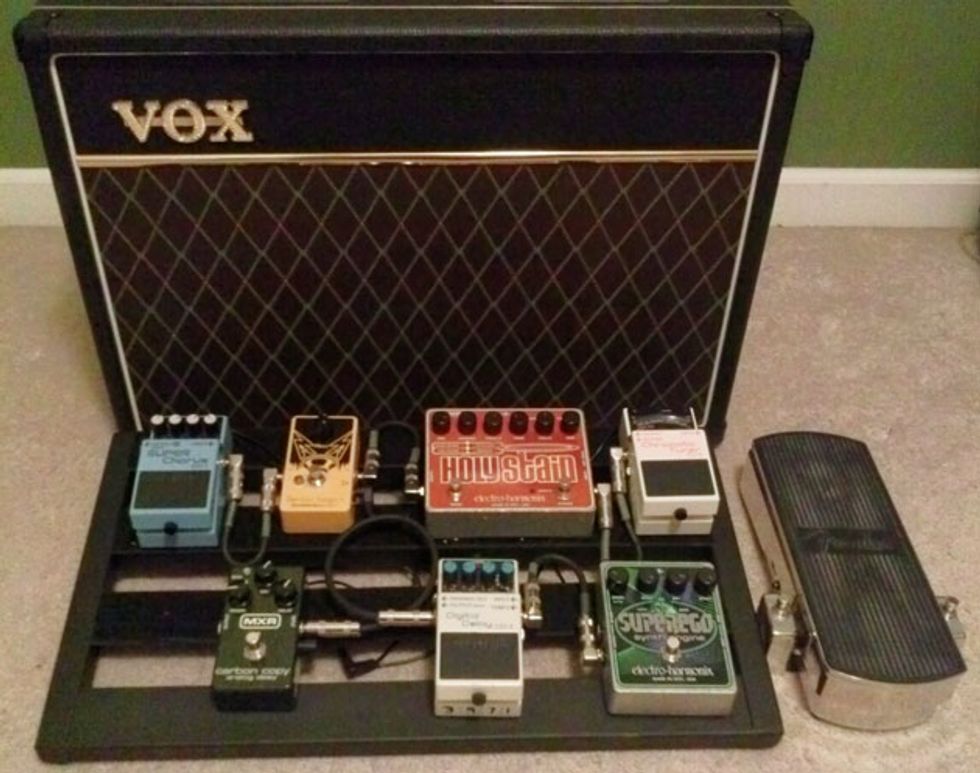

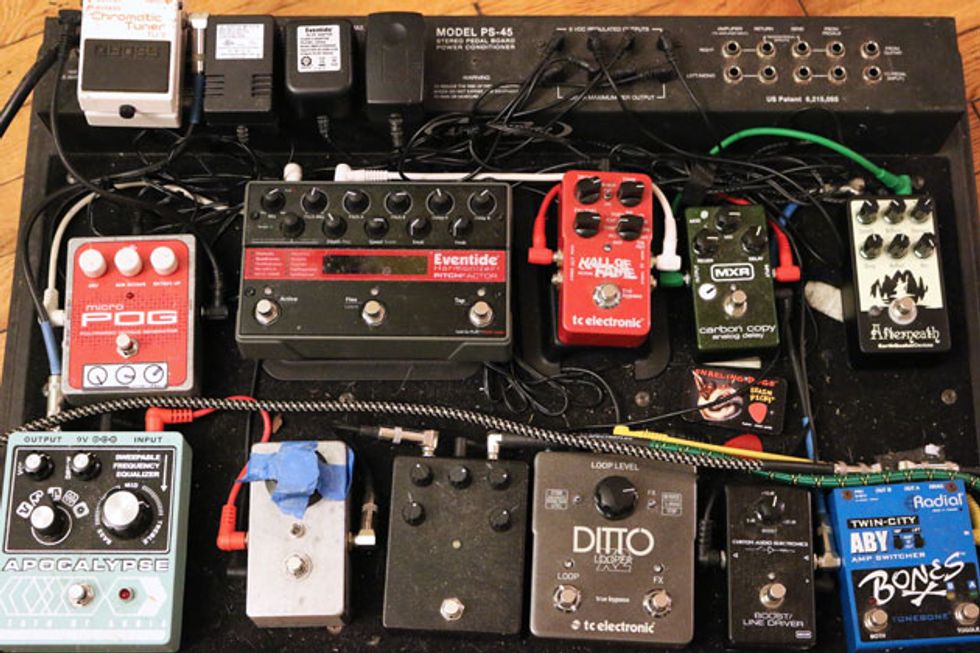

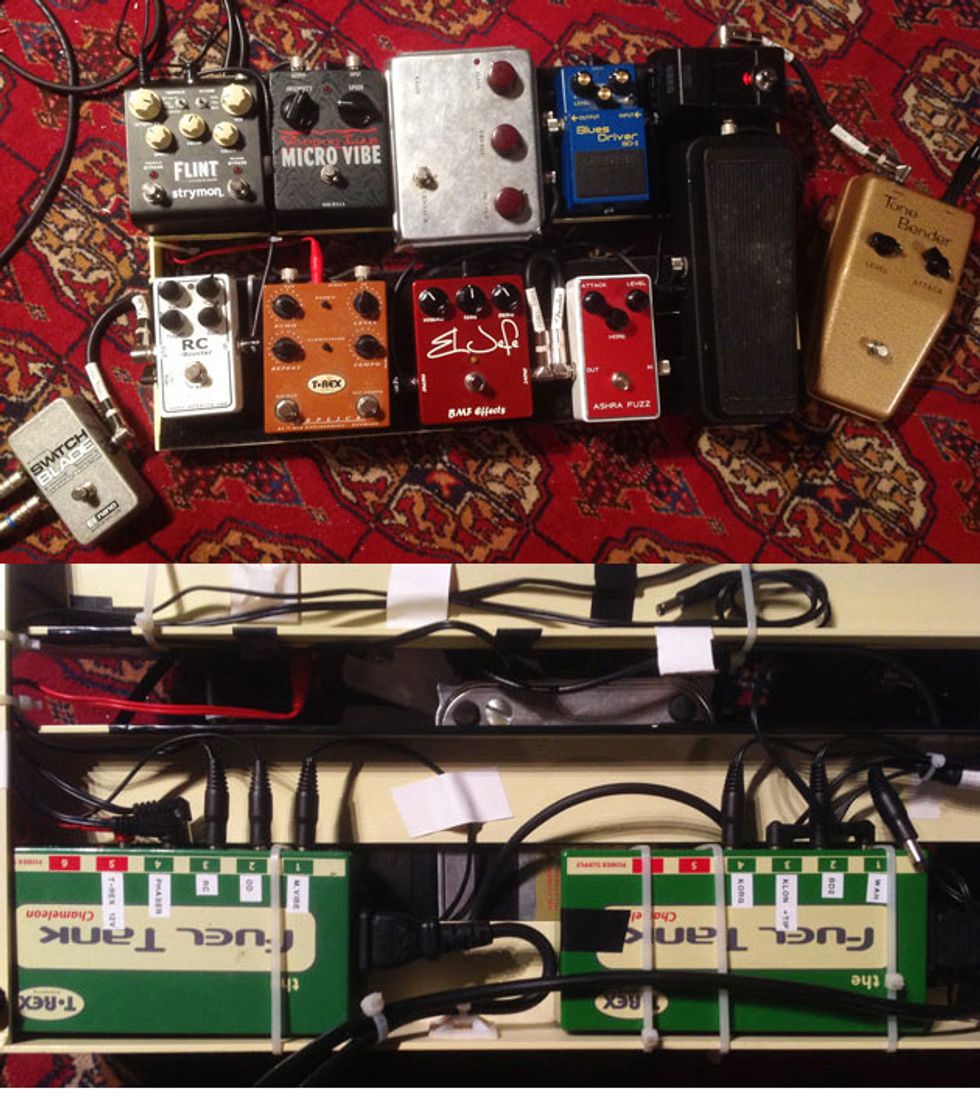

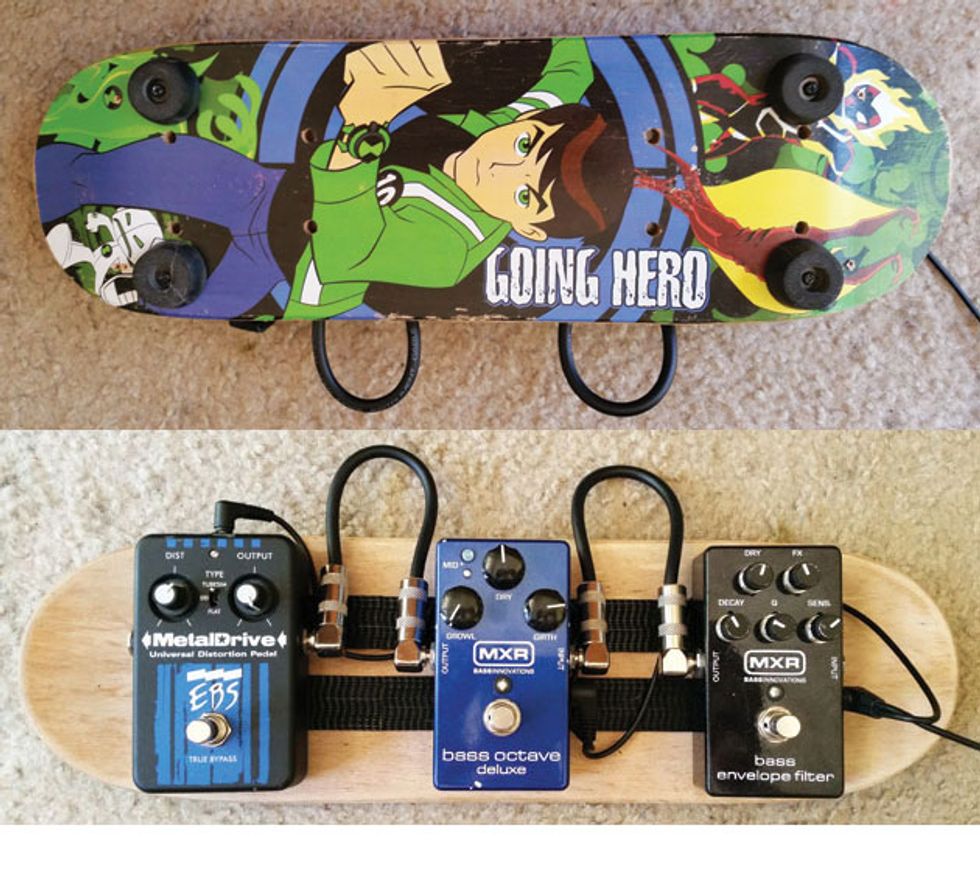

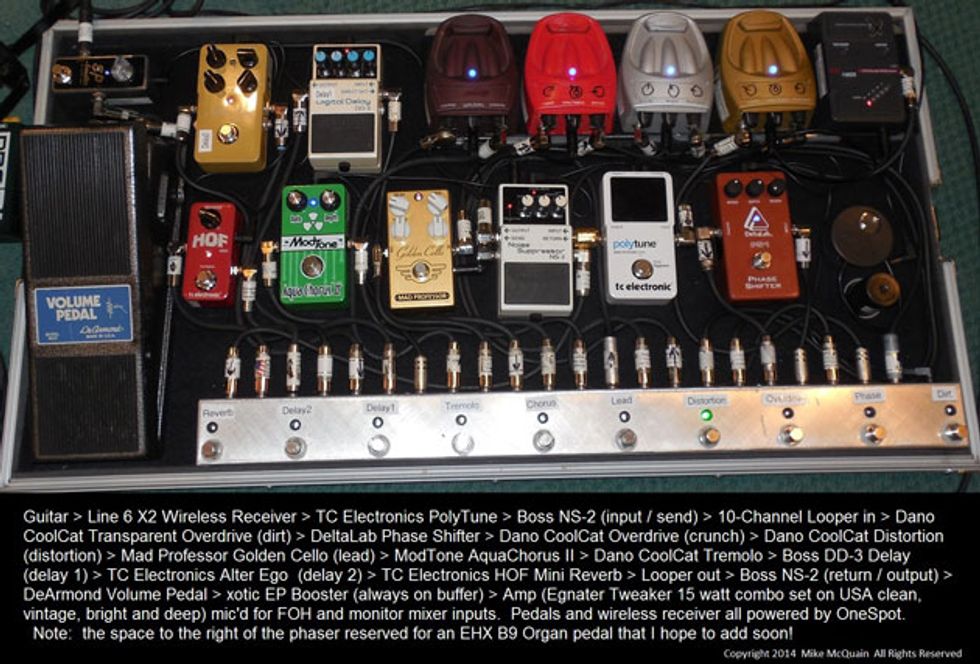

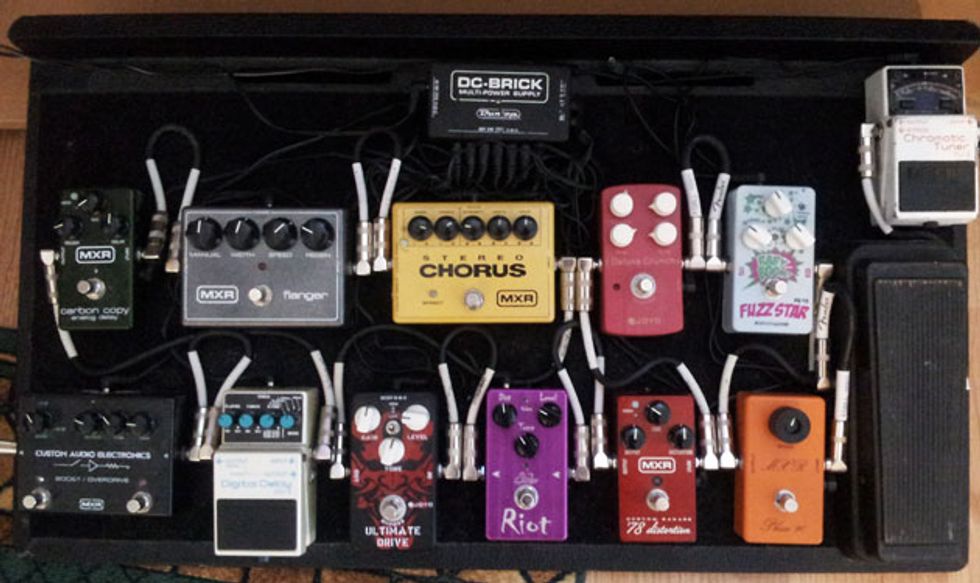

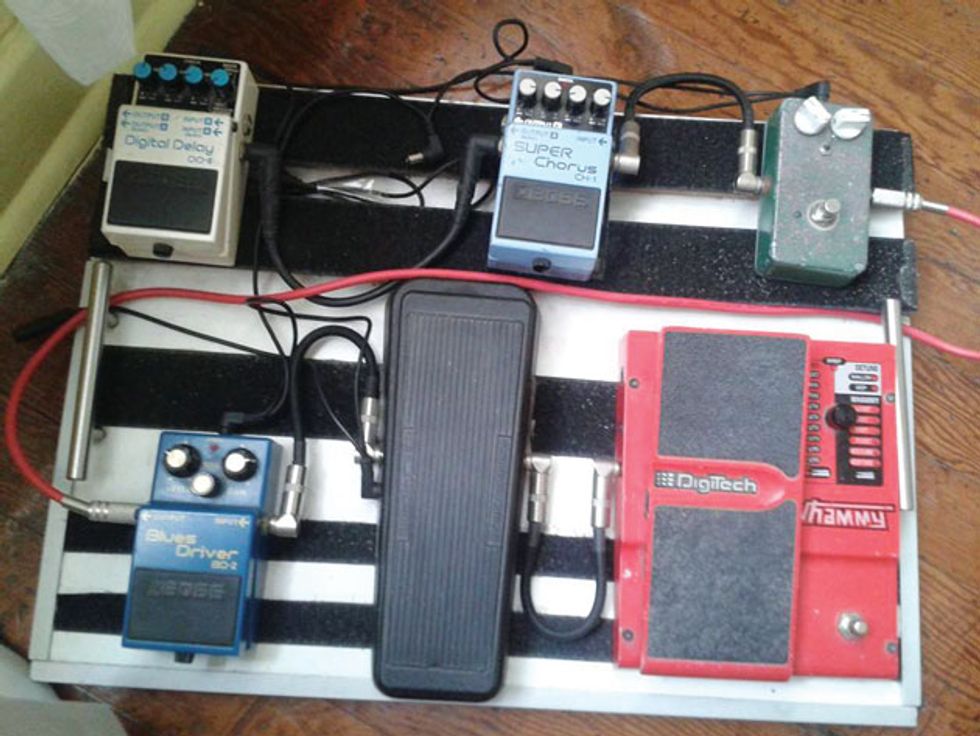

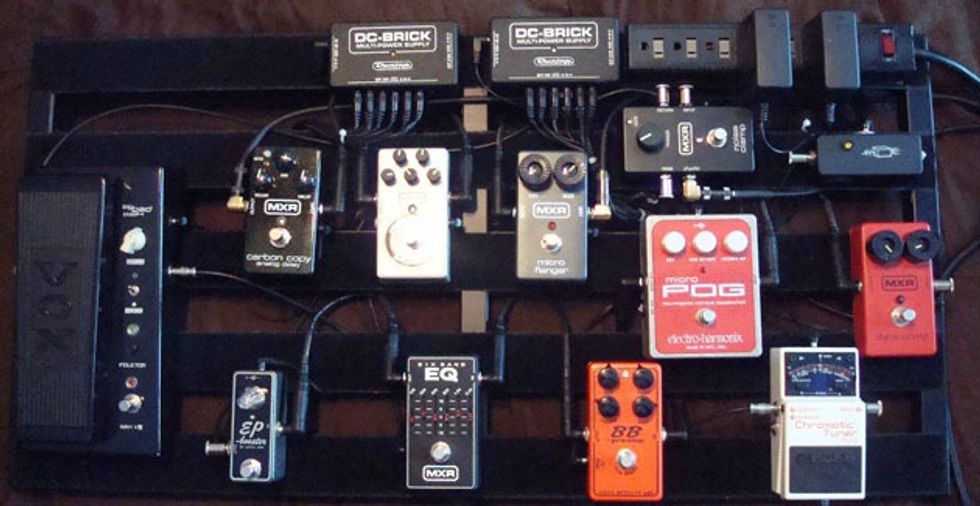

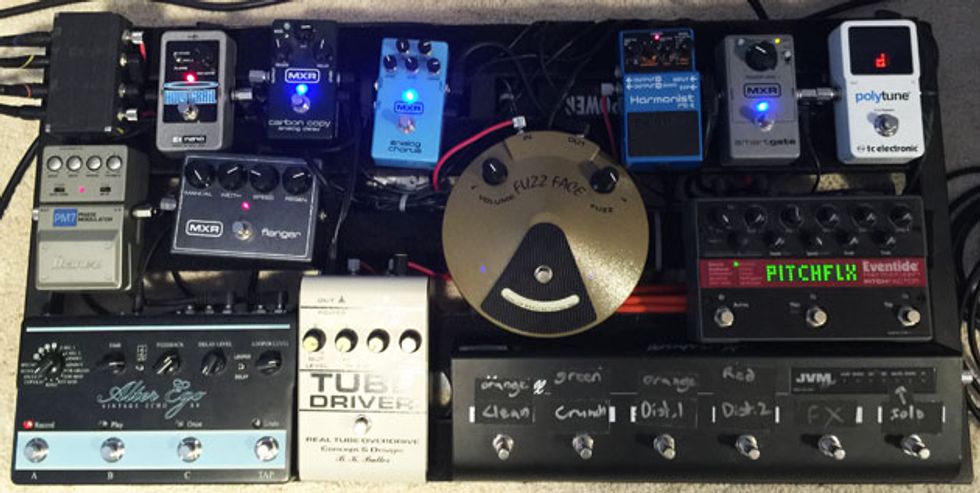

Ready for some self-inflicted pedal envy? Just check out the extraordinary setups from some of our fellow players. These recent submissions include a crafty “skateboard,” a fuzz “smorgasboard,” and submissions from a few players who may have gone “overboard.” (Puns intended.)
Pedal lust has no end—these pedalboard pics keep rolling in, and there are plenty more where these came from. Check out other reader boards at premierguitar.com.
CuNiFe-driven Wide Range pickups and a 7.25" fretboard radius make this the most period-correct Thinline since the original.
Awesome, alive, and individual Wide Range pickup sounds. Great neck. A 7.25" fretboard radius. Light weight. Period-authentic 1 meg pots.
Taper on 1 meg pots not very nuanced. Less-than-plentiful ash supplies could mean odd grain matches on natural-finish guitars.
$2,399
Fender American Vintage II '72 Thinline Telecaster
fender.com
In the 50 years since their big, chrome covers first reflected a hot stage light, Fender’s Seth Lover-designed Wide Range humbuckers have gone from maligned to revered. The guitars built around Wide Range pickups are legends in their own right, too. Keith Richards’ Telecaster Custom is synonymous with the Stones dynamic and adventurous late-70s-to-early-80s period. Scores of punk and indie guitarists made the Telecaster Deluxe a fixture of those scenes. And Jonny Greenwood almost singlehandedly elevated the Starcaster from a curiosity to an object of collector lust. The fourth member of the Wide Range-based guitar family, the ’72 Telecaster Thinline, lived a comparatively low-profile life. Yet it is a practical, streamlined, uniquely stylish, and multifaceted instrument with a truly original voice—qualities that are plain to see, feel, and hear in this new American Vintage II incarnation.
Though the ’72 Thinline re-issue has been a fixture in Fender and Squier lines for years, the pickups in those guitars were mere visual approximations of the Wide Range pickups that made the originals so distinct. But thanks to the introduction of Fender’s new CuNiFe magnet-based Wide Range pickups, the new American Vintage II ’72 Telecaster Thinline now exists in the most vintage-correct guise since the original—right down to the Lover-style Wide Range units, 1 meg potentiometers, and a 7.25" fretboard radius. It’s a lively, exciting, and rich-sounding instrument that spans Fender and Gibson textures while inhabiting a tone world all its own.
Avoiding patent infringement is a powerful driver of invention. When Seth Lover came to Fender from Gibson in the late ’60s, he inherited a directive to create a Gibson-beating humbucker. To do that, he’d need to avoid copying the PAF he’d designed for Gibson. But Lover also had a specific, self-imposed objective: to build a meatier-sounding pickup that retained the fast transient response of Fender single-coils. Lover’s task was like threading a needle. And for a long time, the popular consensus was that the Wide Range experiment failed. But in the intervening years, open minds and ears have proven how versatile, beautiful, and powerful sounding the Wide Range can be. They are also a case study in how a series of small design pivots can yield an unexpected whole.
Structurally speaking, the differences between a Wide Range and a Gibson PAF humbucker are simple but important. In a PAF, steel pole pieces focus a charge from an alnico bar magnet at the pickup’s base. A Wide Range, however, uses adjustable pole pieces as magnets—a design enabled by the use of CuNiFe, a malleable, magnetic alloy of copper, nickel, and iron that can be fashioned into magnetic screws. When Lover designed the Wide Range, CuNiFe was used extensively to manufacture tachometers, speedometers, and other gauges. It was relatively cheap and plentiful. But as gauges increasingly became digital, CuNiFe went increasingly unwanted. Cheap supplies dwindled. Before long, the Wide Range pickup was gone, too.
In the decades since, a lot of great pickup builders debated what makes vintage Wide Range pickups special—and the role CuNiFe magnets play. What is certain is that CuNiFe led Seth Lover to a very interesting series of engineering adaptations. Consider this chain of events: The lower iron content in CuNiFe alloy makes it harder to extract low-end warmth in pickup applications. That necessitates bigger bobbins and more wire turns. The resulting wider spacing between bobbins also means a wider pickup, which, in turn, reads vibrations along a longer expanse of string. Needless to say, there’s much that could account for a Wide Range’s unique voice.
Fender engineer Tim Shaw, who developed the new Wide Range pickups and who dives deep into the minutiae of such matters, asserts that CuNiFe is an indispensable ingredient in a Wide Range’s sonic signature, and a material with very audible and discernible individual properties. “As a designer, we almost never get to work with a completely different magnet family,” Shaw says. “It’s like having a new scale or set of chords to play with. Even when CuNiFe is overdriven, it (retains) definition and a very pleasant and musical top end. That’s been very inspiring to me.”
Though Shaw’s take on the Wide Range essentially sticks to the original formula, he voiced them to accommodate the extreme ranges of what he heard in various vintage specimens. His team made another important decision related to authenticity that pays sonic dividends here by using the 1 meg potentiometers that Fender used in the early ’70s. While folks like Shaw care less for the taper in 1 meg pots (it’s discernibly less smooth), they are perceptibly brighter than 500k pots when the guitar tone and volume are wide open. Some players like the more PAF-like output you get from the 500k pots. Others find that 1 meg pots are key to making Wide Ranges sound distinct and extra alive. After a few days with the American Vintage II version of the ’72 Thinline Telecaster, I’m inclined to align with the latter camp.
Playing the American Vintage II Telecaster Thinline straight into a loud, clean Fender amp, it’s easy to hear how inspired Lover’s vision was. The Thinline’s bridge pickup sounds like a single-coil Telecaster that’s bulked up without adding an ounce of fat. The top end is clear, snappy, and toothy. And while low strings have a sense of enhanced mass when compared to a single-coil Telecaster, they still twang like Bakersfield in a bottle. This harmonic profile means that the ’72 Thinline doesn’t hog up the low- and low-mid range in a mix, but can still drive an amp deliciously and create a sense of extra heft and explosive excitement. The neck pickup, too, balances mass and detail with grace. Both pickups make sounds that I’ve looked for in Les Pauls and could never quite find. I suspect Seth Lover would be tickled.
Pickups were not the only deviation from design norms that distinguished the ’72 Thinline. The first Telecaster Thinline, which appeared in 1969, was hatched from the mind by Roger Rossmeisl, who famously designed Rickenbacker’s 300 series guitars, among others, before moving to Fender and conceiving the Coronado, Montego, and the company’s mid-’60s acoustic line. To create the lighter, semi-hollow Thinline, Rossmeisl adopted the construction technique he developed for Rickenbacker: routing acoustic chambers from a solid section of ash, and then capping the back of the guitar with a thinner section of wood. On the new American Vintage II version, the ash body is fashioned from two solid sections of ash glued together at the guitar’s center line. Because boring beetles have endangered ash trees, visually perfect specimens of the wood are in short supply these days. As a consequence, the grain in the two sections that make up our review guitar are less than ideally matched. Still, the natural blonde poly finish is beautiful and marks a lovely visual link between the first blackguard Telecaster and this more deconstructed variation on the form.
The semi-hollow construction of the Thinline yields audible differences, too. Compared to a solid-ash Telecaster, the Thinline sounds much more zingy, resonant, and alive—particularly in the midrange. That difference is also apparent when the guitar is plugged in, and the body’s more resonant characteristics are a great match for the lively Wide Range humbuckers. Together they make the Thinline feel exceptionally responsive and awake.
Fender elected to revisit the company’s 7.25" fretboard radius across the whole American Vintage II line. And, for this reviewer at least, the development is a welcome one. I know flatter radii are appealing to bend-happy players. But when combined with the beautifully rolled edges on this Thinline’s single-piece maple neck and its very late-’60s-feeling C-profile, the more curvaceous radius Thinline feels fast and alluring under the fingers. And while the action felt pretty low, deep bending never resulted in choked or clanking notes. Is 7.25" too curvy for bending? I don’t know. Maybe you should talk to Jimi Hendrix and David Gilmour about that. I think it feels fantastic.
The Thinline is a pleasure in other ergonomic respects. The semi-hollow construction makes it relatively light (though the humbuckers probably offset that advantage a touch). And while the volume and tone knobs are situated further away than on a traditional Telecaster or a Stratocaster, the 3-way pickup switch, which is angled in the fashion of a Stratocaster pickup switch, is an inspired move that makes switching a lot more fluid.
In terms of function, sound, and style, time is proving kind to the ’72 Telecaster Thinline. And in this American Vintage II incarnation, the improvements to the Wide Range pickup make the Thinline a very real, appealing, and individual alternative to Gibsons and more canonical Fender sounds as well. Idiosyncrasies specific to the Wide Range pickups and 1meg potentiometer configuration won’t be for everyone. The guitar can sound pretty bright. And I suspect players that just want PAF sounds from a Telecaster will have the same complaints they’ve always had. But for any player that loves the feel of a vintage Fender but is interested in a more distinct, individual palette of sounds, the ’72 Telecaster Thinline is a sweet-playing delight
To commemorate the occasion, Origin Effects are offering their entire range of compressor pedals in a limited-edition, laser-engraved aluminum finish, inspired by their stealthy in-house prototypes.
Origin Effects is celebrating its 10-year anniversary! To commemorate the occasion, they are offering their entire range of compressor pedals in a stunning, limited edition, laser-engraved aluminum finish, inspired by their stealthy in-house prototypes.
Things have come a long way in the 10 years since Origin Effects founder, Simon Keats, embarked on his mission to make the world’s best compressor pedal. Today, Origin Effects have grown into a world-renowned company, offering a range of studio-grade compressors, vintage-inspired Analogue Amp Recreations, overdrives, and bass gear. Instantly recognizable, Origin pedals take pride of place on the boards of guitarists, bassists, and producers alike.
The latest incarnations of their compact compressors are getting the anniversary treatment. TheCali76 Compact Deluxe, Compact Bass, and Stacked Edition, as well as the SlideRIG Compact DeluxeMK2, are all now available in a slick, limited edition, laser-engraved aluminum finish. These pedals feature the same highly-acclaimed circuits their compressors are known for, with a look that tips its hat to ten years of uncompromising tone chasing.
The Cali76 models are limited to 250 pieces each, while the SlideRIG Compact Deluxe MK2 is limited to 100 pieces. Contact your Origin Effects dealer now while stocks last.
For more information, please visit origineffects.com.
While the features and functionality are the same as the Geddy Lee MP40 Limited-Edition Signature SansAmp, the cosmetics have been changed out of respect for the limited number of MP40s.
Responding to the sell-out of the Geddy Lee MP40 Limited Edition Signature SansAmp, Tech 21 is offering the YYZ Shape-shifter Signature SansAmp. While the features and functionality are the same, the cosmetics have been changed out of respect for the limited number of MP40s. The color scheme and graphics are now in alignment with Geddy’s other SignatureSansAmps: GED-2112 rackmount, DI-2112 desk-top, and YYZ single footswitch pedal.
The all-analog YYZ Shape-shifter SansAmp builds upon the original YYZ pedal with the addition of a selectable Boost stomp switch that provides a 12dB presence boost for increased top-end distortion. Engaging the Shape-shifter button adds 6dB of Schmegilka on top, which, according to Geddy, "is an indefinable thing of awesomeness!"
Other features include: a Mix control to blend the ratio of high-end studio clean and dirty bass tube amp tones; Tight button adds definition to notes in cleaner settings and makes distorted tones snappier; Drive control; active 3-band EQ; and Master Volume. Operable with 9V alkaline battery (not included) or optional DC power supply.
As with all SansAmps, you can record directly and enhance previously recorded tracks. For live performances, you can drive a power amp and speakers, augment an existing amplifier set-up, or run directly into the mixer of a PA system. And each Geddy Lee Signature SansAmp offers Geddy’s core sound, as well as the versatility for many different styles and tones.
For more information, please visit tech21nyc.com.
Moog makes its debut in the universal software space with recreations of its beloved analog effects pedals.
Moogerfooger Effects Plug-ins are a re-invention of Moog’s analog effects pedals, bringing the legendary tone, musicality, and interconnectivity of the original hardware effects to your digital music production environment. Designed by Bob Moog and his engineering team in the late '90s and '00s, Moogerfooger effects pedals were direct descendants of the original Moog modular synthesizers, adapted to process, modulate, and play with inputs ranging from guitar, voice, and synthesizer to any imaginable audio source. From the MF-104's lush, warm analog delay circuit to the swirling phaser effects of the MF-103 and legendary resonant ladder lowpass filter in the MF-101, Moogerfoogers have become renowned for their sound and adopted by studios and performers around the world.
The original collection of Moogerfoogers were more than the sum of their parts due to their powerful and flexible control voltage inputs and outputs—able to play amongst themselves and combine into dynamic inter-related effects.
Moogerfooger Effects Plug-ins recreate that CV interconnectivity, allowing each instance of a Moogerfooger to modulate the parameters of any other across your project in any major DAW. With digital attenuverters added to every CV input, side-chain capabilities, and DC offset capabilities, Moogerfooger Effects Plug-ins allow for deep control over every aspect of your sound.
The effects family range from clean filtering to wildly experimental modulation designed to manipulate, enhance, and fully transform any sound. Each with its own distinct identity, these effects are designed to work perfectly alongside one another in your audio chain.
The complete collection of Moogerfooger Effects Plug-ins includes all seven reimagined Moogerfooger pedals in software form:
Moogerfooger Effects Plug-ins are available for a limited-time introductory price of $149 USD (regularly $249). This offer includes all seven Moogerfooger effects in one powerful and convenient collection that is compatible with all major DAWs.
For more information, please visit moogmusic.com.
