Tweed Fender-style tones form the foundation of a flexible clean-to-mean Boogie beast.
0:00 – Fillmore Ch1 set to clean, Gain around 10 o’clock, Master 11 o’clock, Treble noon, Mid 11 o’clock, Bass 11 o’clock, Presence noon, Reverb 11 o’clock. City Limits neck pickup
0:23 – switch to bridge pickup
0:40 – Ch1 switched to Drive mode.
0:48 – Gain raised to 2 o’clock
1:01 – Ch2 set to Hi mode; Gain 3 o’clock, Master 11 o’clock, Treble 11 o’clock, Mid 2 o’clock, Bass 11 o’clock, Presence noon, Reverb off.
Superbly versatile and great sounding in all modes, yet extremely easy to dial in. Cleverly conceived, well built, and appealingly compact.
The amp’s potential might be slightly limited by the compact 1x12 combo cab, as any such amp would be, although the combo pays out in terms of portability and punch-per-pound.

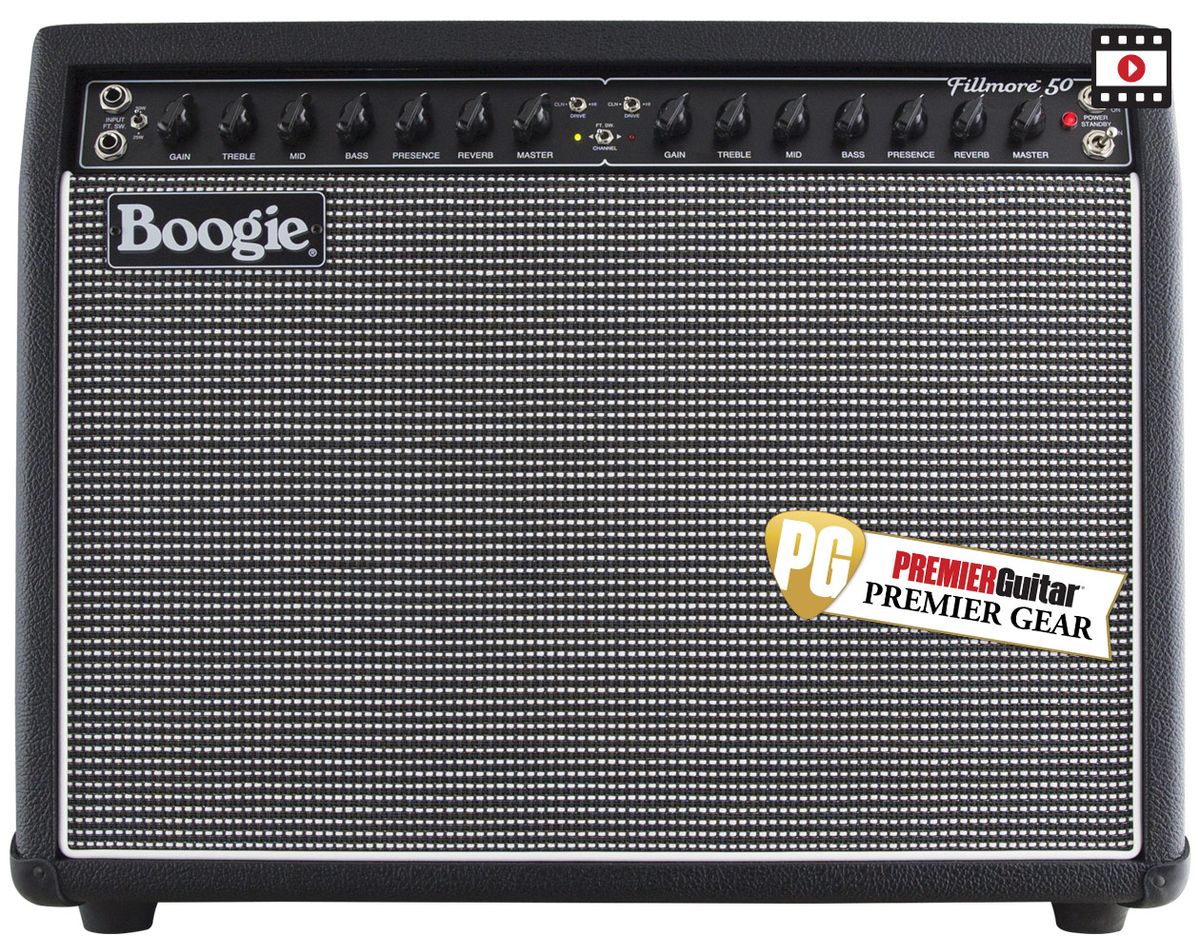

$1,699 Mesa/Boogie Fillmore 50
Ease of Use:
The golden age of the Fillmore concert halls, which spanned the late ’60s and early ’70s, is probably more associated with big silverface Fender piggybacks and Marshall stacks than Mesa/Boogie, or, for that matter, the tweed Fender amps that inspire the Mesa/Boogie Fillmore 50 1x12 combo reviewed here. But as Mesa/Boogie’s Doug West tells us, the Fillmore harkens back to a forgotten branch of the company’s family tree that aligns in time with the psychedelic era.
“The first four or five amps [company founder] Randy Smith ever built were based more on tweed than blackface architecture, with the tone controls coming at the end of the preamp rather than in front, and that affects the way the gain works. But the Carlos (Santana) amp that really made the company take off was made more from the blackface preamp, so he shelved the tweed-based amps.”
Smith and company have dabbled in tweed architecture occasionally since, but tweed returns front and center in the 2-channel, 6L6GC-driven Fillmore 50—along with gain and switching modifications that bend the circuit to the needs of 21st century guitarists. It’s a simpler creation than most Boogies we’ve come to know, too, despite its long row of knobs.
Knobs and switches on the two channels are identical. That’s because they govern two identical preamps within. Mesa/Boogie’s theory is that many players want variations on a similar voice that enable natural transitions from clean to crunch to lead without major shifts in tonality.
In addition to the gain, treble, mid, bass, presence, reverb, and master controls on each side, each channel also has a 3-way toggle switch to select from clean, drive, and “hi” gain levels. Another mini-toggle selects the full 50-watt output level or a half-power option at 25 watts. The back panel is home to a simple I/O set, including two 4-ohm speaker connections, an 8-ohm jack, a jack for a reverb footswitch, and send and return jacks for the series effects loop.
Inside the engine room, the circuit is laid out across a rugged printed circuit board loaded with discrete high-quality components. The amp derives its firepower from a pair of 6L6GCs in the output stage and five 12AX7s for preamp, reverb, and phase-inverter duties. Further probing reveals an output transformer that’s smaller than you might expect on a 50-watt amp, but that follows the maker’s intentions. Mesa/Boogie frequently refers to the dynamics and saturation levels of the design, and a smaller (which is to say, more vintage-style) output transformer is one means of achieving the company’s goals in those areas. The cabinet itself is a semi-open-back design measuring 22 ¾" x 17 7/8" x 10 1/8", and weighing 45 pounds with its single 12" Celestion Custom 90 speaker.
Tested with a Koll Super Glide Almighty with Monty’s PAF humbuckers (a Les Paul-like setup) and a Fender Telecaster, the Fillmore 50 combo is fun, versatile, and appealing from the start.
Using both channels in clean mode (remember, the two channels are identical apart from how you set them) taps the most authentically tweed-like tones in the amp, especially when the gain is set to 11 o’clock or above. Below that gain level (and with the tone knobs set for a slight scoop), the amp delivers impressive blackface-like chime, snap, and twang—no simple accomplishment from a 5F6A Bassman-derived circuit.
Crank it up, though, and the clean channel is all bellowing big-tweed. By manipulating the very effective master volume, many players could get by simply utilizing just the clean setting on both channels and varied levels of gain. That said, I noted that the low end can get a little soft when the amp is pushed hard in clean mode. Perhaps that’s an inevitable byproduct of the relatively small 1x12 combo configuration. The Custom 90 is certainly a firm and well-balanced speaker. But running the output into a closed-back Port City 2x12 with Eminence CV-75 speakers made the Fillmore 50 utterly roar. It sounded more stack-like and authoritative, which implies great potential for the Fillmore 50 head option, too.
The “hi” gain mode is more classically Boogie. Lead tones are searing, rich harmonics accompany the transients of unison bends, and you hear excellent sustain. You can craft Marshall-like tones here, too. (The JTM45 and Plexi were born out of the tweed Bassman, after all.) But the basic voice is still overtly modern American, with a touch of refinement to the raunch and a tasty 6L6-driven balance throughout the frequency range. Of the three modes, I was least enamored of the drive mode, which I found a little blocky sounding unless gain settings were very low or very high. It’s still a useful voice—just less thrilling to my ears than clean or hi.
The Fillmore 50 works beautifully with pedals, too. A Wampler Tumnus Deluxe and Boss JB-2 Angry Driver integrated seamlessly into the overall sonic brew rather than sounding layered on top. The half-power setting works great as well. I’m not usually a fan of triode settings for achieving lower power. They can be mushy, soft in the lows, and overly mid-rangey. But Mesa/Boogie has dialed in this technique over the years, and the half-power setting really does deliver what sounds and feels like a lower-powered version of the Fillmore’s 50-watt self. The long-tank spring reverb, which can be set independently for each channel, was also lush, rich and appealing. And it didn’t sap the core tone or dampen articulation, even at fairly extreme settings. (High gain settings in “hi” mode might be an exception.)
Rugged, compact, powerful, and packed with three great voices on each of two entirely independent channels, the Fillmore 50 combo offers a lot for the money in a versatile, great-sounding, American-made (and American-voiced) combo that’s perfect for small and large gigs.
Watch the First Look:
Looking for more great gear for the guitar player in your life (yourself included!)? Check out this year's Holiday Gear Finds!
D'Addario XPND Pedalboard
DR-05X Stereo Handheld Recorder
Wampler Pedals Ratsbane
Flare is a dual-function pedal with a tube-like booster and a 1970s-style ring modulator effect that can be played separately or together.
Flare’s ring modulator is based on the iconic tone of the original Dan Armstrong Green Ringer. This vintage classic was made famous by Frank Zappa who loved the unusual modulations created by generating a harmonic octave over notes. Messiah’s version offers two control knobs: a “Sparkle” tone attenuator and output Level control. Its taupe-gold body, purple and green knobs and stick-figure rock ’n’ roller holding up a flame convey an appropriately rockin’70s vibe.
In a unique twist, Messiah’s Flare pairs the ringer with a warm tube-style boost instead of a fuzz. Flare feeds the booster into the ringer for an extra punch, while preserving the Green Ringerspirit. The ringer side also turns any fuzz into an octafuzz, and it has the ability to quiet signal background noise fed through it.
The booster side features a single Boost knob to control the MOSFET circuit, making it very tube-amp-friendly with a warm, organic boost and gain of up to 32dB.
The pedal is a distinct improvement over the 1970s pedal that inspired it. “Most ringer pedals don’t track well,” Tom Hejda, owner of Messiah Guitars. “The player can’t rely on repeating the same effect even with the most consistently played notes. We carefully matched the components, so our ringer follows your every move, producing that slightly dirty octave you expect on demand.”
Messiah developed this vintage octave pedal with flexible features so that people who love that messy, dirty Zappa-esque sound can get there with ease but there’s also something for those who have not fallen in love with fuzz or the Green Ringer alone. Flare offers an array of sonic options while retaining simplicity in the controls.
Each Flair Pedal Includes:
- 3 control knobs: Boost, Sparkle, and Level
- Two effects – Ring Modulator and Boost – can be used together or separately
- Space-saving top side jacks
- Durable, cast aluminum alloy 125B enclosure with fun artwork
- Easy to see, illuminated True-bypass foot switch
- Standard 9V pedal power input
Flare Pedal Demo
Messiah Guitars pedals are designed with an explorative player in mind. Like their custom guitars and amplifiers, Messiah’s pedals are hand-crafted in Los Angeles for a long life with guaranteed quality.
Flare retails for $199.00 and can be purchased directly at Messiah Guitars or you can hear it in person at Impulse Music Co. in Canyon Country, CA.
For more information, please visit messiahguitars.com.
This feathery little guy is a joy to play because of its incredibly quick response to your right hand - much faster and more expressive than your typical auto-wah pedal.
If it looks like a duck, acts like a duck, and QUACKS like a duck, then it must be a duck. That's how we came up with the name for our new envelope filter. This feathery little guy is a joy to play because of its incredibly quick response to your right hand - much faster and more expressive than your typical auto-wah pedal. Trevor explains how this is possible in the launch video, as well as gives a demo on Le Canard’s operation.
The attack control determines how quickly the filter responds to the envelope, and the decay sets how quickly the filter releases afterward. The range controls which frequency spectrum the filter does its magic on. Add to this relay-based full-bypass switching with failsafe, and you've got one crazy little quacky beast. It is so expressive that you'll want to give up on your rocker-wah forever.
The MayFly Le Canard envelope filter features:
- Super fast responding envelope follower. Touch it and it jumps!
- Range control to dial in the character of the filter
- Attack control to control how fast the filter moves on that first touch
- Release control to control how slowly the filter slides back to baseline
- Full bypass using relays with Fail SafeTM (automatically switches to bypass if the pedal loses power)
- Cast aluminum enclosure with groovy artwork
- MSRP $149 USD ($199 CAD)
Introducing the MayFly Le Canard Envelope Filter
All MayFly pedals are hand-made in Canada.
For more information, please visit mayflyaudio.com.
Outlaw Effects introduces their next generation of NOMAD rechargeable battery-powered pedal boards.
Available in two sizes, NOMAD ISO is a compact, versatile tool that offers the convenience of a fully powered board plus the additional freedom of not having to plug into an outlet. NOMAD ISO is ideal for stages with limited outlet availability, quick changeovers, busking outdoors, temporary rehearsal locations, and more.
NOMAD ISO builds upon the legacy of the ultra-convenient and reliable NOMAD rechargeable pedalboard line originally launched in 2018. The brand new NOMAD ISO editions feature eight isolated outputs (1 x 9V DC, and 1 switchable 9V/12V DC) for even more versatility and clean, quiet power. With an integrated lithium-ion battery pack boasting 12800mAh capacity, NOMAD ISO can fuel a wide array of pedals, and will last over 10 hours* on a single charge.
Each NOMAD ISO pedal board includes adhesive hook & loop pedal-mounting tape, eight (8) standard DC connector cables, and one (1) reverse polarity DC cable, giving you everything you need to build your ultimate "off-the-grid" rig. A rugged, road-ready padded gig bag with shoulder strap is also included, to safely protect your gear while you're on the move.
NOMAD ISO S
NOMAD ISO S: MSRP $309 / MAP: $249
Dimensions: 19 ¼" x 5 ¼"
NOMAD ISO M
NOMAD ISO M: MSRP $349 / MAP $279
Dimensions: 19 ¼" x 11"
More info: https://www.outlawguitareffects.com.
