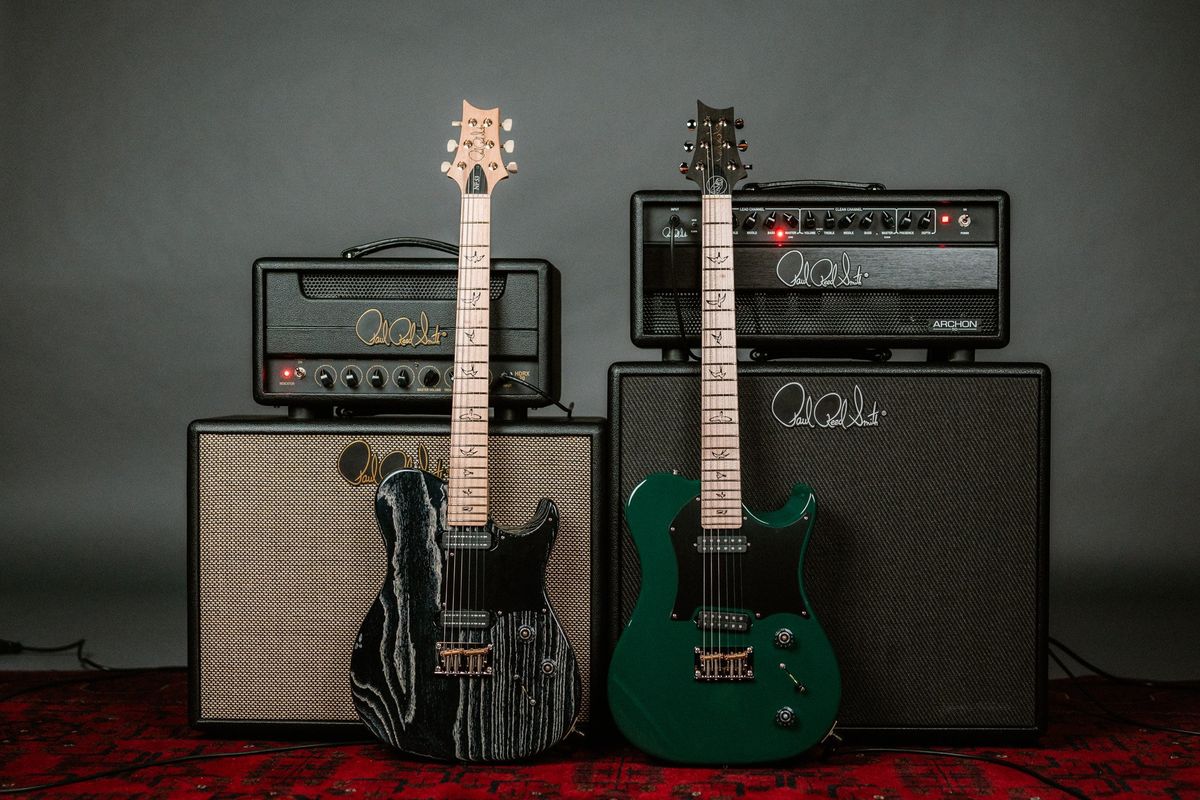

PRS NF 53 (left) & Myles Kennedy Signature (right) guitars
The Maryland outfit throw their hat into the T-style ring.
Myles Kennedy Signature
Introducing Myles Kennedy’s first signature model. Known for his work in Alter Bridge, Slash and the Conspirators, and his own solo recordings, Kennedy is an accomplished guitarist who brings blues and jazz style to rock guitar playing. This new signature model mirrors Kennedy’s rock sensibilities with a nod to historic designs. While the aesthetic may have players hearing chicken pickin’ in their heads – and this guitar can certainly reach twang territory – it is made to play like a rock machine.
“This guitar captures the spirit of my favorite older instruments. With that said, since we developed this guitar, most of my vintage instruments rarely see the light of day,” said Kennedy.
The PRS Myles Kennedy signature guitar features a swamp ash body, a 22-fret, 25.5” scale length maple neck with maple fretboard, and two PRS Narrowfield MK pickups. The PRS Narrowfield MK pickups were carefully voiced to capture the courage of humbuckers and the spank of single coils. PRS Narrowfields provided the perfect starting point for this design, with their ability to deliver thick single-coil sounds without the hum. These pickups are paired with a 5-way blade switch and a push/pull tone control that acts as a preset tone roll- off, bringing down the higher frequencies on the treble pickup so you can dig in to the fullest.
“I watched Myles throughout his career alternate between humbucking and single coil sounds without giving anything up on either side. These pickups took us months to dial in, and I think they capture that balance that Myles mastered beautifully,” said Paul Reed Smith.
Other features include a PRS plate-style steel bridge, vintage-style locking tuners, bone nut, and Kennedy’s “Geometric Owl” logo from his “Ides of March” solo release, representing wisdom and adaptability.
“I feel like we managed to touch on the elusive quality that makes you want to play with this guitar. It beckons you to take it off the wall or out of the case and make music.”
– Myles Kennedy
Myles Kennedy Signature Specifications
- Body Construction: Solidbody
- Body Wood: Swamp Ash
- Top Carve: Flat Top
- Number of Frets: 22
- Scale Length: 25.5”
- Neck Wood: Maple
- Neck Construction: Scarfed
- Truss Rod: PRS Double-Acting
- Neck Shape: Myles Kennedy
- Neck Depth at 1⁄2 Fret: 57/64” [22.62 mm]
- Neck Depth at 12 1⁄2 Fret: 31/32” [24.58 mm]
- Width of Fretboard at the Nut: 1 41/64” [41.67mm]
- Width of Fretboard at the Body: 2 15/64” [56.75 mm]
- Fretboard Wood: Maple
- Fretboard Radius: 10”
- Fretboard Inlay: Birds
- Headstock Logo: Signature, Decal
- Neck-Body Assembly Type: Bolt-On
- Bridge: PRS Plate Style, Steel
- Tuners: Vintage Style, Locking
- Hardware Type: Nickel
- Nut: Bone
- Truss Rod Cover: Myles Kennedy “Geometric Owl” Logo
- Treble Pickup: Narrowfield MK
- Bass Pickup: Narrowfield MK
- Controls: Volume and Push/Pull Tone Control with 5-Way Blade Pickup Switch
- P1 (Switch Down): Treble Humbucker
- P2: Treble Humbucker & Bass Coil Split
- P3: Treble & Bass Humbuckers
- P4: Treble & Bass Coil Split
- P5 (Switch Up): Bass Humbucker
The Myles Kennedy Signature Model | PRS Guitars
NF 53
The PRS NF 53 is a powerful guitar that combines classic tones with modern design. Inspired by one of Paul Reed Smith’s vintage guitars from 1953, the PRS NF 53 combines
a swamp ash body and 22-fret, 25.5” scale length bolt-on maple neck with maple fretboard with a special set of PRS Narrowfield pickups. The PRS Narrowfield DD (Deep Dish) pickups are made with taller bobbins to fit more winds and extra metal pieces in between the magnets for a more focused, powerful tone.
“I am so pleased with the feedback from the artists who have played this guitar – everyone is telling us that we have something special here,” said Paul Reed Smith. “If you are a fan of this style and tone, the NF 53 will take you where you want to go. To me to have this kind of beautiful high end without the hum is game changing.”
Paired with a volume and tone control and 3-way blade pickup switch, the NF 53 allows players to easily dial in their sound. The steel plate-style bridge, PRS vintage style tuners, and nickel hardware all work together to provide precise and reliable tuning stability while promoting sustain and powerful tone.
The PRS NF 53 is available in four stunning finishes: White Doghair, Black Doghair, Blue Matteo, and McCarty Tobacco Sunburst. Whether you are a seasoned player or just starting out, the PRS NF 53 is an addictive guitar you won’t want to put down.
NF 53 Specifications
- Body Construction: Solidbody
- Body Wood: Swamp Ash
- Top Carve: Flat Top
- Number of Frets: 22
- Scale Length: 25.5”
- Neck Wood: Maple
- Neck Construction: Scarfed
- Truss Rod: PRS Double-Acting
- Neck Shape: Pattern 53
- Neck Depth at 1⁄2 Fret: 7/8” [22.22 mm]
- Neck Depth at 12 1⁄2 Fret: 31/32” [24.58 mm]
- Width of Fretboard at the Nut: 1 41/64” [41.67 mm]
- Width of Fretboard at the Body: 2 7/32” [56.337 mm]
- Fretboard Wood: Maple
- Fretboard Radius: 10”
- Fretboard Inlay: Birds
- Headstock Logo: Signature
- Neck-Body Assembly Type: Bolt-On
- Bridge: PRS Plate Style, Steel
- Tuners: PRS Vintage Style
- Hardware Type: Nickel
- Nut: Bone
- Truss Rod Cover: NF 53
- Treble Pickup: Narrowfield DD
- Bass Pickup: Narrowfield DD
- Controls: Volume and Tone Controlswith 3-Way Blade Pickup Switch
Street Price: $2,899
The NF 53 | Demo | PRS Guitars
“I am so pleased with the feedback from the artists who have played this guitar – everyone is telling us that we have something special here. If you are a fa...
EBS BassIQ Blue Label Triple Envelope Filter Pedal
The EBS BassIQ produces sounds ranging from classic auto-wah effects to spaced-out "Funkadelic" and synth-bass sounds. It is for everyone looking for a fun, fat-sounding, and responsive envelope filter that reacts to how you play in a musical way.
Reverend Vernon Reid Totem Series Electric Guitar - Shaman
Silos features six presets, tap tempo, one full second of delay time, and three voices—two of which are styled after bucket-brigade and tape-delay sounds. In the $150 price category, it’s not unusual for a digital delay to leave some number of those functions out. And spending the same money on a true-analog alternative usually means warm, enveloping sounds but limited functionality and delay time. Silos, improbably perhaps, offers a very elegant solution to this can’t-have-it-all dilemma in a U.S.-made effect.
A More Complete Cobbling Together
Silos’ utility is bolstered by a very unintimidating control set, which is streamlined and approachable. Three of those controls are dedicated to the same mix, time, and repeats controls you see on any delay. But saving a preset to one of the six spots on the rotary preset dial is as easy as holding the green/red illuminated button just below the mix and preset knobs. And you certainly won’t get lost in the weeds if you move to the 3-position toggle, which switches between a clear “digital” voice, darker “analog” voice, and a “tape” voice which is darker still.
“The three voices offer discernibly different response to gain devices.”
One might suspect that a tone control for the repeats offers similar functionality as the voice toggle switch. But while it’s true that the most obvious audible differences between digital, BBD, and tape delays are apparent in the relative fidelity and darkness of their echoes, the Silos’ three voices behave differently in ways that are more complex than lighter or duskier tonality. For instance, the digital voice will never exhibit runaway oscillation, even at maximum mix and repeat settings. Instead, repeats fade out after about six seconds (at the fastest time settings) or create sleepy layers of slow-decaying repeats that enhance detail in complex, sprawling, loop-like melodic phrases. The analog voice and tape voice, on the other hand, will happily feed back to psychotic extremes. Both also offer satisfying sensitivity to real-time, on-the-fly adjustments. For example, I was tickled with how I could generate Apocalypse Now helicopter-chop effects and fade them in and out of prominence as if they were approaching or receding in proximity—an effect made easier still if you assign an expression pedal to the mix control. This kind of interactivity is what makes analog machines like the Echoplex, Space Echo, and Memory Man transcend mere delay status, and the sensitivity and just-right resistance make the process of manipulating repeats endlessly engaging.
Doesn't Flinch at Filth
EarthQuaker makes a point of highlighting the Silos’ affinity for dirty and distorted sounds. I did not notice that it behaved light-years better than other delays in this regard. But the three voices most definitely offer discernibly different responses to gain devices. The super-clear first repeat in the digital mode lends clarity and melodic focus, even to hectic, unpredictable, fractured fuzzes. The analog voice, which EQD says is inspired by the tone makeup of a 1980s-vintage, Japan-made KMD bucket brigade echo, handles fuzz forgivingly inasmuch as its repeats fade warmly and evenly, but the strong midrange also keeps many overtones present as the echoes fade. The tape voice, which uses aMaestro Echoplex as its sonic inspiration, is distinctly dirtier and creates more nebulous undercurrents in the repeats. If you want to retain clarity in more melodic settings, it will create a warm glow around repeats at conservative levels. Push it, and it will summon thick, sometimes droning haze that makes a great backdrop for slower, simpler, and hooky psychedelic riffs.
In clean applications, this decay and tone profile lend the tape setting a spooky, foggy aura that suggests the cold vastness of outer space. The analog voice often displays an authentic BBD clickiness in clean repeats that’s sweet for underscoring rhythmic patterns, while the digital voice’s pronounced regularity adds a clockwork quality that supports more up-tempo, driving, electronic rhythms.
The Verdict
Silos’ combination of features seems like a very obvious and appealing one. But bringing it all together at just less than 150 bucks represents a smart, adept threading of the cost/feature needle.
