A smart, potent boost that’s much more than meets the eye.
A well-built and truly great-sounding boost/line-driver pedal boasting a handful of clever bonus functions.
Some buyers might find it a little pricey.
$199

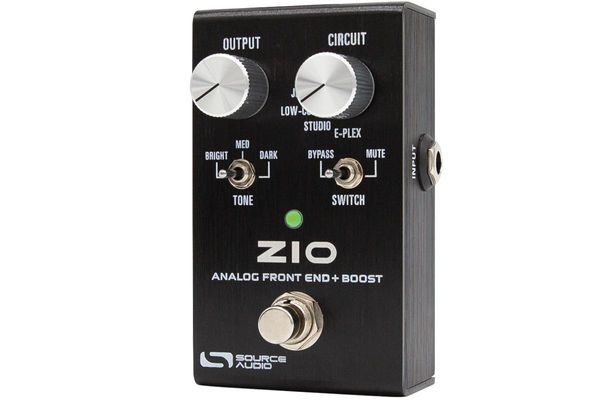

Source Audio ZIO
sourceaudio.net
Source Audio nicknamed the new ZIO pedal “the Better Box,” which is a fair summation of what this thing will do for your tone. Purists may rant endlessly about the virtues of plugging straight into an amp. But many legendary players understood that a little extra “hot” between guitar and amp can add up to magic. From Jimmy Page’s Echoplex preamp to Brian May’s Rangemaster to Angus Young’s Schaffer-Vega wireless system, a lot of signature sounds have been shaped with a little extra kick—and often from unexpected sources that are something other than simple boosts. Source Audio’s first all-analog pedal is more than a conventional booster, too. And, to some degree, it celebrates these alternate paths to boosting tone.
Designed in collaboration with Christopher Ventner of SHOE Pedals, ZIO is short for Impedance (“Z” in electro-speak), Input, and Output, which hints at the front-to-back thinking behind the design. The pedal’s input impedance is calculated to optimize the signal from a traditional high-impedance guitar pickup and send it down the line as a sweetened low-impedance version of itself. In doing so, ZIO helps your signal survive long chains of pedals and cable runs. Four selectable modes each offer up to +20 dB of gain and three levels of cable-mimicking capacitance to subtly brighten or darken your tone as desired.
- 0:00 – ZIO pedal off.
- 0:08 – ZIO on, JFET setting.
- 0:44 – Change to Sudio setting.
- 1:04 – Change to E-Plex setting.
- 1:24 – Pedal off again.
Got Some Front
Though its methods for tone shaping might seem slightly esoteric on the surface, ZIO is easy to use. The knobs are a single control for output level and a 4-position rotary switch, dubbed circuit, which selects the preamp voicing. The JFET mode uses Burr-Brown op amps to generate a transparent, low-distortion boost, mimicking the response of a clean tube amp input. Low-cut mode reduces frequencies that can cause mud and rumble, lending more presence. Studio mode successfully replicates the effect of using a Pultec compressor to cut muddy lower-mids and enhance presence. The E-Plex mode, meanwhile, replicates the rich, clear, and just slightly colored sound of a vintage Echoplex preamp.
Source Audio is mindful of the fact that a long cable’s capacitance is an essential part of some players’ overall sonic brew, and that a booster/line-driver in front of the chain can negate the capacitance effect. So ZIO includes a tone toggle that offers three levels of cable-capacitance emulation. Bright represents a low-capacitance load and the brightest tone—as you might hear from a very short, high-quality cable. Med approximates a 15-foot cable and softens highs just a bit. Dark achieves the mellowing effect of longer or coiled cables.
A 2-position mini-toggle to the right is specifically tailored for players that will keep ZIO on at all times and allows the user to configure the footswitch as a mute function in place of the traditional off setting. That means one of the two outputs on the left side of the pedal can feed a tuner running independent of the signal chain or deliver a line-level signal to any amp, console, interface, or input that you want to keep live while muting the main output. Nine-volt DC power feeds the ZIO, with a center-negative input on the crown. It’s all housed in a rugged brushed-aluminum enclosure that’s not quite mini-pedal small but compact at 4" x 2.3" x 2.2" tall (including the knobs).
I fast fell I love with ZIO’s variety of boost tones and easy integration into my pedalboard.
All Lined Up
I fast fell in love with ZIO’s variety of boost tones and easy integration into my pedalboard. It flat-out sounds fantastic. Some players will no doubt consider ZIO pricey for a booster pedal with a few extra bells and whistles. But the enhanced tones will be well worth it for many guitarists, even if they only ever use one circuit mode.
That said, switching between the circuits is half the fun. And at times I fantasized about a rig based on two ZIO pedals: One that I could use as a transparent always-on line driver and tone juicer, and another as a proper boost. Used in the latter application, ZIO made my tweed-style combo bite and break up a lot more readily. It was also secret sauce for a Friedman Mini Dirty Shirley, making its Plexi-style crunch and lead tones extra delectable. While all four preamp-emulating modes proved effective—and I could certainly find many useful applications for each—I really fell for the Pultec-inspired studio mode. It’s sweet, juicy, clear, and articulate, and it simply makes everything more luscious. It can also offer a playful dose of extra drive when you crank the output past 11 o’clock. It sounds fantastic as an amp-input driver in this setting. The tone switch settings are pretty subtle, but that’s the idea: You use it to fine tune the feel and character of the signal once you’ve dialed in the other functions to near-perfection.
The Verdict
Boosts are often one-trick ponies. But Source Audio and Christopher Ventner’s sly and very smart selection of features make ZIO a whale of a tone enhancing machine—and a sneakily versatile one at that. Yes, the ZIO is a simple device in principle, but it does what it does exceptionally well. And while many players will regard the tone switch and switch modes as minor bonus features, I suspect they will prove invaluable to many exacting tone crafters and super-functional in some rigs. For me, at least, they help make ZIO one of the tastiest boost pedals I’ve tried in quite some time.
- One Boost Pedal to Rule Them All? - Premier Guitar ›
- Source Audio - Premier Guitar ›
- Source Audio C4 Synth Review - Premier Guitar ›
Another day, another pedal! Enter Stompboxtober Day 7 for your chance to win today’s pedal from Effects Bakery!
Effects Bakery MECHA-PAN BAKERY Series MECHA-BAGEL OVERDRIVE
Konnichiwa, guitar lovers! 🎸✨
Are you ready to add some sweetness to your pedalboard? Let’s dive into the adorable world of the Effects Bakery Mecha-Pan Overdrive, part of the super kawaii Mecha-Pan Bakery Series!
🍩 Sweet Treats for Your Ears! 🍩
The Mecha-Pan Overdrive is like a delicious bagel for your guitar tone, but it’s been upgraded to a new level of cuteness and functionality!
Effects Bakery has taken their popular Bagel OverDrive and given it a magical makeover. Imagine your favorite overdrive sound but with more elegance and warmth – it’s like hugging a fluffy cat while playing your guitar!
Is this the most affordable (and powerful) modeler around?
Very affordable way to get into digital modeling. Excellent crunch and high-gain tones.
Navigating many modes through limited controls means a bit of a learning curve for a pedal this small.
$179
IK Multimedia Tonex One
ikmultimedia.com
Resistance to digital amps might just be futile at this point. Many tunes you hear—and an increasing number of live gigs—feature a bit of faux-tube tone somewhere in the mix. But while the sound of pro-level modelers can be nearly indistinguishable from their analog counterparts in a mix, the feel and simplicity of a real amplifiers remain appealing and even indispensable to many players. That said, modelers that make usability, convenience, and price priorities can convince even die-hard tube users to see what’s on the other side of the fence. IK Multimedia’s TONEX ONE is one modeling device that might make the cut. It’s likely the smallest, most portable modeler out there. And at $179, it’s easily the most affordable.
Big Tones, Tiny Controls
The TONEX ONE isn’t designed to put a million different options at your feet, and that economy may be the unit’s strongest feature. It features several different modes, but the primary operating mode allows you to either switch between two different models, or simply use the unit as a stompbox. Each model can be an amp, an amp and cab, a pedal, or a pedal driving an amp and cab. Judging by how deep the online repository tone.net is for user-created presets, the options are nearly endless, which speaks to the already sizable user base. It’s a little strange to consider a modeler in a package this small with so few controls. There’s a large main knob that controls volume and gain (when you’re in ALT mode), and above that are three illuminated mini knobs that control the 3-band EQ, gate, compression, and reverb. You can also plug your headphones directly into the pedal, which makes it a dynamite silent practice amp.
My experience with modelers is that high-gain tones and clean tones are relatively easy to achieve and typically very good. After unboxing the TONEX ONE, I loaded up a slightly dirty Vox-style amp to evaluate the edge-of-breakup tones. I paired the pedal with humbuckers (with a coil split option), Stratocaster single coils, and P-90s in a T-style solidbody. With each one, the Vox-style amp was punchy and clear but could also range to very nice higher-gain sounds. Naturally, each version of a modeled amp offers different gain structures, so it pays to experiment. Combining the humbuckers in a PRS SE DGT with a few hot-rodded Marshall emulations and the growl offered tones nearly as good as those from much more expensive modelers. In a blind test, I’m not sure I could hear—or feel—much of a difference. As I explored further and fine-tuned things a bit more, the ToneX One felt more alive in my hand,s and sounded much less shrill in the top end than other digital solutions I’ve encountered.
One of the most obvious tone fixers in a modeler—and maybe one of the most underutilized—is the EQ section, and kudos are due to IK for placing those controls at the fore. Being able to adjust the most immediate tone-shaping options without having to dig through menus or touchscreens is a pleasure.
There are many possible uses for the TONEX ONE. It can serve as a high-quality direct solution on your pedalboard, a portable recording interface, and a plug-and-play practice solution when high volume is a no-go. One handy setup I tried was disabling the cabinet emulation in the pedal and then plugging into the effects return of a combo amp, in this case, a Fender Hot Rod Deluxe. I immediately imagined many backline amp headaches being a thing of the past. You can always plug directly into a flat-response cabinet or PA system too.
Because it has such a small footprint and streamlined controls, harnessing the unit’s full potential, and accessing all the different modes, takes a bit of effort. You can store 20 different presets within the pedal and assign them to any of the three active slots (two for dual mode and one for stomp mode). And although doing this on the fly is handy, I found it much easier to program the presets via the easy-to-use desktop editor.
The Verdict
TONEX ONE benefits from a rather singular focus and its biggest advantage is that it’s not shrouded in unnecessary layers of tweakable options. You can simply load up a base sound or two, drop it at the end of your pedalboard, and go.The included software allows you create your own models and makes swapping presets easy. I did find the multitude of modes, and their color-coded indicators, a bit confusing at times, but IK’s documentation was very clear and got me through any trouble spots. The TONEX ONE would serve well to those who want to explore digital modeling but still hold on to their analog pedalboards, and at $179 it’s a steal.
Beauty and sweet sonority elevate a simple-to-use, streamlined acoustic and vocal amplifier.
An EQ curve that trades accuracy for warmth. Easy-to-learn, simple-to-use controls. It’s pretty!
Still exhibits some classic acoustic-amplification problems, like brash, unforgiving midrange if you’re not careful.
$1,199
Taylor Circa 74
taylorguitars.com
Save for a few notable (usually expensive) exceptions, acoustic amplifiers are rarely beautiful in a way that matches the intrinsic loveliness of an acoustic flattop. I’ve certainly seen companies try—usually by using brown-colored vinyl to convey … earthiness? Don’t get me wrong, a lot of these amps sound great and even look okay. But the bar for aesthetics, in my admittedly snotty opinion, remains rather low. So, my hat’s off to Taylor for clearing that bar so decisively and with such style. The Circa 74 is, indeed, a pretty piece of work that’s forgiving to work with, ease to use, streamlined, and sharp.
Boxing Beyond Utility
Any discussion of trees or wood with Bob Taylor is a gas, and highly instructive. He loves the stuff and has dabbled before in amplifier designs that made wood an integral feature, rather than just trim. But the Circa 74 is more than just an aesthetic exercise. Because the Taylor gang started to think in a relatively unorthodox way about acoustic sound amplification—eschewing the notion that flat frequency response is the only path to attractive acoustic tone.
I completely get this. I kind of hate flat-response speakers. I hate nice monitors. We used to have a joke at a studio I frequented about a pair of monitors that often made us feel angry and agitated. Except that they really did. Flat sound can be flat-out exhausting and lame. What brings me happiness is listening to Lee “Scratch” Perry—loud—on a lazy Sunday on my secondhand ’70s Klipsch speakers. One kind of listening is like staring at a sun-dappled summer garden gone to riot with flowers. The other sometimes feels like a stale cheese sandwich delivered by robot.
The idea that live acoustic music—and all its best, earthy nuances—can be successfully communicated via a system that imparts its own color is naturally at odds with acoustic culture’s ethos of organic-ness, authenticity, and directness. But where does purity end and begin in an amplified acoustic signal? An undersaddle pickup isn’t made of wood. A PA with flat-response speakers didn’t grow in a forest. So why not build an amp with color—the kind of color that makes listening to music a pleasure and not a chore?
To some extent, that question became the design brief that drove the evolution of the Circa 74. Not coincidentally, the Circa 74 feels as effortless to use as a familiar old hi-fi. It has none of the little buttons for phase correction that make me anxious every time I see one. There’s two channels: one with an XLR/1/4" combo input, which serves as the vocal channel if you are a singer; another with a 1/4" input for your instrument. Each channel consists of just five controls—level, bass, middle, and treble EQ, and a reverb. An 11th chickenhead knob just beneath the jewel lamp governs the master output. That’s it, if you don’t include the Bluetooth pairing button and 1/8" jacks for auxiliary sound sources and headphones. Power, by the way, is rated at 150 watts. That pours forth through a 10" speaker.Pretty in Practice
I don’t want to get carried away with the experiential and aesthetic aspects of the Circa 74. It’s an amplifier with a job to do, after all. But I had fun setting it up—finding a visually harmonious place among a few old black-panel Fender amps and tweed cabinets, where it looked very much at home, and in many respects equally timeless.
Plugging in a vocal mic and getting a balance with my guitar happened in what felt like 60 seconds. Better still, the sound that came from the Circa 74, including an exceedingly croaky, flu-addled human voice, sounded natural and un-abrasive. The Circa 74 isn’t beyond needing an assist. Getting the most accurate picture of a J-45 with a dual-source pickup meant using both the treble and midrange in the lower third of their range. Anything brighter sounded brash. A darker, all-mahogany 00, however, preferred a scooped EQ profile with the treble well into the middle of its range. You still have to do the work of overcoming classic amplification problems like extra-present high mids and boxiness. But the fixes come fast, easily, and intuitively. The sound may not suggest listening to an audiophile copy of Abbey Road, as some discussions of the amp would lead you to expect. But there is a cohesiveness, particularly in the low midrange, that does give it the feel of something mixed, even produced, but still quite organic.
The Verdict
Taylor got one thing right: The aesthetic appeal of the Circa 74 has a way of compelling you to play and sing. Well, actually, they got a bunch of things right. The EQ is responsive and makes it easy to achieve a warm representation of your acoustic, no matter what its tone signature. It’s also genuinely attractive. It’s not perfectly accurate. Instead, it’s rich in low-mid resonance and responsive to treble-frequency tweaks—lending a glow not a million miles away from a soothing home stereo. I think that approach to acoustic amplification is as valid as the quest for transparency. I’m excited to see how that thinking evolves, and how Taylor responds to their discoveries.
The evolution of Electro-Harmonix’s very first effect yields a powerful boost and equalization machine at a rock-bottom price.
A handy and versatile preamp/booster that goes well beyond the average basic booster’s range. Powerful EQ section.
Can sound a little harsh at more extreme EQ ranges.
$129
Electro-Harmonix LPB-3
ehx.com
Descended from the first Electro-Harmonix pedal ever released, the LPB-1 Linear Power Booster, the new LPB-3 has come a long way from the simple, one-knob unit in a folded-metal enclosure that plugged straight into your amplifier. Now living in Electro-Harmonix’s compact Nano chassis, the LPB-3 Linear Power Booster and EQ boasts six control knobs, two switches, and more gain than ever before.
If 3 Were 6
With six times the controls found on the 1 and 2 versions (if you discount the original’s on/off slider switch,) the LPB-3’s control complement offers pre-gain, boost, mid freq, bass, treble, and mid knobs, with a center detent on the latter three so you can find the midpoint easily. A mini-toggle labeled “max” selects between 20 dB and 33 dB of maximum gain, and another labeled “Q” flips the resonance of the mid EQ between high and low. Obviously, this represents a significant expansion of the LPB’s capabilities.
More than just a booster with a passive tone, the LPB-3 boasts a genuine active EQ stage plus parametric midrange section, comprising the two knobs with shaded legends, mid freq and mid level. The gain stages have also been reimagined to include a pre-gain stage before the EQ, which enables up to 20 dB of input gain. The boost stage that follows the EQ is essentially a level control with gain to allow for up to 33 dB of gain through the LPB-3 when the “max” mini toggle is set to 33dB
A slider switch accessible inside the pedal selects between buffered or true bypass for the hard-latch footswitch. An AC adapter is included, which supplies 200mA of DC at 9.6 volts to the center-negative power input, and EHX specifies that nothing supplying less than 120mA or more than 12 volts should be used. There’s no space for an internal battery.
Power-Boosted
The LPB-3 reveals boatloads of range that betters many linear boosts on the market. There’s lots of tone-shaping power here. Uncolored boost is available when you want it, and the preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.
“The preamp gain knob colors and fattens your signal as you crank it up—even before you tap into the massive flexibility in the EQ stage.”
I found the two mid controls work best when used judiciously, and my guitars and amps preferred subtle changes pretty close to the midpoint on each. However, there are still tremendous variations in your mid boost (or scoop, for that matter) within just 15 or 20 percent range in either direction from the center detent. Pushing the boost and pre-gain too far, particularly with the 33 dB setting engaged, can lead to some harsh sounds, but they are easy to avoid and might even be desirable for some users that like to work at more creative extremes.
The Verdict
The new LPB-3 has much, much more range than its predecessors, providing flexible preamp, boost, and overdrive sounds that can be reshaped in significant ways via the powerful EQ. It gives precise tone-tuning flexibility to sticklers that like to match a guitar and amp to a song in a very precise way, but also opens up more radical paths for experimentalists. That it does all this at a $129 price is beyond reasonable.
