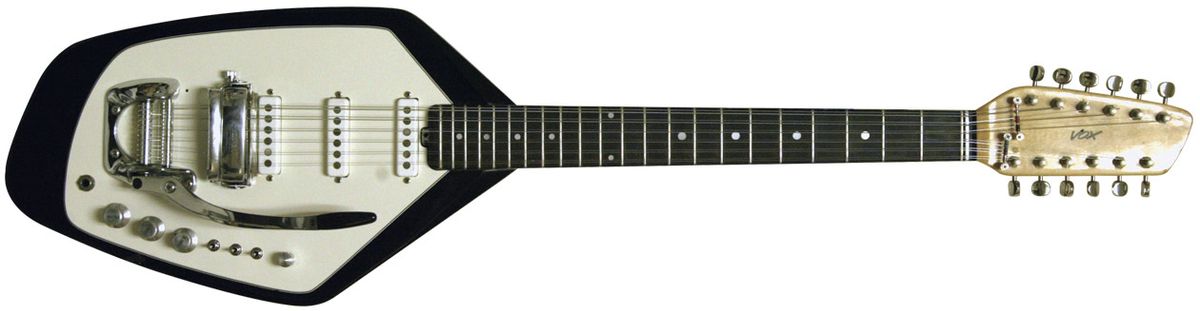

Hometown: Las Vegas, NevadaGuitar: Vox Phantom XII
I purchased this Vox used in the ’60s and it’s been with me since. In the early ’70s, I removed the rotary selector switch, and put in individual pickup switches. I wanted the switches to be on/off/out-of-phase, but at the time, DPDTCO switches were too wide to fit between the volume and tone controls, so I settled for on/off miniature switches.
Flash-forward to the 2000s. At one point, the guitar was in a storage locker without climate control. The body expanded, and broke the pickguard. Interesting enough, the guitar was still very playable. Now that I’m retired, I have more time to work on my music, which this guitar is featured prominently on. I’m in the process of doing a music video, so I had to get the guitar ready for its close-up.
Chandler had a template for Vox Phantom pickguards, and recommended no screw holes be drilled. I could drill my own or use double-sided tape to keep the edges against the body. This was an excellent suggestion. I opted to go the tape route for a clean look. Apparently, all Italian-made Phantoms were handmade because the template Chandler had didn’t match my guitar exactly. I had to move some holes, and slightly enlarge pickup openings.
I also modded the string retainers, using the anchor beads from an old set of strings as rollers. Luckily, the beads fit perfectly over the shank of a 5/64" drill bit with about two or three thousandths of an inch clearance. The stock pickups give me the sound I desire, however, I updated the switching. From the jack, there is volume, treble, bass, three pickup switches, and an out-of-phase blend control. Each pickup can be blended from out-of-phase to in-phase.
This has quickly become one of my favorite guitars. It’s now the easiest 12-string I’ve ever played, and at one time I did try a Rickenbacker. My refurbished Vox Phantom XII is a keeper!
Send your guitar story to submissions@premierguitar.com.
Diamond Pedals Dark Cloud
True to the Diamond design ethos of our dBBD’s hybrid analog architecture, Dark Cloud unlocks a new frontier in delay technology which was once deemed unobtainable by standard BBD circuit.
Powered by an embedded system, the Dark Cloud seamlessly blends input and output signals, crafting Tape, Harmonic, and Reverse delays with the organic warmth of analog companding and the meticulous precision of digital control.
Where analog warmth meets digital precision, the Dark Cloud redefines delay effects to create a pedal like no other
“I‘m so excited about this new venture with the Jackson family. This is a historic collaboration - as I am the first female in the history of Jackson with a signature guitar and the first female African American signature Jackson artist. I feel so honored to have now joined such an elite group of players that are a part of this club. Many who have inspired me along this journey to get here. It’s truly humbling.” says Diamond.
Diamond Rowe is the co-founder and lead guitarist for the metal/hard rock band Tetrarch. Since co-founding the band in high school, Tetrarch has become one of the most talked about up-and-coming bands in the world - with several press outlets such as Metal Hammer, Kerrang, Revolver, Guitar World and many others boldly naming Diamond Rowe the world’s next guitar hero. Tetrarch has connected with many fans while performing on some of the world's biggest stages garnering spots alongside several of the heavy music world’s biggest names such as Guns N’ Roses, Slipknot, Lamb of God, Disturbed, Avenged Sevenfold, Sevendust, Rob Zombie, Trivium, and many many others. The Jackson Pro Series Signature Diamond Rowe DR12MG EVTN6 is based on Jackson’s single-cut Monarkh platform and is a premium guitar designed for progressive metal players seeking precision and accuracy.
Crafted in partnership with Diamond, this model boasts a 25.5 “ scale, Monarkh-styled nyatoh body draped with a gorgeous poplar burl top, three-piece nyatoh set-neck with graphite reinforcement, and 12˝ radius bound ebony fingerboard with 24 jumbo frets. The black chrome-covered active EMG® 81/85 humbucking bridge and neck pickups, three-way toggle switch, single volume control, and tone control provide a range of tonal options. The Evertune® bridge ensures excellent tuning stability, while the Dark Rose finish with a new custom 3+3 color-matched Jackson headstock and black hardware looks simply stunning.
To showcase the Pro Plus Signature Diamond Rowe DR12MG EVTN6, Diamond shares her journey as a guitarist, delving into the inspiration behind her unique design specifications and the influential artists who shaped her sound within a captivating demo video. This video prominently features powerful performances of Tetrarch’s latest release, “Live Not Fantasize,” and “I’m Not Right” showcasing the DR12MG EVTN6’s unparalleled tonal versatility and performance capabilities.
MSRP $1699.99
For more information, please visit jacksonguitars.com.
Tetrarch's Diamond Rowe Unveils Her New Signature Pro Series DR12MG EVTN6 | Jackson Guitars - YouTube
Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.Jackson Pro Series Signature Diamond Rowe Electric Guitar - Dark Rose
Cory Wong—a funky player with his own signature-model Strat wiring.
Guitarist, songwriter, and producer Cory Wong is renowned for his solo work, his band Fearless Flyers (with Mark Lettieri, Joe Dart, and Nate Smith), and collaborations with artists such as Vulfpeck, Jon Batiste, and Dave Koz. His playing style is deeply rooted in funk rhythm guitar, with a heavy dose of rock and jazz. Well-known for playing a Stratocaster, his signature model was released in 2021, and it’s a unique offering. If you want to build your personal Cory Wong Strat, here is your shopping list, starting with the primary structure:
• Alder body, scaled down to slightly smaller than a regular Stratocaster, with Fender American Ultra body contours
• Maple neck with a rosewood fretboard with rolled edges, modern Fender American Ultra D neck profile, slightly larger headstock, 25.5" scale, 10" to 14" compound radius, 22 medium jumbo frets
• Locking tuners with all short posts, a bone nut, and two roller string trees
• Vintage-style 6-screw synchronized tremolo
• Hair tie around the tremolo springs (which mutes them to enhance the rhythm tone)
• .010–.046 strings (nickel-plated steel)
“While these are all interesting features, resulting in a very comfortable guitar, you don’t need to copy every detail to transform one of your Stratocasters into a Cory Wong-style Strat.”
For the physical build, as you can see, Wong and Fender created a real signature instrument to his specs and wishes. While these are all interesting features, resulting in a very comfortable guitar, you don’t need to copy every detail to transform one of your Stratocasters into a Cory Wong-style Strat. My personal favorite of these is the hair tie for muting the tremolo springs. A lot of my funk-playing customers are doing similar things on their Strats to get a dry sound, and they’re using all kinds of funny things in there, like foam, rubber bands, and pieces of cotton, as well as hair ties.
Now, let’s have a look at the electronics:
• Seymour Duncan Cory Wong Clean Machine SSS pickup set
• Standard 5-way pickup-selector switch with classic Strat switching matrix
• 250k master volume pot with a 90/10 audio taper and Fender treble-bleed circuit PCB
• 250k tone pot with a 90/10 audio taper and Fender Greasebucket tone control PCB for only the neck pickup
• 250k audio push-push tone pot with Fender Greasebucket tone control PCB for only the bridge pickup; the push-push switch overrides the 5-way switch and defaults to middle + neck pickup (in parallel) as a preset
• Middle pickup is without tone control
Let’s break this down piece-by-piece to decode it:
Pickups
The pickup set is a custom SSS set from the Seymour Duncan company with the following specs:
• Overwound hum-canceling stacked bridge pickup with a 3-conductor wire and shield in permanent hum-canceling mode (red wire taped off), bevelled alnico 5 magnets, approximately 14.5k-ohm DCR
• Overwound middle single-coil, RWRP, beveled alnico 4 magnets, approximately 7.1k-ohm DCR
• Overwound neck single-coil, bevelled alnico 4 magnets, approx. 7.0k-ohm DCR
The pickups are voiced for clear highs, which perfectly suits Wong’s funky playing style and tone. While a lot of pickup companies will have pickups in that ballpark, it will be difficult to put together a full set that really works as intended. The Duncans in the Cory Wong Strat are available as a balanced set, so if you want to get as close as possible, I think this is your best bet.
5-Way Pickup Selector Switch
Nothing special here, just the standard 5-way switch with two switching stages that is wired like a classic Stratocaster:
bridge
bridge + middle in parallel
middle
middle + neck in parallel
neck
The upper tone pot is assigned to the neck pickup, while the lower tone pot is connected to the bridge pickup, leaving the middle pickup without tone control.
Master volume pot and treble-bleed circuit.
The 250k master volume pot is a standard CTS pot with a 90/10 audio taper found in all U.S.-made Fender guitars. The volume pot has the treble-bleed circuit from the Fender American Pro series, but uses a ready-to-solder PCB from Fender instead of individual electronic parts. The PCB is available from Fender individually (part #7711092000), but I have some thoughts about it. While using a PCB makes a lot of sense for mass production, it has some downsides for us mortal human beings:
• Soldering on PCBs requires some training and also special soldering tools.
• The PCB is quite expensive, while the individual electronic parts are only a few cents.
• The PCB uses ultra-tiny surface-mount parts, so it’s very difficult to repair or mod it to your personal taste.
I don’t think we need a PCB for adding a treble-bleed circuit, so let’s do this project using conventional electronic parts. The treble-bleed PCB contains a 1200 pF capacitor with a 150k-ohm resistor in parallel, plus another 20k-ohm resistor in series. Using individual parts, it looks like this:
Courtesy of single-coil.com
In general, a treble-bleed circuit will help you to combat the “volume vs. tone problem” when using passive single-coil pickups. When you turn down the volume (even just a bit), the high end or treble loss is not proportionate. In other words, a small cut in volume creates a far greater loss in your guitar’s treble response. Using a treble-bleed circuit is an easy way to get rid of this problem, as long as it is calculated carefully.
ONLINE ONLY: If you want to find out more about treble bleed circuits please have a look here: https://www.premierguitar.com/diy/mod-garage/treble-bleed-mod
Next month, we will continue with part two of the Cory Wong Stratocaster wiring, bringing it all together, so stay tuned!
Until then ... keep on modding!
