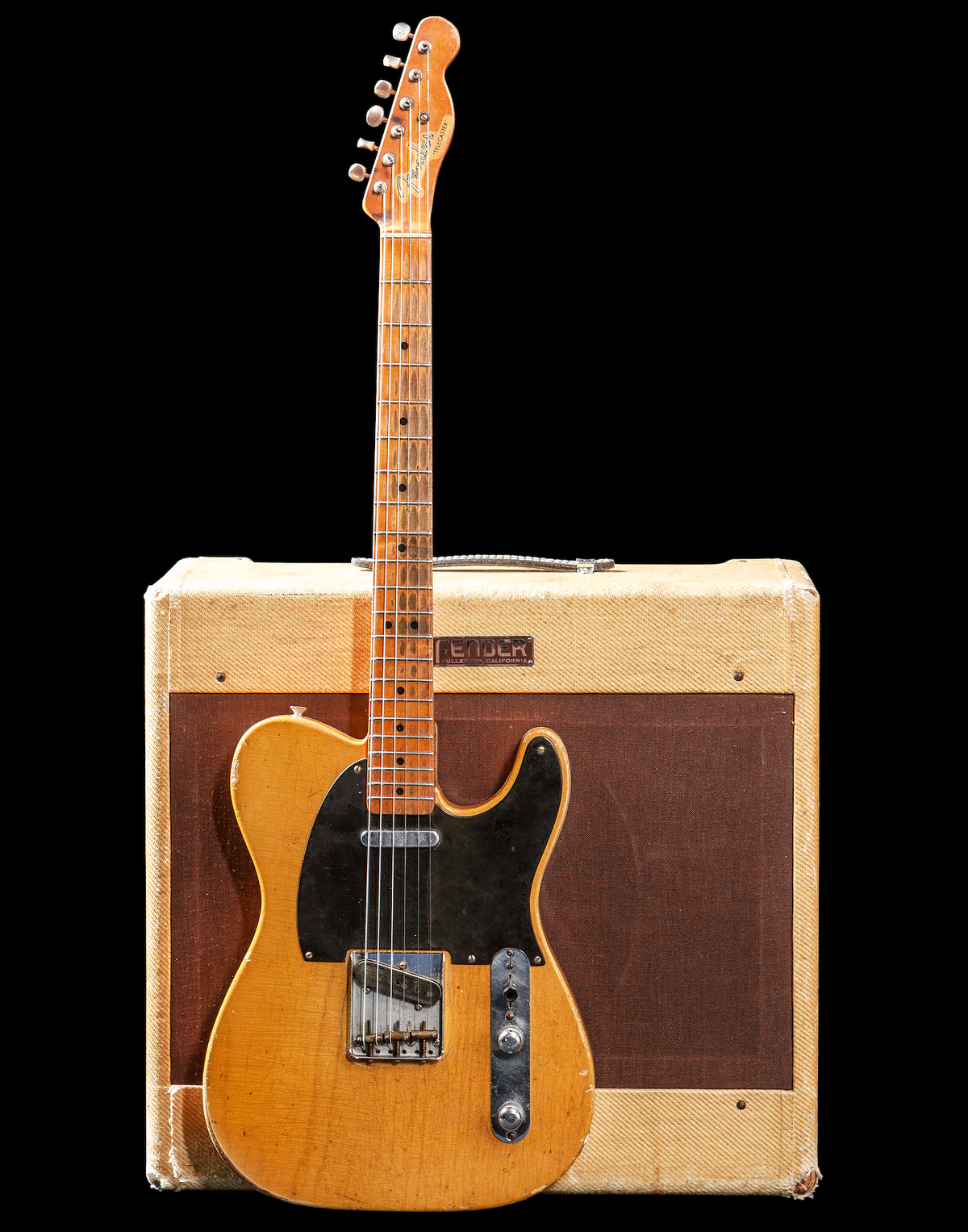

Classic to-the-bone Fender: a 1952 blackguard Tele and a ’53 Pro amp.
Leo Fender’s efforts to create a professional solidbody guitar began in the late 1940s and resulted in the one-pickup Esquire and the two-pickup Broadcaster in 1950. By the end of 1951, the two-pickup guitar was renamed the Telecaster, due to a name conflict with Gretsch’s Broadkaster drum set. As we all know, today the Telecaster continues to be a versatile tool for amateur and professional musicians.
The Telecaster featured in this article almost didn’t survive 2022. Earlier this year, two brothers with a house-flipping business were clearing a home of debris and getting it ready to renovate. One of the brothers was about to toss a dirty wooden object he had found in a closet into the dumpster. The other brother realized it was an electric guitar. Fortunately, he decided it would be a good idea to have the caseless, dirty, beat-up instrument appraised. By doing this, he saved an original 1952 Fender Telecaster from being destroyed!
The cleaned and detailed headstock of this guitar boasts Kluson tuners and a round string tree.
That 1952 Telecaster has TG-6-6-52 penciled on the end of its neck, indicating employee Tadeo Gomez completed it in June of 1952. The date penciled in the neck pocket area of the body is 6-3-52. The guitar has the classic characteristics of a 1952 Tele, including a transparent butterscotch blonde finish over an ash body, a single-ply black phenolite (also known as Bakelite) pickguard—making it a so-called blackguard Tele, a bridge pickup with level pole pieces (Fender moved to staggered pole pieces during 1955), and a 3-way switch.
The current value for one in excellent all-original condition is $40,000.
At the time this guitar was built, Fender’s wiring scheme activated the bridge pickup in the number 1 position, the neck pickup in number 2, and with the selector all the way up in position 3, the signal runs through a capacitor that adds bass. Remember, back in those days a single guitarist often played bass lines as well as chords, melodies, and solos in many bands. The P bass was introduced only a year before this guitar was made and was a new instrument still trying to find its place in the music world.
This instrument has a through-body bridge, three adjustable bridge pieces, and a pickup that looks like a relic, but sounds like a dream.
The 1-piece maple neck has narrow-spaced position markers at the 12th fret (the dot spacing became wider between 1953 and 1963), a round string tree (which went rectangular in 1956), and Kluson “no brand” tuners. The tuners were stamped with “Kluson Deluxe” in a single line by 1957. The 1952 list price was $189.50. The current value for one in excellent all-original condition is $40,000.
It’s unclear who the “Davis” is that signed this neck pocket in 1952. Famed Fender employee Charlie Davis didn’t start at the Fullerton plant until 1957.
The amp supporting the Tele is a wide-panel Fender Pro from 1953. It’s equipped with a Jensen P15N 15" speaker, dated to the 20th week of 1953, and powered by two 6L6 tubes capable of about 18 to 25 watts of power. Two inputs are controlled by a mic volume knob, and two inputs are controlled by an instrument volume knob. In addition to the on/off switch, this amp is equipped with a standby. The 1953 list price was $199.50. The current value for the amp is $3,500.
Sources for this article include The Blackguard by Nacho Baños, The Pinecaster by Nacho Baños and Lynn Wheelwright, The Fender Telecaster by A.R. Duchossoir, and Fender Amps: The First Fifty Years by John Teagle and John Sprung.
Grammy-nominated session guitarist, producer, mixer, and engineer Paul Moak stays busy on multiple fronts. Over the years he’s written, played, produced and more for TV sessions (Pretty Little Liars, One Tree Hill) and artists including Third Day, Leeland, and the Blind Boys of Alabama. But most recently he’s worked with Heart and Ann Wilson and Tripsitter.
Time Traveler
Moak is most loyal to a 1963 Stratocaster body that’s mated to a 1980s-vintage, 3-bolt, maple, bullet-truss-rod, 1969-style Fender Japan neck. The bridge has been swapped as many as four times and the bridge and neck pickups are Lindy Fralins.
Cool Cat
If there’s one guitar Moak would grab in a fire, it’s the Jaguar he’s had since age 20 and used in his band DC Talk. When Moak bought the guitar at Music Go Round in Minneapolis, the olympic white finish was almost perfect. He remains impressed with the breadth of tones. He likes the low-output single-coils for use with more expansive reverb effects.
Mystery Message Les Paul
Moak’s 1970 L.P. Custom has a number of 1969 parts. It was traded to Moak by the band Feel. Interestingly, the back is carved with the words “cheat” and “liar,” telling a tale we can only speculate about.
Dad Rocker
Almost equally near and dear to Moak’s heart is this 1968 Vox Folk Twelve that belonged to his father. It has the original magnetic pickup at the neck as well as a piezo installed by Moak.
Flexi Plexis
This rare and precious trio of plexis can be routed in mix-and-match fashion to any of Moak’s extensive selection of cabs—all of which are miked and ready to roll.
Vintage Voices
Moak’s amps skew British, but ’60s Fender tone is here in plentitude courtesy of a blonde-and-oxblood Bassman and 1965 Bandmaster as well as a 2x6L6 Slivertone 1484 Twin Twelve.
Guess What?
The H-Zog, which is the second version of Canadian amp builder Garnet’s Herzog tube-driven overdrive, can work as an overdrive or an amp head, but it’s probably most famous for Randy Bachman’s fuzzy-as-heck “American Woman” tone.
Stomp Staff
While the Eventide H90 that helps anchor Moak’s pedalboard can handle the job of many pedals, he may have more amp heads on hand than stompboxes. But essentials include a JHS Pulp ‘N’ Peel compressor/preamp, a DigiTech Whammy II, DigiTech FreqOut natural feedback generator, a Pete Cornish SS-3 drive, Klon Centaur, and Electro-Harmonix Deluxe Memory Man.
