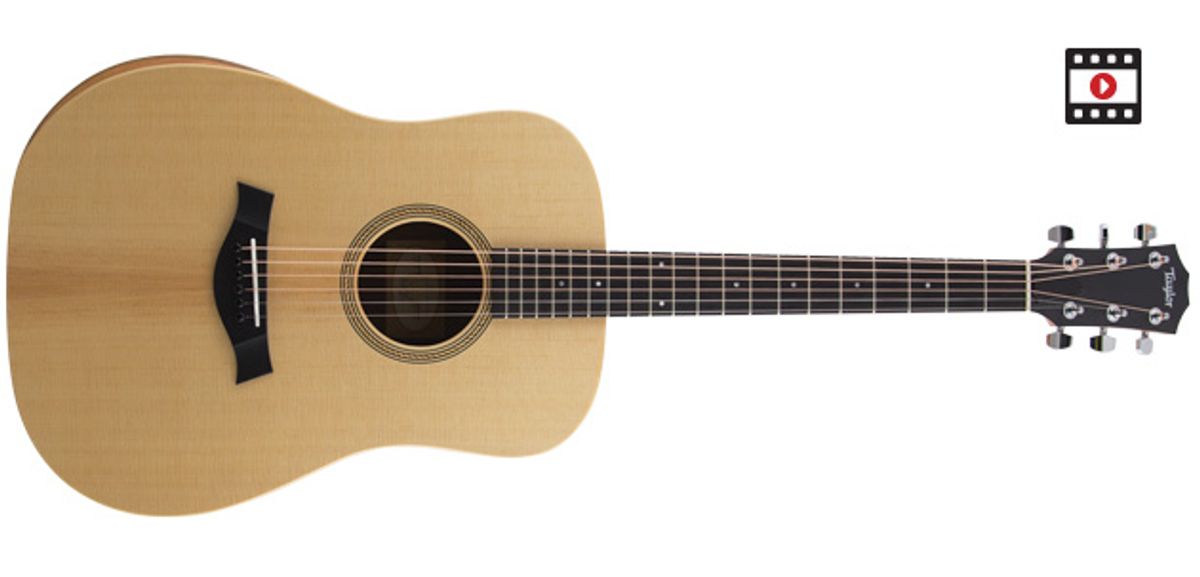

Meet another very refined entry-level Taylor.
A lot of big guitar companies use a simple strategy for building affordable flattops: take the blueprint for an existing model, find a factory overseas, and build the same guitar with less expensive labor and materials. Taylor, however, has always gone its own way. And many of the unique guitars that it builds for entry-level buyers—the Baby Taylor, GS Mini, and Big Baby—have become front-line instruments for superstars.
Given the success of those instruments, as well as Taylor’s mid-priced, Mexico-built 100 and 200 series guitars, the arrival of Taylor’s new entry-level Academy Series may come as a surprise. But the Academy series—which includes grand concerts, a nylon-string hybrid, and the dreadnought reviewed here—is the welcome product of Taylor’s emphasis (obsession, perhaps) with design refinement at the affordable end of the flattop market. And my time with the 10e suggests that the efforts are neither empty marketing gestures nor design half measures. This is a thoughtfully built, fine-playing flattop that consistently delivers sonic surprises and consistently feels more expensive than it is.
Sound Build from South of the Border
The Academy Series guitars are the first new offerings from Taylor’s new Tecate, Mexico, factory, and the build quality is solid and representative of Taylor’s knack for getting priorities right. The setup is excellent, and despite trips from Southern California to Iowa and back to California again in late winter, the intonation is nearly perfect. While I personally might like the action on the slightly lower side, the Academy is exceptionally playable, feeling like a guitar from much further upmarket. The few construction shortcomings I could find—primarily stray glue around the wood band that stands in for traditional notched kerfing—has no bearing on the guitar’s performance.
a second acoustic voice.
I love minimalist flattop design, so I’d appreciate the Academy’s outwards austerity under any circumstances. But the lack of bling tells a tale of well-considered design priorities. Like Taylor’s GS, Baby, 100, and 200, the Academy uses an arched laminate sapele back, which eliminates the need for back bracing. It’s an effective cost-saving measure in manufacturing, but it also eliminates mass and, in the estimation of many, improves resonance. There’s no binding, which lends balance and air to the elegant if slightly boxy lines and proportions. And while the synthetic headstock overlay and plastic truss rod cover look a little “econo” under close scrutiny, they look natural and well-integrated with the rest of the design with just a few steps back.
The most overt deviation from the Academy’s back-to-basics minimalism is the seamlessly executed beveled arm rest. Though this feature is typically associated with boutique flattops (it adds an expensive extra set of steps to the build process), the bevel is actually very consistent with the Academy’s function-over-form ethos. It makes the guitar noticeably more comfortable–especially when playing seated—reducing strain on the elbow and forearm.
The ES-B preamp, pickup, and tuner system, which is powered by two 3V lithium batteries, is relatively unobtrusive. It occupies a space about the size of a large postage stamp on the upper bout.
Midrange and More
The Academy’s somewhat unconventional small-scale dreadnought body shape and short 24 7/8" scale lends the guitar an interesting—and surprisingly complex—tone profile. The 10e is strongest and most defined in the mid- and upper mid-range. But that doesn’t mean the 10e is just louder in that frequency band. Individual notes from the first through fourth strings genuinely sparkle with pleasing overtones that color arpeggios and extended chords and add extra resonance, atmosphere, and harmonic content to octaves in open tunings. The same qualities (and the guitar’s excellent set-up and intonation) make capo-up voicings sound fantastic, too, and it’s easy to imagine the 10e performing spectacularly in overdub situations where you want to add dimension with a second acoustic voice.
Ratings
Pros:
Surprising range of complex tones. Superb playability and setup. Excellent ergonomics.
Cons:
Electronics could use more headroom and bandwidth.
Tones:
Playability:
Build/Design:
Value:
Street:
$599
Taylor Academy 10e
taylorguitars.com
The emphasis on high-midrange content (which in some respects and to many ears is a signature Taylor sound) doesn’t exactly come at the expense of low-end content. Bass tones are present and, in fact, quite resonant. They just don’t have the mass, power, or overtone color you would hear from a full-sized dread or jumbo.
Delightfully, these tendencies—and the balance between frequencies—shift as you vary your picking intensity. The 10e exhibits great dynamic response, which is not a compliment you can pay to a lot of guitars in this price class. And a softer fingerstyle approach, which was really my favorite way to use the 10e, summoned a lot of bass presence from the shadows and added an almost mahogany-like mellowness to the midrange. On the flip side, strong attack with a heavy flatpick coaxed a cool, punching-outside-its-weight-class sassiness that’s perfect for bluegrass runs and country blues figures. The 10e also responds well to aggressive flatpick strumming, “distorting” in a pleasing way that reveals surprising headroom and harmonic detail.
The ES-B pickup and preamp provide solid, reliable amplification, and sound quite pleasing in light fingerstyle applications. The heavier flatpick approach that the 10e often invites predictably reveals some of the system’s limitations—enhancing some of the 10e’s more nasal midrange tendencies while narrowing the workable, distortion-free frequency bandwidth. But in this price range, the 10e is a welcome, easy to use, and perfectly serviceable addition that will work well for all but the most aggressive picking styles.
The Verdict
Taylor’s ongoing, evolving commitment to building unique, high-quality, playable, and toneful instruments in this price category is a very cool thing. And the 10e is an imaginative and thoughtful guitar that clearly leverages lessons learned from Taylor’s already fruitful endeavors in this range. In terms of comfort and playability, Taylor should be applauded for accomplishing their design objectives with style and grace. But the 10e has admirable musical breadth and complexity, too, and like the GS Mini and Baby, is likely to find admirers who use it in situations well beyond the realm of beginners and budget-minded players.
Watch the Review Demo:
Lollar Pickups introduces the Deluxe Foil humbucker, a medium-output pickup with a bright, punchy tone and wide frequency range. Featuring a unique retro design and 4-conductor lead wires for versatile wiring options, the Deluxe Foil is a drop-in replacement for Wide Range Humbuckers.
Based on Lollar’s popular single-coil Gold Foil design, the new Deluxe Foil has the same footprint as Lollar’s Regal humbucker - as well as the Fender Wide Range Humbucker – and it’s a drop-in replacement for any guitar routed for Wide Range Humbuckers such as the Telecaster Deluxe/Custom, ’72-style Tele Thinline and Starcaster.
Lollar’s Deluxe Foil is a medium-output humbucker that delivers a bright and punchy tone, with a glassy top end, plenty of shimmer, rich harmonic content, and expressive dynamic touch-sensitivity. Its larger dual-coil design allows the Deluxe Foil to capture a wider frequency range than many other pickup types, giving the pickup a full yet well-balanced voice with plenty of clarity and articulation.
The pickup comes with 4-conductor lead wires, so you can utilize split-coil wiring in addition to humbucker configuration. Its split-coil sound is a true representation of Lollar’s single-coil Gold Foil, giving players a huge variety of inspiring and musical sounds.
The Deluxe Foil’s great tone is mirrored by its evocative retro look: the cover design is based around mirror images of the “L” in the Lollar logo. Since the gold foil pickup design doesn’t require visible polepieces, Lollartook advantage of the opportunity to create a humbucker that looks as memorable as it sounds.
Deluxe Foil humbucker features include:
- 4-conductor lead wire for maximum flexibility in wiring/switching
- Medium output suited to a vast range of music styles
- Average DC resistance: Bridge 11.9k, Neck 10.5k
- Recommended Potentiometers: 500k
- Recommended Capacitor: 0.022μF
The Lollar Deluxe Foil is available for bridge and neck positions, in nickel, chrome, or gold cover finishes. Pricing is $225 per pickup ($235 for gold cover option).
For more information visit lollarguitars.com.
A 6L6 power section, tube-driven spring reverb, and a versatile array of line outs make this 1x10 combo an appealing and unique 15-watt alternative.
Supro Montauk 15-watt 1 x 10-inch Tube Combo Amplifier - Blue Rhino Hide Tolex with Silver Grille
Montauk 110 ReverbThis simple passive mod will boost your guitar’s sweet-spot tones.
Hello and welcome back to Mod Garage. In this column, we’ll be taking a closer look at the “mid boost and scoop mod” for electric guitars from longtime California-based tech Dan Torres, whose Torres Engineering seems to be closed, at least on the internet. This mod is in the same family with the Gibson Varitone, Bill Lawrence’s Q-Filter, the Gresco Tone Qube (said to be used by SRV), John “Dawk” Stillwells’ MTC (used by Ritchie Blackmore), the Yamaha Focus Switch, and the Epiphone Tone Expressor, as well as many others. So, while it’s just one of the many variations of tone-shaping mods, I chose the Torres because this one sounds best to me, which simply has to do with the part values he chose.
Don’t let the name fool you, this is a purely passive device—nothing is going to be boosted. In general, you can’t increase anything with passive electronics that isn’t already there. Period. But you can reshape the tone by deemphasizing certain frequencies and making others more prominent (so … “boost” in guitar marketing language). Removing highs makes lows more apparent, and vice versa. In addition, the use of inductors (which create the magnetic field in a guitar circuit) and capacitors will create resonant peaks and valleys (bandpasses and notches), further coloring the overall tone. This type of bandpass filter only allows certain frequencies to pass through, while others are blocked, and it all works at unity gain.
“You can’t increase anything with passive electronics that isn’t already there … but you can reshape the tone by deemphasizing certain frequencies and making others more prominent.”
All the systems I mentioned above are doing more or less the same thing, using different approaches and slightly different component values. They are all meant to be updated tone controls. Our common tone circuit is usually a variable low-pass filter (aka treble-cut filter), which only allows the low frequencies to pass through, while the high frequencies get sent to ground via the tone cap. Most of these systems are LCR networks, which means that there is not only a capacitor (C), like on our standard tone controls, but also an inductor (L) and a resistor (R).
In general, all these systems are meant to control the midrange in order to scoop the mids, creating a mid-cut. This can be a cool sounding option, e.g. on a Strat for that mid-scooped neck and middle tone.
Dan Torres offered his “midrange kit” via an internet shop that is no longer online, same with his business website. The Torres design is a typical LCR network and looks like the illustration at the top of this column.
Dan’s design uses a 500k linear pot, a 1.5H inductor (L) with a 0.039 µF (39nF) cap (C), and a 220k resistor (R) in parallel. Let’s break down the parts piece by piece:
Any 500k linear pot will do the trick, in one of the rare scenarios where a linear pot works better in a passive guitar system than an audio pot.
(C) 0.039µF cap: This is kind of an odd value. Keeping production tolerances of up to 20 percent in mind, any value that is close will do, so you can use any small cap you want for this. I would prefer a small metallized film cap, and any voltage rating will do. If you want to stay as close as possible to the original design, use any 0.039 µF low-tolerance film cap.
(L) 1.5H inductor: The original design uses a Xicon 42TL021 inductor, which is easy to find and fairly priced. This one is also used in the Bill Lawrence Q-Filter design, the Gibson standard Varitone, and many other systems like this. It’s very small, so it will fit in virtually every electronic compartment of a guitar. It has a frequency range of 300 Hz up to 3.4 kHz, with a primary impedance of 4k ohms (that’s the one we want to use) and a secondary impedance of 600 ohms. Snip off the three secondary leads and the center tap of the primary side and use the two remaining outer primary leads; the primary side is marked with a “P.” On the pic, you can see the two leads you need marked in red, all other leads can be snipped off. You can connect the two remaining leads to the pot either way; it doesn’t matter which of them is going to ground when using it this way.
Drawing courtesy of singlecoil.com
(R) 220k: use a small axial metal film resistor (0.25 W), which is easy to find and is the quasi-standard.
Other designs use slightly different part values—the Bill Lawrence Q-filter has a 1.8H L, 0.02 µF C and 8k R, while the old RA Gresco Tone Qube from the ’80s has a 1.5H L, 0.0033 µF C, and a 180k R, so this is a wide field for experimentation to tweak it for your personal tone.
This mid-cut system can be put into any electric guitar not only as a master tone, but also together with a regular tone control or something like the Fender Greasebucket, or it can be assigned only to a certain pickup. It can be a great way to enhance your sonic palette, so give it a try.
That’s it! Next month, we’ll take a deeper look into how to fight feedback on a Telecaster. It’s a common issue, so stay tuned!
Until then ... keep on modding!
The two-in-one “sonic refractor” takes tremolo and wavefolding to radical new depths.
Pros: Huge range of usable sounds. Delicious distortion tones. Broadens your conception of what guitar can be.
Build quirks will turn some users off.
$279
Cosmodio Gravity Well
cosmod.io
Know what a wavefolder does to your guitar signal? If you don’t, that’s okay. I didn’t either until I started messing around with the all-analog Cosmodio Instruments Gravity Well. It’s a dual-effect pedal with a tremolo and wavefolder, the latter more widely used in synthesis that , at a certain threshold, shifts or inverts the direction the wave is traveling—in essence, folding it upon itself. Used together here, they make up what Cosmodio calls a sonic refractor.
Two Plus One
Gravity Well’s design and control set make it a charm to use. Two footswitches engage tremolo and wavefolder independently, and one of three toggle switches swaps the order of the effects. The two 3-way switches toggle different tone and voice options, from darker and thicker to brighter and more aggressive. (Mixing and matching with these two toggles yields great results.)
The wavefolder, which has an all-analog signal path bit a digitally controlled LFO, is controlled by knobs for both gain and volume, which provide enormous dynamic range. The LFO tremolo gets three knobs: speed, depth, and waveform. The first two are self-explanatory, but the latter offers switching between eight different tremolo waveforms. You’ll find standard sawtooth, triangle, square, and sine waves, but Cosmodio also included some wacko shapes: asymmetric swoop, ramp, sample and hold, and random. These weirder forms force truly weird relationships with the pedal, forcing your playing into increasingly unpredictable and bizarre territories.
This is all housed in a trippy, beautifully decorated Hammond 1590BB-sized enclosure, with in/out, expression pedal, and power jacks. I had concerns about the durability of the expression jack because it’s not sealed to its opening with an outer nut and washer, making it feel more susceptible to damage if a cable gets stepped on or jostled near the connection, as well as from moisture. After a look at the interior, though, the build seems sturdy as any I’ve seen.
Splatterhouse Audio
Cosmodio’s claim that the refractor is a “first-of-its-kind” modulation effect is pretty grand, but they have a point in that the wavefolder is rare-ish in the guitar domain and pairing it with tremolo creates some pretty foreign sounds. Barton McGuire, the Massachusetts-based builder behind Cosmodio, released a few videos that demonstrate, visually, how a wavefolder impacts your guitar’s signal—I highly suggest checking them out to understand some of the principles behind the effect (and to see an ’80s Muppet Babies-branded keyboard in action.)
By folding a waveform back on itself, rather than clipping it as a conventional distortion would, the wavefolder section produces colliding, reflecting overtones and harmonics. The resulting distortion is unique: It can sound lo-fi and broken in the low- to mid-gain range, or synthy and extraterrestrial when the gain is dimed. Add in the tremolo, and you’ve got a lot of sonic variables to play with.
Used independently, the tremolo effect is great, but the wavefolder is where the real fun is. With the gain at 12 o’clock, it mimics a vintage 1x10 tube amp cranked to the breaking point by a splatty germanium OD. A soft touch cleans up the signal really nicely, while maintaining the weirdness the wavefolder imparts to its signal. With forceful pick strokes at high gain, it functions like a unique fuzz-distortion hybrid with bizarre alien artifacts punching through the synthy goop.
One forum commenter suggested that the Gravity Well effect is often in charge as much the guitar itself, and that’s spot on at the pedal's extremes. Whatever you expect from your usual playing techniques tends to go out the window —generating instead crumbling, sputtering bursts of blubbering sound. Learning to respond to the pedal in these environments can redefine the guitar as an instrument, and that’s a big part of Gravity Well’s magic.
The Verdict
Gravity Well is the most fun I’ve had with a modulation pedal in a while. It strikes a brilliant balance between adventurous and useful, with a broad range of LFO modulations and a totally excellent oddball distortion. The combination of the two effects yields some of the coolest sounds I’ve heard from an electric guitar, and at $279, it’s a very reasonably priced journey to deeply inspiring corners you probably never expected your 6-string (or bass, or drums, or Muppet Babies Casio EP-10) to lead you to.
