Out on the road, the post-hardcore supergroup’s gunslinger works in pairs, with two guitars, two pedalboards, and a Twin.
Formed during the pandemic, L.S. Dunes is the answer to every early-2000s emo kid’s prayers. Spearheaded by Circa Survive and Saosin frontman Anthony Green, the band was announced to the world in 2022, and their debut record, Past Lives, arrived in November of that year. Along with members of Coheed and Cambria and Thursday, My Chemical Romance guitarist Frank Iero joined the supergroup, and they’re not wasting any time: Following an EP in November 2023, their second full-length record is due out January 31.
Even though L.S. Dunes covers some similar ground to each member’s previous projects, it’s certainly its own beast, and Iero notes that his rig with the band is totally different from his setup with My Chemical Romance. Ahead of Dunes’ performance at Nashville’s Marathon Music Works, PG’s Chris Kies met up with Iero to see which “favorite kids” get brought out on tour.
Brought to you by D’Addario.

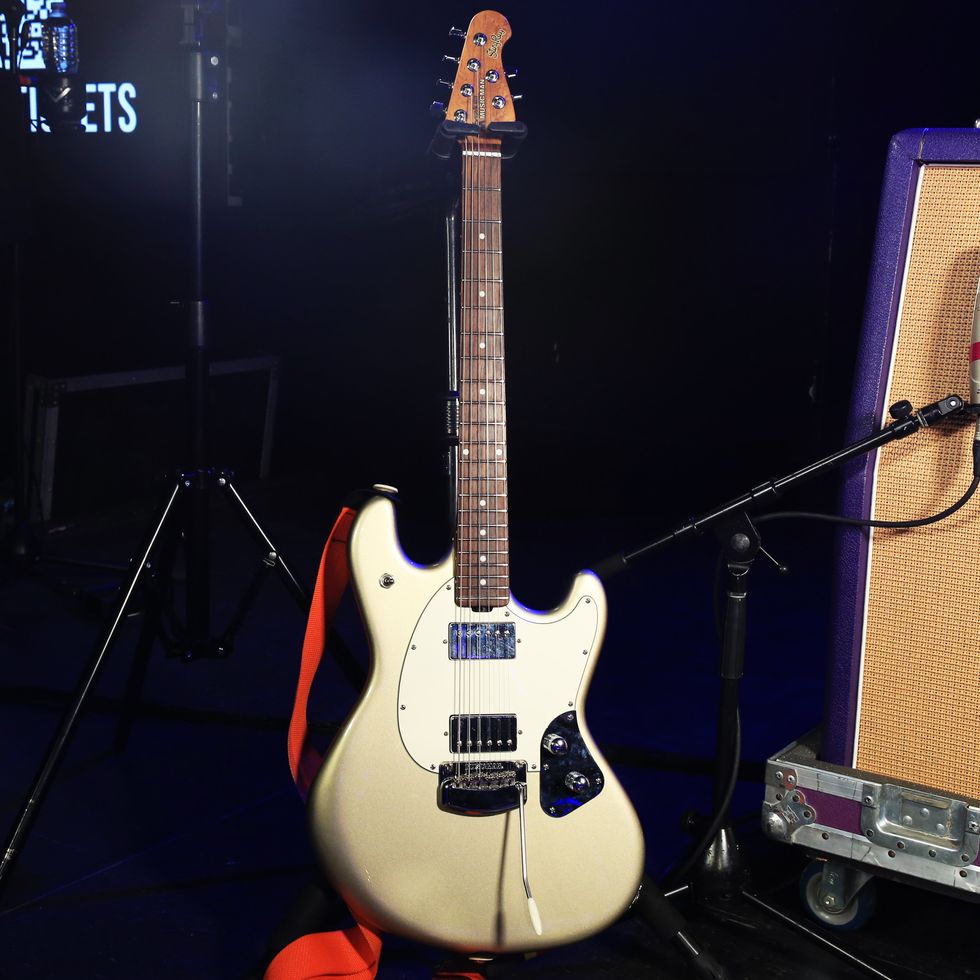

Float Like a Butterfly, Sting Like a Ray
Iero loves this Ernie Ball Music Man StingRay RS for its stellar trem system and rock-solid tuning. He can reef on the whammy bar as hard as he wants, and it stays on pitch. (He even thought he broke it one night after hearing a loud “pop,” but his tech couldn’t find any issues.) It’s always in standard tuning, with Ernie Ball Burly Slinky strings.

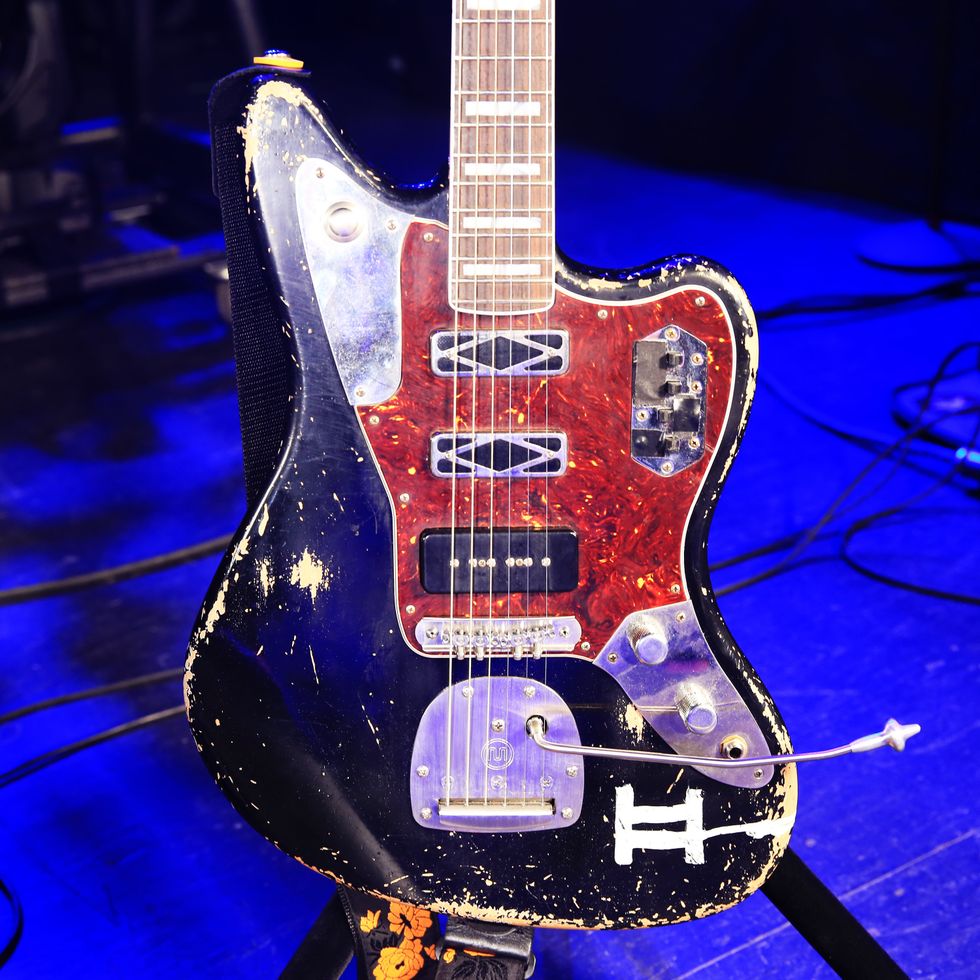

FrankenFender
This Fender “Jazzmaster” was a special order made by Dennis Galuszka in Fender’s custom shop. Frank’s friend (and occasional PG contributor) Mike Adams (the “Obi-Wan of offsets”) scooped up a ’60s Jazzmaster from the corner of a flooded-out basement somewhere, and after some fix-ups, nicknamed it “Pancake” for its flat, playable neck. Iero was obsessed with it, and asked his friend if he’d loan “Pancake” to Galuszka to scan and recreate the neck. The first result of that collaboration goes on tour with My Chemical Romance, while this second one comes out with L.S. Dunes. It’s got a 25.5′′ scale length—Iero calls it his “Jag and a half”—and comes out for the last three songs of the set. It rocks blacked-out goldfoil pickups in the neck and middle positions, and a P-90 in the bridge. There’s a built-in killswitch on the upper bout, too.

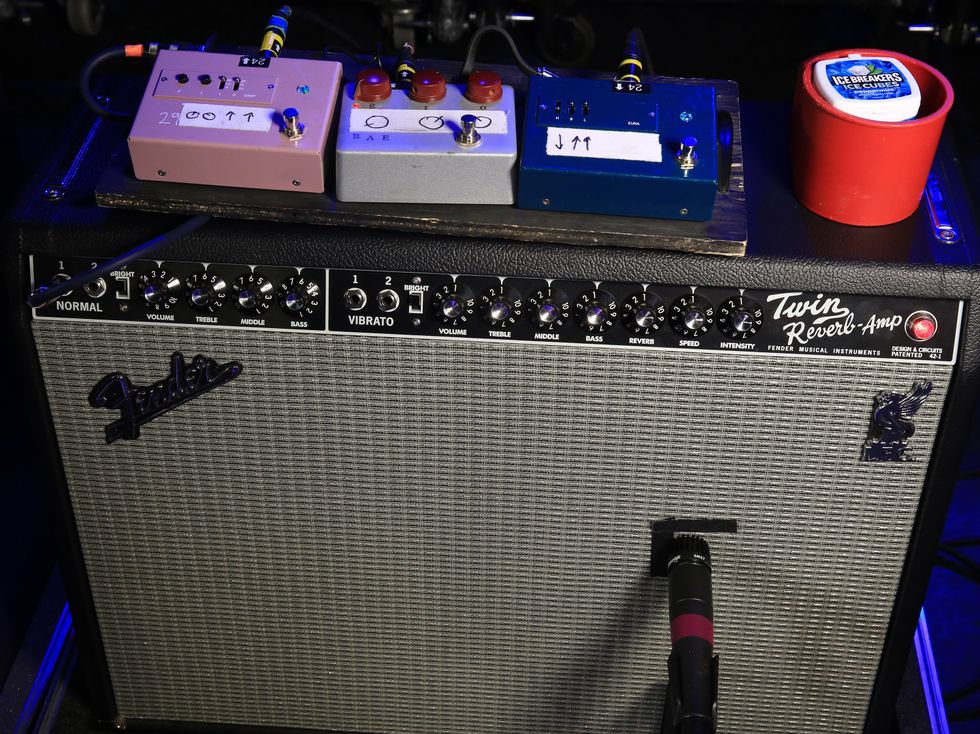

Twin for the Win
Iero’s perfect pedal platform is the Fender Twin Reverb, which he runs into a Marshall 4x12 cabinet loaded with Celestion Vintage 30 speakers.

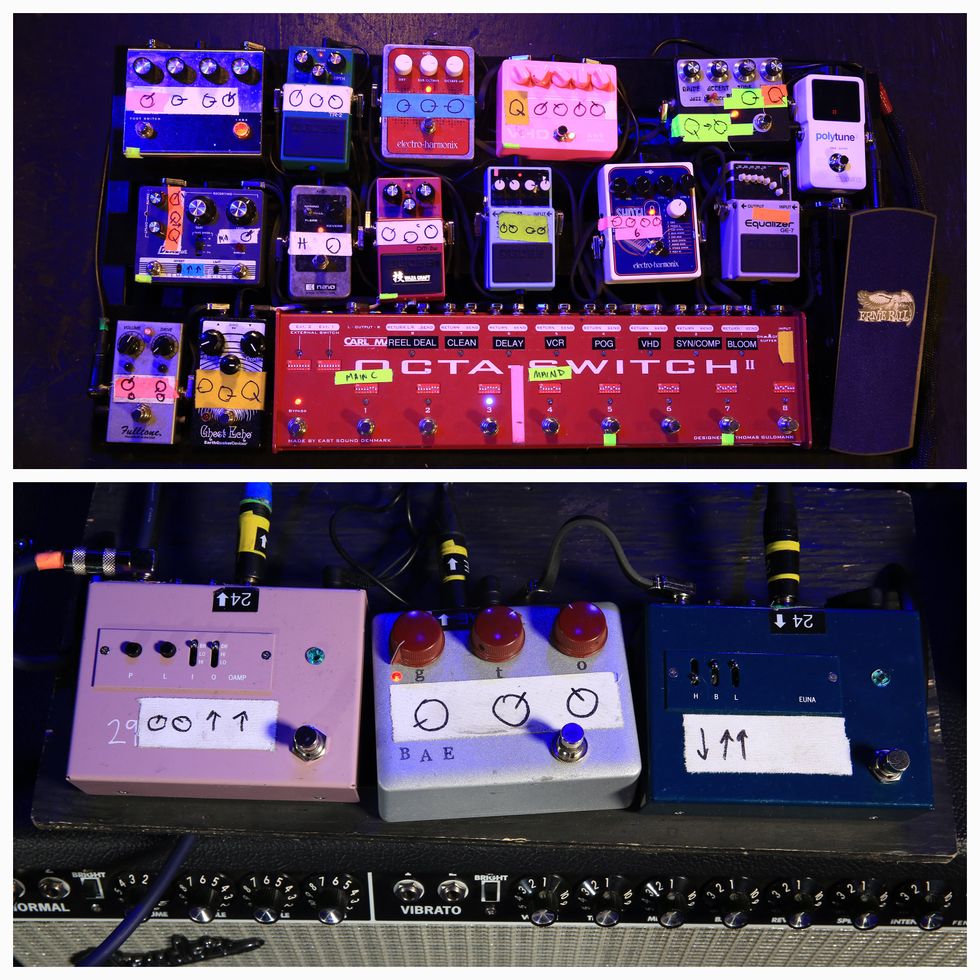

Frank Iero's Pedalboards
Iero’s main board, which stays at his feet, is controlled by a Carl Martin Octa-Switch II system. It’s got a Jackson Audio 1484 Twin Twelve Pedal, Boss TR-2, EHX POG, Amplified Nation Bigger Bloom, Temple Devices Reel Dealuxe, EHX Holy Grail Nano, Boss DM-2W, Boss CH-1, EHX Synth9, Boss GE-7, SNK Pedals VHD, Fulltone Fat-Boost, and EQD Ghost Echo. All those toys are kept in line by his Ernie Ball volume pedal and a TC Electronic PolyTune 3.
Iero’s second, always-on board stays safe behind his amp. It has a 29 Pedals OAMP, Bowman Audio Endeavors Bowman Overdrive, and 29 Pedals EUNA, which form the basis of his tone.
- Rig Rundown: My Chemical Romance's Frank Iero ›
- The Big 5: Coheed and Cambria's Travis Stever ›
- Rig Rundown: Coheed and Cambria [2022] ›
While digital audio workstations (DAWs) have revolutionized music production, offering unparalleled editing and flexibility, many producers, including me, still mix back into an analog console for the sonic character and three-dimensionality that it imparts. But buying a professional console isn’t cheap! This is where console summing boxes come into play, offering a unique way to enhance your mixes and elevate them to a professional level.
How Does It Work?
Very simply put, recording consoles have two basic sections: an input section (all the channels of mic pres, and EQ) and a center section (that sums all of the channels together and routes those signals to various configurable outputs such as inserts and aux buses). A console summing mixer is essentially the center section of a console and is designed to sum the individual audio channels, aux buses, stems, and submixes from your DAW in an analog domain.
In a DAW, digital summing—the process of combining multiple tracks and buses into a stereo mix—is handled through complex binary algorithms that, while precise, can sometimes lead to a mix that feels lifeless and one-dimensional, lacking the warmth, depth, and cohesion that analog consoles impart.
One of the most significant advantages of using a summing box is the introduction of harmonic distortion, a natural byproduct of analog circuitry. This isn’t like amp or pedal distortion, but rather a subtle harmonic saturation that adds richness and character to the sound. Low-end frequencies gain girth and definition, while high frequencies have a smooth, silky quality. You can achieve natural compression through subtle variations in phase and amplitude, but that depends on how hard you push the summing mixer box.
But the best benefit, in my opinion, is its ability to produce an undeniably open stereo image. Digital summing, while accurate, often lacks dimension or a sense of space. Analog summing introduces subtle variations in phase and amplitude, creating a sense of width and depth that makes each instrument feel like it occupies its own space in a more 3-D stereo field, which results in a more engaging and polished mix. I’ve also found summing boxes encourage a more deliberate and thoughtful approach to mixing, as it requires submixing certain elements.
API’s ASM164 ($3,195 street) is wildly flexible, offering VU meters, multiple inserts, two separate stereo mix options, and more.
For those who work “in-the-box” and aren’t in the market for a summing box, let alone a console, incorporating a summing box can also serve as a valuable learning tool. By running stems through a summing box and comparing the results to an entirely digital mix, you can train your ear to recognize the subtle qualities that make a mix feel warm, cohesive, spatial, and dynamic. This heightened awareness can then inform your in-the-box mixing decisions, even when you’re not using a summing box.
“Whether you want to add depth and dimension to your tracks, enhance your stereo image, or bring a touch of analog magic to your mixes, a summing box can be a gamechanger."
It’s important to choose the right summing box for your needs and budget, as different models offer varying sonic characteristics. Good summing mixers typically start around $2,000, such as Rupert Neve Design’s 5057 Orbit Summing Mixer. While more expensive, API’s ASM164 ($3,195 street) is wildly flexible, offering VU meters, multiple inserts, two separate stereo mix options, and more. The key here is to understand your needs.
Pairing a summing box with high-quality outboard processors, such as compressors or EQs, will allow you to shape your mix in ways that are impossible within a purely digital setup.
Whether you want to add depth and dimension to your tracks, enhance your stereo image, or bring a touch of analog magic to your mixes, a summing box can be a gamechanger. For anyone serious about mixing, it’s a tool worth considering—one that can make the difference between a mix that’s good and one that’s truly exceptional. Until next month, namaste
