Inspired by the The Great Guitar Build Off, an experienced builder challenged himself to turn a live-edge piece of cherry wood into a masterfully unique, grizzled beauty.
Kent Meloy
Hometown: Cincinnati, Ohio
Guitar: Live-edge Cherry Swamp Monster, nicknamed “Keith Richards”
For the past five or six years, I’ve been slowly building my guitar-building chops starting with a couple kits and then moving into my own scratch-built designs under the name Tunguska Guitars. Lately I’ve been intrigued by some of the builds I’ve seen featured on The Great Guitar Build Off run by Britain’s Crimson Guitars, and I’ve tried to start thinking outside of the norm.
My brother-in-law has a bunch of 2" slabs of cherry wood that have been drying in a shed behind his house for a couple years. When we were down for a visit, he took me up to collect a few. This particular live-edge piece wormed its way into my heart, and I grabbed it, knowing it was probably useless for a guitar.
But once I got home, I kept thinking about how to solve the problems. The entire bridge/tailpiece area was completely unsuitable, and one thing I knew I did not want to do is fill it with resin. This thing needed to stay as raw, beat-up, and un-shiny as possible. There was barely enough wood to get a body and neck out of it, but I managed to get both.

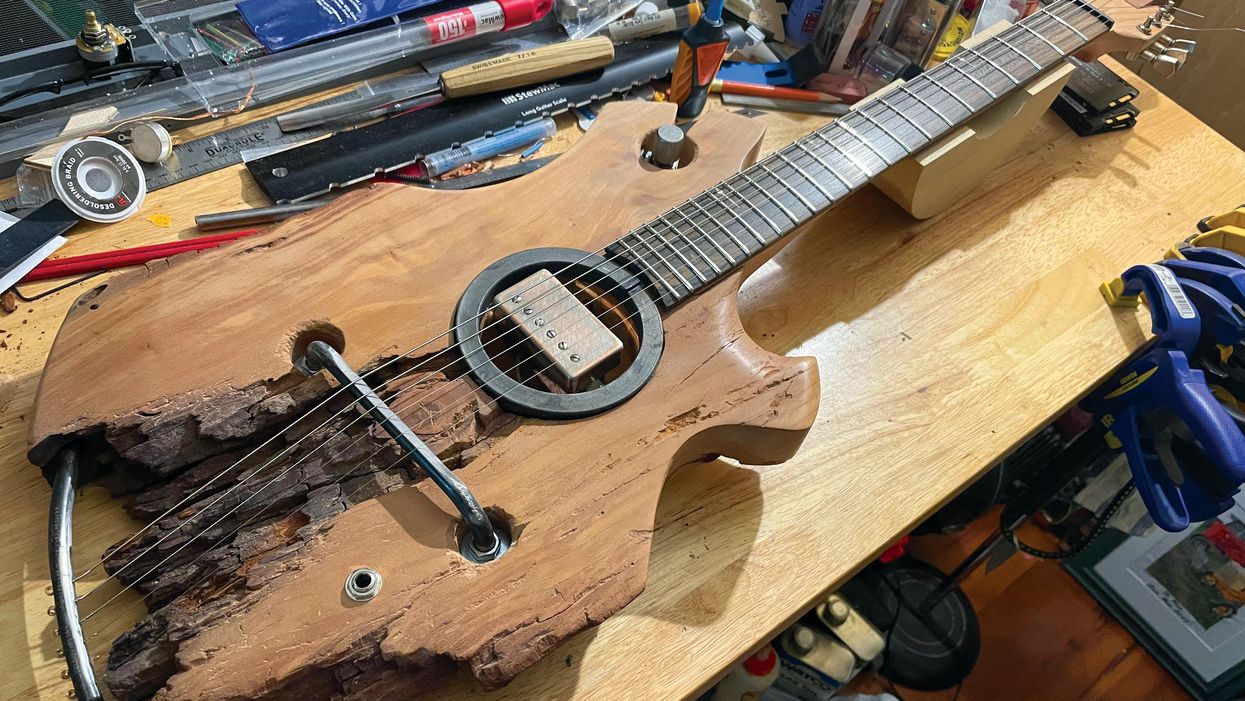

I decided the only way to solve the bridge issue was to fabricate something myself (if you can call it that), so I picked up a 3/8" steel rod and used a blowtorch to heat it up and make the necessary bends in the bridge, far enough apart that it literally “bridged” the canyon of disintegrating wood. I put threads on the mounting ends so I could install nuts on the top and bottom as a basic height adjustment. The 2-piece tailpiece was less drastic, but also did the trick by boring deep into the good wood for support.
I decided the pickup mount would emulate an acoustic, boring all the way through the body and countersinking a steel ring for decoration with pickup mounting holes on the backside instead of the top, and I wanted a single volume control to hover in the upper horn’s decorative hole. This took a while and involved a short, threaded rod, three nuts, and a little bit of J-B Weld to get one of the nuts on the mini-pot.
Once I got far enough into the process, I was calling it “The Nameless One,” but my friends started calling it “Keith Richards”–a grizzled, beat-up, true rock ’n’ roll survivor. I came to be completely okay with that assessment: It just feels perfect!
The pickup is a hand-distressed StewMac Golden Age Parsons Street humbucker. The fretboard is ziricote and the relic’d tuning machines and control knob came from GFS.
The thing sounds amazing—it’s very open and organic. Cranking up the distortion just a bit gives it a lovely swamp-’70s vibe. It completely surpassed my expectations, and I’m sure it’s Keith’s fault.
Send your guitar story to submissions@premierguitar.com.
- Digging Deeper: The Rolling Stones' 'Sticky Fingers' - Premier Guitar ›
- John Fogerty: That Old Travelin' Bone - Premier Guitar ›
- What Will Replace Classic Tonewoods? - Premier Guitar ›
- Reader Guitar of the Month: Skully - Premier Guitar ›
- Reader Guitar of the Month: Woodie from Belfast, Ireland - Premier Guitar ›
There’s nothing cooler than using a Leslie cabinet in the studio, and few things worse than having to lug one to gigs. The famed Leslie 981, for example, weighs nearly 150 pounds. Enter the rotary speaker pedal—an easy-on-the-back alternative for players who are looking to conjure Leslie-derived guitar sounds employed on classic records by Hendrix, Pink Floyd, Led Zeppelin, the Beatles, and others.
California Roller
There are a lot of good options for on-the-floor rotary pedals between $99 and $549. At $299, Keeley Electronics’ new I Get Around Rotary Simulator falls in the middle of the pack on pricing but has an array of functions that make it competitive with costlier examples. The I Get Around is part of a collaboration between Keeley, JHS Pedals, and Benson amps, dedicated to creating five limited-edition effects in tribute to the Beach Boys. I can’t recall many Beach Boys tracks with Leslie-style guitar, but Brian Wilson did use the effect on brother Carl’s guitar on 1965’s “You’re So Good to Me,” and a year later on the song “Pet Sounds.”
At 5" x 4" x 2", the I Get Around is a little larger than the average stompbox, but that’s necessary to accommodate the three big dials on top (blend, drive, and speed) as well as the on/off (which also works to select true bypass or buffered mode) and slow-fast switches, plus the stereo inputs and outputs. Using two amps in stereo makes the flutter and warble of the rotary sound more pronounced and immersive. It’s truly psychedelic. There’s also a toggle that adds a 4.5 dB mid-boost, which fattens and tightens the tone enough for me to simply want to leave that boost engaged all the time.
How I Got Around
I ran the I Get Around—powered by a 9V barrel connector at 130 mA— through a pair of Carr amps, playing a Gibson Les Paul Standard and a PRS SE Silver Sky, and blended the pedal with overdrive, fuzz, and delay as I experimented. I love the extra-large size of the speed control, which let me adjust the rate of simulated rotation at a whim with my shoe. The speed’s range is .06 Hz to .6 Hz, with 1 Hz being one revolution per second, and all the speed settings sound great and conjure the vibes you’d want from a Leslie, from velvet-painting dreamscapes to edgy, breathless Robert Ward- and David Gilmour-style psychedelic blues. Add a little delay and the sound becomes spongier and stranger, but too much, of course, can turn things to muck, as can an overbearing fuzz.
The drive control is a subtle overdrive that simulates a pushed 6550 and 12UA7 tube. At moderate amp volume, it doesn’t add much discernable grit until about 9 o’clock. Past 2 o’clock it rolled off enough top end to make my guitar sound less potent. But between those demarcations lies a very sweet spot for adding beef. The blend control starts being effective at about 8 o’clock, when the first hints of the rotary sound become a backdrop for the guitar’s voice, and then it's just a matter of turning up to taste—including cranking all the way clockwise to entirely eliminate your core guitar sound in favor of the rotary effect alone. For my taste, the best overall sounds were achieved with subtle-to-pronounced blends, between 9 o’clock and a bit past 2, that added rotary effect to my always-present basic guitar tone, thickening, supporting, and swirling behind it.
The slow-fast switch is all about drama. It allows toggling between two speed settings, and when it’s held down it stops the rotating speaker effect, which resumes when the switch is pressed again. The ramp rate can be customized as well. I like it slow, so the activation of the swirl is audible.
The Verdict
Keeley’s new I Get Around Rotary Simulator commands all the essential sounds you’d want from an actual Leslie. Unlike some pedals in its price range, it’s got stereo outs, which, to my thinking, are essential, because the rotary effect sounds best through guitar amps run in stereo. Also, the deep functionality beyond the basic adjustments of the three topside dials is attractive, adding more Leslie-like realism. There are cheaper alternatives, but to find competitive or better examples, you’ll need to reach deeper into your pockets.
Keeley I Get Around Rotary Simulator Pedal - Sweetwater Exclusive, Limited Release
Building upon the legacy of the 1966 Arbiter Fuzz, the Orbiter Fuzz enhances this classic circuit with advanced fine-tuning circuitry.
Key Features:
- Vintage Tone: The Orbiter Fuzz delivers smooth, musical fuzz tones with cutting sustain, offering immediate inspiration.
- Vintage Power: Our unique power circuit internally converts modern wall power to emulate the draw of a vintage carbon zinc battery.
- "Sweet Spot" Dial: An internal mini potentiometer allows you to dial in the perfect impedance response for your favorite pickups.
Versatile Controls:
- FUZZ: Adjusts the overall amount of fuzz by shaping the signal’s waveform from triangular to square as the knob is turned clockwise.
- GAIN: Increases the amount of signal entering the circuit, pushing it into harmonic clipping for smooth overdriven fuzz tones.
- BIAS: Modifies voltage to the matched pair of transistors, unleashing a wide range of vintage fuzz tones. Lower voltages produce spitty Black Keys responses, while higher voltages create smooth American Woman fuzz.
- Compact Design: Optimized for pedalboard space and easy integration with any standard pedal.
- Durable Construction: Crafted for reliability to withstand rigorous touring conditions.
Technical Specifications:
- Input Impedance: 500 kOhm
- Output Impedance: 10 kOhm
- Power Requirements: External 9V DC center-negative power supply
- Dimensions: 4.75" x 2.50" x 1.5"
- Weight: 0.8 lbs
- Bypass: True bypass
Design Details:
- Custom Artwork: Retro space-age design that pays homage to the Arbiter’s flying saucer enclosure.
- High-Quality Housing: Durable reinforced steel enclosure with a vintage metallic blue hammered finish.
Why You Need the SoloDallas Orbiter Fuzz Pedal:
A great fuzz pedal is essential for every guitarist and bassist. The Orbiter Fuzz offers the smooth, singing fuzz tone every musician dreams of, combining musicality with the reliability you need. If you’re looking for a pedal that excels in both sound and style, the Orbiter Fuzz is a must-have. Complete your search for the perfect fuzz pedal with the Orbiter Fuzz.
Arriving on Planet Earth 9/1/24! The Orbiter Fuzz will be available for purchase exclusively at SoloDallas.com starting September 1, 2024. The first 100 orders will include a SoloDallas swag pack guaranteed to impress. All SoloDallas orders ship within 24 hours.
Price: $249 USD.
