Marty Friedman and his trusted tech, Alan Sosa, who handles all effects switching manually during the show, showed us the goods.
Brought to you by D’Addario.
Getting in Shape

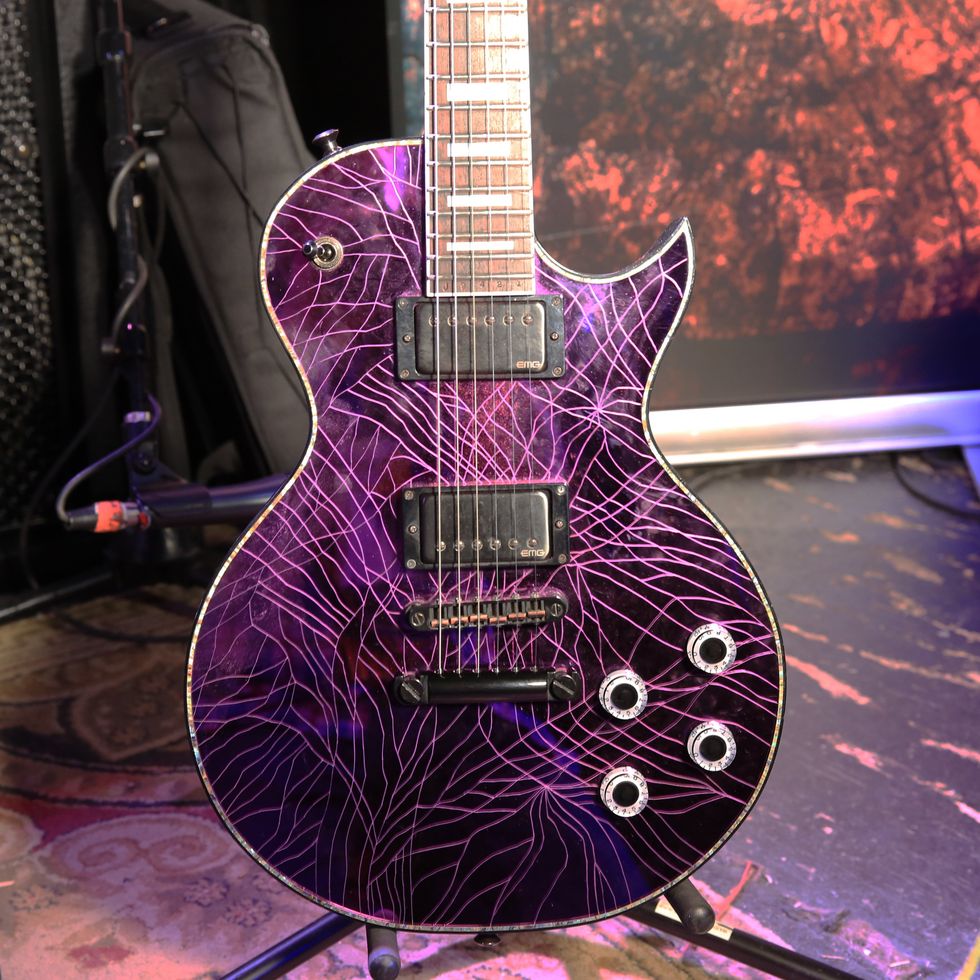

Not every guitar model looks good on every player. Could Friedman pull off Dimebag’s Dean machines? He doesn’t think so. But a Les Paul body is universally agreeable. “If an accountant picks up this guitar, he’s going to look really cool,” says Friedman. That’s why he went with the LP-style mahogany body on his signature Jackson Pro Series MF-1 with a cracked purple mirror finish. The design, of course, has a “Jacksonized” headstock and Friedman’s logo to set it far apart from its Gibson counterparts.
The guitars come loaded with Friedman’s signature EMG MF passive pickups, and Friedman strings his with D’Addario NYXL .010–.046s. He plucks with Dunlop picks.
On deck in case of emergency is a Jackson X Series Signature Marty Friedman MF-1, a budget-conscious alternative to the flashy Pro Series MF-1.
ENGL

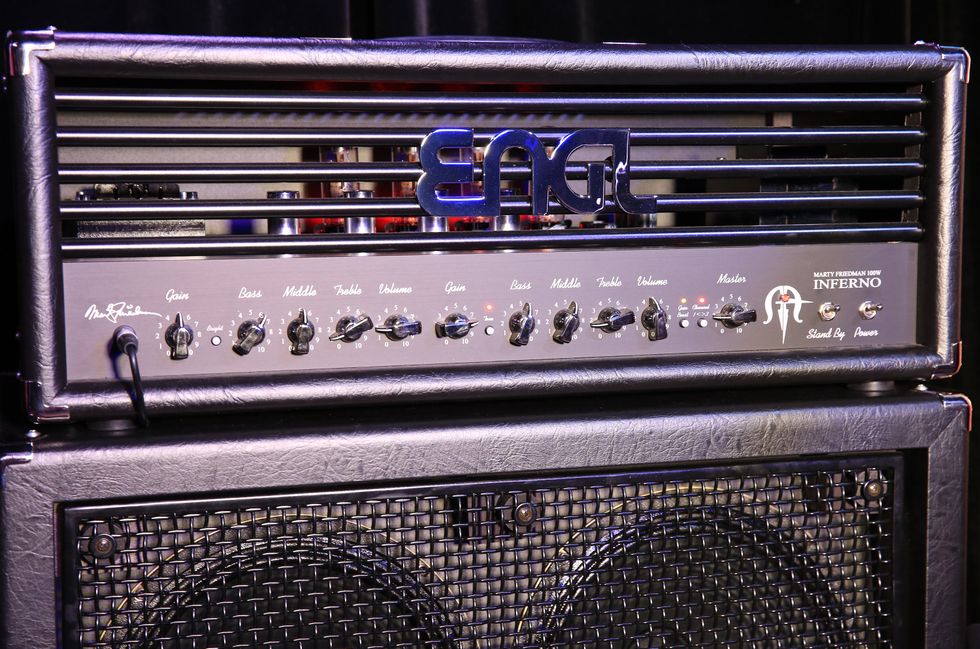

Another signature piece, this ENGL Marty Friedman INFERNO Signature E766 is a 100-watt firebreather that Friedman designed with the German amp makers. Friedman says they started from the company’s Steve Morse signature amplifier, then pared back the elements he didn’t use, resulting in a cheaper but still incredibly powerful product.
Marty Friedman's Board

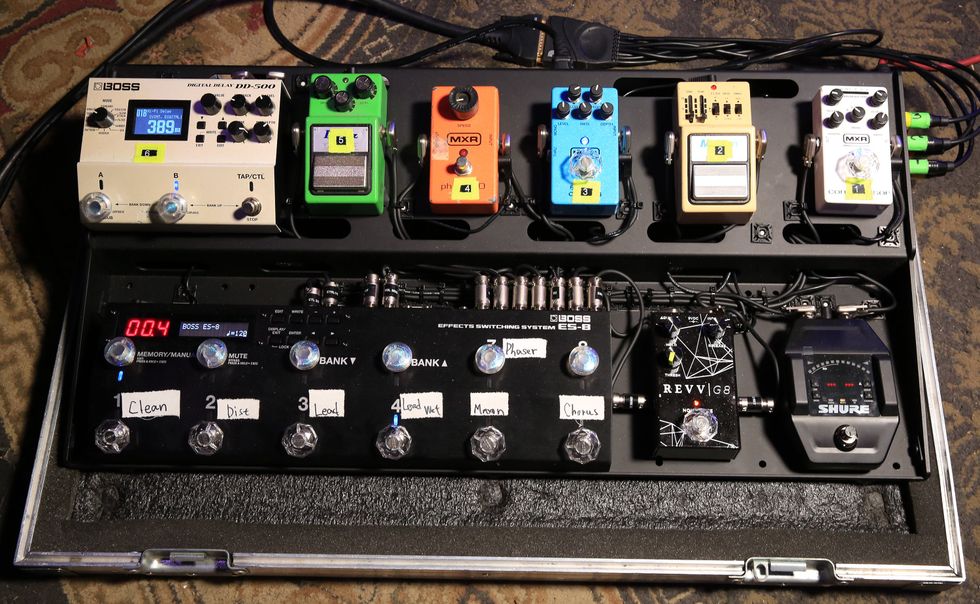

Friedman asked Sosa to build him a board based on his needs, and Sosa delivered this no-frills stomp station, which he operates backstage during the show. First, Friedman’s signal hits a Revv G8 noise gate which the tech dubs the most important pedal; he has his hand on it the whole show, tweaking its settings for different parts. After, there’s an MXR M87 bass compressor for clean tones, Maxon AF-9 Auto Filter, MXR Analog Chorus, MXR Phase 90, Ibanez Tube Screamer, and a Boss DD-500. Friedman runs to his board via a Shure GLXD6+ wireless system, and a Boss ES-8 switching system helps simplify Sosa’s job.
Settings and effect applications can change from night to night. Sosa will try out different things during the set, and afterward, he and Friedman will decide what worked and what didn’t.
- Marty Friedman Shares New Single "Dead of Winter" ›
- Marty Friedman: Back with Brutality ›
- Marty Friedman and Tech 21 Launch Signature SansAmp ›
Guitarists are used to coveting cranky, old gear, but if you’re not a rack user, the H3000 might not be for you! If you ever see one of these in a studio, be sure to take some time to check it out, and maybe give the plugin a try.When it debuted in 1987, the H3000 was marketed as an “intelligent pitch-changer” that could generate stereo harmonies in a user-specified key. This was heady stuff in the ’80s! But while diatonic harmonizing grabbed the headlines, subtler uses of this pitch-shifter cemented its legacy. Patch 231 MICROPITCHSHIFT, for example, is a big reason the H3000 persists in racks everywhere. It’s essentially a pair of very short, single-repeat delays: The left side is pitched slightly up while the right side is pitched slightly down (default is ±9 cents). The resulting tripling/thickening effect has long been a mix-engineer staple for pop vocals, and it’s also my first call when I want a stereo chorus for guitar.
The second-gen H3000S, introduced the following year, cemented the device’s guitar bona fides. Early-adopter Steve Vai was such a proponent of the first edition that Eventide asked him to contribute 48 signature sounds for the new model (patches 700-747). Still-later revisions like the H3000B and H3000D/SE added even more functionality, but these days it’s not too important which model you have. Comprehensive EPROM chips containing every patch from all generations of H3000 (plus the later H3500) are readily available for a modest cost, and are a fairly straightforward install.
In addition to pitch-shifting, there are excellent modulation effects and reverbs (like patch 211 CANYON), plus presets inspired by other classic Eventide boxes, like the patch 513 INSTANT PHASER. A comprehensive accounting of the H3000’s capabilities would be tedious, but suffice to say that even the stock presets get deliciously far afield. There are pitch-shifting reverbs that sound like fever-dream ancestors of Strymon’s “shimmer” effect. There are backwards-guitar simulators, multiple extraterrestrial voices, peculiar foreshadows of the EarthQuaker Devices Arpanoid and Rainbow Machine (check out patch 208 BIZARRMONIZER), and even button-triggered Foley effects that require no input signal (including a siren, helicopter, tank, submarine, ocean waves, thunder, and wind). If you’re ever without your deck of Oblique Strategies cards, the H3000’s singular knob makes a pretty good substitute. (Spin the big wheel and find out what you’ve won!)
“If you’re ever without your deck of Oblique Strategies cards, the H3000’s singular knob makes a pretty good substitute.”
But there’s another, more pedestrian reason I tend to reach for the H3000 and its rackmount relatives in the studio: I like to do certain types of processing after the mic. It’s easy to overlook, but guitar speakers are signal processors in their own right. They roll off high and low end, they distort when pushed, and the cabinets in which they’re mounted introduce resonances. While this type of de facto processing often flatters the guitar itself, it isn’t always advantageous for effects.
Effects loops allow time-based effects to be placed after preamp distortion, but I like to go one further. By miking the amp first and then sending signal to effects in parallel, I can get full bandwidth from the airy reverbs and radical pitched-up effects the H3000 can offer—and I can get it in stereo, printed to its own track, allowing the wet/dry balance to be revisited later, if needed. If a sound needs to be reproduced live, that’s a problem for later. (Something evocative enough can usually be extracted from a pedal-form descendant like the Eventide H90.)
Like most vintage gear, the H3000 has some endearing quirks. Even as it knowingly preserves glitches from earlier Eventide harmonizers (patch 217 DUAL H910s), it betrays its age with a few idiosyncrasies of its own. Extreme pitch-shifting exhibits a lot of aliasing (think: bit-crusher sounds), and the analog Murata filter modules impart a hint of warmth that many plug-in versions don’t quite capture. (They also have a habit of leaking black goo all over the motherboard!) It’s all part of the charm of the unit, beloved by its adherents. (Well, maybe not the leaking goo!)
In 2025, many guitarists won’t be eager to care for what is essentially an expensive, cranky, decades-old computer. Even the excitement of occasional tantalum capacitor explosions is unlikely to win them over! Fortunately, some great software emulations exist—Eventide’s own plugin even models the behavior of the Murata filters. But hardware offers the full hands-on experience, so next time you spot an old H3000 in a rack somewhere—and you’ve got the time—fire it up, wait for the distinctive “click” of its relays, spin the knob, and start digging.
