A powerful pedalboard tamer for the masses.
A breeze to program. Ability to edit loops on the fly.
Only eight presets. Large footprint for small pedal boards.
$499

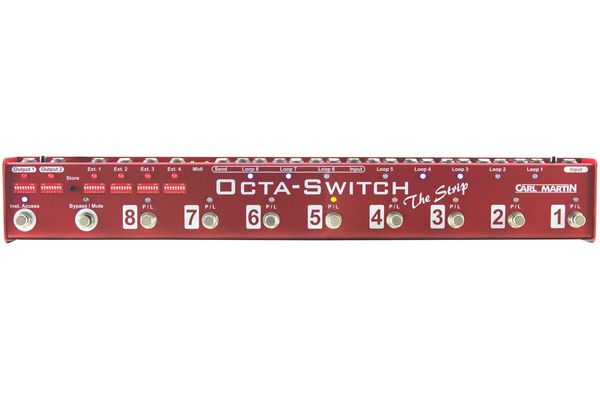

Carl Martin Octa-Switch The Strip
carlmartin.com
Any time I come across a new, powerful piece of compact switching technology, I can't help but flash back to the fridge-sized racks and massive MIDI controllers that were once at the heart of many pro rigs. Until pretty recently, a pro-level switching system still cost serious coin. Carl Martin did a lot to close the affordability gap in that product category with their Octa-Switch series. But Carl Martin's latest (and slimmest) iteration of their Octa-Switch line, the Strip, is one of the easiest ways yet to manage your pedalboard and not break the bank.
Cruise Controls
The 23-inch-long Strip (which will fit at the foot of a Pedaltrain Novo 24 pedalboard) is built with eight effects loops and eight switches for presets, which Carl Martin calls "banks."The Strip also provides a MIDI input, four external relay switches, and two outputs in case you want to run a dual amp rig. Carl Martin also smartly added a switchable buffer, a mute, an instant access switch that enables preset customization or use of an isolated effect on the fly, a preset store button, and four sets of DIP switches for the four relays and two outputs. It's a well-engineered and designed unit that strikes a great balance between making practical features accessible and avoiding user option paralysis.
Getting your head around how the Strip works is simple stuff, even if you haven't used switchers extensively. Each loop contains a pedalāor a group of pedals. With a single tap of a bank switch you can turn any number of pedals on while simultaneously turning others off. And thanks to the DIP switches, you can also assign amp outputs, amp channel switching functions, and amplifier reverb to a dedicated presets.
It's a well-engineered and designed unit that strikes a great balance between making practical features accessible without giving users option paralysis.
Strolling the Strip
I wired the Strip up with an MXR Dyna Comp in loop 1, a Nobels ODR-Mini in loop 2, a Wampler Hot Wired in loop 3, and a Line 6 HX Stomp in loop 8āwhich was also connected via MIDI. My goal was to create a single preset that used the Dyna-Comp and Nobels, and then a second that used just the Wampler. With switch 1 engaged, I hit the instant access button, the LEDs turned blue, and I chose which loops I wanted assigned to preset 1. I chose loops 1 and 2, hit the little store button, and the instant access light blinked three times to indicate that preset was saved. I repeated the process bank 2. In short, I was able to program two distinctly different tones in less than five minutes. The process couldn't be much more straightforward.
Using the DIP switches to assign presets to different outputs is easy too. For my test, I placed a Revv D20 in output 1 and a Fender Hot Rod Deluxe in output 2 and assigned a preset to each output by selecting the corresponding DIP switch position under each output. If you prefer stereo operation, you can also use the two outputs in stereo via the stereo return on loop 8. And if you're into the four-cable switching method, which enables you to situate pedals before or after the preamp in your amp's effects loop, you can run loops 6, 7, and 8 via dedicated sends and returns.
The Verdict
Carl Martin's Octa-Switch is a real refinement of the already impressive Octa-Switch series. It's intuitive, the build quality is top notch, the ease of programming is tough to beat, and the unit and ease of operation reflect a thoughtful, user-oriented, real-world, stage-centric engineering sensibility. If you're looking for a pro-level solution to your increasingly complex pedal puzzle and don't have loads to spend, the Strip warrants serious consideration.
- Quick Hit: Carl Martin Greg Howe's Lick Box Review - Premier Guitar āŗ
- The New Switcheroo: Three Loop Switchers Reviewed - Premier ... āŗ
- Plexi Punch Meets Rangemaster Burn: The Premier Guitar Carl ... āŗ
- Carl Martin PlexiRanger Review - Premier Guitar āŗ
- Carl Martin Launches the Ampster āŗ
Day 9 of Stompboxtober is live! Win today's featured pedal from EBS Sweden. Enter now and return tomorrow for more!
EBS BassIQ Blue Label Triple Envelope Filter Pedal
The EBS BassIQ produces sounds ranging from classic auto-wah effects to spaced-out "Funkadelic" and synth-bass sounds. It is for everyone looking for a fun, fat-sounding, and responsive envelope filter that reacts to how you play in a musical way.
A more affordable path to satisfying your 1176 lust.
An affordable alternative to Cali76 and 1176 comps that sounds brilliant. Effective, satisfying controls.
Big!
$269
Warm Audio Pedal76
warmaudio.com
Though compressors are often used to add excitement to flat tones, pedal compressors for guitar are often ā¦ boring. Not so theWarm Audio Pedal76. The FET-driven, CineMag transformer-equipped Pedal76 is fun to look at, fun to operate, and fun to experiment with. Well, maybe itās not fun fitting it on a pedalboardāat a little less than 6.5ā wide and about 3.25ā tall, itās big. But its potential to enliven your guitar sounds is also pretty huge.
Warm Audio already builds a very authentic and inexpensive clone of the Urei 1176, theWA76. But the font used for the modelās name, its control layout, and its dimensions all suggest a clone of Origin Effectsā much-admired first-generation Cali76, which makes this a sort of clone of an homage. Much of the 1176ās essence is retained in that evolution, however. The Pedal76 also approximates the 1176ās operational feel. The generous control spacing and the satisfying resistance in the knobs means fast, precise adjustments, which, in turn, invite fine-tuning and experimentation.
Well-worn 1176 formulas deliver very satisfying results from the Pedal76. The 10ā2ā4 recipe (the numbers correspond to compression ratio and āclockā positions on the ratio, attack, and release controls, respectively) illuminates lifeless tonesāadding body without flab, and an effervescent, sparkly color that preserves dynamics and overtones. Less subtle compression tricks sound fantastic, too. Drive from aggressive input levels is growling and thick but retains brightness and nuance. Heavy-duty compression ratios combined with fast attack and slow release times lend otherworldly sustain to jangly parts. Impractically large? Maybe. But Iād happily consider bumping the rest of my gain devices for the Pedal76.
Check out our demo of the Reverend Vernon Reid Totem Series Shaman Model! John Bohlinger walks you through the guitar's standout features, tones, and signature style.
Reverend Vernon Reid Totem Series Electric Guitar - Shaman
Vernon Reid Totem Series, ShamanWith three voices, tap tempo, and six presets, EQDās newest echo is an affordable, approachable master of utility.
A highly desirable combination of features and quality at a very fair price. Nice distinctions among delay voices. Controls are clear, easy to use, and can be effectively manipulated on the fly.
Analog voices may lack complexity to some ears.
$149
EarthQuaker Silos
earthquakerdevices.com
There is something satisfying, even comforting, about encountering a product of any kind that is greater than the sum of its partsāthings that embody a convergence of good design decisions, solid engineering, and empathy for users that considers their budgets and real-world needs. You feel some of that spirit inEarthQuakerās new Silos digital delay. Itās easy to use, its tone variations are practical and can provoke very different creative reactions, and at $149 itās very inexpensive, particularly when you consider its utility.
Silos features six presets, tap tempo, one full second of delay time, and three voicesātwo of which are styled after bucket-brigade and tape-delay sounds. In the $150 price category, itās not unusual for a digital delay to leave some number of those functions out. And spending the same money on a true-analog alternative usually means warm, enveloping sounds but limited functionality and delay time. Silos, improbably perhaps, offers a very elegant solution to this canāt-have-it-all dilemma in a U.S.-made effect.
A More Complete Cobbling Together
Silosā utility is bolstered by a very unintimidating control set, which is streamlined and approachable. Three of those controls are dedicated to the same mix, time, and repeats controls you see on any delay. But saving a preset to one of the six spots on the rotary preset dial is as easy as holding the green/red illuminated button just below the mix and preset knobs. And you certainly wonāt get lost in the weeds if you move to the 3-position toggle, which switches between a clear ādigitalā voice, darker āanalogā voice, and a ātapeā voice which is darker still.
āThe three voices offer discernibly different response to gain devices.ā
One might suspect that a tone control for the repeats offers similar functionality as the voice toggle switch. But while itās true that the most obvious audible differences between digital, BBD, and tape delays are apparent in the relative fidelity and darkness of their echoes, the Silosā three voices behave differently in ways that are more complex than lighter or duskier tonality. For instance, the digital voice will never exhibit runaway oscillation, even at maximum mix and repeat settings. Instead, repeats fade out after about six seconds (at the fastest time settings) or create sleepy layers of slow-decaying repeats that enhance detail in complex, sprawling, loop-like melodic phrases. The analog voice and tape voice, on the other hand, will happily feed back to psychotic extremes. Both also offer satisfying sensitivity to real-time, on-the-fly adjustments. For example, I was tickled with how I could generate Apocalypse Now helicopter-chop effects and fade them in and out of prominence as if they were approaching or receding in proximityāan effect made easier still if you assign an expression pedal to the mix control. This kind of interactivity is what makes analog machines like the Echoplex, Space Echo, and Memory Man transcend mere delay status, and the sensitivity and just-right resistance make the process of manipulating repeats endlessly engaging.
Doesn't Flinch at Filth
EarthQuaker makes a point of highlighting the Silosā affinity for dirty and distorted sounds. I did not notice that it behaved light-years better than other delays in this regard. But the three voices most definitely offer discernibly different responses to gain devices. The super-clear first repeat in the digital mode lends clarity and melodic focus, even to hectic, unpredictable, fractured fuzzes. The analog voice, which EQD says is inspired by the tone makeup of a 1980s-vintage, Japan-made KMD bucket brigade echo, handles fuzz forgivingly inasmuch as its repeats fade warmly and evenly, but the strong midrange also keeps many overtones present as the echoes fade. The tape voice, which uses aMaestro Echoplex as its sonic inspiration, is distinctly dirtier and creates more nebulous undercurrents in the repeats. If you want to retain clarity in more melodic settings, it will create a warm glow around repeats at conservative levels. Push it, and it will summon thick, sometimes droning haze that makes a great backdrop for slower, simpler, and hooky psychedelic riffs.
In clean applications, this decay and tone profile lend the tape setting a spooky, foggy aura that suggests the cold vastness of outer space. The analog voice often displays an authentic BBD clickiness in clean repeats thatās sweet for underscoring rhythmic patterns, while the digital voiceās pronounced regularity adds a clockwork quality that supports more up-tempo, driving, electronic rhythms.
The Verdict
Silosā combination of features seems like a very obvious and appealing one. But bringing it all together at just less than 150 bucks represents a smart, adept threading of the cost/feature needle.
