Pedalboard Options for Your Acoustic Guitar

But flattop pickers need not be forlorn! I’ve had the opportunity to build lots of guitar rigs for players who needed to serve both the electric and acoustic parts of a setlist, and there are many options for getting your acoustic signal out of your instrument and into the PA. Some of these builds were biased toward the electric side of things, when acoustic playing was just a small part of the job description, and others were mostly acoustic-minded affairs with just a sprinkling of electric-centric equipment. You’ll need to look at your situation to determine how much board real estate and budget resources you should be allocating to your double-minded setup.

The simplest way to get your acoustic instrument’s sound to the PA is to add a plain old DI to your board. I’d highly recommend the transformer-isolated variety, like the Radial ProDI ($114 street) or, if you can spring for it, something like their J48 ($229 street), which includes a higher-quality Jensen transformer. You can stick this DI to your board with a permanently connected guitar cable and simply plug in your acoustic when you need it. Neutrik silentPLUGs ($12 street) will help you avoid those nasty connecting/disconnecting pops as you transition from electric to acoustic by automatically muting the unused signal chain.

If you wind up sharing effects between acoustic and electric, be cautious about the settings of your overdrives and distortion pedals.

Maybe you’d like to have only one instrument cable into your rig? Put a simple A/B switch in front of your first electric pedal and the DI. Whenever you select your DI, the electric chain will be muted. Turn off the effects in your electric chain, particularly overdrives and distortions, to keep the white noise from the deselected backline amp at a minimum. Switching the A/B selector back to the electric will effectively mute the DI output to front-of-house. You’ll need to be careful here as you can accidentally send electric guitar to FOH or acoustic guitar to your backline amp if you lose track of the state of your A/B switch. You can alter this arrangement by putting additional effects after the A/B switch and in front of your DI or sharing effects in both chains by putting your A/B switch after your electric-guitar effects. If you wind up sharing effects between acoustic and electric, be cautious about the settings of your overdrives and distortion pedals. Accidentally engaging one could lead to some surprising—and painfully loud—results. The line between exciting and execrable can be very thin.

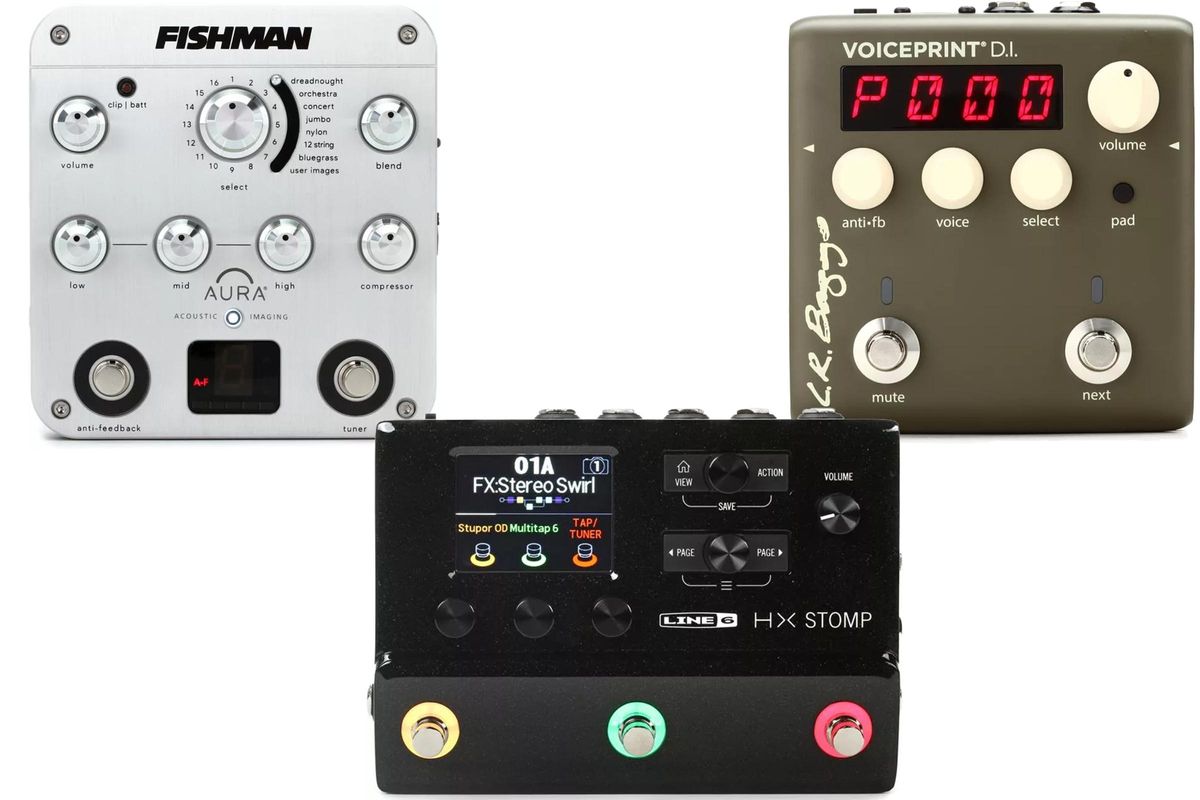

If you want to go beyond the straight piezo-pickup sound of your acoustic, consider acoustic imaging. You can replace your simple DI with something like Fishman’s Aura Spectrum ($399 street) or LR Baggs’ Voiceprint ($399 street), which use impulse responses (IRs) and DSP to produce realistic miked and in-the-room sounds from a humble undersaddle bridge pickup. Alternatively, if your rig already contains something like the Line 6 HX Stomp ($649 street), you can use it to process and route your acoustic signal. Several purveyors produce acoustic IRs that you can load as effect blocks on your Stomp (3 Sigma Audio and Worship Tutorials are two). You can then use your Stomp’s FX send port to connect it to a plain external DI and configure your specific electric and acoustic presets so they output to the correct port. An additional benefit to this type of setup is that you have access to all the HX Stomp effects as well, so compression, modulation, delay, and reverb are readily available for your acoustic processing needs.

Whether you connect your acoustic instrument to the PA via a run-of-the-mill DI or the latest in high-tech signal processing, there are many ways to sound great in our amplified world. Don’t let your electrics have all the fun, bring acoustic signal processing into your pedalboard world!
