A highly controllable, mid-priced rotary speaker simulator inspired by the Beach Boys that nails the essential character of a Leslie—in stereo.
There’s nothing cooler than using a Leslie cabinet in the studio, and few things worse than having to lug one to gigs. The famed Leslie 981, for example, weighs nearly 150 pounds. Enter the rotary speaker pedal—an easy-on-the-back alternative for players who are looking to conjure Leslie-derived guitar sounds employed on classic records by Hendrix, Pink Floyd, Led Zeppelin, the Beatles, and others.
California Roller
There are a lot of good options for on-the-floor rotary pedals between $99 and $549. At $299, Keeley Electronics’ new I Get Around Rotary Simulator falls in the middle of the pack on pricing but has an array of functions that make it competitive with costlier examples. The I Get Around is part of a collaboration between Keeley, JHS Pedals, and Benson amps, dedicated to creating five limited-edition effects in tribute to the Beach Boys. I can’t recall many Beach Boys tracks with Leslie-style guitar, but Brian Wilson did use the effect on brother Carl’s guitar on 1965’s “You’re So Good to Me,” and a year later on the song “Pet Sounds.”

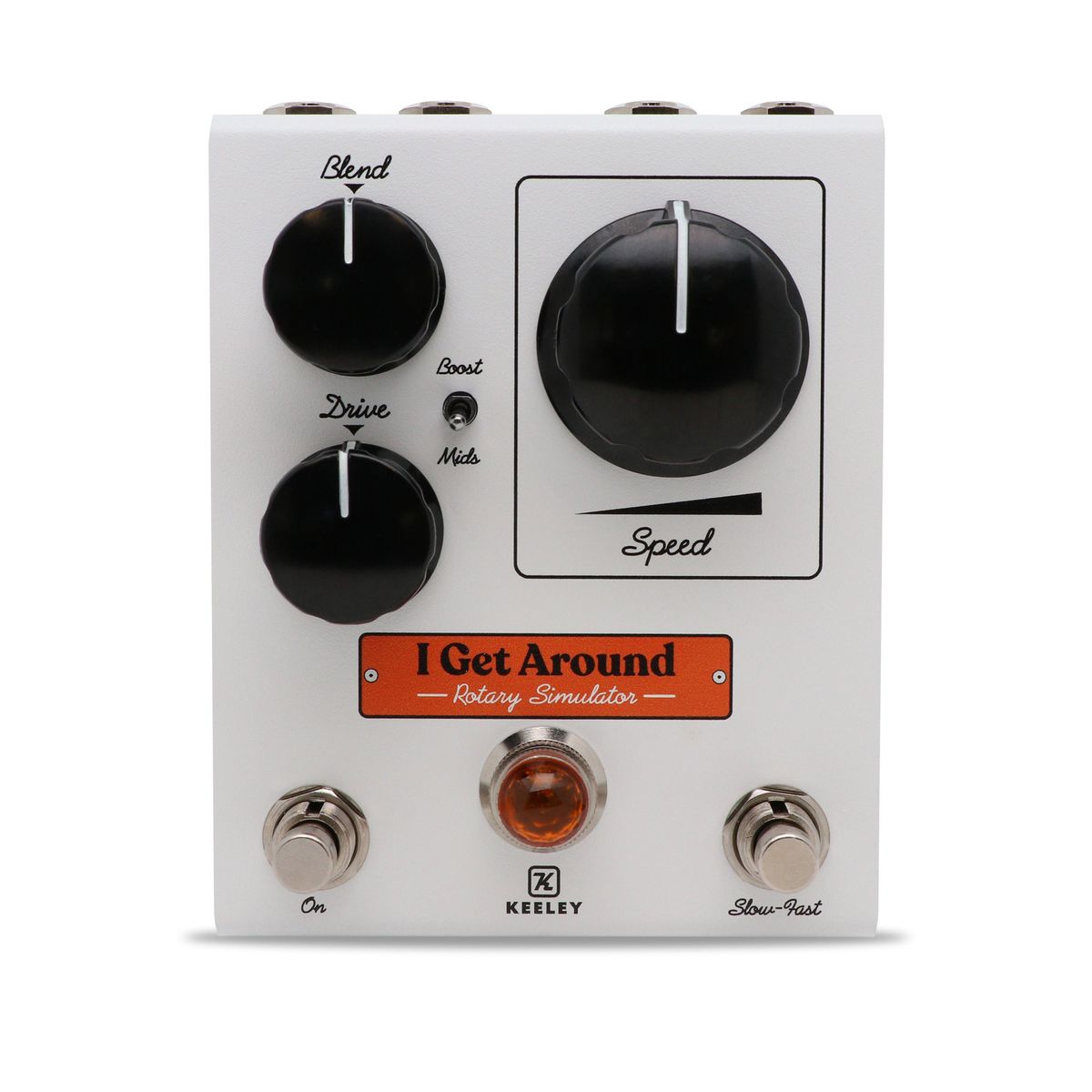

At 5" x 4" x 2", the I Get Around is a little larger than the average stompbox, but that’s necessary to accommodate the three big dials on top (blend, drive, and speed) as well as the on/off (which also works to select true bypass or buffered mode) and slow-fast switches, plus the stereo inputs and outputs. Using two amps in stereo makes the flutter and warble of the rotary sound more pronounced and immersive. It’s truly psychedelic. There’s also a toggle that adds a 4.5 dB mid-boost, which fattens and tightens the tone enough for me to simply want to leave that boost engaged all the time.
How I Got Around
I ran the I Get Around—powered by a 9V barrel connector at 130 mA— through a pair of Carr amps, playing a Gibson Les Paul Standard and a PRS SE Silver Sky, and blended the pedal with overdrive, fuzz, and delay as I experimented. I love the extra-large size of the speed control, which let me adjust the rate of simulated rotation at a whim with my shoe. The speed’s range is .06 Hz to .6 Hz, with 1 Hz being one revolution per second, and all the speed settings sound great and conjure the vibes you’d want from a Leslie, from velvet-painting dreamscapes to edgy, breathless Robert Ward- and David Gilmour-style psychedelic blues. Add a little delay and the sound becomes spongier and stranger, but too much, of course, can turn things to muck, as can an overbearing fuzz.
The drive control is a subtle overdrive that simulates a pushed 6550 and 12UA7 tube. At moderate amp volume, it doesn’t add much discernable grit until about 9 o’clock. Past 2 o’clock it rolled off enough top end to make my guitar sound less potent. But between those demarcations lies a very sweet spot for adding beef. The blend control starts being effective at about 8 o’clock, when the first hints of the rotary sound become a backdrop for the guitar’s voice, and then it's just a matter of turning up to taste—including cranking all the way clockwise to entirely eliminate your core guitar sound in favor of the rotary effect alone. For my taste, the best overall sounds were achieved with subtle-to-pronounced blends, between 9 o’clock and a bit past 2, that added rotary effect to my always-present basic guitar tone, thickening, supporting, and swirling behind it.
The slow-fast switch is all about drama. It allows toggling between two speed settings, and when it’s held down it stops the rotating speaker effect, which resumes when the switch is pressed again. The ramp rate can be customized as well. I like it slow, so the activation of the swirl is audible.
The Verdict
Keeley’s new I Get Around Rotary Simulator commands all the essential sounds you’d want from an actual Leslie. Unlike some pedals in its price range, it’s got stereo outs, which, to my thinking, are essential, because the rotary effect sounds best through guitar amps run in stereo. Also, the deep functionality beyond the basic adjustments of the three topside dials is attractive, adding more Leslie-like realism. There are cheaper alternatives, but to find competitive or better examples, you’ll need to reach deeper into your pockets.
Keeley I Get Around Rotary Simulator Pedal - Sweetwater Exclusive, Limited Release
- limited edition News & Articles - Premier Guitar ›
- keeley electronics News & Articles - Premier Guitar ›
- Keeley Electronics Introduces Beach Boys Inspired Pedals ›
The Enigmatic nails the flexibility, for sure. To my ears, its tone foundation lives somewhere on a sliver of Venn diagram where a black-panel Fender and a 50-watt Hiwatt intersect. It’s alive, dimensional, snappy, sparkly, massive, and, at the right EQ settings, hot and excitable. But the Enigmatic’s powerful EQ and gain controls, multiple virtual cab and mic pairings, rock, jazz, and custom voices, plus additional deep, bright, and presence controls enable you to travel many leagues from that fundamental tone. The customization work you can do in the app enables significant changes in the Enigmatic’s tone profile and responsiveness, too. All these observations are made tracking the Enigmatic straight to a DAW—making the breadth of its personality even more impressive. But the Enigmatic sounds every bit as lively at the front end of an amp, and black-panel Fenders are a primo pairing for its saturation and sparkly attributes. The Enigmatic is nearly $400, which is an investment. But considering the ground I covered in just a few days with it, and the quality and variety of sounds I could conjure with the unit just sitting on my desk, the performance-to-price ratio struck me as very favorable indeed.
This month’s mod Dan’s uses a 500k linear pot, a 1.5H inductor (L) with a 0.039 µF (39nF) cap (C), and a 220k resistor (R) in parallel.
Don’t let the name fool you, this is a purely passive device—nothing is going to be boosted. In general, you can’t increase anything with passive electronics that isn’t already there. Period. But you can reshape the tone by deemphasizing certain frequencies and making others more prominent (so … “boost” in guitar marketing language). Removing highs makes lows more apparent, and vice versa. In addition, the use of inductors (which create the magnetic field in a guitar circuit) and capacitors will create resonant peaks and valleys (bandpasses and notches), further coloring the overall tone. This type of bandpass filter only allows certain frequencies to pass through, while others are blocked, and it all works at unity gain.
“You can’t increase anything with passive electronics that isn’t already there … but you can reshape the tone by deemphasizing certain frequencies and making others more prominent.”
All the systems I mentioned above are doing more or less the same thing, using different approaches and slightly different component values. They are all meant to be updated tone controls. Our common tone circuit is usually a variable low-pass filter (aka treble-cut filter), which only allows the low frequencies to pass through, while the high frequencies get sent to ground via the tone cap. Most of these systems are LCR networks, which means that there is not only a capacitor (C), like on our standard tone controls, but also an inductor (L) and a resistor (R).
In general, all these systems are meant to control the midrange in order to scoop the mids, creating a mid-cut. This can be a cool sounding option, e.g. on a Strat for that mid-scooped neck and middle tone.
Dan Torres offered his “midrange kit” via an internet shop that is no longer online, same with his business website. The Torres design is a typical LCR network and looks like the illustration at the top of this column.
Dan’s design uses a 500k linear pot, a 1.5H inductor (L) with a 0.039 µF (39nF) cap (C), and a 220k resistor (R) in parallel. Let’s break down the parts piece by piece:
Any 500k linear pot will do the trick, in one of the rare scenarios where a linear pot works better in a passive guitar system than an audio pot.
(C) 0.039µF cap: This is kind of an odd value. Keeping production tolerances of up to 20 percent in mind, any value that is close will do, so you can use any small cap you want for this. I would prefer a small metallized film cap, and any voltage rating will do. If you want to stay as close as possible to the original design, use any 0.039 µF low-tolerance film cap.
(L) 1.5H inductor: The original design uses a Xicon 42TL021 inductor, which is easy to find and fairly priced. This one is also used in the Bill Lawrence Q-Filter design, the Gibson standard Varitone, and many other systems like this. It’s very small, so it will fit in virtually every electronic compartment of a guitar. It has a frequency range of 300 Hz up to 3.4 kHz, with a primary impedance of 4k ohms (that’s the one we want to use) and a secondary impedance of 600 ohms. Snip off the three secondary leads and the center tap of the primary side and use the two remaining outer primary leads; the primary side is marked with a “P.” On the pic, you can see the two leads you need marked in red, all other leads can be snipped off. You can connect the two remaining leads to the pot either way; it doesn’t matter which of them is going to ground when using it this way.
Drawing courtesy of singlecoil.com
(R) 220k: use a small axial metal film resistor (0.25 W), which is easy to find and is the quasi-standard.
Other designs use slightly different part values—the Bill Lawrence Q-filter has a 1.8H L, 0.02 µF C and 8k R, while the old RA Gresco Tone Qube from the ’80s has a 1.5H L, 0.0033 µF C, and a 180k R, so this is a wide field for experimentation to tweak it for your personal tone.
This mid-cut system can be put into any electric guitar not only as a master tone, but also together with a regular tone control or something like the Fender Greasebucket, or it can be assigned only to a certain pickup. It can be a great way to enhance your sonic palette, so give it a try.
That’s it! Next month, we’ll take a deeper look into how to fight feedback on a Telecaster. It’s a common issue, so stay tuned!
Until then ... keep on modding!
