The 1980s were a decade of big hair, big amps, and big guitar tones. But while those stacks of cabinets certainly made things louder, behind-the-scenes rackmount chorus and in particular, the tri-stereo chorus units available under various names such as Dyno-My-Piano, Dynotronics, and Songbird, did a lot to make ’80s guitar sound bigger still. Once these rackmount units reached the rigs of guitarists such as Michael Landau and Steve Lukather, pop radio didn’t stand a chance.

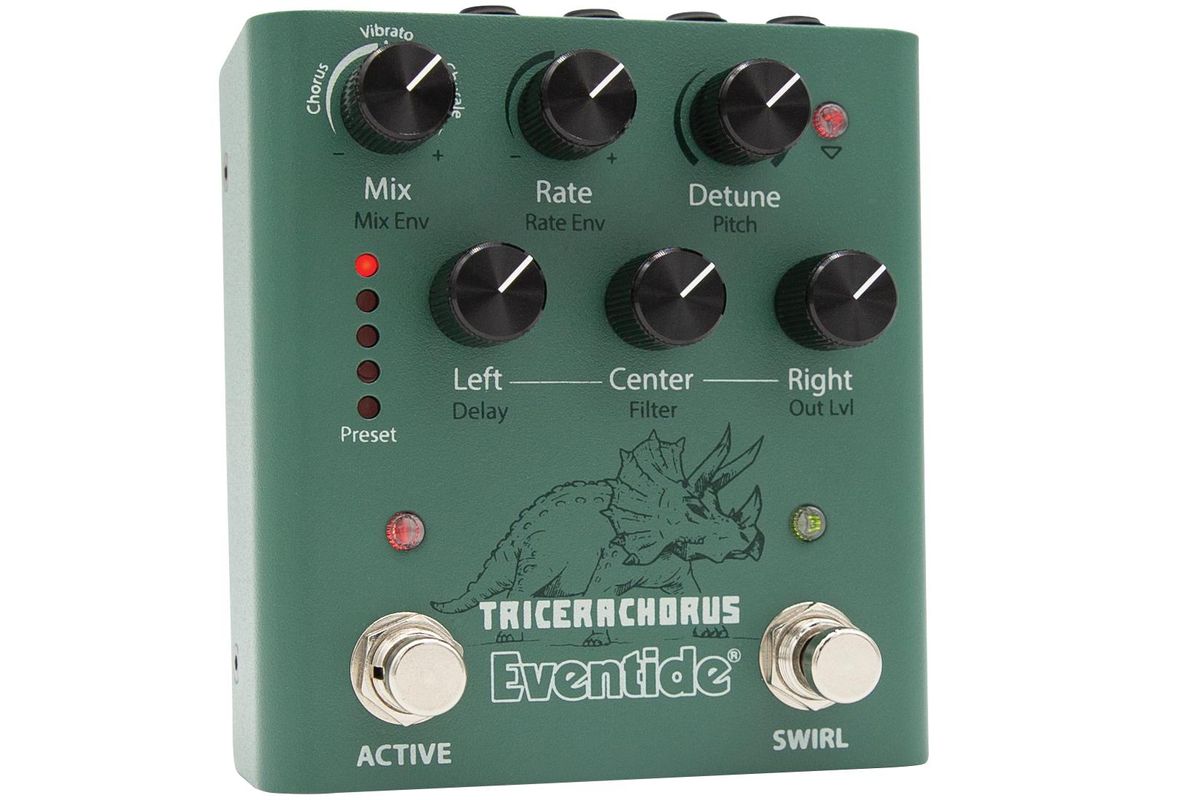

After a period of relentless ubiquity, heavily chorused guitar tones went the way of Aqua Net. But chorus made a comeback, and even rare rackmount versions of the effect have been distilled into pedal form. Eventide does a swell job cramming complicated effects into compact stomps. This time around, they’ve fit the giant tones and deep functionality of rackmount tri-stereo chorus into the pedalboard-friendly TriceraChorus.
Eventide TriceraChorus Review by premierguitar
Recorded using a G&L Legacy through a Fender 5A3 Deluxe (left) and silver-panel Fender Deluxe Reverb (right), each miked with a Shure SM57 through an SSL 2+ interface.
- Neck pickup, chorus mode, rate at 10 o’clock, detune at 10 o’clock, chorus levels at noon
- Same settings in swirl mode
- Neck pickup, swirl on, vibrato mode, rate at 3 o’clock/rate envelope cranked, detune at 3 o/clock, pitch at 11 o’clock
- Rhythm on bridge/middle, chorale mode, rate noon, detune noon, all three levels at 2 o’clock. Lead with same setting but with Klon KTR
- Same settings on bridge/middle, delay knob cranked (clean)
- Same settings but with Klon KTR
Is Three Better Than One?
Anyone who’s ever used a stereo chorus effect knows the depth and dimension it can add to a guitar tone. A tri-stereo chorus takes that idea and runs with it—creating three separate chorus signals and placing them across the stereo field—left, center, and right. The result is just as vast as you’d hope, evoking big-stadium vibes even with a pair of small combos.
Like the other pedals in Eventide's dot9 series, the TriceraChorus' dual-function knobs offer a wide range of control. On the TriceraChorus, users can use them to choose between three effect modes (chorus, vibrato, and chorale), tweak rate/rate envelope, detune amount and pitch, left/center/right levels, delay time, and filter settings. The complex nature of the pedal’s capabilities means specific settings are easy to forget, and first-time users face a bit of a learning curve. But the five factory presets are good jumping-off points for exploring possible extremes. And with the option to create 127 presets of your own you can create and recall many simple or radical formulas to suit your musical moment.
By cranking up the rate and detune past noon and playing around with a little micro-pitch shifting to taste, it was easy to evoke the Mike Stern-playing-with-Miles tones of my dreams.
Tracing The History of Chorus
In some ways, the TriceraChorus enables users to be tone archeologists and trace the history of the chorus effect to its early days. At its simplest settings, the TriceraChorus offers bucket brigade-inspired tones that evoke the sound of those ’70s stomps. And in chorus mode, with the rate at slow-to-moderate settings and the detune below noonish, the pedal offers warm gooey delights. Kick on the swirl switch and you unlock even warmer phase- and flange-style modulation. If it’s subtle sounds you seek, dialing back one or two of the three chorus level settings offers more vintage-variety sounds. On the other side of the coin, keeping the swirl engaged and switching into vibrato mode at high rate and detune settings creates worlds of weirdness.
When it’s time to lean into ’80s vibes, you’ll want all three chorus levels to be audible. I found the most hi-fi tones in chorale mode with the swirl function off. Here, tight, single-note riffs and leads sing, especially with a touch of overdrive in front of the pedal. By cranking up the rate and detune past noon and adding a little micro-pitch shifting to taste, it was easy to evoke the Mike Stern-playing-with-Miles tones of my dreams. Cranking the delay knob can deliver the pedal’s most arena-ready tones and I had a blast faking my way through everything from Alex Lifeson-style suspensions to “Purple Rain.” Whatever the settings, with all three chorus voices activated, the TriceraChorus adds a lush sparkle to clean tones and buffs out the rough edges of distorted tones to create ’80s radio-ready majesty.
The Verdict
Though tri-stereo chorus was immensely popular in its heyday, its potential is still underutilized. And while I’ve never played through a vintage Dynotronics unit to know how close Eventide got to the original vibes, I’ve played through enough chorus pedals to know that the TriceraChorus does something very different. If you want quintessentially ’80s sounds, this pedal will get you there instantly. If that’s not your bag, you might not need all the extra fuss. But this Eventide has plenty of sonic rewards to offer anyone who’s even a little curious about chorus exploration and wants to embiggen their tones.
Supro Montauk 15-watt 1 x 10-inch Tube Combo Amplifier - Blue Rhino Hide Tolex with Silver Grille
This month’s mod Dan’s uses a 500k linear pot, a 1.5H inductor (L) with a 0.039 µF (39nF) cap (C), and a 220k resistor (R) in parallel.
Don’t let the name fool you, this is a purely passive device—nothing is going to be boosted. In general, you can’t increase anything with passive electronics that isn’t already there. Period. But you can reshape the tone by deemphasizing certain frequencies and making others more prominent (so … “boost” in guitar marketing language). Removing highs makes lows more apparent, and vice versa. In addition, the use of inductors (which create the magnetic field in a guitar circuit) and capacitors will create resonant peaks and valleys (bandpasses and notches), further coloring the overall tone. This type of bandpass filter only allows certain frequencies to pass through, while others are blocked, and it all works at unity gain.
“You can’t increase anything with passive electronics that isn’t already there … but you can reshape the tone by deemphasizing certain frequencies and making others more prominent.”
All the systems I mentioned above are doing more or less the same thing, using different approaches and slightly different component values. They are all meant to be updated tone controls. Our common tone circuit is usually a variable low-pass filter (aka treble-cut filter), which only allows the low frequencies to pass through, while the high frequencies get sent to ground via the tone cap. Most of these systems are LCR networks, which means that there is not only a capacitor (C), like on our standard tone controls, but also an inductor (L) and a resistor (R).
In general, all these systems are meant to control the midrange in order to scoop the mids, creating a mid-cut. This can be a cool sounding option, e.g. on a Strat for that mid-scooped neck and middle tone.
Dan Torres offered his “midrange kit” via an internet shop that is no longer online, same with his business website. The Torres design is a typical LCR network and looks like the illustration at the top of this column.
Dan’s design uses a 500k linear pot, a 1.5H inductor (L) with a 0.039 µF (39nF) cap (C), and a 220k resistor (R) in parallel. Let’s break down the parts piece by piece:
Any 500k linear pot will do the trick, in one of the rare scenarios where a linear pot works better in a passive guitar system than an audio pot.
(C) 0.039µF cap: This is kind of an odd value. Keeping production tolerances of up to 20 percent in mind, any value that is close will do, so you can use any small cap you want for this. I would prefer a small metallized film cap, and any voltage rating will do. If you want to stay as close as possible to the original design, use any 0.039 µF low-tolerance film cap.
(L) 1.5H inductor: The original design uses a Xicon 42TL021 inductor, which is easy to find and fairly priced. This one is also used in the Bill Lawrence Q-Filter design, the Gibson standard Varitone, and many other systems like this. It’s very small, so it will fit in virtually every electronic compartment of a guitar. It has a frequency range of 300 Hz up to 3.4 kHz, with a primary impedance of 4k ohms (that’s the one we want to use) and a secondary impedance of 600 ohms. Snip off the three secondary leads and the center tap of the primary side and use the two remaining outer primary leads; the primary side is marked with a “P.” On the pic, you can see the two leads you need marked in red, all other leads can be snipped off. You can connect the two remaining leads to the pot either way; it doesn’t matter which of them is going to ground when using it this way.
Drawing courtesy of singlecoil.com
(R) 220k: use a small axial metal film resistor (0.25 W), which is easy to find and is the quasi-standard.
Other designs use slightly different part values—the Bill Lawrence Q-filter has a 1.8H L, 0.02 µF C and 8k R, while the old RA Gresco Tone Qube from the ’80s has a 1.5H L, 0.0033 µF C, and a 180k R, so this is a wide field for experimentation to tweak it for your personal tone.
This mid-cut system can be put into any electric guitar not only as a master tone, but also together with a regular tone control or something like the Fender Greasebucket, or it can be assigned only to a certain pickup. It can be a great way to enhance your sonic palette, so give it a try.
That’s it! Next month, we’ll take a deeper look into how to fight feedback on a Telecaster. It’s a common issue, so stay tuned!
Until then ... keep on modding!
